0463-0-15-80-21-80-04-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 0463-0-15-80-21-80-04-0

0463-0-15-80-21-80-04-0: DescriptionPCB Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size105KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

0463-0-15-80-21-80-04-0 Overview

PCB Terminal, ROHS COMPLIANT

0463-0-15-80-21-80-04-0 Parametric

Parameter Name	Attribute value
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	0463
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

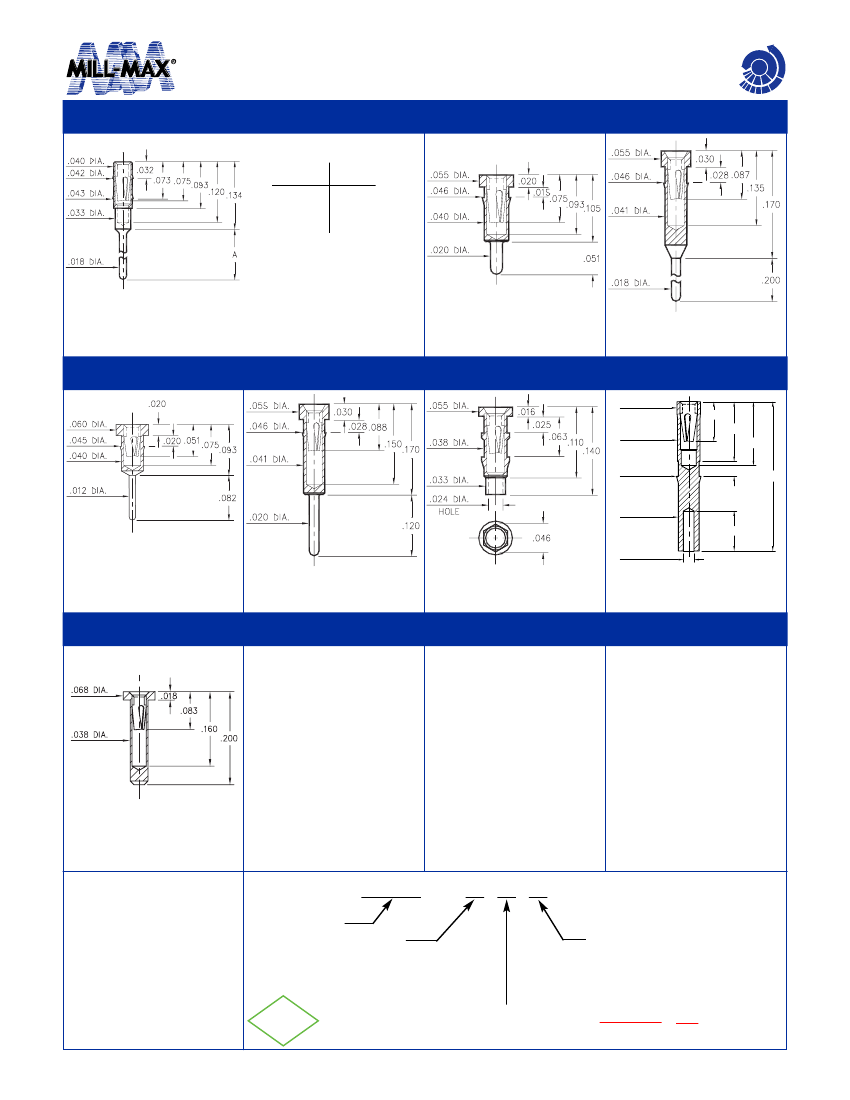

PIN RECEPTACLES

for .015” - .022” diameter pins

(see specific contact range on pages 206 & 207)

CHI

PINS

0489

Basic Part

Number

Length

0463

0489-0

0489-1

0489-2

.102

.199

.299

0466

0489-X-15-XX-11-XX-04-0

Press-fit in .041 mounting hole.

0463-0-15-XX-21-XX-04-0

Press-fit in .043 mounting hole.

shell is Phos. Br. Alloy 544 (B2)

0466-0-15-XX-21-XX-04-0

Press-fit in .043 mounting hole.

shell is Phos. Br. Alloy 544 (B2)

7491

0462

0560

5557

7491-0-15-XX-X1-XX-04-0

Press-fit in .042 mounting hole

0462-0-15-XX-X1-XX-04-0

Press-fit in .043 mounting hole

0560-0-15-XX-11-XX-10-0

Hex press-fit in .043 plated

thru hole

5557-0-19-XX-21-XX-10-0

Wire termination and

Press-fit in .043 hole

5552

5552-0-15-XX-05-XX-10-0

Solder mount in .040 min.

mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - XX - XX - XX - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200μ” TIN/LEAD OVER NICKEL

200μ” TIN OVER NICKEL

10μ” GOLD OVER NICKEL

SPECIFY CONTACT FINISH:

100μ” TIN/LEAD OVER NICKEL

100μ” TIN OVER NICKEL

30μ” GOLD OVER NICKEL

SELECT CONTACT

#05, #11 or #21

CONTACT (DATA ON PAGE 206 & 207)

w w w. m i l l - m a x . c o m

129

516-922-6000
