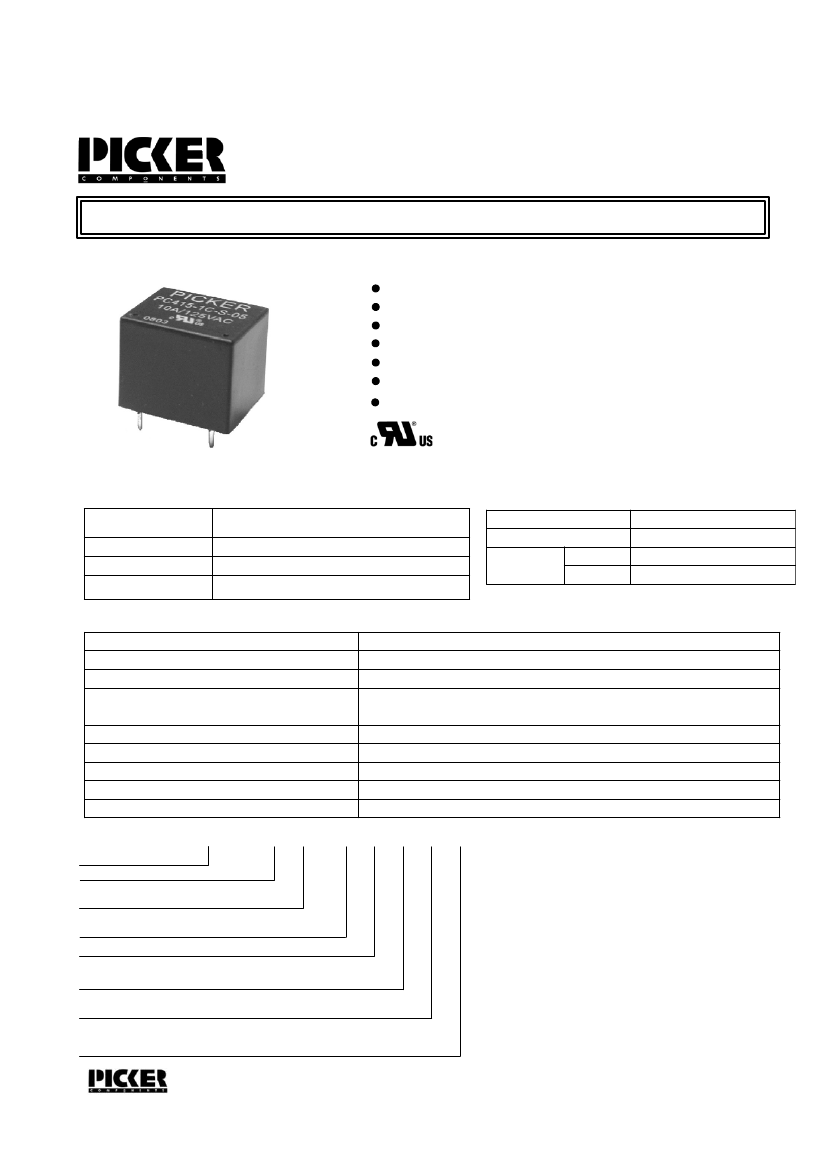

15 Amp Subminature PCB Power Relay
PC415
FEATURES
10 or 15 Amp continous contact capacity
1 Form A, 1 form B & 1form C contact forms
Most popular package and footprint
Class "B" insulation standard
Class "F" insulation available
Very economically priced
Sealed, immersion cleanable
File # E93379
UL/CSA RATINGS
Load Type
Standard
High Power
Motor
All Forms
All Contacts
10 Amps @ 120 VAC & 28 VDC, 7 Amps @ 240 VAC
15 Amps @ 120 VAC & 28 VDC, 10 Amps @ 240 VAC
1/3 HP at 125 VAC, 1/2 HP at 240 VAC
CONTACT DATA
Material
Initial Contact Resistance
Service Life
Mechanical
Electrical
AgCdO (Silver Cadmium Oxide)
100 milliohms max @ 0.1A, 6VDC
1 X 10
7
Operations
1 X 10
5
Operations
CHARACTERISTICS
Operate Time
Release Time
Insulation Resistance
Dielectric Strength
Shock Resistance
Vibration Resistance
Power Consumption
Ambient Temperature Range
Weight
10 ms. Max.
5 ms. Max.
1,000 megohms min, at 500VDC, 50%RH
1500 Vrms, 1 min. between coil and contacts
750 Vrms, 1 min. between open contacts
10 g, 11ms, functional; 100 g, destructive
DA 1.5 mm, 10 - 55 Hz
.36 W
-55 to 85 C operating for class B, -40 to 130 C storage
9.5 grams approx.
ORDERING INFORMATION
Example:
Model
Amp Rating
Nil: 10 Amp, H: 15 Amp
Contact Form
1A: 1A, 1B: 1B, 1C: 1C
Coil Voltage
Enclosure
S: Sealed; C: Dust Cover
Insulation System
Nil: Class B, F: Class F
Contact Material
Nil: AgCdO, T: AgSnO, G: AgCdO + Gold Plate
3220 Commander Drive, Suite 102, Carrollton, Texas 75006
Sales: Call Toll Free (888)997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com
PC415 Rev D 3-29-04
PC415
H
-1A
-12
S
F
G
PAGE 1
PC415
COIL DATA
Resistance
Coil Voltage
3
5
6
9
12
24
_
ohms + 10%
25
70
100
225
400
1600
Must Operate
Voltage Max.
(VDC)
2.1
3.5
4.2
6.3
8.4
16.8
Must Release
Voltage Min.
(VDC)
0.3
0.5
0.6
0.9
1.2
2.4
4.8
PC415
Continuous
Voltage Max.
(VDC)
3.9
6.5
7.8
11.7
15.6
31.2
62.4
48
6400
33.6
Note: Custom coil voltages within the ranges shown are available on special order.
Dimensions in Inches (millimeters)
Side View
.767
(19.5)
End View
.602
(15.3)
Bottom View
PC Board Layout
.051
(1.3)
Wiring Diagram
.602
(15.3)
.472
(12.0)
.138
(3.5)
.078
(2.0)
.480
(12.2)
Contact Derating for DC loads
15
10
5
1
0
10
20 30 40 50 100
DC Contact Voltage.
PC415H
PC415
15
10
5
1
0
Contact Derating for AC loads
PC415H
PC415
Current in Amps
Current in Amps
10
20 30 40 50 100 200 360
AC Contact Voltage.
Notes:
Contact Form C shown
On Contact Forms A & B Unused Pins are Omitted
Tolerances + .010 unless otherwise noted
3220 Commander Drive, Suite 102, Carrollton, Texas 75006
Sales: Call Toll Free (888) 997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com
PAGE 2
