Z8609316PSC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z8609316PSC

Z8609316PSC: DescriptionMicrocontroller, 8-Bit, 16MHz, CMOS, PDIP40, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size786KB，18 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

Z8609316PSC Overview

Microcontroller, 8-Bit, 16MHz, CMOS, PDIP40, DIP-40

Z8609316PSC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IXYS
Parts packaging code	DIP
package instruction	DIP-40
Contacts	40
Reach Compliance Code	not_compliant
Is Samacsys	N
Has ADC	NO
Address bus width	16
bit size	8
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	52.325 mm
Number of I/O lines	32
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.24 mm
speed	16 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

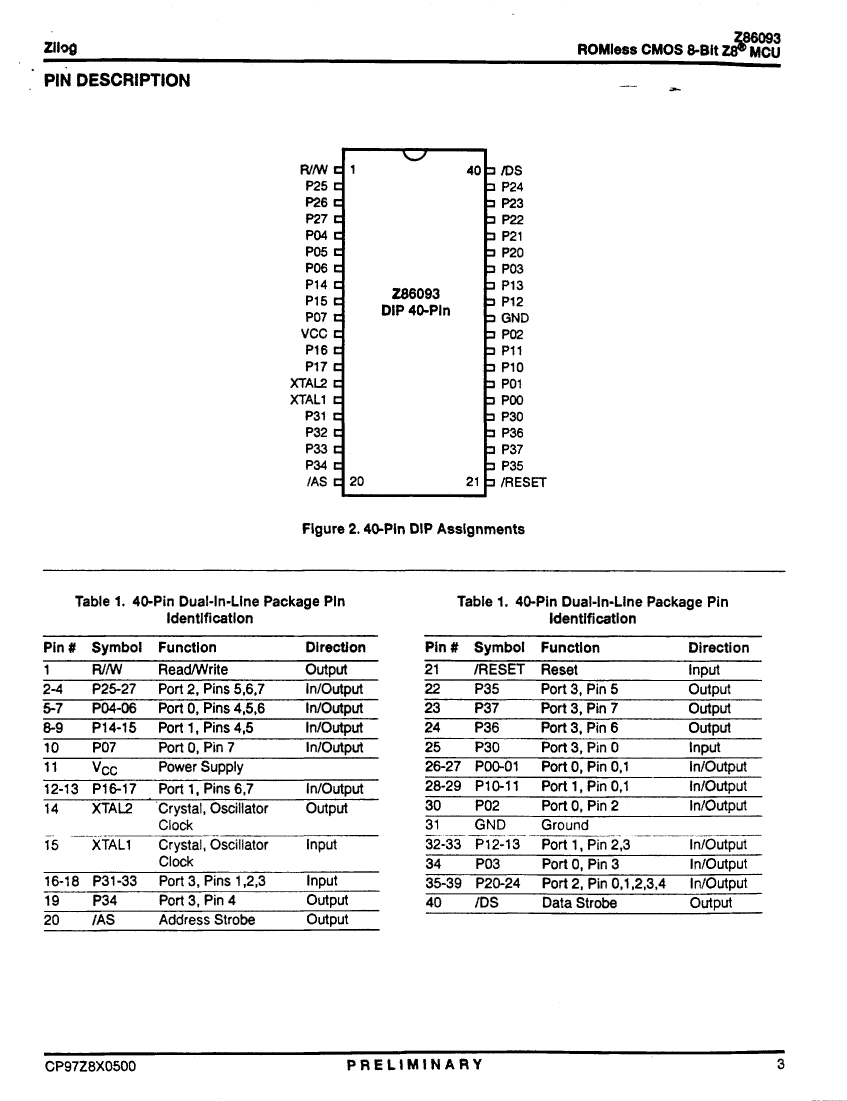

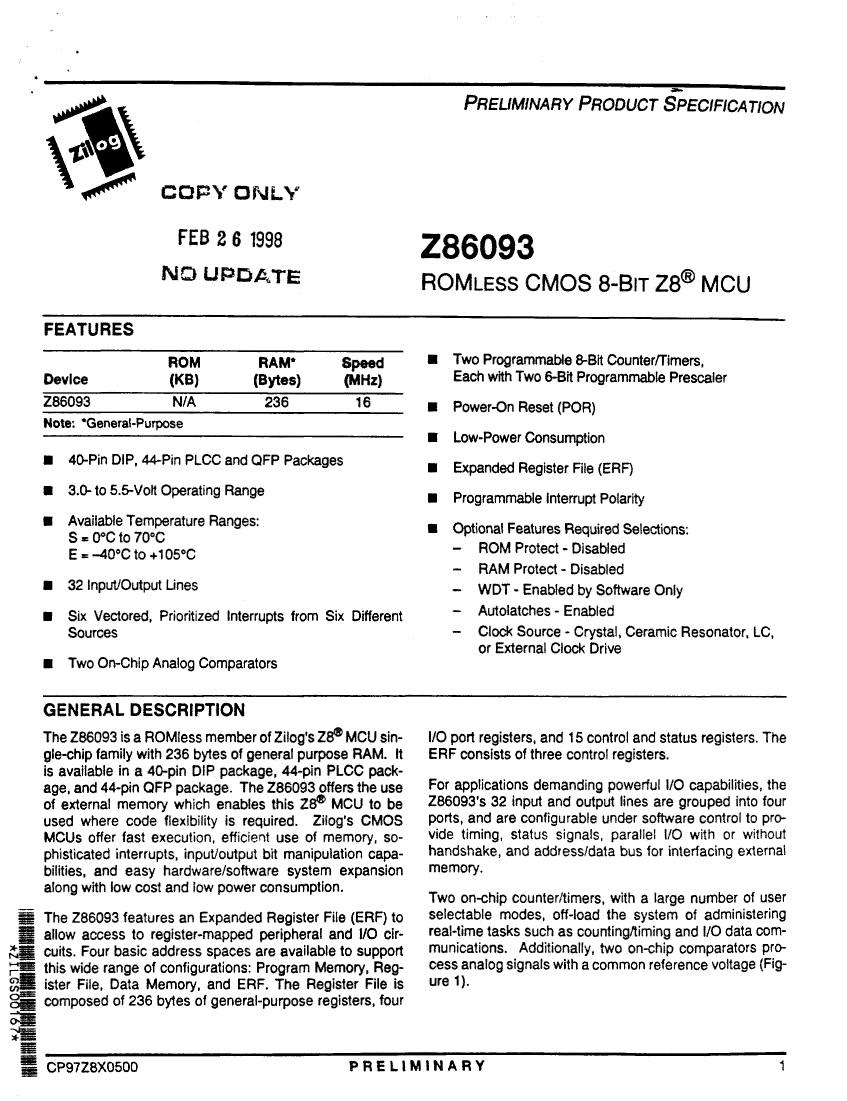

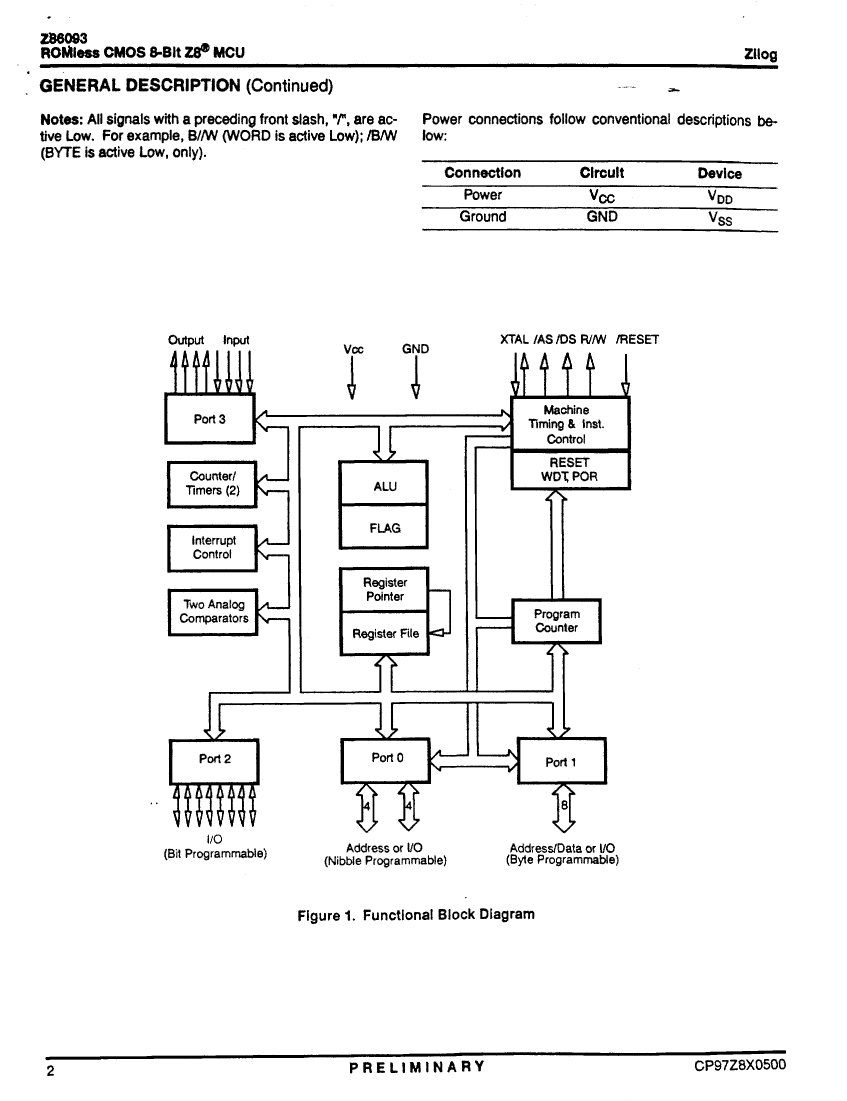

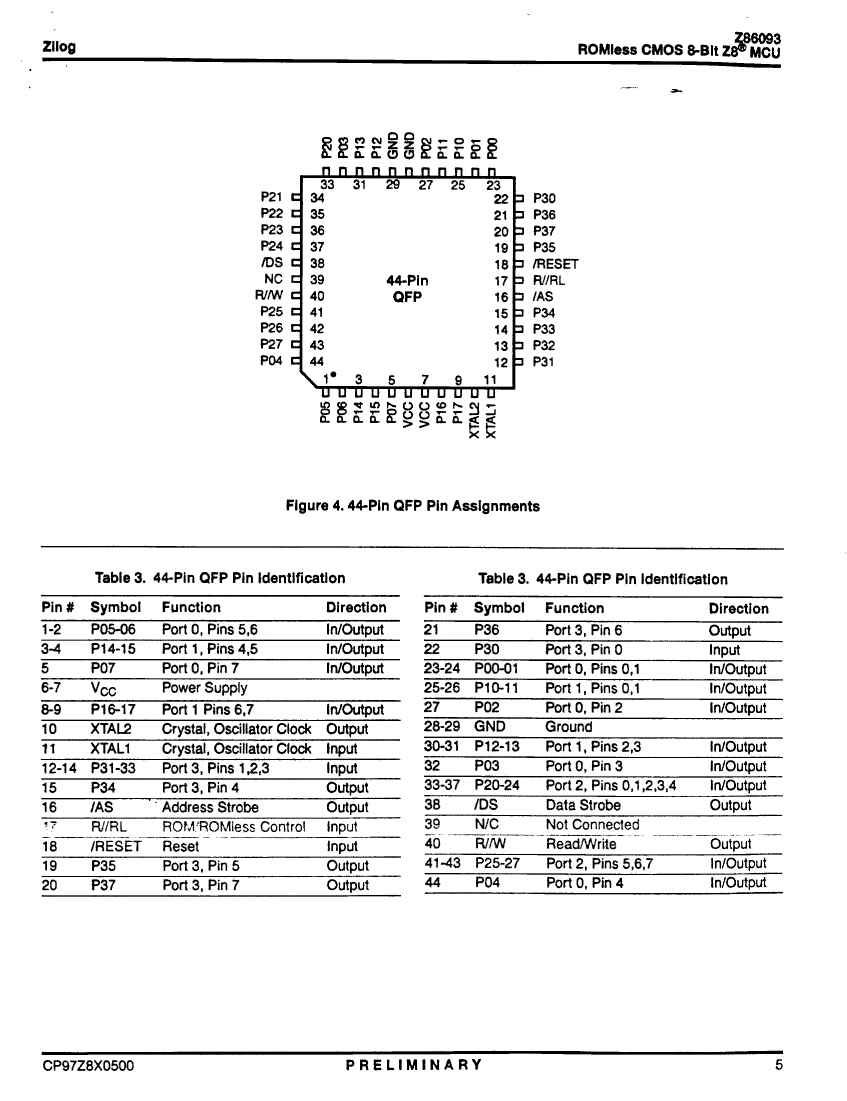

Preview

Download Datasheet

View All

Z8609316PSC Related Products

	Z8609316PSC	Z8609316PSG	Z8609316VSG	Z8609316VSC
Description	Microcontroller, 8-Bit, 16MHz, CMOS, PDIP40, DIP-40	Microcontroller, 8-Bit, 16MHz, CMOS, PDIP40, DIP-40	Microcontroller, 8-Bit, 16MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, 16MHz, CMOS, PQCC44, PLASTIC, LCC-44
Is it lead-free?	Contains lead	Lead free	Lead free	Contains lead
Maker	IXYS	IXYS	IXYS	IXYS
Parts packaging code	DIP	DIP	LCC	LCC
package instruction	DIP-40	DIP-40	PLASTIC, LCC-44	PLASTIC, LCC-44
Contacts	40	40	44	44
Reach Compliance Code	not_compliant	compliant	compliant	_compli
Has ADC	NO	NO	NO	NO
Address bus width	16	16	16	16
bit size	8	8	8	8
maximum clock frequency	16 MHz	16 MHz	16 MHz	16 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
External data bus width	8	8	8	8
JESD-30 code	R-PDIP-T40	R-PDIP-T40	S-PQCC-J44	S-PQCC-J44
JESD-609 code	e0	e3	e3	e0
length	52.325 mm	52.325 mm	16.5862 mm	16.5862 mm
Number of I/O lines	32	32	32	32
Number of terminals	40	40	44	44
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ	QCCJ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	225	225	225
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.24 mm	4.24 mm	4.57 mm	4.57 mm
speed	16 MHz	16 MHz	16 MHz	16 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	4.5 V	4.5 V
surface mount	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN	TIN	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	30	30	30
width	15.24 mm	15.24 mm	16.5862 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
