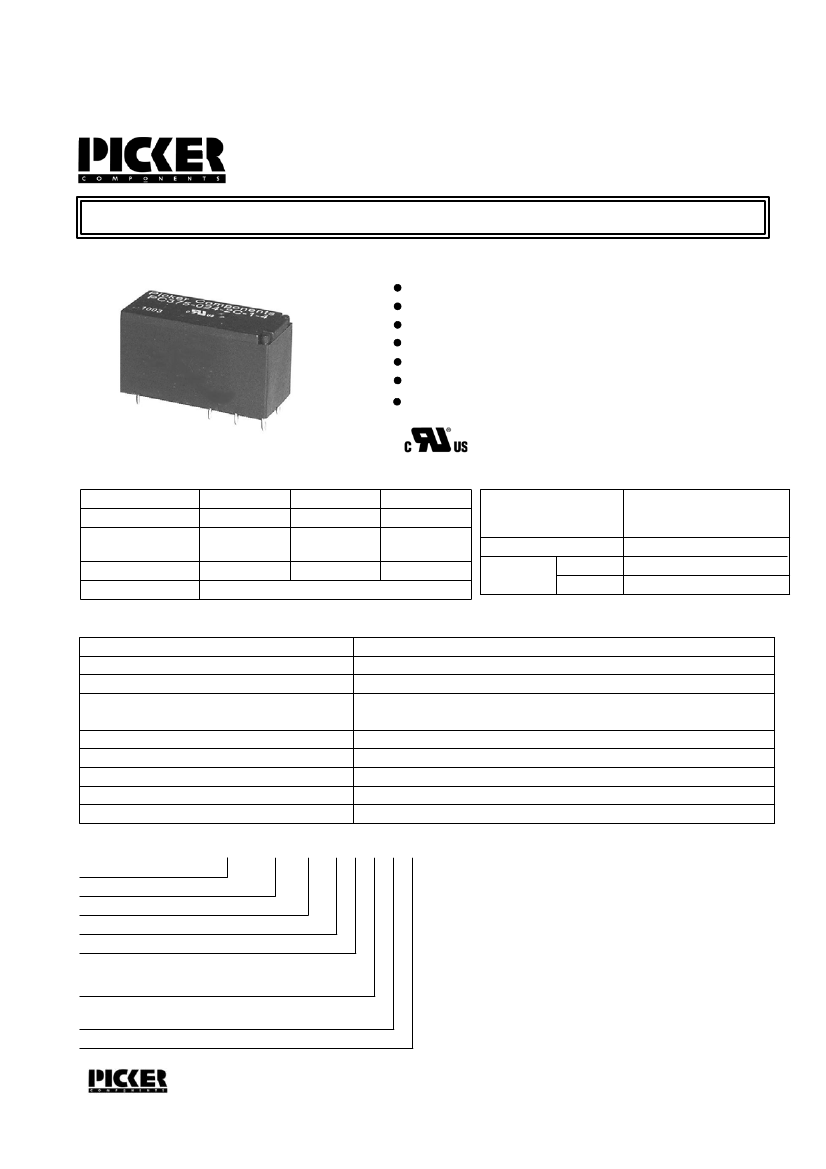

Low Profile Minature PCB Power Relay

PC375

FEATURES

Up to16 Amp contact capacity

Up to a full one horsepower at 250 VAC

5 KV dielectric strength between coil and contacts

1 Form A to 2 form C contact forms available

Low profile design, .62 in. tall

Meets UL 873 spacing

Class F (155 degrees C) insulation available

File # E93379

UL/CUR RATINGS

Version

General Purpose

Motor Load

Max Switching Power

Max Switching Voltage

1 and 2

12 A / 277 VAC

16 A / 277 VAC

8 A / 277 VAC

Material

Initial Contact Resistance

Mechanical

Service Life

Electrical

CONTACT DATA

AgCdO (Silver Cadmium Oxide)

AgNi 10 (Silver nickle 10)

AgSnO (Silver Tin Oxide)

50 milliohms max @ 1A, 6VDC

1 X 10

Operations

1 X 10

Operations

1/2 HP / 250 VAC 1 HP / 250 VAC 1/2 HP / 250 VAC

1/3 HP / 125 VAC 1/3 HP / 125 VAC 1/4 HP / 125 VAC

4000 VA

3000 VA

440 VAC / 125 VDC

2000 VA

CHARACTERISTICS

Operate Time

Release Time

Insulation Resistance

Dielectric Strength

Shock Resistance

Vibration Resistance

Power Consumption

Ambient Temperature Range

Weight

7 ms. Max.

3 ms. Max.

1,000 megohms min, at 500VDC, 50%RH

5000 Vrms, 1 min. between coil and contacts

1000 Vrms, 1 min. between open contacts

2500 Vrms, 1 min. between contact poles

10 g, 11ms, functional; 100 g, destructive

DA 2 mm, 10-50 Hz

0.4 Watts

-40 to 70 C, -40 to 130 C storage

13.5 grams approx.

ORDERING INFORMATION

Example: PC375

Model

Contact Form

Coil Voltage

Enclosure S: Sealed; C: Dust Cover

Version

1: 1 Pole, 12 A; 3.5 mm 2: 1 Pole, 12 A; 5 mm

3: 1 Pole, 16 A; 5 mm 4: 2 Pole, 8 A; 5 mm

Contact Material

Nil: AgCdO, T: AgSnO, N: AgNi 10

Insulation System: Nil: Class B, F: Class F

3220 Commander Drive, Suite 102, Carrollton, Texas 75006

Sales: Call Toll Free (888)997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com

PC375 Rev B 12-4-02

-1C

-12 S

3 T

1A, 1B, 1C, 2A, 2B, or 2C

PAGE 1
