000-6120-37R-LF1 datasheet, PDF

000-6120-37R-LF1: DescriptionDatacom Transformer, ATM; 100 BASE-TX; TP-PMD; LAN Application(s), 1CT:1; 1CT:1CT, PLCS-16; CategoryPower management transformer; File Size142KB，1 Pages; ManufacturerWurth Elektronik; Environmental Compliance

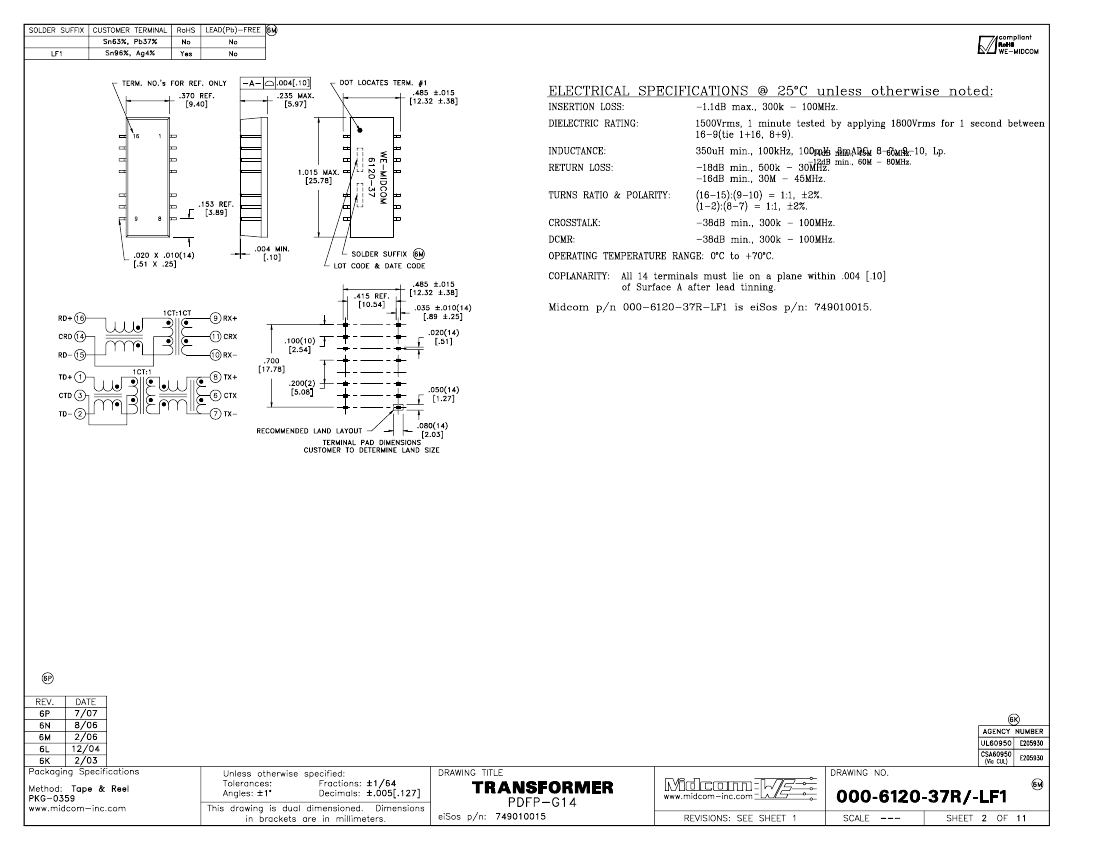

Download Datasheet Parametric Compare View All

000-6120-37R-LF1 Overview

Datacom Transformer, ATM; 100 BASE-TX; TP-PMD; LAN Application(s), 1CT:1; 1CT:1CT, PLCS-16

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Wurth Elektronik
package instruction	PLCS-16
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	DESIGNED FOR USE WITH INTEL, LEVEL ONE, ICS, TDK, SEEQ, AND LUCENT TRANSCEIVERS
application	ATM; 100 BASE-TX; TP-PMD; LAN
high	5.969 mm
Insulation voltage	1500 V
JESD-609 code	e2
length	25.527 mm
Manufacturer's serial number	000-6120-37R
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
physical size	25.527mm X 9.398mm X 5.969mm
Primary inductance	350 µH
surface mount	YES
Terminal surface	Tin/Silver (Sn/Ag)
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1; 1CT:1CT
width	9.398 mm
Base Number Matches	1

	000-6120-37R-LF1	000-6120-37R
Description	Datacom Transformer, ATM; 100 BASE-TX; TP-PMD; LAN Application(s), 1CT:1; 1CT:1CT, PLCS-16	Datacom Transformer, ATM; 100 BASE-TX; TP-PMD; LAN Application(s), 1CT:1; 1CT:1CT, PLCS-16
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	conform to	incompatible
Maker	Wurth Elektronik	Wurth Elektronik
package instruction	PLCS-16	PLCS-16
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Is Samacsys	N	N
Other features	DESIGNED FOR USE WITH INTEL, LEVEL ONE, ICS, TDK, SEEQ, AND LUCENT TRANSCEIVERS	DESIGNED FOR USE WITH INTEL, LEVEL ONE, ICS, TDK, SEEQ, AND LUCENT TRANSCEIVERS
application	ATM; 100 BASE-TX; TP-PMD; LAN	ATM; 100 BASE-TX; TP-PMD; LAN
high	5.969 mm	5.969 mm
Insulation voltage	1500 V	1500 V
JESD-609 code	e2	e0
length	25.527 mm	25.527 mm
Manufacturer's serial number	000-6120-37R	000-6120-37R
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
method of packing	TAPE & REEL	TAPE & REEL
physical size	25.527mm X 9.398mm X 5.969mm	25.527mm X 9.398mm X 5.969mm
Primary inductance	350 µH	350 µH
surface mount	YES	YES
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Lead (Sn/Pb)
Transformer type	DATACOM TRANSFORMER	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1; 1CT:1CT	1CT:1; 1CT:1CT
width	9.398 mm	9.398 mm
Base Number Matches	1	1
