081.245: DescriptionDatacom Transformer, ISDN Application(s); CategoryPower management transformer; File Size86KB，2 Pages; ManufacturerKaschke Components GmbH

Download Datasheet Parametric Compare View All

081.245 Overview

Datacom Transformer, ISDN Application(s)

081.245 Parametric

Parameter Name	Attribute value
Maker	Kaschke Components GmbH
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	LENGTH DIMENSION INCLUDES TERMINAL ALSO
application	ISDN
high	14 mm
length	22 mm
Manufacturer's serial number	081.245
Installation features	THROUGH HOLE MOUNTED
Number of functions	1
physical size	22mm X 17.78mm X 14mm
Primary inductance	7600 µH
surface mount	NO
Transformer type	DATACOM TRANSFORMER
width	17.78 mm
Base Number Matches	1

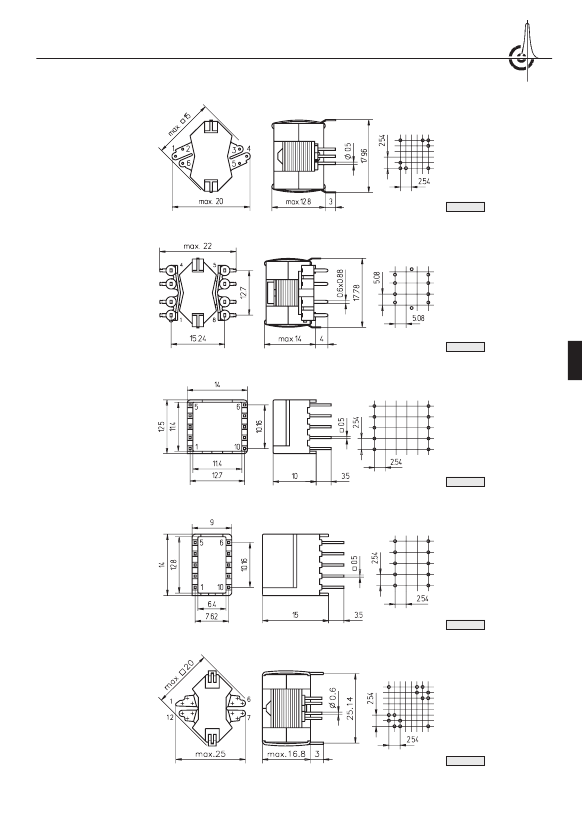

Preview

Download Datasheet

View All

174

7,86

13,30

14,70

7,60

12,50

7,90

12,32

14,50

Hauptinduktivität

±10%

[mH]

main inductance

±10%

[mH]

100

1,2

2,0

1,5

3,0

2,0

1,5

2,0

2,8

5,2

3,8

2,4

1,5

1,9

2,6

1,8

3,6

5,2

3,8

2,4

0,8

1,3

4,1

2,7

0,66:0,66/1

1,6:1,6/1:1

0,66:0,66/1

1/2

0,66:0,66/1

1,6:1,6/1:1

1,25:1,25/1

081.262

081.232

081.240

081.245

097.511

097.611

115.249

115.254

115.272

Bestellnummer

order no.

Gleichstromwiderstand IC-Seite

Richtwerte (in Reihe) [Ω]

ohmic resistance IC side

approx. values (in series) [Ω]

Gleichstromwiderstand Leitungsseite

Richtwerte (in Reihe) [Ω]

ohmic resistance line side

approx. values (in series) [Ω]

Pr fspannung IC-Seite - Leitungsseite [kV

eff.

]

test voltage IC side - line side [kV

eff.

]

bersetzungsverhältnis Leitung / IC

transformation ratio line side / IC side

zulässiger Speisegleichstrom der

leitungsseitigen Wicklungen [mA]

admissable DC supply current of windings

on line side [mA]

ISDN-Induktivitäten

ISDN Inductors

-Schnittstellenübertrager

interface transformer

In order to select an appropriate transformer please see our brochure In-

ductive Components for ISDN .

Zur Auswahl eines geeigneten Übertragers fordern Sie bitte unsere Bro-

schüre “ISDN-Induktivitäten” an.

081.245 Related Products

	081.245	115.272	081.262	115.249	115.254	081.232	081.240	097.511	097.611
Description	Datacom Transformer, ISDN Application(s)	Datacom Transformer, ISDN Application(s)	Datacom Transformer, ISDN Application(s)	Datacom Transformer, ISDN Application(s)	Datacom Transformer, ISDN Application(s)	Datacom Transformer, ISDN Application(s)	Datacom Transformer, ISDN Application(s)	Datacom Transformer, ISDN Application(s)	Datacom Transformer, ISDN Application(s)
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	ISDN	ISDN	ISDN	ISDN	ISDN	ISDN	ISDN	ISDN	ISDN
high	14 mm	16.8 mm	12.8 mm	16.8 mm	16.8 mm	14 mm	14 mm	15 mm	10 mm
length	22 mm	25 mm	20 mm	25 mm	25 mm	22 mm	22 mm	14 mm	14 mm
Manufacturer's serial number	081.245	115.272	081.262	115.249	115.254	081.232	081.240	097.511	097.611
Installation features	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED
Number of functions	1	1	1	1	1	1	1	1	1
physical size	22mm X 17.78mm X 14mm	25mm X 20mm X 16.8mm	20mm X 15mm X 12.8mm	25mm X 20mm X 16.8mm	25mm X 20mm X 16.8mm	22mm X 17.78mm X 14mm	22mm X 17.78mm X 14mm	14mm X 9mm X 15mm	14mm X 12.5mm X 10mm
Primary inductance	7600 µH	14500 µH	7860 µH	7900 µH	12320 µH	13300 µH	14700 µH	12500 µH	12500 µH
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Transformer type	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER
width	17.78 mm	20 mm	15 mm	20 mm	20 mm	17.78 mm	17.78 mm	9 mm	12.5 mm
Maker	Kaschke Components GmbH	Kaschke Components GmbH	Kaschke Components GmbH	-	-	Kaschke Components GmbH	Kaschke Components GmbH	Kaschke Components GmbH	Kaschke Components GmbH
Base Number Matches	1	1	1	1	1	-	-	-	-
