08002GOD datasheet, PDF - EEWORLD Datasheet

08002GOD: DescriptionSilicon Controlled Rectifier, 125A I(T)RMS, 200V V(DRM), 200V V(RRM), 1 Element, TO-208AD, TO-83, 2 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size103KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

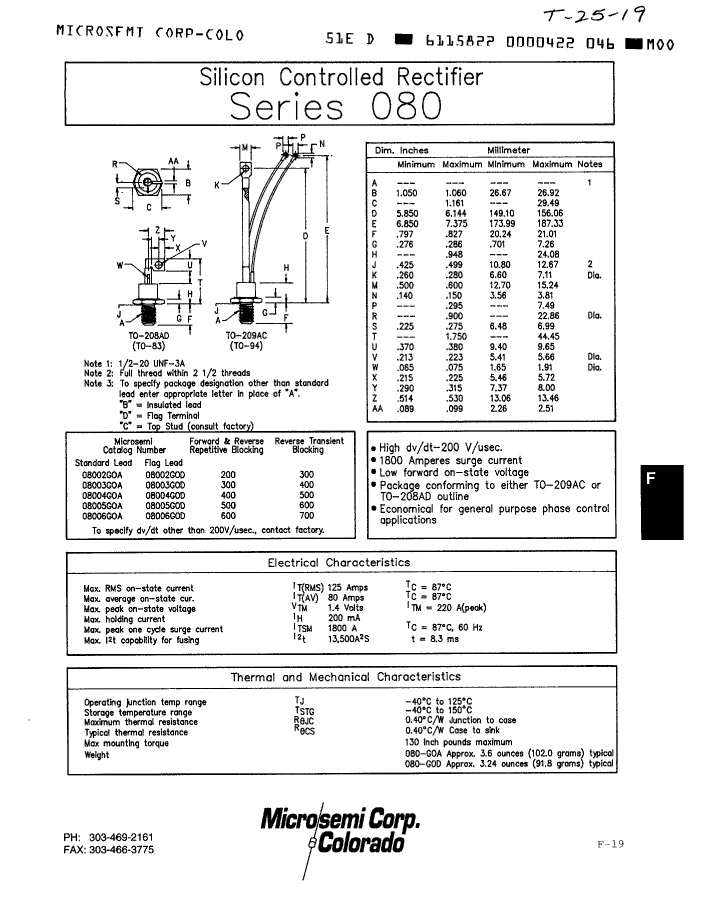

08002GOD Overview

Silicon Controlled Rectifier, 125A I(T)RMS, 200V V(DRM), 200V V(RRM), 1 Element, TO-208AD, TO-83, 2 PIN

Parameter Name	Attribute value
Maker	Microsemi
Parts packaging code	TO-83
package instruction	POST/STUD MOUNT, O-MUPM-D2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N

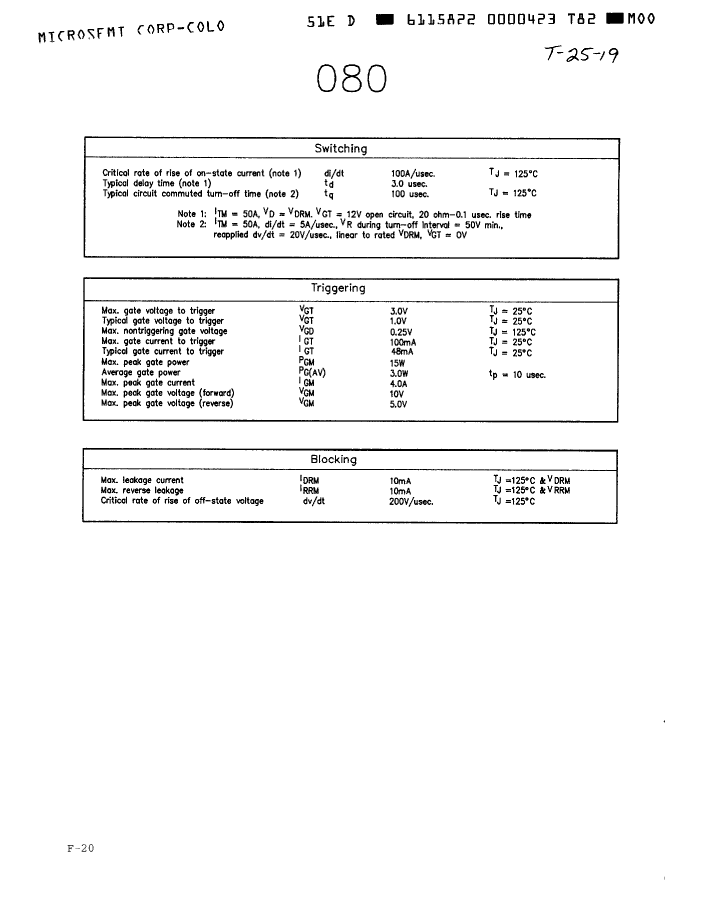

Nominal circuit commutation break time	100 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	100 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	200 mA
JEDEC-95 code	TO-208AD
JESD-30 code	O-MUPM-D2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified

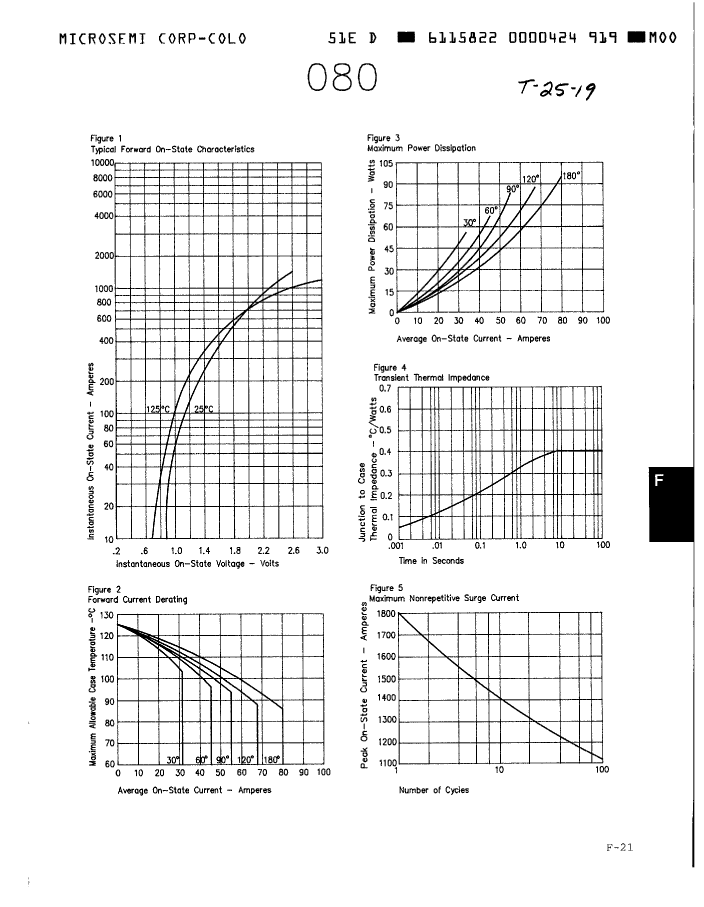

Maximum rms on-state current	125 A
Maximum repetitive peak off-state leakage current	10000 µA
Off-state repetitive peak voltage	200 V
Repeated peak reverse voltage	200 V
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	SOLDER LUG
Terminal location	UPPER
Trigger device type	SCR
Base Number Matches	1

	08002GOD	08002GOA
Description	Silicon Controlled Rectifier, 125A I(T)RMS, 200V V(DRM), 200V V(RRM), 1 Element, TO-208AD, TO-83, 2 PIN	Silicon Controlled Rectifier, 125A I(T)RMS, 200V V(DRM), 200V V(RRM), 1 Element, TO-209AC, TO-94, 3 PIN
Maker	Microsemi	Microsemi
Parts packaging code	TO-83	TO-94
package instruction	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-H3
Contacts	2	3
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Is Samacsys	N	N
Nominal circuit commutation break time	100 µs	100 µs
Configuration	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us
Maximum DC gate trigger current	100 mA	100 mA
Maximum DC gate trigger voltage	3 V	3 V
Maximum holding current	200 mA	200 mA
JEDEC-95 code	TO-208AD	TO-209AC
JESD-30 code	O-MUPM-D2	O-MUPM-H3
JESD-609 code	e0	e0
Number of components	1	1
Number of terminals	2	3
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified
Maximum rms on-state current	125 A	125 A
Maximum repetitive peak off-state leakage current	10000 µA	10000 µA
Off-state repetitive peak voltage	200 V	200 V
Repeated peak reverse voltage	200 V	200 V
surface mount	NO	NO
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	SOLDER LUG	HIGH CURRENT CABLE
Terminal location	UPPER	UPPER
Trigger device type	SCR	SCR
Base Number Matches	1	1
