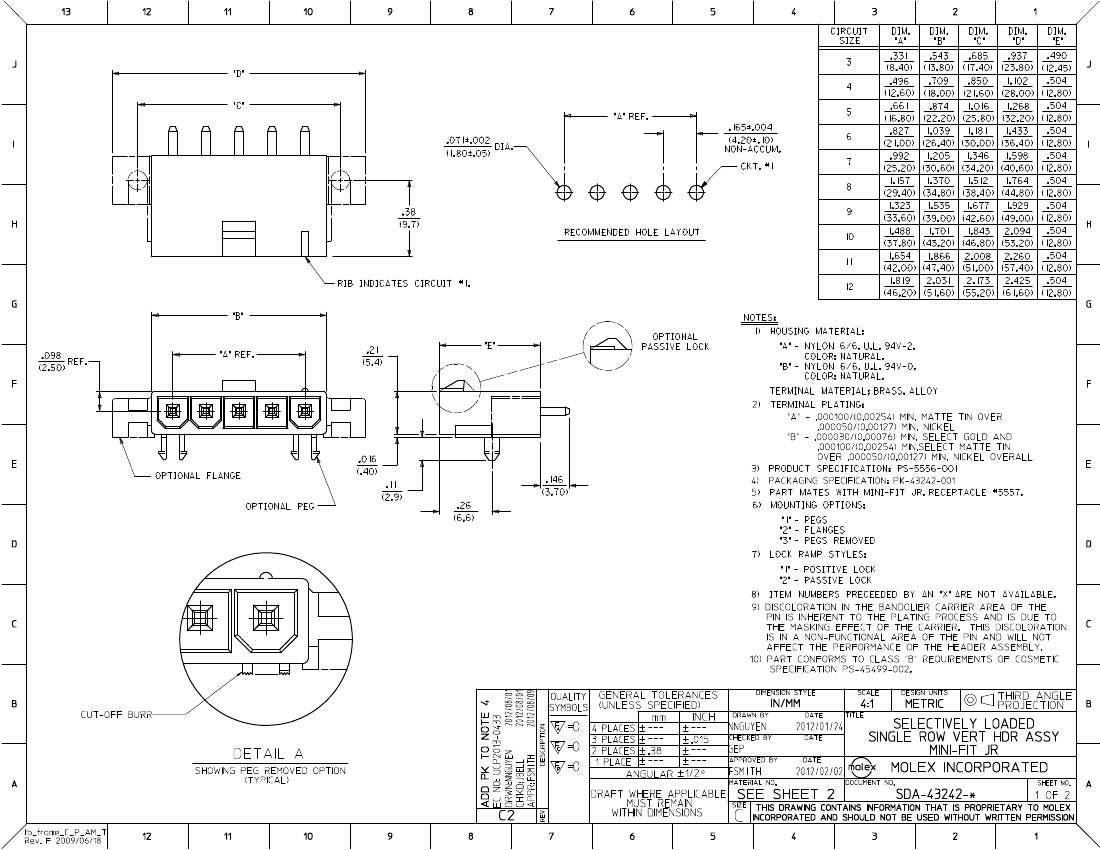

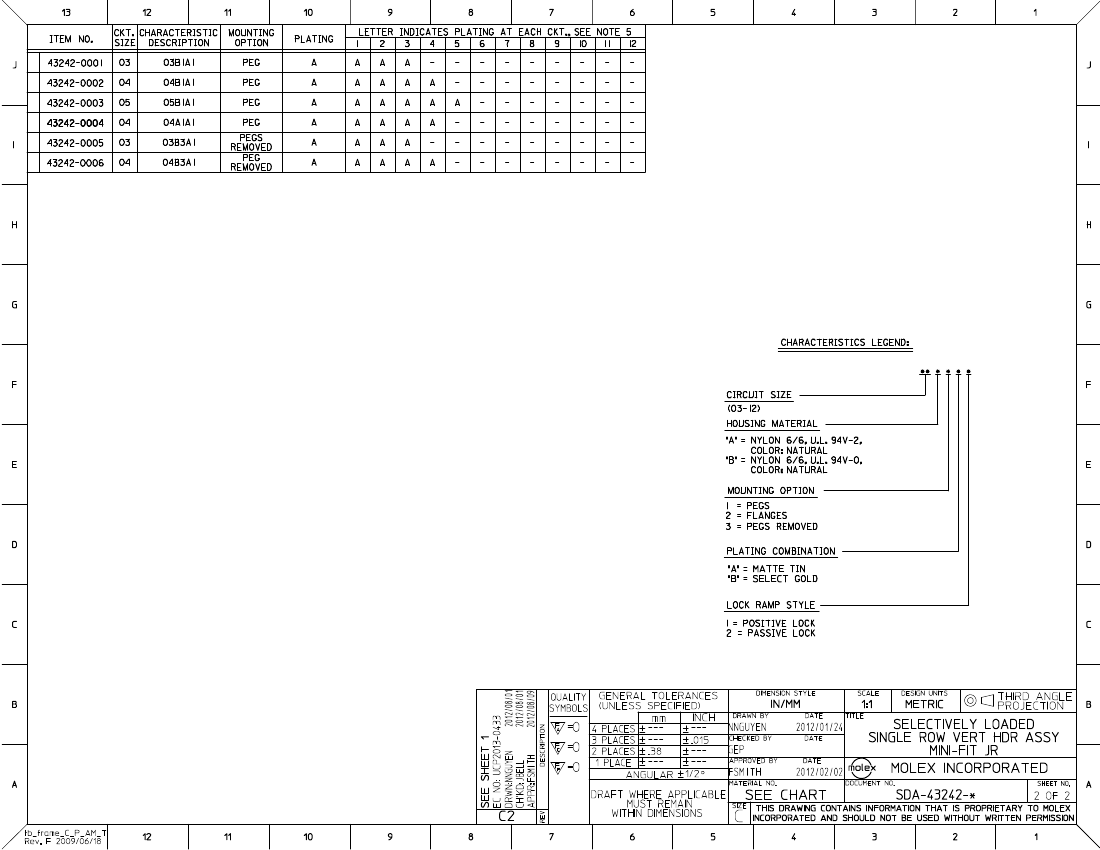

43242-0004: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), 0.165 inch Pitch, Solder Terminal, Locking, Natural Insulator; CategoryThe connector The connector; File Size174KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

43242-0004 Overview

Board Connector, 4 Contact(s), 1 Row(s), 0.165 inch Pitch, Solder Terminal, Locking, Natural Insulator

43242-0004 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
Board mount options	PEG
body width	0.226 inch
subject depth	0.504 inch
body length	1.102 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	2200VAC V
Durability	30 Cycles
maximum insertion force	14.6784 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
Manufacturer's serial number	43242
Plug contact pitch	0.165 inch
Installation option 1	LOCKING
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	4
Evacuation force-minimum value	.5004 N

Preview

Download Datasheet

View All

43242-0004 Related Products

	43242-0004	0432420005	0432420006	43242-0001	43242-0002	43242-0003
Description	Board Connector, 4 Contact(s), 1 Row(s), 0.165 inch Pitch, Solder Terminal, Locking, Natural Insulator	minifit JR. custom hdr. 3ckt	minifit JR. custom hdr. 4ckt	Board Connector, 3 Contact(s), 1 Row(s), 0.165 inch Pitch, Solder Terminal, Locking, Natural Insulator,	Board Connector, 4 Contact(s), 1 Row(s), 0.165 inch Pitch, Solder Terminal, Locking, Natural Insulator,	Board Connector, 5 Contact(s), 1 Row(s), 0.165 inch Pitch, Solder Terminal, Locking, Natural Insulator,
Maker	Molex	-	-	Molex	Molex	Molex
Reach Compliance Code	unknow	-	-	unknow	unknow	unknow
Board mount options	PEG	-	-	PEG	PEG	PEG
body width	0.226 inch	-	-	0.226 inch	0.226 inch	0.226 inch
subject depth	0.504 inch	-	-	0.49 inch	0.504 inch	0.504 inch
body length	1.102 inch	-	-	0.937 inch	1.102 inch	1.268 inch
Connector type	BOARD CONNECTOR	-	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI	-	-	SN ON NI	SN ON NI	SN ON NI
Contact completed and terminated	TIN OVER NICKEL	-	-	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact material	BRASS	-	-	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	-	-	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	-	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	2200VAC V	-	-	2200VAC V	2200VAC V	2200VAC V
Durability	30 Cycles	-	-	30 Cycles	30 Cycles	30 Cycles
maximum insertion force	14.6784 N	-	-	14.6784 N	14.6784 N	14.6784 N
Insulation resistance	1000000000 Ω	-	-	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	NATURAL	-	-	NATURAL	NATURAL	NATURAL
insulator material	NYLON	-	-	NYLON	NYLON	NYLON
Manufacturer's serial number	43242	-	-	43242	43242	43242
Plug contact pitch	0.165 inch	-	-	0.165 inch	0.165 inch	0.165 inch
Installation option 1	LOCKING	-	-	LOCKING	LOCKING	LOCKING
Installation type	BOARD	-	-	BOARD	BOARD	BOARD
Number of connectors	ONE	-	-	ONE	ONE	ONE
PCB row number	1	-	-	1	1	1
Number of rows loaded	1	-	-	1	1	1
Maximum operating temperature	105 °C	-	-	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-	-	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	100u inch	-	-	100u inch	100u inch	100u inch
polarization key	POLARIZED HOUSING	-	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	-	-	UL	UL	UL
reliability	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.146 inch	-	-	0.146 inch	0.146 inch	0.146 inch
Terminal pitch	4.191 mm	-	-	4.191 mm	4.191 mm	4.191 mm
Termination type	SOLDER	-	-	SOLDER	SOLDER	SOLDER
Total number of contacts	4	-	-	3	4	5
Evacuation force-minimum value	.5004 N	-	-	.5004 N	.5004 N	.5004 N
