1N4933G thru 1N4937G
Taiwan Semiconductor
CREAT BY ART

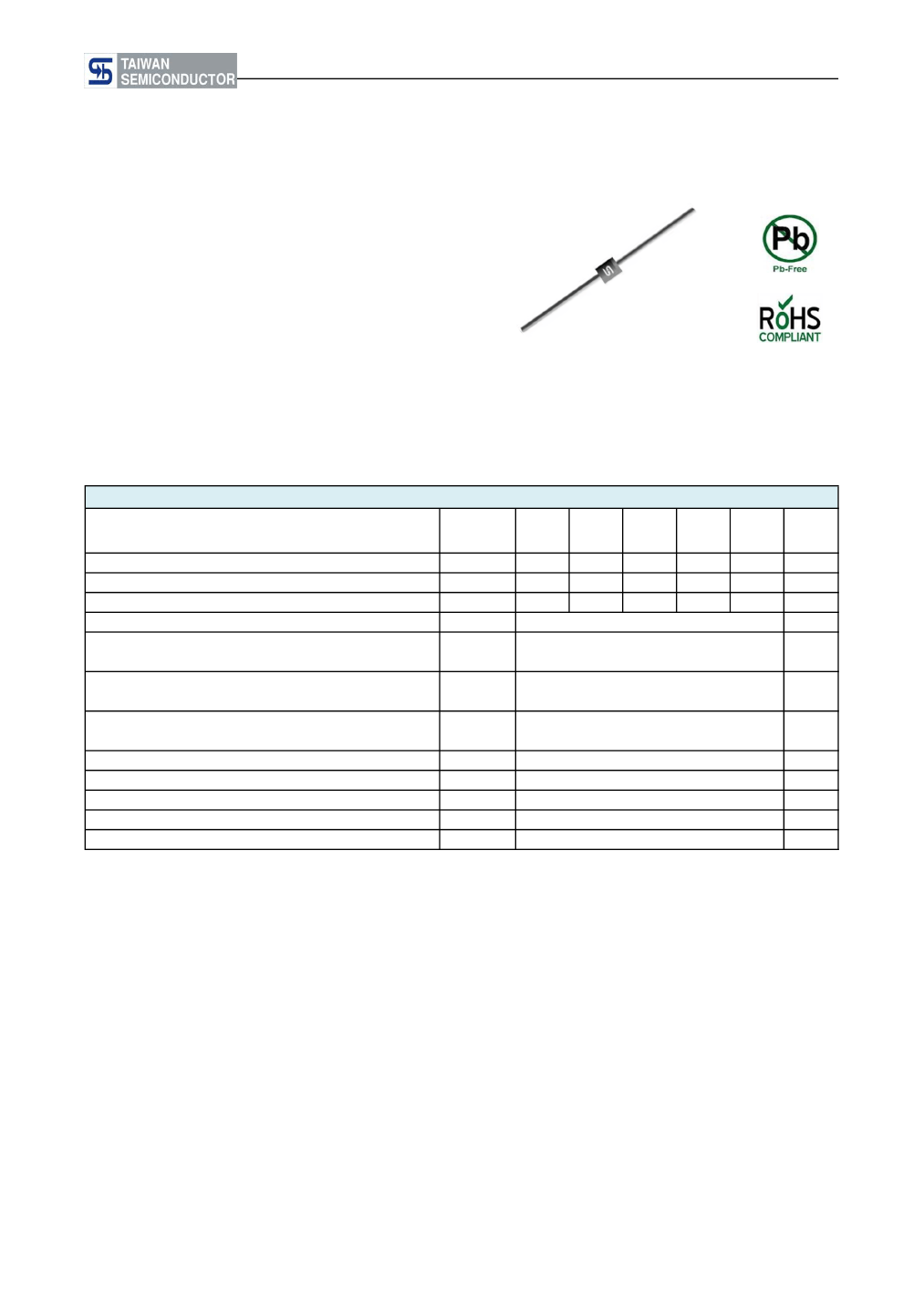

FEATURES
- High efficiency, Low VF
- High current capability
- High reliability
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Glass Passivated Fast Recovery Rectifiers
MECHANICAL DATA
Case:
DO-204AL (DO-41)
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Weight:
0.33 g (approximately)
DO-204AL (DO-41)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERSTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@1A
Maximum reverse current @ rated VR
T
J
=25
℃
T
J
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJA
T
J
T
STG
1N
50
35
50
1N
100
70
100
1N
200
140
200
1.0
30
1.2
5
150
200
10
65
- 55 to +150
- 55 to +150
O
1N
400
280
400
1N
600
420
600
4933G 4934G 4935G 4936G 4937G
UNIT
V
V
V
A
A
V
μA
ns
pF
C/W
O
O
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note1: Pulse Test with PW=300μs, 1% Duty Cycle
C
C
Note2: Reverse Recovery Test Conditions: IF=0.5A, IR=1.0A, IRR=0.25A
Note3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Document Number: DS_D1310003
Version: F13
1N4933G thru 1N4937G
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
PACKING
CODE
A0
1N493xG
(Note 1)
R0
R1
B0
Note 1: "x" defines voltage from 50V (1N4933G) to 600V (1N4937G)
GREEN COMPOUND
CODE
DO-41
Suffix "G"
DO-41
DO-41
DO-41
3,000 / Ammo box (52mm taping)
5,000 / 13" Paper reel
5,000 / 13" Paper reel (Reverse)
1,000 / Bulk packing
PACKAGE
PACKING
EXAMPLE
PREFERRED P/N PART NO.
1N4937G A0
1N4937G A0G
1N4937G
1N4937G
PACKING CODE
A0
A0
G
Green compound
GREEN COMPOUND
CODE
DESCRIPTION

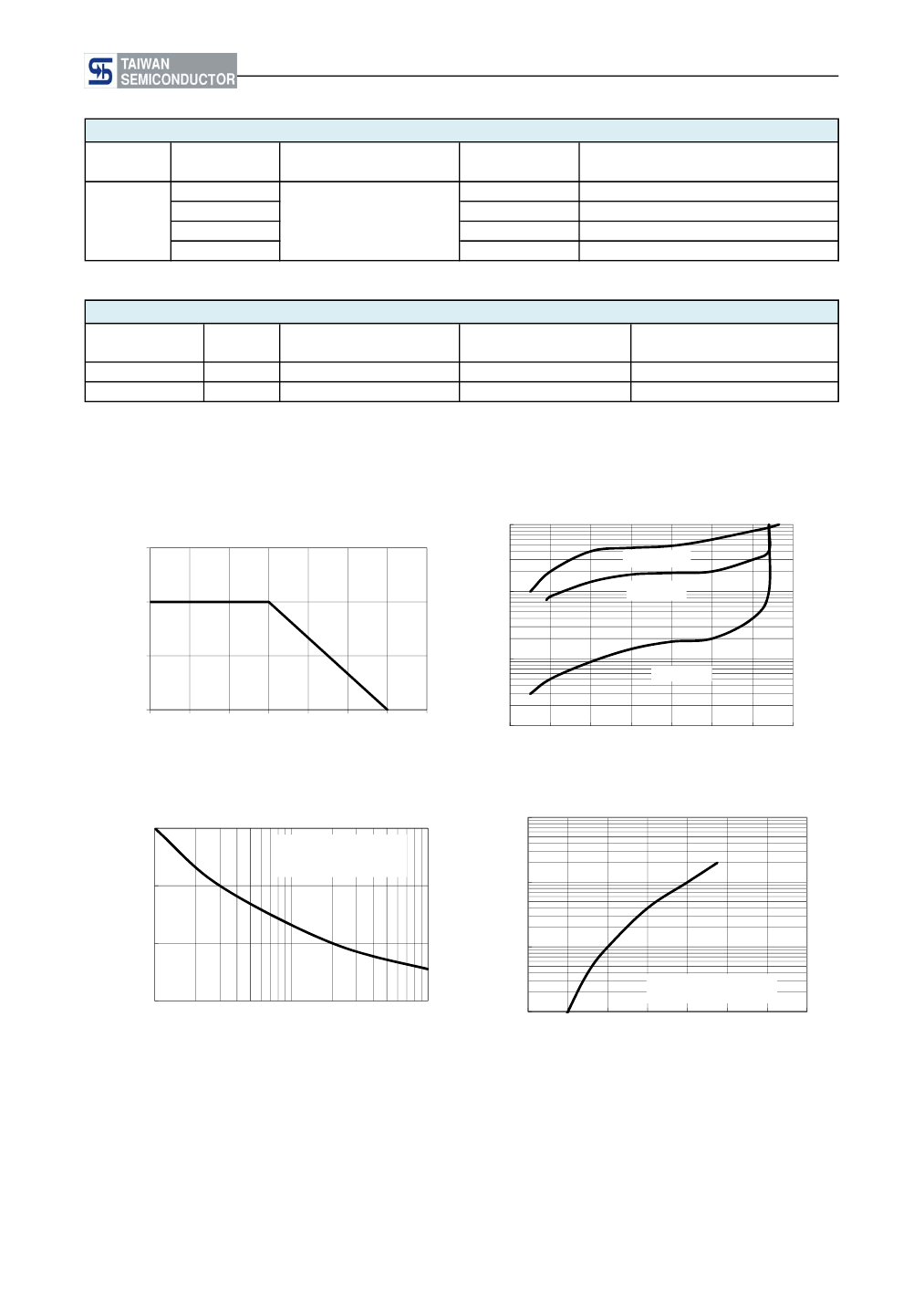

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
1.5
AVERAGE FORWARD RECTIFIED
CURRENT (A)
INSTANTANEOUS REVERSE CURRENT
(μA)
FIG.1- MAXMUM FORWARD CURRENT
DERATING CURVE
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
100
TJ=100℃
10
TJ=75℃
1
0.5
1
TJ=25℃
0
0
25
50
75
100
125
150
175
AMBIENT TEMPERATURE(
o
C)
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 3- MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
30
8.3ms Single Half Wave
JEDEC Method
20
INSTANTANEOUS FORWARD CURRENT
(A)
PEAK FORWARD SURGE CURRENT(A)
FIG. 4- TYPICAL FORWARD CHARACTERISTICS
100
10
10
1
Pulse Width=300μs
1% Duty Cycle
0.1
0.6
0.8
1
1.2
1.4
1.6
FORWARD VOLTAGE (V)
1.8
2
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
Document Number: DS_D1310003
Version: F13
1N4933G thru 1N4937G
Taiwan Semiconductor
CREAT BY ART

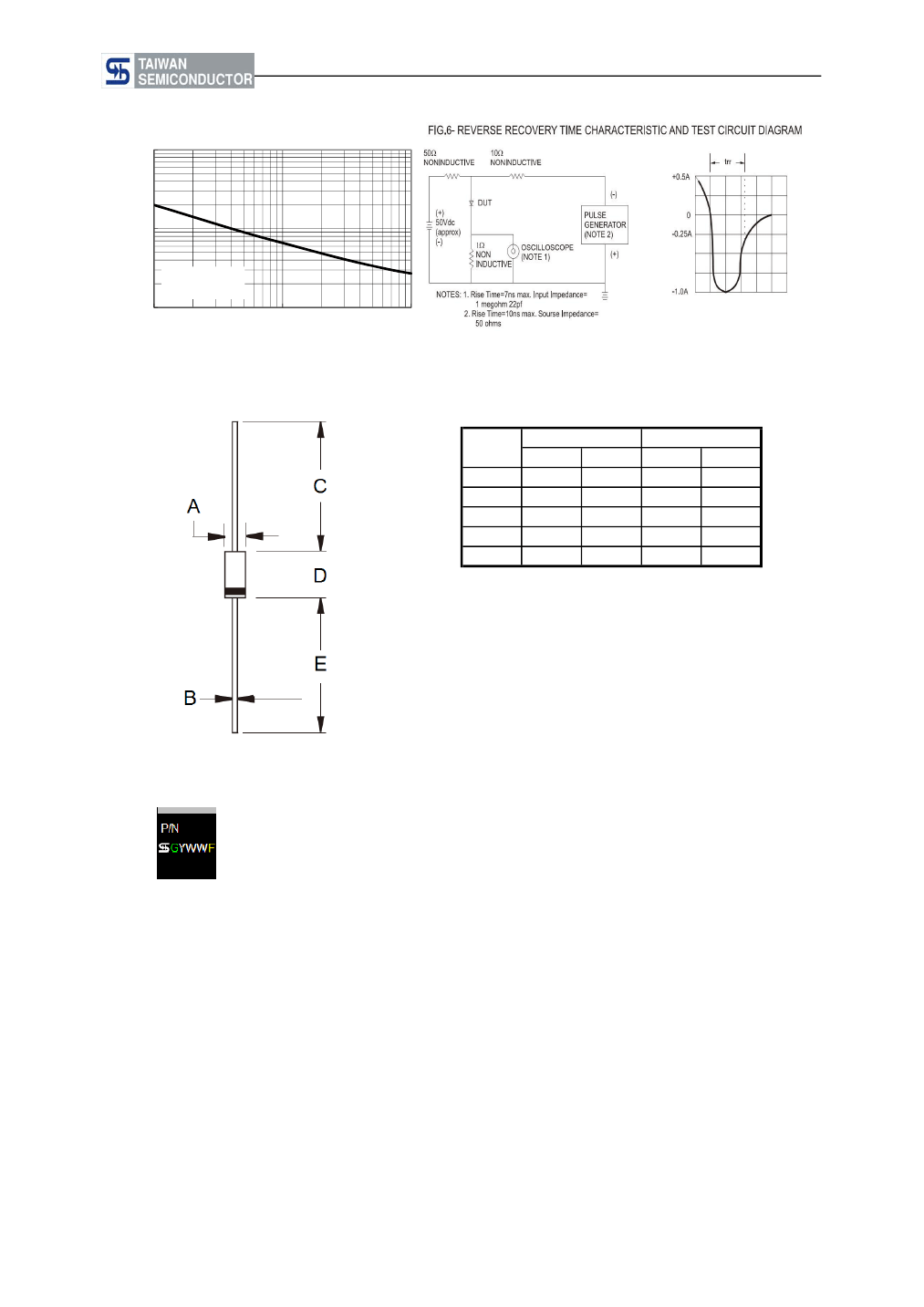

FIG. 5- TYPICAL JUNCTION CAPACITANCE
100
JUNCTION CAPACITANCE (pF)
10
f=1.0MHz
Vsig=50mVp-p
1
1
10
REVERSE VOLTAGE (V)
100
PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
2.00
0.71
25.40
4.20
25.40
Max
2.70
0.86
-
5.20
-
Unit (inch)
Min
0.079
0.028
1.000
0.165
1.000
Max
0.106
0.034
-
0.205
-
DIM.
A
B
C
D
E
MARKING DIAGRAM
P/N =
G=
YWW =
F=
Specific Device Code
Green Compound
Date Code
Factory Code
Document Number: DS_D1310003
Version: F13
1N4933G thru 1N4937G
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1310003
Version: F13
