142-0404-016

Description
RF SMA Connector, 1 Contact(s), Male, Cable Mount, Crimp/Solder Terminal, Locking, Plug
CategoryThe connector    The connector
File Size792KB,3 Pages
ManufacturerVertiv
Environmental Compliance
Download Datasheet Parametric Compare View All

142-0404-016 Online Shopping

Suppliers Part Number Price MOQ In stock
142-0404-016 - - View Buy Now

142-0404-016 Overview

RF SMA Connector, 1 Contact(s), Male, Cable Mount, Crimp/Solder Terminal, Locking, Plug

142-0404-016 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerVertiv
Reach Compliance Codeunknown
Is SamacsysN
Other featuresAPPLICABLE CABLES: RG 188DS; RG 316DS, INSERTION LOSS MAX AT 6GHZ, CAPTIVE CONTACT
subject depth0.706 inch
Body/casing typePLUG
Cable typeRG-316
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact to complete cooperationGOLD (30)
Contact completed and terminatedGOLD (30)
Contact point genderMALE
Contact resistance4 mΩ
Contact styleCOAX
Coupling typeTHREADED
DIN complianceNO
Dielectric withstand voltage750VAC V
Durability500 Cycles
Filter functionNO
IEC complianceNO
Insertion loss0.15 dB
Insulation resistance5000000000 Ω
insulator materialPTFE FLUOROCARBON/PFA
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberSMA
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeCABLE
Number of ports1
Maximum operating frequency12.4 GHz
Maximum operating temperature165 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
Panel mountingNO
reliabilityCOMMERCIAL
Shell surfaceNICKEL OVER COPPER
Shell materialBRASS
Termination typeCRIMP/SOLDER
Total number of contacts1
voltage standing wave ratio1.4
Base Number Matches1
SMA 50 Ohm
Straight Crimp Type Plug (3-piece) -
Solder or Crimp Captivated Contact
INCHES (MILLIMETERS)

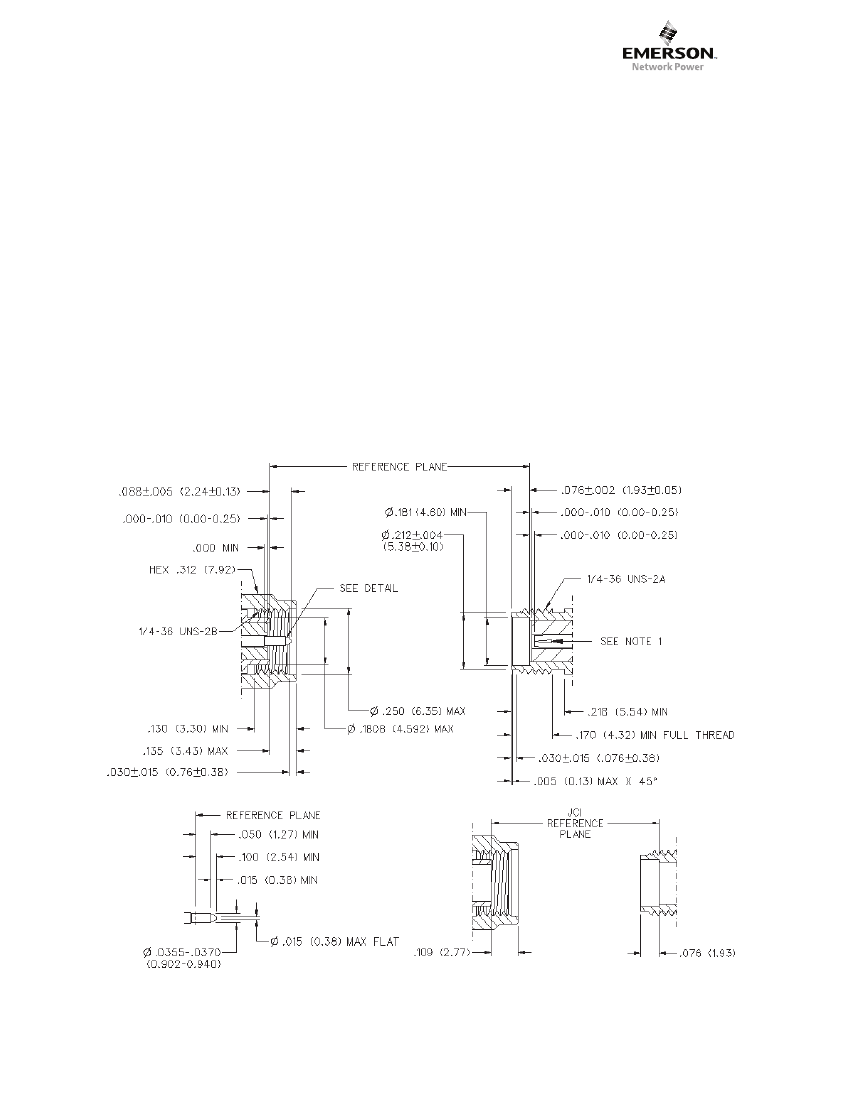

CUSTOMER DRAWINGS AVAILABLE UPON REQUEST
CABLE
TYPE
RG-188 DS, RG-316 DS
VSWR &
FREQ. RANGE
1.15 + .02 f (GHz) 0-12.4 GHz
GOLD
PLATED
142-0404-011
NICKEL
PLATED
142-0404-016
“A”
.706 (17.93)
CABLE GROUP
RG-316DS, 188DS
PART NUMBER CRIMP HEX
142-0404-011/016 .151 (3.83)
1.

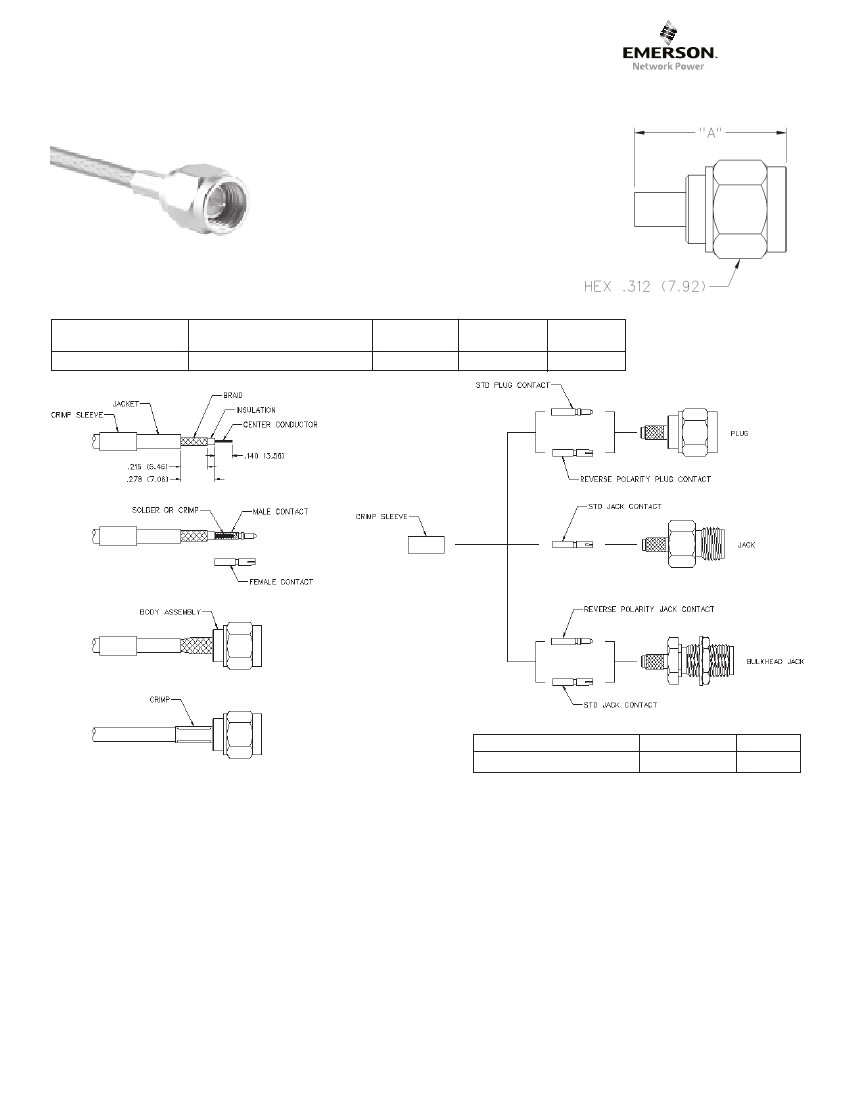

Identify connector parts. (3 piece parts - except bulkhead)
2.
Strip cable to dimensions shown. Do not nick braid or center conductor. Tin center conductor if contact will be solder attache d. Do not
tin center conductor if contact is to be crimp attached. When stripping LMR-100 low loss cable, remove foil back to where cabl e jacket
is stripped. A wire stripper of correct size is recommended for this step. Slide heat shrink (as applicable) and crimp sleeve onto jacket
of cable.
3.
Assemble contact onto cable as shown.
Solder Attachment:
Solder contact to center conductor through solder hole using .020 (0.51) diameter solder. Use a minimum
amount of solder for a good joint.
Crimp Attachment:
Crimp contact to center conductor using Johnson Components
TM
Hand Tool 144-0000-910, setting #2, with
positioner 141-0000-907. Crimp location should be centered between end of contact and X-hole. Crimp attachment to solid cente r
conductor cables is not recommended.
4.
Flare braid and slide body assembly over contact and under braid. Then seat body assembly firmly onto contact. The cable may have
to be held in a clamping fixture. Arrange braid uniformly around crimp stem. Slide crimp sleeve forward and crimp using recom mended
crimp tool. Slide heat shrink forward and shrink (as applicable).
Emerson Network Power Connectivity Solutions
299 Johnson Avenue SW, Waseca, MN 56093 • 800 -247- 8256 • +1 (507) 833-8822 • www.EmersonConnectivity.com

142-0404-016 Related Products

142-0404-016
Description RF SMA Connector, 1 Contact(s), Male, Cable Mount, Crimp/Solder Terminal, Locking, Plug
Is it Rohs certified? conform to
Maker Vertiv
Reach Compliance Code unknown
Is Samacsys N
Other features APPLICABLE CABLES: RG 188DS; RG 316DS, INSERTION LOSS MAX AT 6GHZ, CAPTIVE CONTACT
subject depth 0.706 inch
Body/casing type PLUG
Cable type RG-316
Characteristic impedance 50 Ω
Connector type RF SMA CONNECTOR
Contact to complete cooperation GOLD (30)
Contact completed and terminated GOLD (30)
Contact point gender MALE
Contact resistance 4 mΩ
Contact style COAX
Coupling type THREADED
DIN compliance NO
Dielectric withstand voltage 750VAC V
Durability 500 Cycles
Filter function NO
IEC compliance NO
Insertion loss 0.15 dB
Insulation resistance 5000000000 Ω
insulator material PTFE FLUOROCARBON/PFA
JESD-609 code e4
MIL compliance NO
Manufacturer's serial number SMA
Installation option 1 LOCKING
Installation method STRAIGHT
Installation type CABLE
Number of ports 1
Maximum operating frequency 12.4 GHz
Maximum operating temperature 165 °C
Minimum operating temperature -65 °C
Options GENERAL PURPOSE
Panel mounting NO
reliability COMMERCIAL
Shell surface NICKEL OVER COPPER
Shell material BRASS
Termination type CRIMP/SOLDER
Total number of contacts 1
voltage standing wave ratio 1.4
Base Number Matches 1
