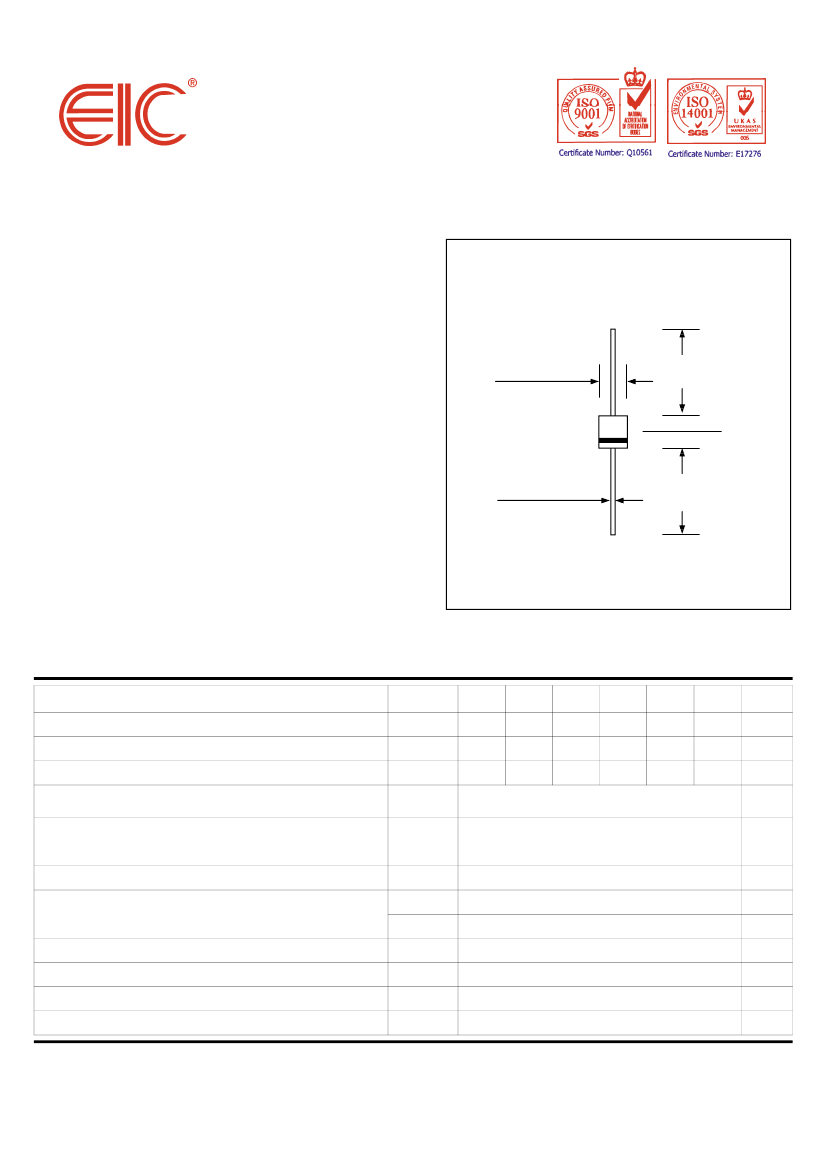

P800A - P800K
PRV : 50 - 800 Volts
Io : 8.0 Amperes
FEATURES :
*
*
*
*
*
*
High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Pb / RoHS Free
SILICON RECTIFIER DIODES
D6
0.360 (9.1)
0.340 (8.6)
1.00 (25.4)
MIN.
0.360 (9.1)
0.340 (8.6)
MECHANICAL DATA :
* Case : Void-free molded plastic body
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 2.1 grams
Rating at 25
°
C ambient temperature unless otherwise specified.
0.052 (1.32)
0.048 (1.22)
1.00 (25.4)
MIN.
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
RATING
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current
0.375"(9.5mm) Lead Length Ta = 50
°C
Peak Forward Surge Current
8.3ms Single half sine wave Superimposed on
rated load (JEDEC Method)
Maximum Instantaneous Forward Voltage at I
F
= 8 A
Maximum DC Reverse Current
at rated DC Blocking Voltage
Ta = 25
°C
Ta = 100
°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
I
R(H)
C
J
R
θ
JA
T
J
T
STG
P800A
P800B
P800D
P800G
P800J
P800K
UNIT
V
V
V
A
A
V
µA
mA
pF
°C/W
°C
°C
50
35
50
100
70
100
200
140
200
8.0
400
1.0
5.0
1.0
150
20
400
280
400
600
420
600
800
560
800
Typical junction capacitance at 4.0V, 1MHz
Typical Thermal Resistance (1)
Junction Temperature Range
Storage Temperature Range
- 50 to + 150
- 50 to + 150
Note :
(1) Thermal resistance from junction to ambient and from junction to lead at 0.375" (9.5mm) lead length,
P.C.B. mounted with 1.1” x 1.1” (30 x 30mm) copper pads
Page 1 of 2
Rev. 02 : March 25, 2005

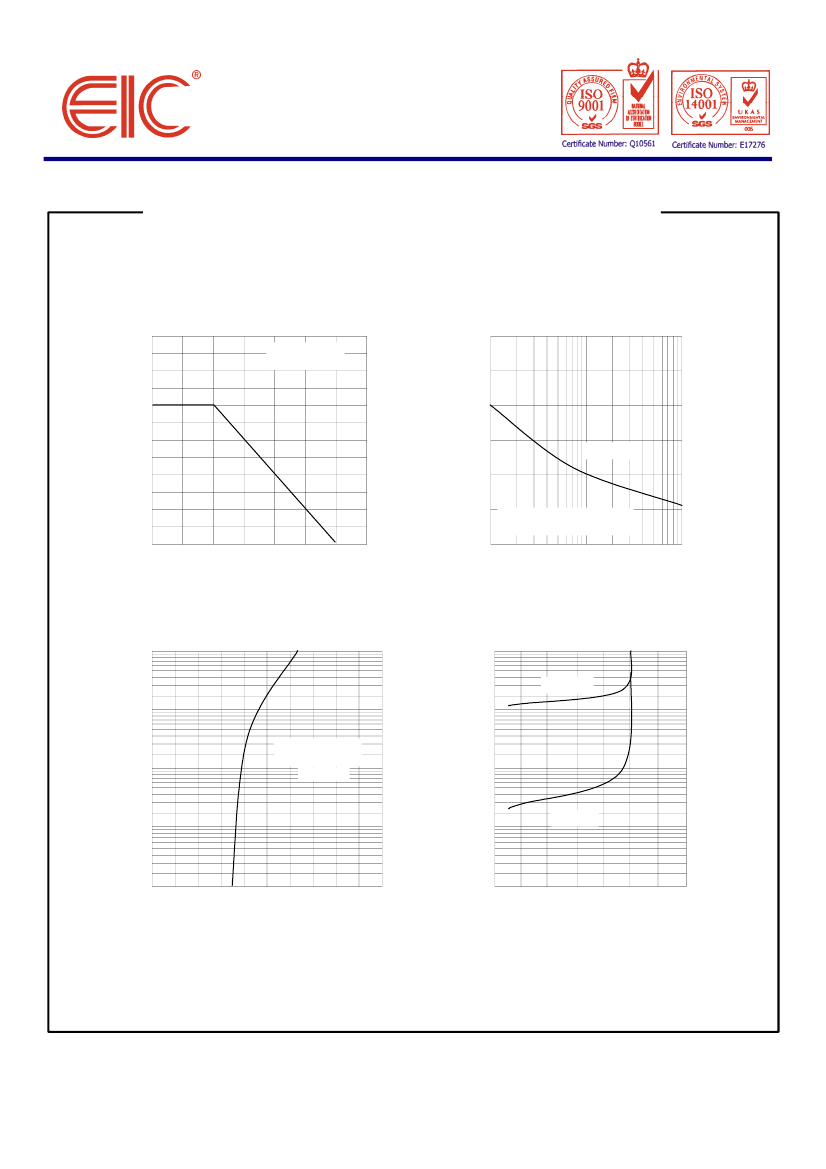

RATING AND CHARACTERISTIC CURVES ( P800A - P800K )
FIG.1 - MAXIMUM FORWARD CURRENT
DERATING CURRENT
12
600
60 Hz Resistive or
Inductive Load
10
FIG.2 - TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
AVERAGE FORWARD RECTIFIED
CURRENT, AMPERES
PEAK FORWARD SURGE
CURRENT, AMPERES
500
8
400
6
300
T
J
=150
°C
200
4
2
100
8.3ms SINGLE HALF SINE-WAVE
(JEDEC) Method
1
2
4
6
10
20
40
60
100
0
0
0
25
50
75
100
125
150
175
AMBIENT TEMPERATURE, (
°
C)
FIG.3 - TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
100
100
NUMBER OF CYCLES AT 60Hz
FIG. 4 - TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS FORWARD
CURRENT, AMPERES
INSTANTANEOUS REVERSE
CURRENT, MICROAMPERES
Ta = 100
°C
10
10
Pulse Width = 300
µs
1% Duty Cycle
1.0
T
J
= 25
°C
1.0
0.1
0.1
Ta = 25
°C
0.01
0
0.01
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
0
20
40
60
80
100
120
140
INSTANTANEOUS FORWARD
VOLTAGE, VOLTS
PERCENT OF RATED PEAK REVERSE
VOLTAGE, (%)
Page 2 of 2
Rev. 01 : 02 : March 25, 2005
