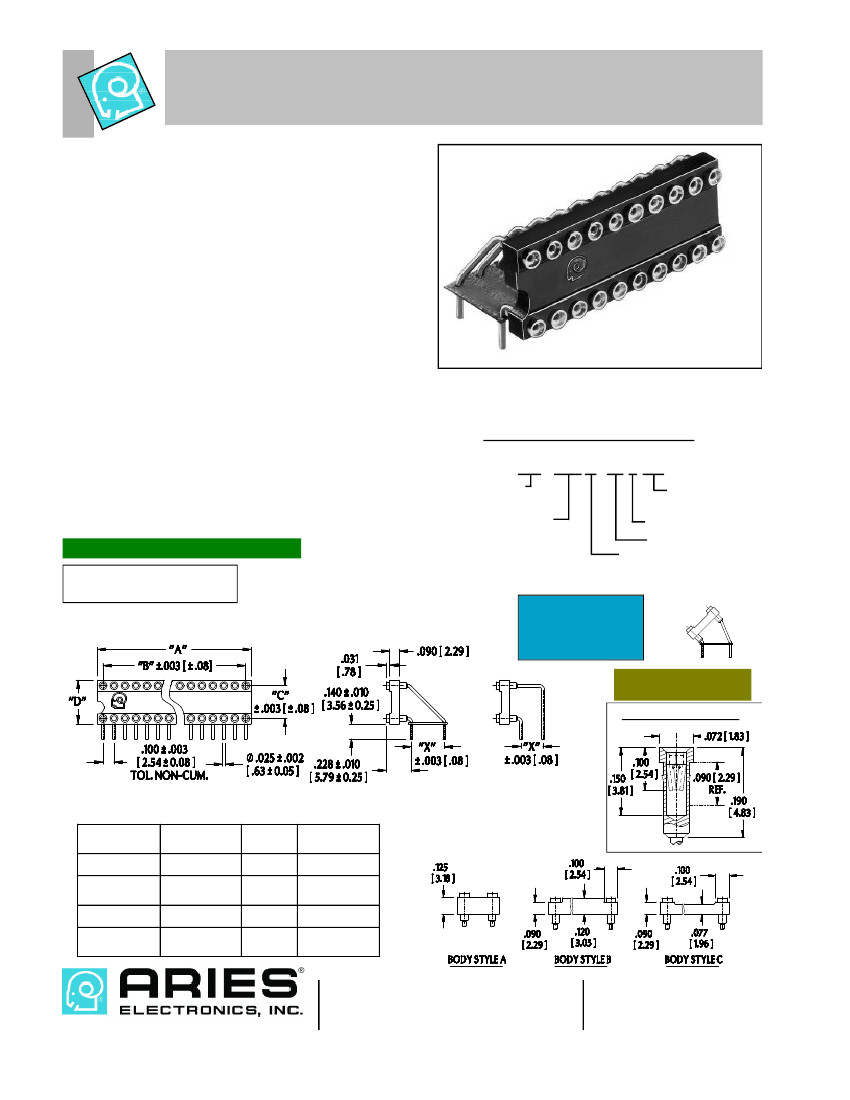

Series 800 Vertisockets
™
Horizontal Mounting with Collet Contacts
FEATURES:
• Aries offers a full line of Vertisockets
™
for DIP packaging of
LEDs, incandescent lamps, DIP switches, test points, etc.
The variations of mounting positions provide exceptional
design freedom.
• Accepts standard LEDs and incandescent displays as well as
.500 [21.70] and .600 [15.24] high large displays.
SPECIFICATIONS:
• Standard body material is black, UL 94-HB Glass-filled Nylon.
• High temp body is black, UL 94V-0 4/6 Nylon.
• Spacer is fishpaper (sockets with “X”=.300 [7.62] only).
• Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-
B16-85.
• Pin body plating is 200µ [5.07
µm]
min. 93/7 Tin/Lead per MIL-
P-81728 over 100µ [2.54
µm]
min. Nickel per QQ-N-290.
• 4-fingered collet contact is Beryllium Copper Alloy per UNS
C17200 ASTM-B194-92.
• Contact plating is 30µ [.76
µm]
min. Gold per MIL-G-45204
over 50µ [1.27
µm]
min. Nickel per QQ-N-290.
• Accepts leads .015-.025 [.38-.64] in diameter, .110-.150 [2.79-
3.81] in length.
• Contact current rating=3 Amps.
• Operating temperature=221°F [105°C].
• Insertion Force=180 grams/pin; Withdrawal
Force=90 grams/pin; Normal Force=140 grams/pin; (based
on a .018 [.46] diameter test lead).
MOUNTING CONSIDERATIONS:
• Suggested PCB Hole Size=.035 ± .002 [.89 ± .05] dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-X82X-90CXX
No. of pins
(see table)
Row-to-row spacing:
282:“C”=.200 [5.08]
82: “C”=.300 [7.62]
482:“C”=.400 [10.16]
682:“C”=.600 [15.24]
Optional suffix:
V0=UL 94V-0
plastic
Collet contacts
Display angle
0: “X”=.100 [2.54]
2: “X”=.200 [5.08]
3: “X”=.300 [7.62]
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
“A”=NO. OF PINS PER ROW X .100 [2.54]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
Consult Data Sheet
No. 13004 for
Vertical Mounting
Vertisockets
™
.
90° ± 2°
Consult factory for
other display angles
CONTACT DETAIL
Consult factory for non-standard sizes
Centers
"C"
.200 [5.08]
.300 [7.62]
.400 [10.16]
.600 [15.24]
Dim. "D"
.300 [7.62]
.400 [10.16]
.500 [12.70]
.700 [17.78]
Body
Style
A
C
B
C
C
B
Available
Sizes
6 thur 10
6 thru 20
22 thru 40
6 thru 22
6 thru 40
42 thru 48
“X”=.100 [2.54]
“X”=.200 [5.08] (
no
(straight bend)
fishpaper
)& .300
[7.62](
with fishpaper)
.400 ctr available
in this version only
(angled bend)
http://www.arieselec.com • info@arieselec.com
NORTH AMERICA
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX:(908) 996-3891
ABCDEFG
EUROPE
TEL: +44 870 240 0249
FAX: +44 871 919 6033
europe@arieselec.com
13005
REV.E
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
