ISOLATED DC/DC CONVERTERS
18 Vdc - 60 Vdc Input 12 Vdc /16 A Output
Nov. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
PRELIMINARY
Rev.A
0RQB-D0N12x RoHS Compliant
•
•
•
•
•
•
•
•
•
Isolated
Fixed Frequency (280 kHz)
High Efficiency
High Power Density
Low Cost
Input Under-voltage Lockout
Input Over-voltage Lockout
•
•
•
•
•
•
Output Over-voltage Protection
Over Temperature Protection
OCP /SCP
Remote On/Off
Basic Isolation
Baseplate
Class 1, Category 2, Isolated DC/DC Converter (refer to IPC-9592)
UL60950-1 Recognized (UL/cUL) (Pending)
Applications
•
•
•
Networking
Computers and peripherals
Telecommunications
Description
The 0RQB-D0N12x is an isolated dc/dc converter that operates from a nominal 48 Vdc source. This unit will
provide up to 192 W of output power from a nominal 24 Vdc or 48 Vdc input. This unit is designed to be highly
efficient and low cost. Features include remote on/off, over current protection and overvoltage protection. The
converter is provided in an industry standard quarter brick package.
Part Selection
Output
Voltage
12 Vdc
Input Voltage
18 Vdc - 60Vdc
Max. Output
Current
16 A
Max. Output
Power
192 W
Typical Efficiency
( Vin=48 Vdc )
94%
Model Number
Active Low
0RQB-D0N12L
Model Number
Active High
0RQB-D0N120
Note:
Add “G” suffix at the end of the model number to indicate Tray Packaging.
Part Number Explanation
0 R QB – D0 N 12 x
1 2
3
4
5 6 7
1---Through hole
2---RoHS 6, change “R” to “7” means RoHS 5
3---Series name
4---Series code
5---Input range (18-60V)
6---Output voltage (12V)
7---
Suffix
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
1
ISOLATED DC/DC CONVERTERS
18 Vdc - 60 Vdc Input 12 Vdc /16 A Output
Nov. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Min
-0.3
-
-0.3
-
-40
-55
Typ
-
-
-
-
-
-
Max
60
100
18
1500
85
125
Unit
V
V
V
V
°C
°C
Non-operating
100 mS maximum
Notes
Absolute Maximum Ratings
Parameter
Continuous Input Voltage
Input Transient Voltage
Remote On/Off
I/O Isolation Voltage
Ambient Temperature
Storage Temperature
Note:
Ratings used beyond the maximum ratings may cause a reliability degradation of the converter or may
permanently damage the device.
Input Specifications
Parameter
Operating Input Voltage
Input Current (full load)
Input Current (no load)
Remote Off Input Current
Input Reflected Ripple Current
(rms)
Input Reflected Ripple Current
(pk-pk)
I t Inrush Current Transient
Turn-on Voltage Threshold
Turn-off Voltage Threshold
2
Min
18
-
-
-
-
-
-
16
15
Typ
48
-
200
5
5
30
0.05
16.8
15.8
Max
60
12
240
10
10
40
0.1
17.5
16.5
Unit
V
A
mA
mA
mA
mA
As
V
V
2
Notes
With simulated source impedance of
10uH, 5Hz to 20MHz. Use a
100uF/100V electrolytic capacitor with
ESR=1 ohm max, at 200KHz@25°C.
CAUTION: This converter is not internally fused. An input line fuse must be used in application.
Recommend a fast-acting fuse with maximum rating of 20A on system board. Refer to the fuse
manufacture’s datasheet for further information.
Notes:
1. This converter has internal C-L-C (1uF-0.2uH-1uF-2.2uF*5) filter.
2. All specifications are typical at 25
°C
unless otherwise stated.
Output Specifications
Parameter
Output Voltage Set Point
Load Regulation
Line Regulation
Regulation Over Temperature
(-40deg.C-85deg.C)
Ripple and Noise (pk-pk)
Ripple and Noise (rms)
Ripple and Noise (pk-pk)
under worst case
Output Current Range
Min
11.92
-
-
-
-
-
-
0
Typ
12
±20
±10
±100
100
25
-
-
Max
12.08
±50
±20
±200
150
40
200
16
Unit
V
mV
mV
mV
mV
mV
mV
A
Vin=48V, Full load, 0-20MHz BW, with a
1µF ceramic capacitor and a 10uF
Tantalum cap at output.
Over all operating input voltage, load
and ambient temperature condition
Notes
Vin=48V, Io=50% load
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
2
ISOLATED DC/DC CONVERTERS
18 Vdc - 60 Vdc Input 12 Vdc /16 A Output
Nov. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Min
18
-
-
Typ
22
-
10
30
-
30
0
-
Max
25
5
-
40
40
3
2200
Unit
A
As
ms
ms
ms
%
uF
Added additional capacitor to
decrease ripple and transient
response value.
Enable form Vin
Enable form ON/OFF
2
Output Specifications (continued)
Parameter
Output DC Current Limit
Short Circuit Surge Transient
Rise time
Turn on Time
Overshoot at Turn on
Output Capacitance
Transient Response
△
V50%~75% of
Notes
-
220
Overshoot
Settling Time
Overshoot
Settling Time
-
-
-
-
400
120
400
120
600
200
600
200
mV
uS
mV
uS
di/dt=0.1A/us, Vin=48Vdc, Ta=25°C,
with a 1µF ceramic capacitor and a
10uF Tantalum cap at output.
Max Load
△
V75%~50% of
Max Load
Note:
All specifications are typical at nominal input, full load at 25°C unless otherwise stated.
General Specifications
Parameter
Efficiency
Vin=24V
Vin=48V
Switching Frequency
Over Temperature Protection
Over Voltage Protection
Weight
FIT
Dimensions
Inches (L
×
W
×
H)
Millimeters (L
×
W
×
H)
Isolation characteristics
Input to Output
Input to Case
Output to Case
Isolation Resistance
Isolation Capacitance
-
-
-
10M
-
-
-
-
-
1500
1500
1500
500
-
-
V
V
V
ohm
pF
2.30 x 1.45 x 0.50
58.42 x 36.83 x 12.70
-
92.5
93
-
-
-
-
93.5
94
280
125
15.1
75
TBD
-
-
-
130
15.5
-
%
%
kHz
°C
V
g
-
Calculated Per Bell Core SR-332
(Vin=48V, Vo=48V, Io=8A, T
a
= 25
°C,
9
FIT=10 /MTBF)
This voltage is achieved by trimming
up output slowly.
Io=Io, max, full load
Min
Typ
Max
Unit
Notes
Note:
All specifications are typical at 25
°C
unless otherwise stated.
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
3
ISOLATED DC/DC CONVERTERS
18 Vdc - 60 Vdc Input 12 Vdc /16 A Output
Nov. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Efficiency Data
99.00%
97.00%
95.00%
93.00%
91.00%
89.00%
87.00%
85.00%
83.00%
81.00%
79.00%
77.00%
75.00%
00
00
00
00
0
0
0
.0
.0
2.
4.
6.
8.
.0
14
10
12
16
.0
0
EFFICIENCY
18 V
24 V
36 V
48 V
60 V
OUTPUT CURRENT(A)
Ripple and Noise Waveform
48Vdc input, 12Vdc/16A output
Note:
Ripple and noise at full load, with a 1uF ceramic cap and a 10 uF Tantalum cap at output, Ta=25 deg C.
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
4
ISOLATED DC/DC CONVERTERS
18 Vdc - 60 Vdc Input 12 Vdc /16 A Output
Nov. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.

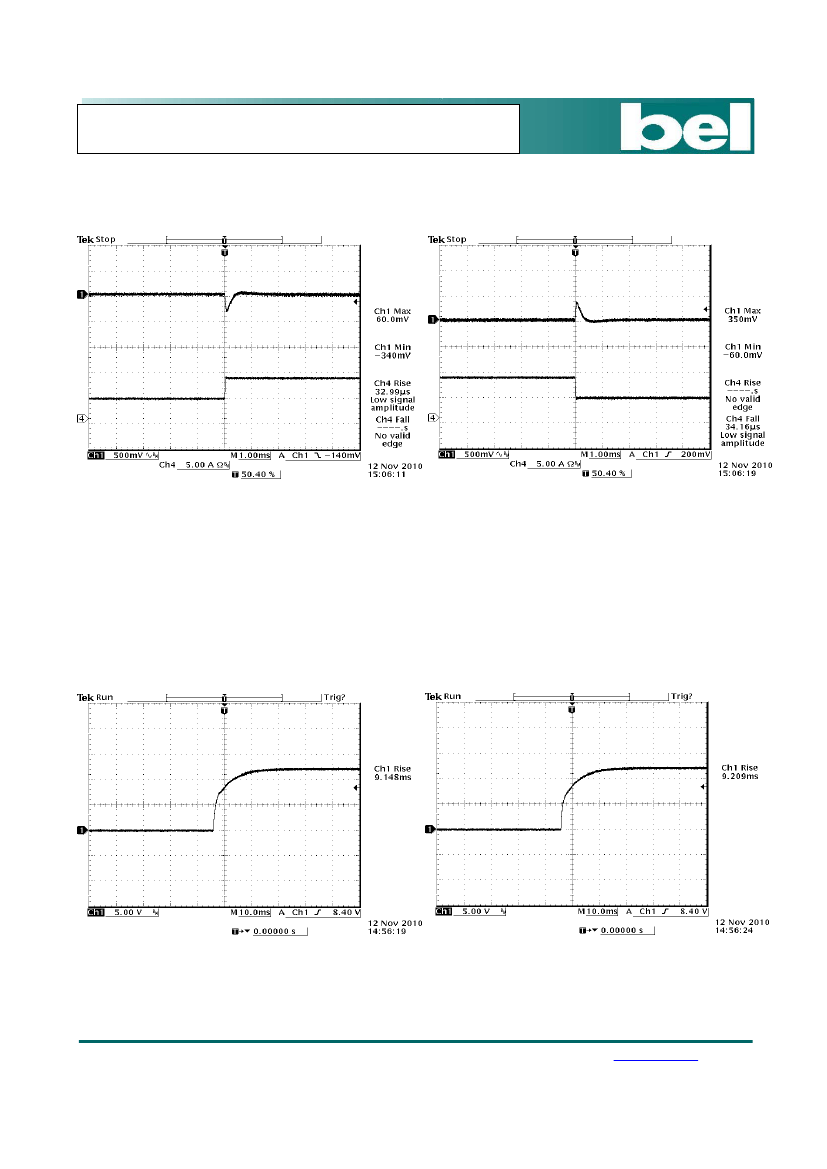

Transient Response Waveforms
Vout= 12V 50%-75% Load Transients
Vout= 12V 75%-50% Load Transients
Note:
Transient Response at Vin=48V, di/dt=0.1A/uS, with a 1uF ceramic cap and a 10uF aluminum cap at the
output.
Startup & Shutdown
Rise Time
Vin = 24 V, Full Load Maximum capacitor
Vin = 48 V, Full Load Maximum capacitor
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
5
