YCAK39R-4N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> YCAK39R-4N

YCAK39R-4N: DescriptionRing Terminal; CategoryThe connector; File Size182KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

YCAK39R-4N Overview

Ring Terminal

YCAK39R-4N Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	YCAK-R-N
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Wire gauge	556.5 AWG

Preview

Download Datasheet

View All

BURNDY

Overhead

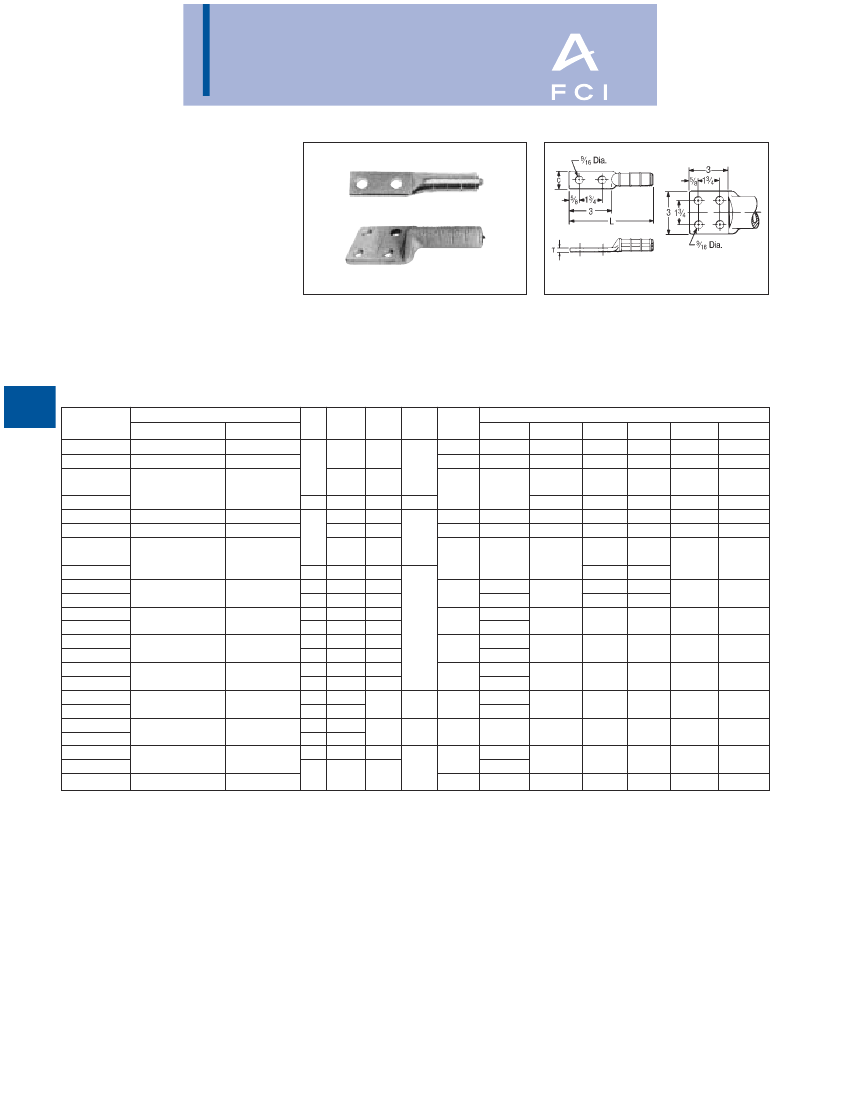

TYPES YCA-R-N &

YCAK-R-N

Compression Terminals for

Aluminum, ACSR, 6201, 5005,

Compressed and Compact

Conductors

Aluminum compression HYLUG™ for termi-

nating jumper loops and equipment taps at

switchpads and other substation apparatus,

or to YDW-R deadends. NEMA standard

mounting holes. Installed with same dies as

equivalent full-tension sleeves. Pre-filled with

PENETROX™ joint compound.

E-84

Fig. 1

Fig. 2

CATALOG

NUMBER

YCA4R-2N

YCA2R-2N

YCA25R-2N

YCAK25R-4N

YCA26R-2N

YCA27R-2N

YCA28R-2N

CONDUCTOR

FIG.

ACSR, 6201, 5005 ALUMINUM NO.

1/0

2/0

3/0 - 110.8 (12-7)

4/0 (6-1, 6-7)

4 (7)

2 (7)

1/0 (7, 19)

2/0 (7, 19)

3/0 7, 19)

4/0 (7, 19)

266.8 (7, 19)

336.4 (19) -

350 (19, 37, 61)

397.5 (19)

477 (19, 37) -

500 (37, 61)

556.5 (19, 37)

—

636 (37)

1-1/4

7/8

1-1/8

1-1/4

1-1/2

1-5/8

1-7/8

2-1/8

5-5/8

1/4

DIE TOOLS, DIE SET CATALOG NO., & (NUMBER OF CRIMPS)

INDEX MD7, MD6 Y35, Y750 Y45

Y46

Y48B Y60BHU

237

W237 (3) U237 (2)

239

W239 (3) U239 (2)

KS18,

BG (8)

U-BG (4)

BG, or W-BG (4)*

243, 8A U243 (2) U243 (2)

245, 9A W245 (4) U245 (2)

247

W247 (6) U247 (3)

K840,

249

W249 (6) U249 (3)

11A

—

251

U251 (4)

—

321

U321 (4)

—

316

U316 (4)

—

317

U317 (4)

—

327

U327 (4)

—

261

608

469

—

U261 (5)

U608 (6)

—

†

‡

—

6-1/4

6-7/8

6-3/8

6-3/4

6-7/8

7-3/8

6-3/4

7-3/8

7-1/8

7-1/4

7-3/8

7-1/2

7-3/8

7-5/8

8-1/8

8-3/8

8-1/8

3/8

1/4

C243 (2) L243 (1)

C245 (2) L245 (1)

C247 (3) L247 (2)

C249 (1) L249 (2)

C251 (2) L251 (2)

C321 (2) L321 (2)

C316 (2) L316 (2)

C317 (2) L317 (2)

C327 (2) L327 (2)

C261 (2) L261 (2)

C608 (2) L608 (2)

YCAK28R-4N

YCA30R-2N

266.8

YCAK30R-4N

(18-1, 6-7, 26-7)

YCA321R-2N

336.4 (18-1)

YCAK321R-4N

YCA33R-2N

336.4 (26-7, 30-7)

YCAK33R-4N

397.5 (18-1)

YCA35R-2N

397.5 (26-7, 30-7)

YCAK35R-4N

YCA361R-2N

477 (18-1)

YCAK361R-4N

YCA37R-2N

556.5 (18-1)

YCAK37R-4N

477 (24-7, 26-7, 30-7)

YCA39R-2N

556.5 (24-7, 26-7)

YCAK39R-4N

YCAK361A-4N

—

3/8

7/16

3/8

1/2

S469 (6) P469 (6) C469 (2) L469 (2)

(Table continued on next page.)

* Multiple crimp die set; makes more than one crimp per tool

compression. Figure indicates number of compressions.

† U Die with adapter PT-6515.

‡ U Die with adapter PUADP-1.

YCA HYLUGS™ are made from heavy walled tubing. YCA4R-

2N, YCA2R-2N and all YCAK HYLUGS™ are cast aluminum

alloy.

YCAK39R-4N Related Products

	YCAK39R-4N	YCA26R-2N	YCAK321R-4N	YCAK361R-4N	YCAK361A-4N	YCA451A-4N	YNA7M10T	YCA25R-2N	YCA4R-2N	YCA44A2NG2
Description	Ring Terminal	Ring Terminal	Ring Terminal	Ring Terminal	Ring Terminal	Ring Terminal	Ring Terminal	Ring Terminal	Ring Terminal	Ring Terminal
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	YCAK-R-N	YCA-R-N	YCAK-R-N	YCAK-R-N	YCAK-R-N	YCA-R-N	YNA-M-T	YCA-R-N	YCA-R-N	YCA-R-N
terminal gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Terminal and terminal strip types	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL
Wire gauge	556.5 AWG	0 AWG	350 AWG	500 AWG	636 AWG	1272 AWG	3 AWG	0 AWG	4 AWG	1000 AWG
Maker	Amphenol	-	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
