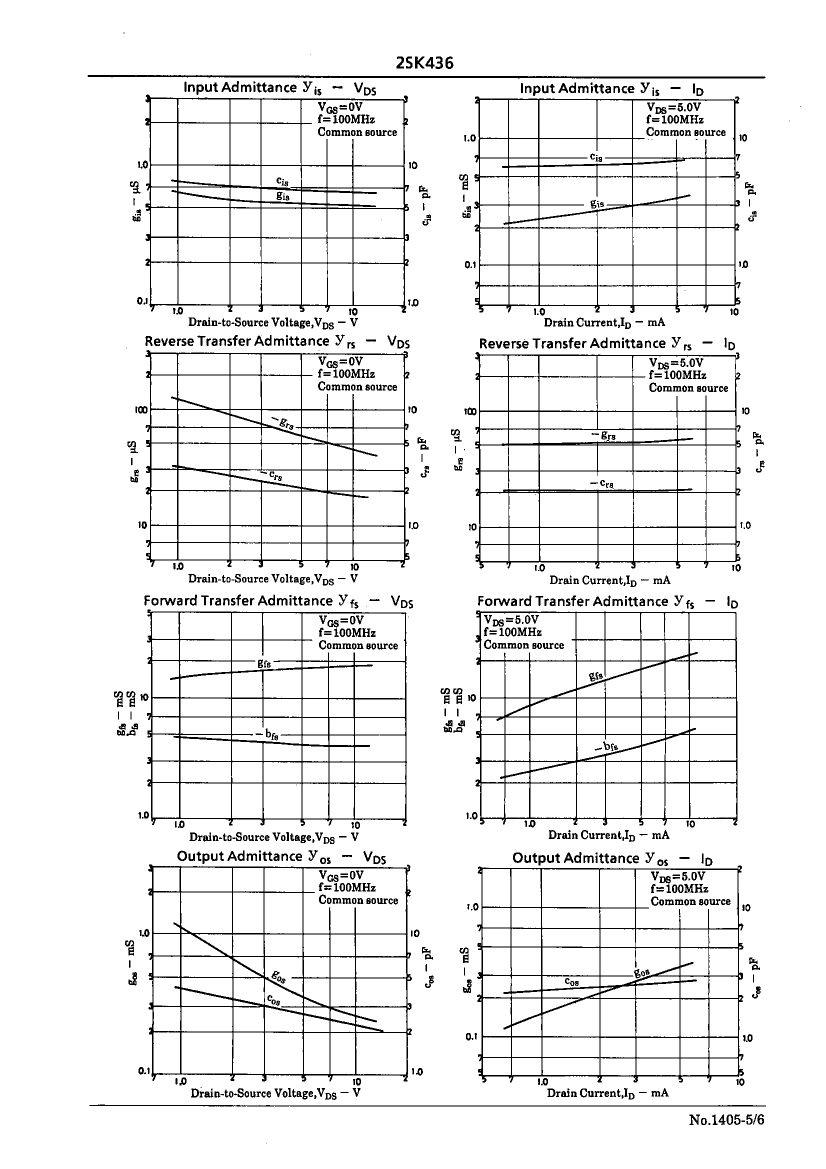

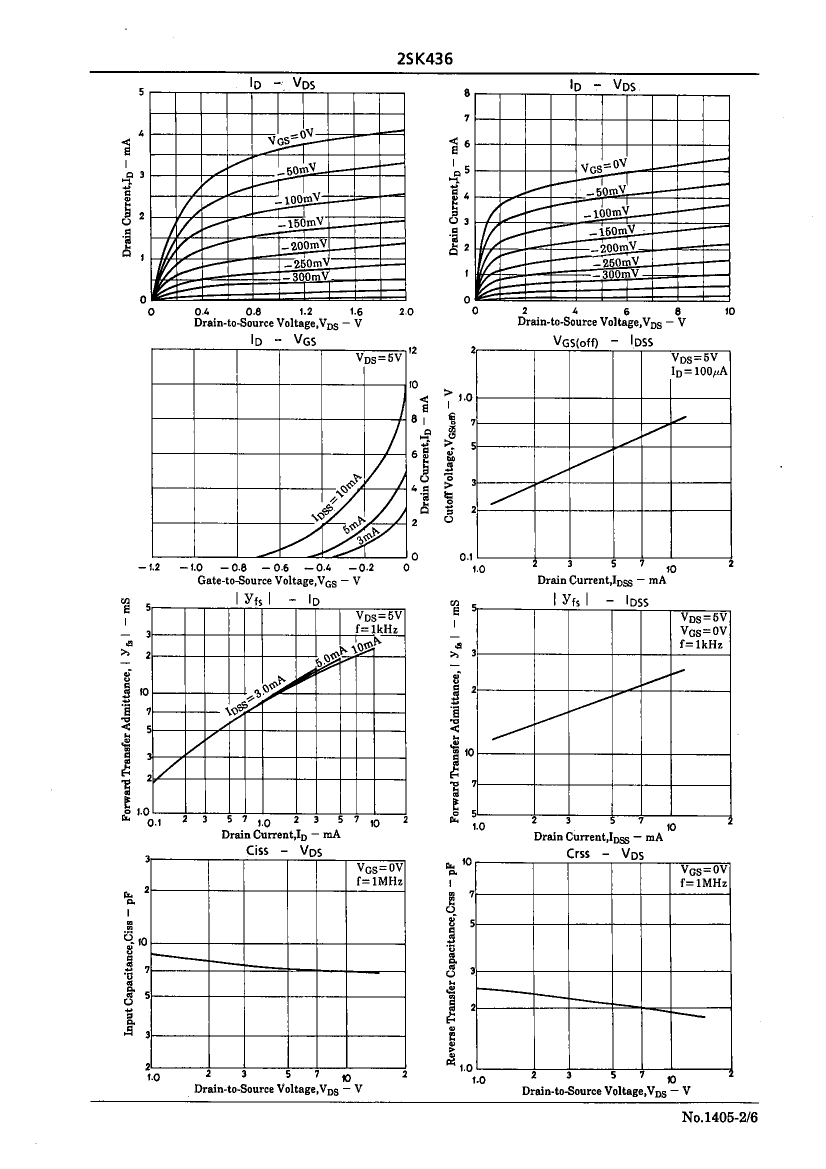

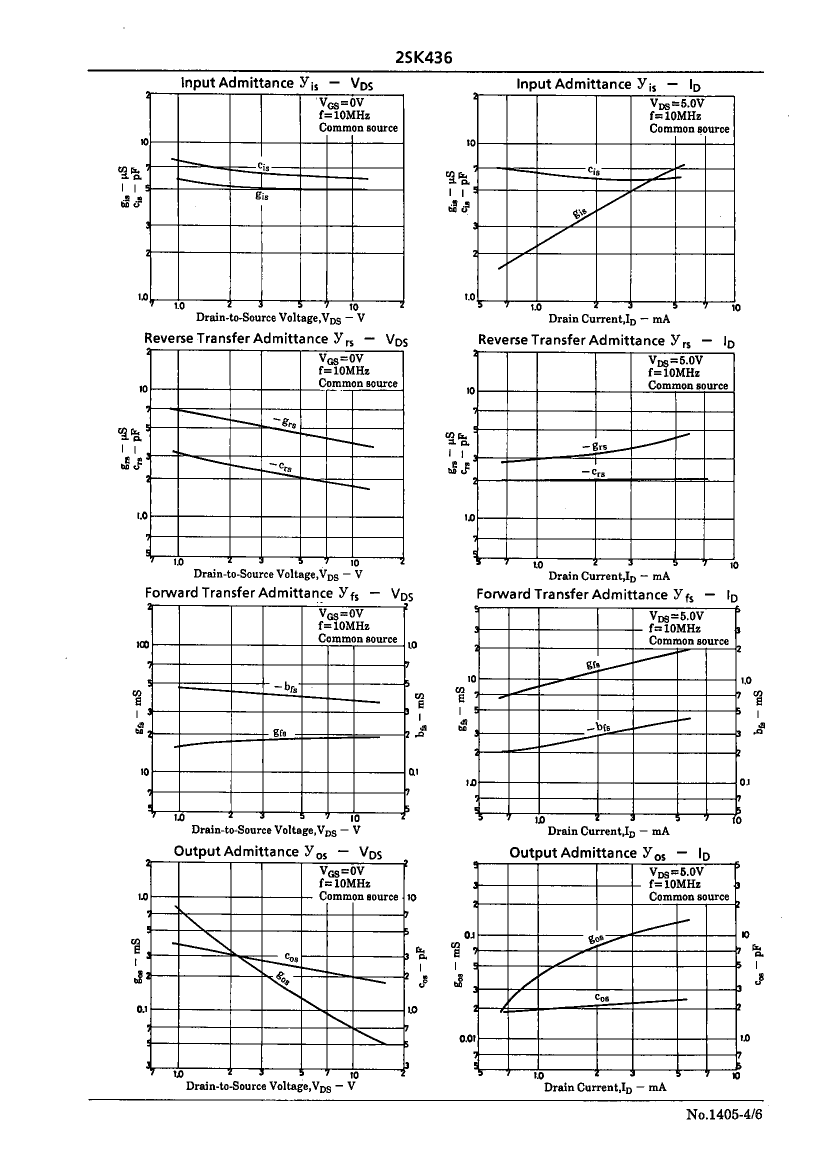

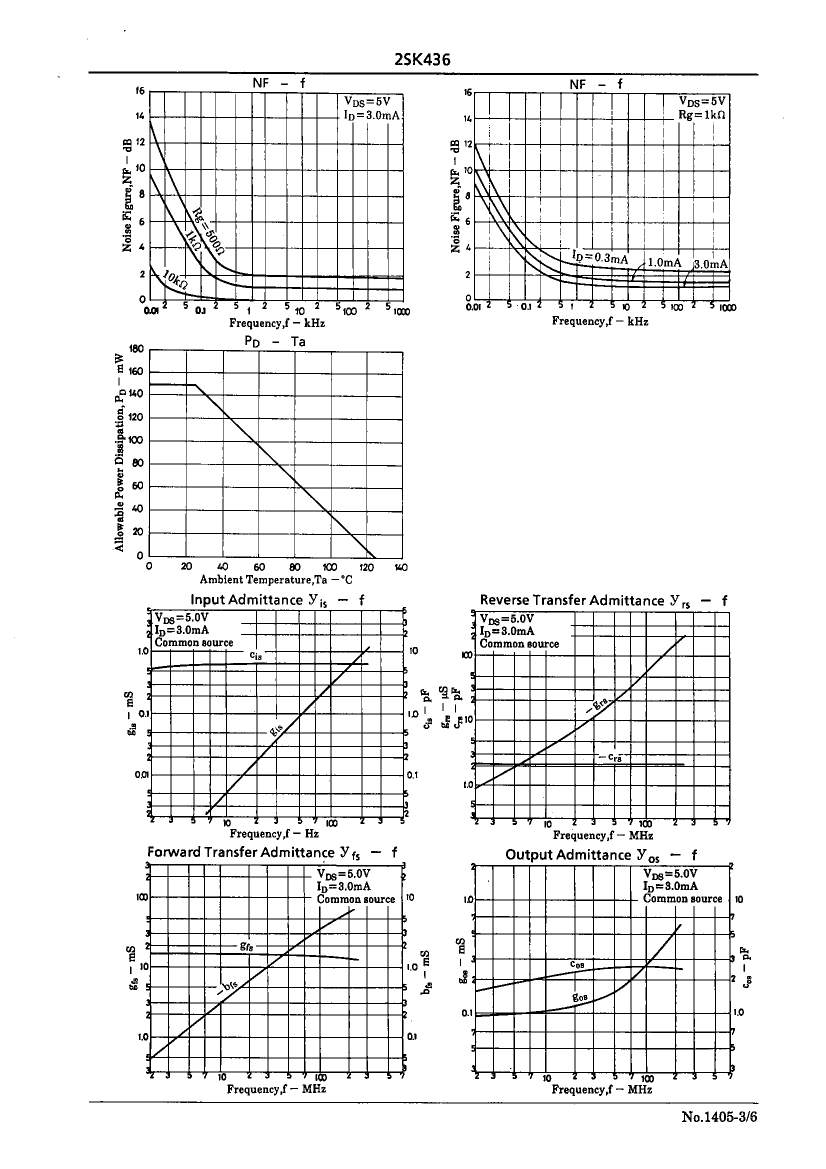

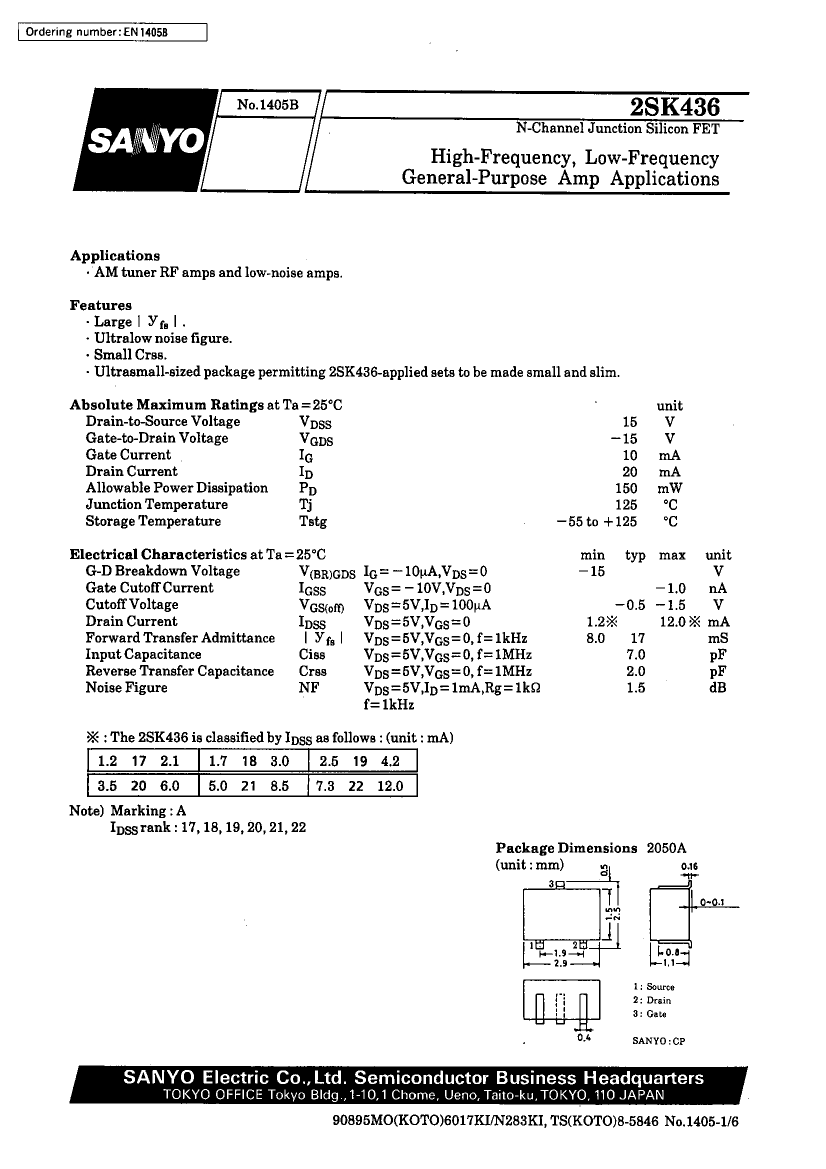

2SK436: DescriptionSmall Signal Field-Effect Transistor, 0.02A I(D), 15V, 1-Element, N-Channel, Silicon, Junction FET, CP, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size164KB，6 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

2SK436 Overview

Small Signal Field-Effect Transistor, 0.02A I(D), 15V, 1-Element, N-Channel, Silicon, Junction FET, CP, 3 PIN

Parameter Name	Attribute value
Objectid	1544044977
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Other features	LOW NOISE
Configuration	SINGLE
Minimum drain-source breakdown voltage	15 V
Maximum drain current (ID)	0.02 A
FET technology	JUNCTION
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Operating mode	DEPLETION MODE
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	0.15 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
