2SK536 datasheet, PDF - EEWORLD Datasheet

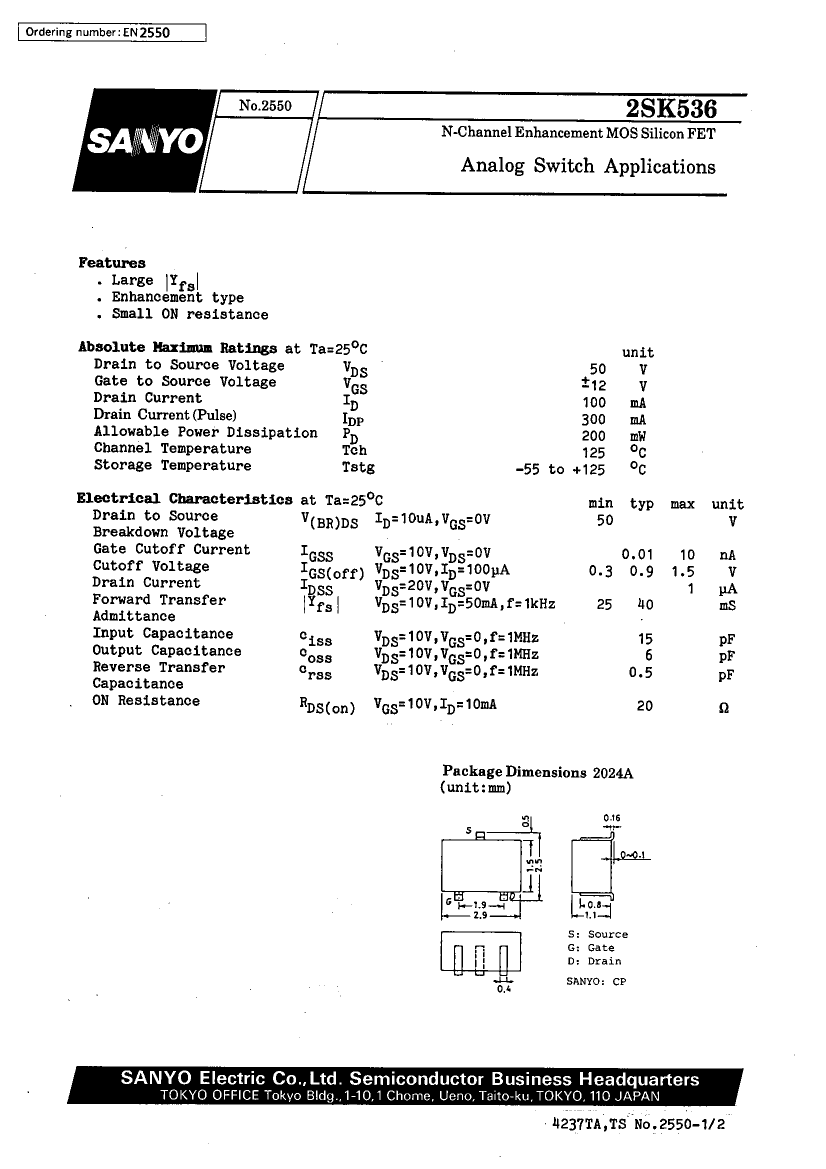

2SK536: DescriptionSmall Signal Field-Effect Transistor, 0.1A I(D), 50V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, CP, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size58KB，2 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

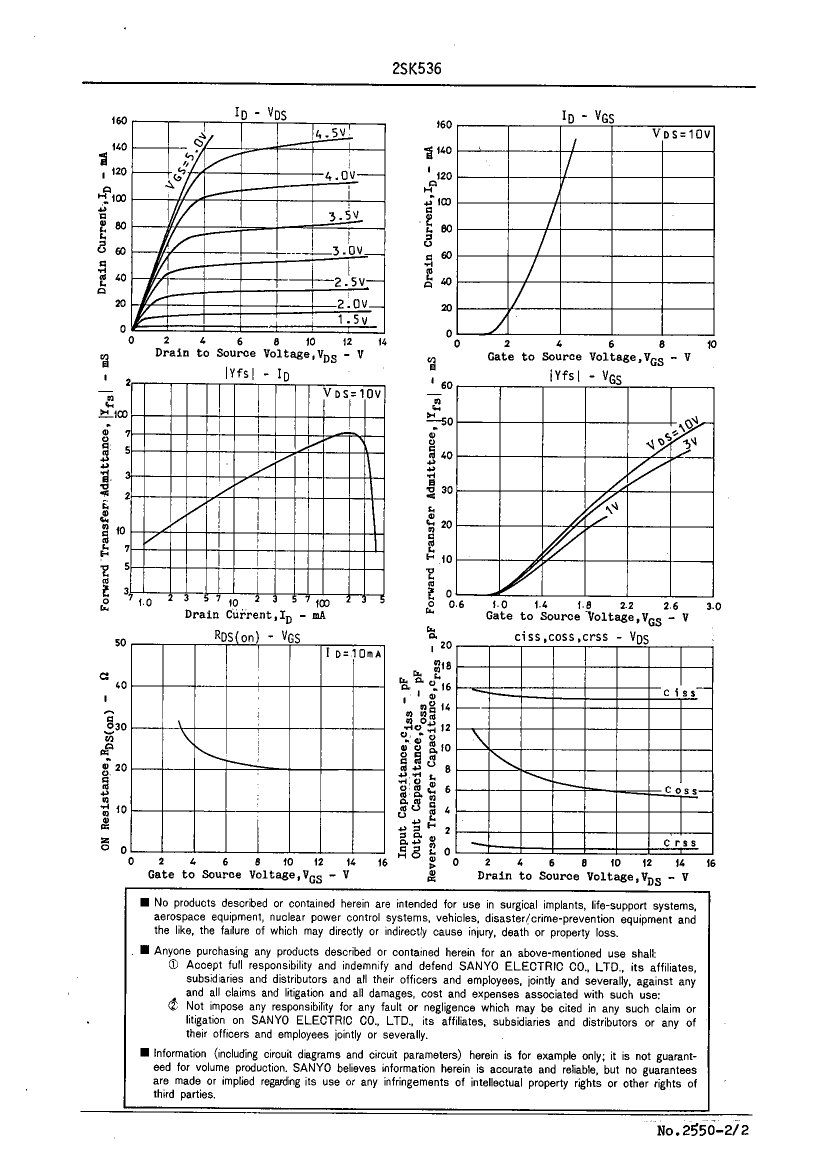

2SK536 Overview

Small Signal Field-Effect Transistor, 0.1A I(D), 50V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, CP, 3 PIN

Parameter Name	Attribute value
Objectid	1481159944
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Minimum drain-source breakdown voltage	50 V
Maximum drain current (Abs) (ID)	0.1 A
Maximum drain current (ID)	0.1 A
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	0.2 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
