036 RSP
Vishay BCcomponents
Aluminum Capacitors
Radial Semi-Professional
FEATURES
•
Polarized aluminum electrolytic capacitors,
non-solid electrolyte
•
Radial leads, cylindrical aluminum case,
all-insulated (light blue)
•
Natural pitch 2.5 mm and 5 mm
•
Charge and discharge proof
•
Miniaturized, high CV-product per unit volume
•
Reduced leakage current
•
Lead (Pb)-free versions are RoHS compliant
RoHS
COMPLIANT
Fig. 1 Component outline
APPLICATIONS
•
Automotive, telecommunication, industrial, EDP and
audio-video
•
Coupling, decoupling, smoothing, filtering, buffering,
timing
•
Portable and mobile equipment (small size, low mass)
QUICK REFERENCE DATA
DESCRIPTION
VALUE
Nominal case sizes (Ø D x L in mm)
5 x 11 and 8.2 x 11
0.47 to 470 µF
Rated capacitance range, C
R
± 20 %; ± 10 % on request
Tolerance on C
R
6.3 to 160 V
Rated voltage range, U
R
Category temperature range
- 55 to + 85
°C
Endurance test at 85
°C
2000 h
Useful life at 105
°C
750 h
Useful life at 85
°C
3000 h
80 000 h
Useful life at 40
°C,
1.4 x I
R
applied
Shelf life at 0 V, 85
°C
500 h
Based on sectional specification
IEC 60384-4/EN130 300
Climatic category IEC 60068
55/085/56
MARKING
The capacitors are marked (where possible) with the
following information:
•
Rated capacitance (in µF)
•
Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for
±
20 %)
•
Rated voltage (in V)
•
Date code in accordance with IEC 60062
•
Code indicating factory of origin
•
Name of manufacturer
•
Minus-sign on top to identify the negative terminal
•
Series number (036)
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(µF)
0.47
1.0
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
U
R
(V)
6.3
-
-
-
-
-
-
-
-
-
-
-
-
-
-
5 x 11
-
-
8.2 x 11
-
10
-
-
-
-
-
-
-
-
-
-
-
-
5 x 11
-
-
5 x 11
8.2 x 11
-
8.2 x 11
16
-
-
-
-
-
-
-
-
-
-
-
5 x 11
-
-
5 x 11
8.2 x 11
8.2 x 11
8.2 x 11
-
25
-
-
-
-
-
-
-
-
-
-
-
-
-
5 x 11
8.2 x 11
-
8.2 x 11
-
-
35
-
-
-
-
-
-
-
-
-
5 x 11
-
-
5 x 11
-
-
8.2 x 11
-
-
-
40
-
-
-
-
-
-
-
-
5 x 11
-
-
-
-
8.2 x 11
-
-
-
-
-
50
-
-
-
-
-
-
5 x 11
-
-
-
-
5 x 11
8.2 x 11
-
8.2 x 11
-
-
-
-
63
5 x 11
5 x 11
5 x 11
5 x 11
5 x 11
5 x 11
5 x 11
8.2 x 11
5 x 11
5 x 11
8.2 x 11
8.2 x 11
8.2 x 11
8.2 x 11
-
-
-
-
-
100
-
-
-
-
-
-
8.2 x 11
-
-
8.2 x 11
-
-
-
-
-
-
-
-
-
160
-
-
8.2 x 11
-
8.2 x 11
-
-
-
-
-
-
-
-
-
-
-
-
-
-
www.vishay.com
118
For technical questions, contact: aluminumcaps1@vishay.com
Document Number: 28312
Revision: 19-Mar-08
036 RSP
Aluminum Capacitors
Radial Semi-Professional
DIMENSIONS
in millimeters
AND AVAILABLE FORMS
ØD
Vishay BCcomponents
Ø
D
L
L
+
-
+
15 min.
-
Ø
d
4
+1
0
F
Ø
d
5 min.
5 ± 0.5
Case Ø D x L = 8.2 x 11 mm only
Fig. 2
Form CA:
Long leads
Fig. 3
Form CB:
Cut leads
Pitch F = 5 mm
Case Ø D x L = 5 x 11 and 8.2 x 11 mm
Fig. 4
Form TFA:
Taped in box (AMMOPACK)
Pitch F = 2.5 mm
Case Ø D x L = 5 x 11 mm only
Fig. 5
Form TNA:
Taped in box (AMMOPACK)
Table 1
DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
NOMINAL
CASE SIZE
ØDxL
PACKAGING QUANTITIES
CASE
CODE
Ød
Ø D
max.
L
max.
F
MASS
(g)
FORM
CA, CB
1000
1000
FORM
TFA, TNA
2000
1000
5 x 11
8.2 x 11
Note
11
13
0.5
0.6
5.5
8.7
12
12
2.5 ± 0.5
5.0 ± 0.5
≈
0.4
≈
1.1
1. Tape dimensions see section ‘PACKAGING’
Document Number: 28312
Revision: 19-Mar-08
For technical questions, contact: aluminumcaps1@vishay.com
www.vishay.com
119
036 RSP
Vishay BCcomponents
Aluminum Capacitors
Radial Semi-Professional
ORDERING EXAMPLE
Electrolytic capacitor 036 series
100 µF/16 V; ± 20 %
Nominal case size: Ø 5 x 11 mm; Form TFA
Ordering code: MAL203635101E3
Former 12NC: 2222 036 35101
ELECTRICAL DATA
SYMBOL
DESCRIPTION
Rated capacitance at 100 Hz, tolerance ± 20 %
C
R
Rated RMS ripple current at 100 Hz, 85
°C
I
R
Max. leakage current after 1 minute at U
R
I
L1
Tan
δ
Max. dissipation factor at 100 Hz
Z
Max. impedance at 10 kHz and 20
°C
Note
1. Unless otherwise specified, all electrical values in Table 2 apply
at T
amb
= 20
°C,
P = 86 to 106 kPa, RH = 45 to 75%
Table 2
ELECTRICAL DATA AND ORDERING INFORMATION
CATALOG NUMBER 2222 036 .....
U
R
(V)
C
R
100 Hz
(µF)
100
330
47
150
220
470
33
100
150
220
330
68
100
220
22
47
150
15
68
10
33
47
100
0.47
1.0
2.2
3.3
4.7
6.8
10
10
15
22
22
33
47
68
10
22
2.2
4.7
I
R
NOMINAL
CASE SIZE 100 Hz
ØDxL
85
°C
(mm)
(mA)
5 x 11
8.2 x 11
5
x
11
5
x
11
8.2 x 11
8.2
x
11
5 x 11
5
x
11
8.2 x 11
8.2
x
11
8.2
x
11
5 x 11
8.2
x
11
8.2
x
11
5 x 11
5
x
11
8.2 x 11
5 x 11
8.2 x 11
5 x 11
5 x 11
8.2 x 11
8.2
x
11
5 x 11
5
x
11
5
x
11
5 x 11
5
x
11
5 x 11
5
x
11
8.2 x 11
5 x 11
5
x
11
8.2 x 11
8.2 x 11
8.2
x
11
8.2 x 11
8.2 x 11
8.2 x 11
8.2 x 11
8.2 x 11
130
300
95
150
260
400
90
160
230
280
390
140
210
310
87
130
270
72
180
60
110
160
250
5
11
25
38
45
55
70
120
80
100
150
160
190
210
80
110
45
62
I
L1
1 min
(µA)
7
16
6
12
17
31
7
13
18
24
35
13
18
36
8
13
35
7
20
6
13
18
33
4
4
4
5
5
6
7
7
9
11
11
16
21
29
9
16
75
115
Tan
δ
100 Hz
Z
10 kHz
(Ω)
1.7
0.52
2.8
1.3
0.59
0.43
2.7
1.6
0.6
0.55
0.48
1.8
0.7
0.55
2.7
1.9
0.6
3.7
0.81
4.5
2.1
0.96
0.7
85
40
18
12
8.5
5.9
4.0
2.8
3.1
2.7
1.4
1.2
1.0
0.88
3.5
1.8
14
9.6
BULK PACKAGING
LONG LEADS
CUT LEADS
TAPED AMMOPACK
6.3
10
16
25
35
40
50
63
100
160
0.20
0.20
0.16
0.20
0.16
0.20
0.14
0.16
0.14
0.16
0.16
0.14
0.12
0.14
0.10
0.12
0.12
0.10
0.10
0.08
0.10
0.08
0.10
0.06
0.06
0.06
0.06
0.06
0.06
0.06
0.04
0.07
0.08
0.05
0.06
0.07
0.08
0.06
0.06
0.05
0.07
FORM
F
FORM
F
FORM
F
FORM
F
CA
(mm)
CB
(mm)
TFA
(mm)
TNA
(mm)
53101E3 2.5
-
-
33101E3 5.0 73101E3 2.5
53331E3 5.0 63331E3 5.0 33331E3 5.0
-
-
54479E3 2.5
-
-
34479E3 5.0 74479E3 2.5
54151E3 2.5
-
-
34151E3 5.0 74151E3 2.5
54221E3 5.0 64221E3 5.0 34221E3 5.0
-
-
54471E3 5.0 64471E3 5.0 34471E3 5.0
-
-
55339E3 2.5
-
-
35339E3 5.0 75339E3 2.5
55101E3 2.5
-
-
35101E3 5.0 75101E3 2.5
55151E3 5.0 65151E3 5.0 35151E3 5.0
-
-
55221E3 5.0 65221E3 5.0 35221E3 5.0
-
-
55331E3 5.0 65331E3 5.0 35331E3 5.0
-
-
56689E3 2.5
-
-
36689E3 5.0 76689E3 2.5
56101E3 5.0 66101E3 5.0 36101E3 5.0
-
-
56221E3 5.0 66221E3 5.0 36221E3 5.0
-
-
90001E3 2.5
-
-
90027E3 5.0 90389E3 2.5
90094E3 2.5
-
-
90098E3 5.0 90391E3 2.5
90099E3 5.0 90101E3 5.0 90103E3 5.0
-
-
57159E3 2.5
-
-
37159E3 5.0 77159E3 2.5
57689E3 5.0 67689E3 5.0 37689E3 5.0
-
-
90004E3 2.5
-
-
90028E3 5.0 90392E3 2.5
90104E3 2.5
-
-
90108E3 5.0 90393E3 2.5
90011E3 5.0 90012E3 5.0 90031E3 5.0
-
-
90109E3 5.0 90111E3 5.0 90113E3 5.0
-
-
58477E3 2.5
-
-
38477E3 5.0 78477E3 2.5
58108E3 2.5
-
-
38108E3 5.0 78108E3 2.5
58228E3 2.5
-
-
38228E3 5.0 78228E3 2.5
58338E3 2.5
-
-
38338E3 5.0 78338E3 2.5
58478E3 2.5
-
-
38478E3 5.0 78478E3 2.5
58688E3 2.5
-
-
38688E3 5.0 78688E3 2.5
58109E3 2.5
-
-
38109E3 5.0 78109E3 2.5
90036E3 5.0 90041E3 5.0 90181E3 5.0
-
-
58159E3 2.5
-
-
38159E3 5.0 78159E3 2.5
58229E3 2.5
-
-
38229E3 5.0 78229E3 2.5
90117E3 5.0 90118E3 5.0 90139E3 5.0
-
-
58339E3 5.0 68339E3 5.0 38339E3 5.0
-
-
58479E3 5.0 68479E3 5.0 38479E3 5.0
-
-
58689E3 5.0 68689E3 5.0 38689E3 5.0
-
-
59109E3 5.0 69109E3 5.0 39109E3 5.0
-
-
59229E3 5.0 69229E3 5.0 39229E3 5.0
-
-
90333E3 5.0 90334E3 5.0 90336E3 5.0
-
-
90337E3 5.0 90338E3 5.0 90341E3 5.0
-
-
Document Number: 28312
Revision: 19-Mar-08
www.vishay.com
120
For technical questions, contact: aluminumcaps1@vishay.com
036 RSP
Aluminum Capacitors
Radial Semi-Professional

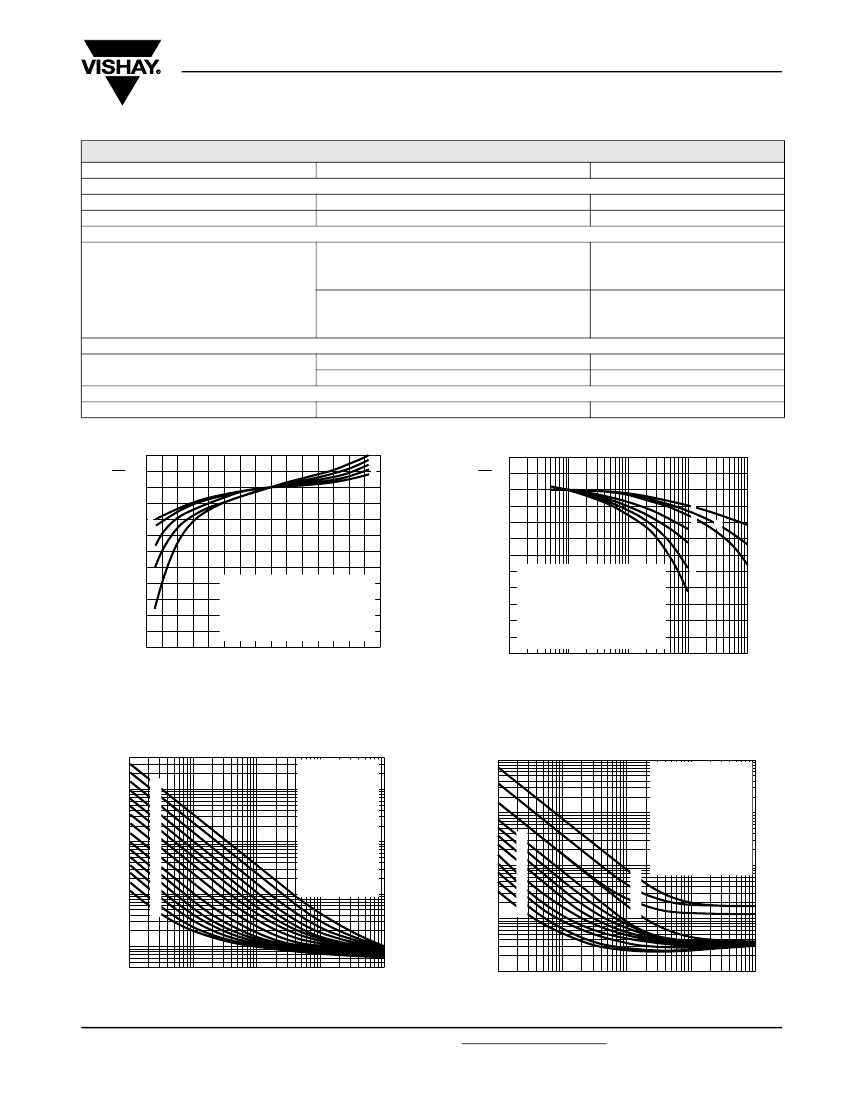

ADDITIONAL ELECTRICAL DATA
PARAMETER
Voltage
Surge voltage
Reverse voltage
Current
Leakage current
CONDITIONS
U
s
≤
1.15 U
R
U
rev
≤
1 V
After 1 min:
U
R
= 6.3 to 100 V
U
R
= 160 V
After 5 min:
U
R
= 6.3 to 100 V
U
R
= 160 V
Case Ø D x L = 5 x 11 mm
Case Ø D x L = 8.2 x 11 mm
calculated from tan
δ
max.
and C
R
(see Table 2)
VALUE
Vishay BCcomponents
I
L1
≤
0.006 C
R
x U
R
+ 3
μA
I
L1
≤
0.1 C
R
x U
R
+ 40
μA
I
L5
≤
0.001 C
R
x U
R
+ 3
μA
I
L5
≤
0.015 C
R
x U
R
+ 10
μA
Typ. 13 nH
Typ. 16 nH
ESR = tan
δ/2πfC
R
Inductance
Equivalent series inductance (ESL)
Resistance
Equivalent series resistance (ESR)
CAPACITANCE (C)
C
C
0
1.1
1.0
0.9 1
2
0.8
0.7
0.6
5
3
4
Curve 1: 63
V
Curve 2: 50
V
Curve 3: 35
V;
40
V;
100
V;
160
V
Curve 4: 16
V;
25
V
Curve 5: 6.3
V;
10
V
- 40
- 20
0
20
40
60
80
0.7
0.6
0.5
10
5
1
C
C
0
1.1
1.0
0.9
0.8
Curve 1: 63
V
(≤ 2.2
µF)
Curve 2: 63
V
(> 2.2
µF)
Curve 3: 50
V
Curve 4: 35
V;
40
V;
100
V;
160
V
Curve 5: 25
V
Curve 6: 16
V
Curve 7: 6.3
V;
10
V
10
2
10
3
6
7
1
3
4
5
2
0.5
- 60
T
amb
(°C)
C
0
= Capacitance at 20 °C, 100 Hz
Fig. 6 Typical multiplier of capacitance as a function of
ambient temperature
10
4
f (Hz)
10
5
C
0
= Capacitance at 20 °C, 100 Hz
T
amb
= 20 °C
Fig. 7 Typical multiplier of capacitance as a function of
ambient temperature
IMPEDANCE (Z)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Curve 1: 0.47
µF
Curve 2: 0.68
µF
Curve 3: 1.0
µF
Curve 4: 1.5
µF
Curve 5: 2.2
µF
Curve 6: 3.3
µF
Curve 7: 4.7
µF
Curve
8:
6.8
µF
Curve 9: 10
µF
Curve 10: 15
µF
Curve 11: 22
µF
Curve 12: 33
µF
Curve 13: 47
µF
Curve 14: 68
µF
Curve 15: 100
µF
Curve 16: 150
µF
10
3
10
3
Z
(Ω)
10
2
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
Z
(Ω)
10
2
10
10
1
1
2
3
4
Curve 1: 2.2
µF
Curve 2: 4.7
µF
Curve 3: 10
µF,
100
V
Curve 4: 10
µF,
63
V
Curve 5: 22
µF,
63
V
Curve 6: 33
µF
Curve 7: 47
µF
Curve
8:
68
µF
Curve 9: 100
µF
Curve 10: 150
µF
Curve 11: 220
µF
Curve 12: 330
µF
Curve 13: 470
µF
1
10
2
10
3
10
4
10
5
10
6
10
-1 2
10
10
3
10
4
10
5
10
6
f (Hz)
Case Ø D x L = 5 x 11 mm
T
amb
= 20 °C
Case Ø D x L = 8.2 x 11 mm
f (Hz)
T
amb
= 20 °C
Fig. 8 Typical impedance as a function of frequency
Document Number: 28312
Revision: 19-Mar-08
Fig. 9 Typical impedance as a function of frequency
www.vishay.com
121
For technical questions, contact: aluminumcaps1@vishay.com
036 RSP
Vishay BCcomponents
Aluminum Capacitors
Radial Semi-Professional
RIPPLE CURRENT AND USEFUL LIFE
3.3
CCC205
I
A
3.2
I
R
3.1
3.0
2.8
2.6
2.4
2.2
0
1.
lifetime multiplier
2.0
1.8
0
3.
0
4.
5
1.
0
2.
I
A
= Actual ripple current at 100 Hz
I
R
= Rated ripple current at 100 Hz, 85 x C
(1) Useful life at 85 x C and I
R
applied: 3000 h
1.6
1.4
1.2
1.0
0.8
0.5
0.0
10
15
20
30
50 0
7
0
6.
(1)
Fig. 10 Multiplier of useful life as a function of ambient
temperature and ripple current load
Table 3
40
50
60
70
80
90
100
T
amb
(°C)
MULTIPLIER OF RIPPLE CURRENT (I
R
) AS A FUNCTION OF FREQUENCY
FREQUENCY
(Hz)
50
100
300
1000
3000
≥
10 000
Table 4
I
R
MULTIPLIER
U
R
= 6.3 to 10 V
0.90
1.00
1.12
1.20
1.25
1.30
U
R
= 16 to 35 V
0.85
1.00
1.20
1.30
1.35
1.40
U
R
= 40 to 160 V
0.80
1.00
1.25
1.40
1.50
1.60
TEST PROCEDURES AND REQUIREMENTS
TEST
NAME OF TEST
Endurance
REFERENCE
IEC 60384-4/
EN130300
subclause 4.13
T
amb
= 85
°C;
U
R
applied;
2000 h
PROCEDURE
(quick reference)
REQUIREMENTS
U
R
≤
6.3 V;
ΔC/C:
+ 15/- 30 %
U
R
>
6.3 V;
ΔC/C:
± 15 %
tan
δ ≤
1.3 x spec. limit
Z
≤
2 x spec. limit
I
L5
≤
spec. limit
U
R
≤
6.3 V;
ΔC/C:
+ 45/− 50 %
U
R
>
6.3 V;
ΔC/C:
± 45 %
tan
δ ≤
3 x spec. limit
Z
≤
3 x spec. limit
I
L5
≤
spec. limit
No short or open circuit
Total failure percentage:
≤
1 %
ΔC/C,
tan
δ,
Z:
For requirements
See ‘Endurance test’ above
I
L5
≤
spec. limit
Document Number: 28312
Revision: 19-Mar-08
Useful life
CECC 30301
subclause 1.8.1
T
amb
= 85
°C;
U
R
and I
R
applied;
3000 h
Shelf life
(storage at high
temperature)
IEC 60384-4/
EN130300
subclause 4.17
T
amb
= 85
°C;
no voltage applied;
500 h
After test: U
R
to be applied for 30 min,
24 to 48 h before measurement
www.vishay.com
122
For technical questions, contact: aluminumcaps1@vishay.com
京公网安备 11010802033920号
EEWORLD
