5962-01-042-5369 datasheet, PDF

5962-01-042-5369: DescriptionD Latch, 2-Func, 4-Bit, TTL, CDIP24; Categorylogic logic; File Size584KB，12 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

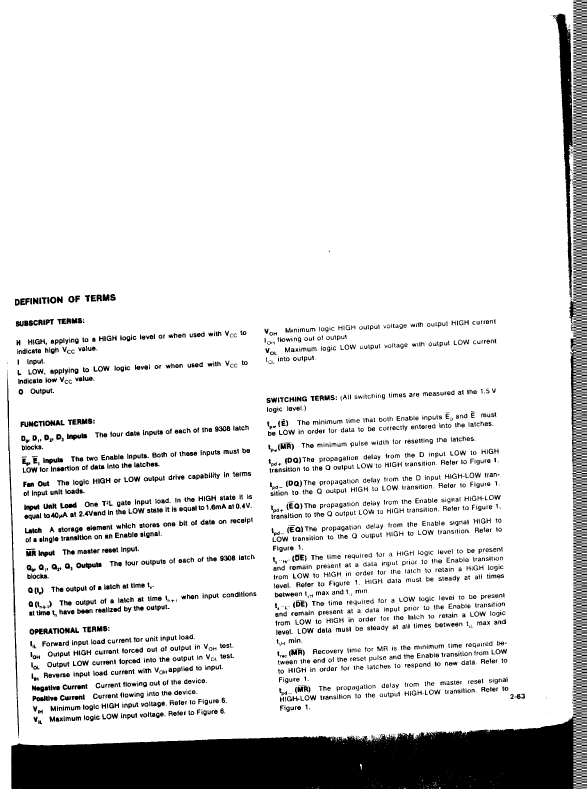

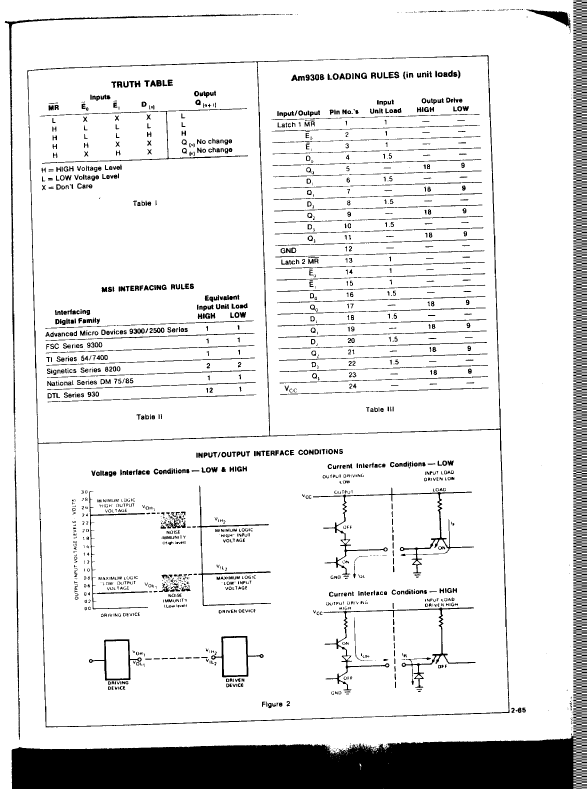

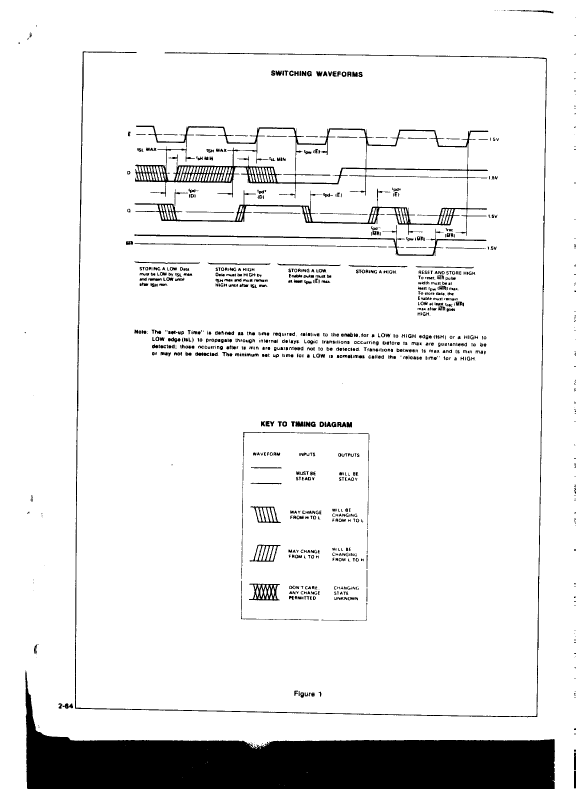

5962-01-042-5369 Overview

D Latch, 2-Func, 4-Bit, TTL, CDIP24

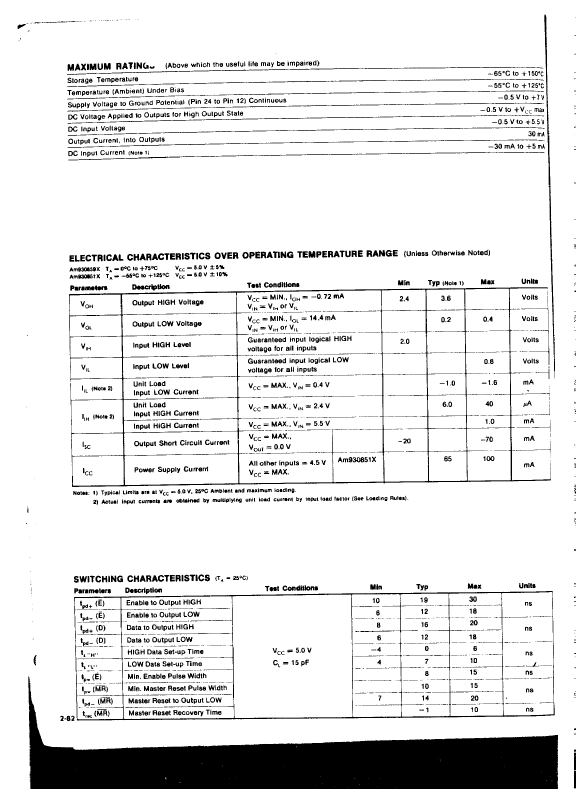

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
package instruction	DIP, DIP24,.6
Reach Compliance Code	compliant
Is Samacsys	N
JESD-30 code	R-XDIP-T24
Logic integrated circuit type	D LATCH
Number of digits	4
Number of functions	2
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class C
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	5962-01-042-5369	RK73B2BTTE472G	AM9308FM	AM9308FMB
Description	D Latch, 2-Func, 4-Bit, TTL, CDIP24	Fixed Resistor, Metal Glaze/thick Film, 0.25W, 4700ohm, 200V, 2% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT	D Latch, 2-Func, 4-Bit, TTL, CDFP24	D Latch, 2-Func, 4-Bit, TTL, CDFP24
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible
package instruction	DIP, DIP24,.6	SMT, 1206	DFP, FL24,.4	DFP, FL24,.4
Reach Compliance Code	compliant	compliant	unknown	unknown
Number of terminals	24	2	24	24
Maximum operating temperature	125 °C	155 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR	RECTANGULAR PACKAGE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMT	FLATPACK	FLATPACK
surface mount	NO	YES	YES	YES
technology	TTL	METAL GLAZE/THICK FILM	TTL	TTL
Maker	AMD	-	AMD	AMD
JESD-30 code	R-XDIP-T24	-	R-XDFP-F24	R-XDFP-F24
Logic integrated circuit type	D LATCH	-	D LATCH	D LATCH
Number of digits	4	-	4	4
Number of functions	2	-	2	2
Package body material	CERAMIC	-	CERAMIC	CERAMIC
encapsulated code	DIP	-	DFP	DFP
Encapsulate equivalent code	DIP24,.6	-	FL24,.4	FL24,.4
power supply	5 V	-	5 V	5 V
Nominal supply voltage (Vsup)	5 V	-	5 V	5 V
Temperature level	MILITARY	-	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	-	FLAT	FLAT
Terminal pitch	2.54 mm	-	1.27 mm	1.27 mm
Terminal location	DUAL	-	DUAL	DUAL
JESD-609 code	-	e3	e0	e0
Terminal surface	-	MATTE TIN OVER NICKEL	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
