108477064007031: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size102KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

108477064007031 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Plug, ROHS COMPLIANT

108477064007031 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: DIN 41612
body width	0.437 inch
body length	3.736 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.834 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	8477
Plug contact pitch	0.2 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.587 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

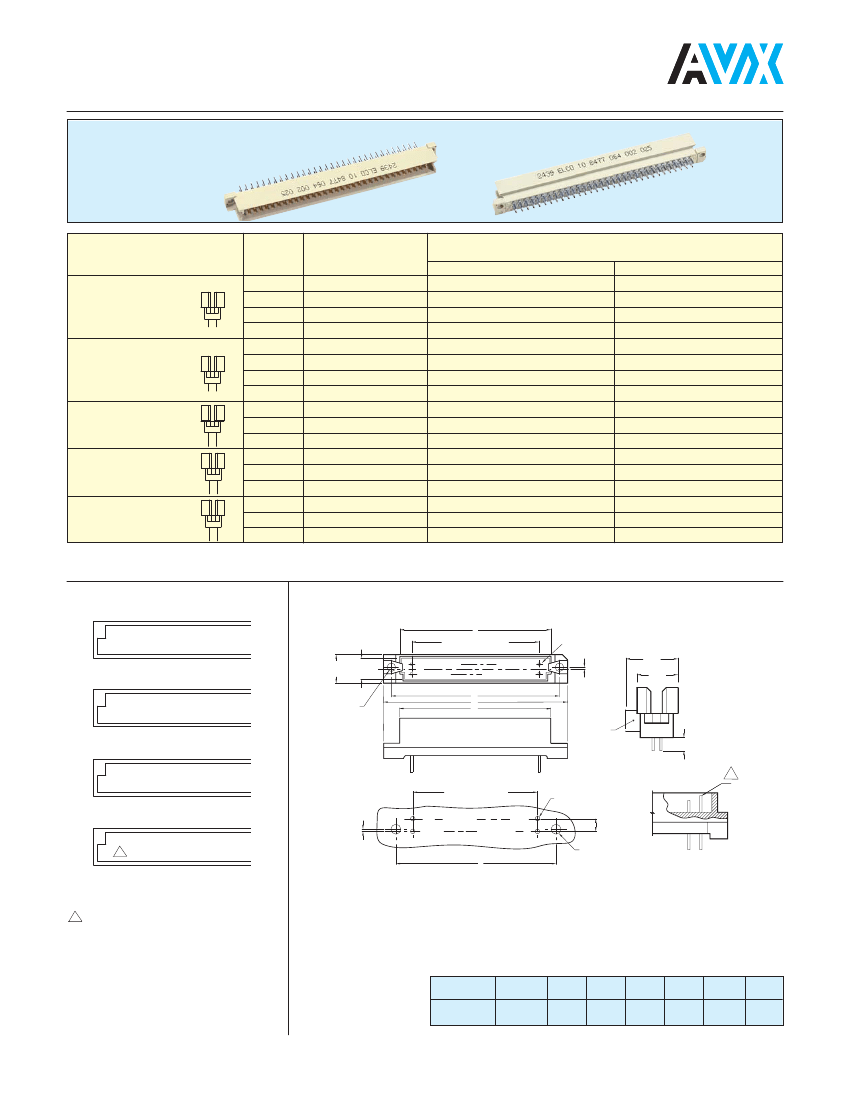

Male Style Q

Series 8477 – 2 rows (2 x 32) Inverted

Contact Design

and

Termination Length

Number of

Contacts

64

32

Part Number

Performance classes according to DIN 41612

Loading Description

a + b fully loaded

a + b even loading

a loading only

fully loaded + ground

a + b fully loaded

a + b even loading

a loading only

fully loaded + ground

a + b fully loaded

a + b even loading

a loading only

a + b fully loaded

a + b even loading

a loading only

a + b fully loaded

a + b even loading

a loading only

II

10 8477 064 001 025

10 8477 064 001 031

10 8477 064 001 027

10 8477 064 101 025

10 8477 064 002 025

10 8477 064 002 031

10 8477 064 002 027

10 8477 064 102 025

10 8477 064 005 025

10 8477 064 005 031

10 8477 064 005 027

10 8477 064 006 025

10 8477 064 006 031

10 8477 064 006 027

10 8477 064 007 025

10 8477 064 007 031

10 8477 064 007 027

I

10 8477 064 001 049

10 8477 064 001 055

10 8477 064 001 051

10 8477 064 101 049

10 8477 064 002 049

10 8477 064 002 055

10 8477 064 002 051

10 8477 064 102 049

10 8477 064 005 049

10 8477 064 005 055

10 8477 064 005 051

10 8477 064 006 049

10 8477 064 006 055

10 8477 064 006 051

10 8477 064 007 049

10 8477 064 007 055

10 8477 064 007 051

2.9 mm (Y)

Straight

32

62 + 2

64

32

4.5 mm (Y)

Straight

9.5 mm (Y)

Straight

13.0 mm (Y)

Straight

14.9 mm (Y)

Straight

32

62 + 2

64

32

64

32

64

32

NB: Alternative Prefix Variations Available: 12, 14, 15, 16 & 17, please refer to Page 10.

Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.

LOADING DESCRIPTION

●

DIMENSIONS

C

A EQ SP @ 2.54 [0.100] = B

1

11.1

[0.437]

ROW B

0.30

[0.012]

8.51

[0.335]

b

a

8.50

[0.335]

6.20

[0.244]

64 contacts, rows a + b fully loaded

✕

●

✕

●

✕

ROW A

b

a

2.54

[0.100]

DIA.

E

F

D

KEYING

32 contacts, rows a + b even loading

✕

●

✕

●

✕

●

✕

●

✕

●

For Y dimension

see contact design

Y

b

a

A EQ SP @ 2.54 [0.100] = B

1.02 DIA.

[0.040]

2.54

[0.100]

ROW A

ROW B

1

GROUND

CONTACT

32 contacts, row a loading only

b

a

●

0.30

[0.012]

E

2.84 DIA.

[0.112]

62 + 2 contacts, fully loaded

with ground in A1 & A32

denotes ground pin

HOLE PATTERN

Unit: millimeters (inches)

No. Contact

Positions

64

Contact

Rows

2 (2 x 32)

A

31

B

C

D

E

F

94.89

(3.736)

78.74 85.29

(3.100) (3.358)

87.91

90.0

(3.461) (3.543)

54
