09665217701

Description

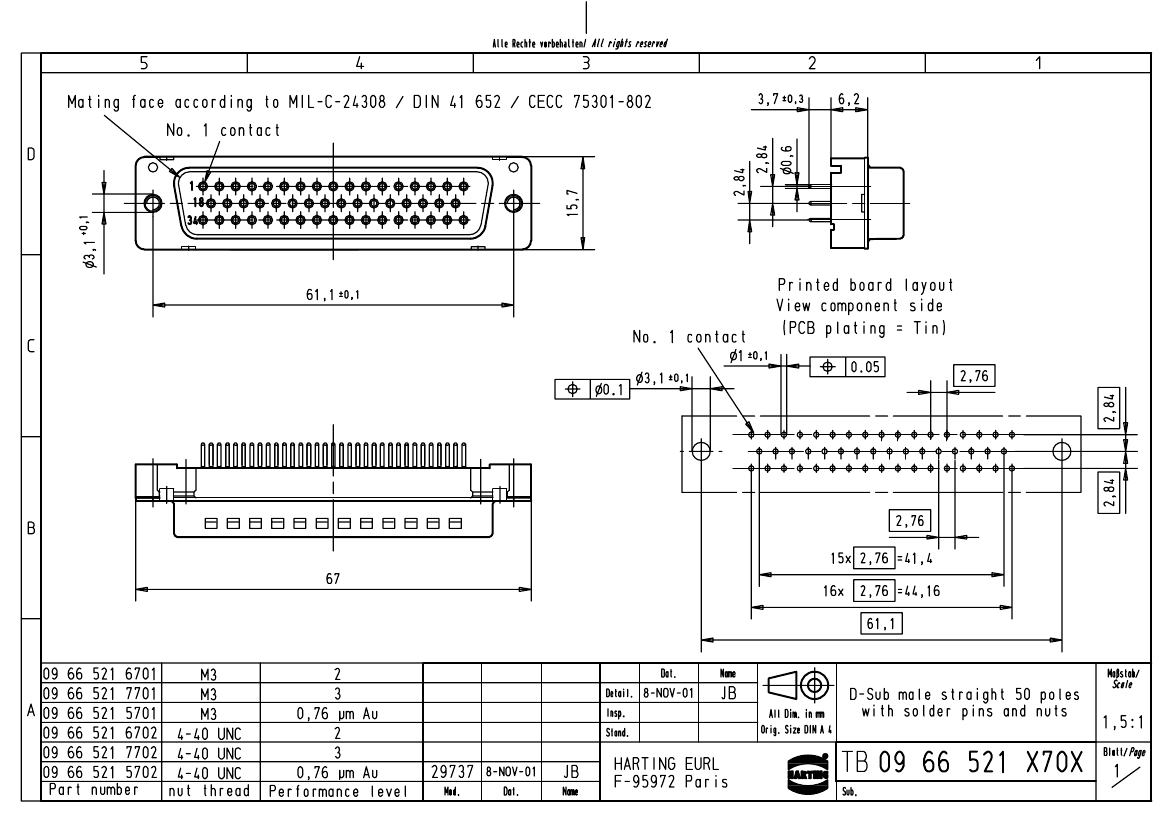

D Subminiature Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, M3, Receptacle,
CategoryThe connector    The connector
File Size50KB,1 Pages
ManufacturerHARTING
Environmental Compliance
Download Datasheet Parametric View All

09665217701 Online Shopping

Suppliers Part Number Price MOQ In stock
09665217701 - - View Buy Now

09665217701 Overview

D Subminiature Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, M3, Receptacle,

09665217701 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerHARTING
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys Confidence4
Samacsys StatusReleased
Samacsys PartID1461293
Samacsys Pin Count52
Samacsys Part CategoryConnector
Samacsys Package CategoryOther
Samacsys Footprint Name09665217701
Samacsys Released Date2018-09-26 12:35:30
Is SamacsysN
Other featuresSTANDARDS: DIN 41652; IEC 60807
body width0.618 inch
subject depth0.244 inch
body length2.638 inch
Body/casing typeRECEPTACLE
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeSTAGGERED
Contact resistance10 mΩ
Contact styleRND PIN-SKT
DIN complianceYES
Dielectric withstand voltage1000VAC V
empty shellNO
Filter functionNO
IEC complianceYES
maximum insertion force3.336 N
Insulation resistance10000000000 Ω
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER
MIL complianceNO
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Mixed contactsNO
Installation option 1M3
Installation option 2THREADED
Installation methodSTRAIGHT
Installation typeBOARD AND PANEL
PCB row number3
Number of rows loaded3
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Rated current (signal)6.5 A
GuidelineUL
reliabilityMIL-C-24308
Shell surfaceTIN
Shell materialSTEEL
Housing size5/D
Terminal length0.122 inch
Terminal pitch2.7686 mm
Termination typeSOLDER
Total number of contacts50
UL Flammability Code94V-0
Evacuation force-minimum value3.336 N
Base Number Matches1
