008016090218534: DescriptionRack and Panel Connector, 90 Contact(s), Male, Wire Wrap Terminal, Plug; CategoryThe connector The connector; File Size69KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

008016090218534 Overview

Rack and Panel Connector, 90 Contact(s), Male, Wire Wrap Terminal, Plug

008016090218534 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	POLARIZED
Body/casing type	PLUG
Connector type	RACK AND PANEL CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (100)
Contact completed and terminated	GOLD (10) OVER NICKEL (100)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	8016
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYESTER
Termination type	WIRE WRAP
Total number of contacts	90
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

Varicon

®

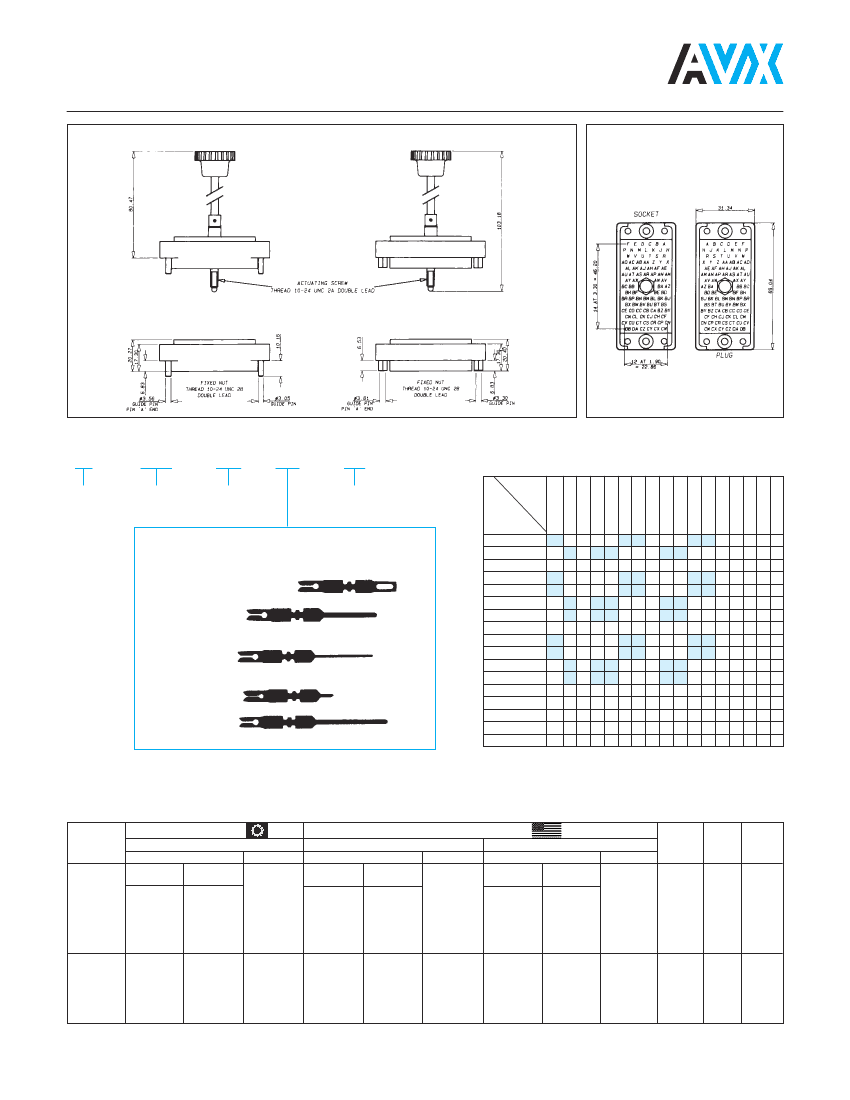

Series 8016 – Rectangular Connector – 90 Way

PLUG -

Actuating Screw

SOCKET -

Actuating Screw

PIN LAYOUT

90

Way

PLUG –

Fixed Nut

SOCKET –

Fixed Nut

ORDERING CODE

00

Prefix

8016

Series

Number

090

Number of

Contacts

217

001

See

Variation

Code

CONNECTOR PLUG AND

RECEPTACLE COMBINATIONS

Receptacle

007/507/607

008/508/608

909/509/609

910/510/610

911/511/611

912/512/612

Plug

Contact Termination

*000 = Contacts not fitted and ordered separately,

see page 23 for full list of options

217 = Solder 0.098" x 2.49mm

218 = Wire Wrap –

0.025 x 0.050 x 0.567" / 0.64 x 1.27 x 14.4mm

296 = Wire Wrap –

0.025 x 0.026 x 0.579" / 0.64 x 1.27 x 19.3mm

504 = Solder Tail –

750 = Wire Wrap –

0.025 x 0.050 x 0.760" / 0.64 x 1.27 x 19.3mm

*Crimp contacts always ordered separately.

See page 23 for details.

001/501/601

002/502/602

903/503/603

904/504/604

905/505/605

906/506/606

931/531/631

932/532/632

933/533/633

934/534/634

Select variation code combinations marked with square in the table.

VARIATION CODE

European Version

Insulator

Body Type

Grey Polyester

Cover

No Cover

Large

Ex-Large

Clamp

—

001

—

002

903

931

—

904

932

—

905

933

—

906

934

—

909

910

911

912

—

935

936

937

938

007

008

—

USA Version

Grey Polyester

Cover

No Cover

Large

Ex-Large

Clamp

—

501

—

502

503

531

—

504

532

—

505

533

—

506

534

—

509

510

511

512

—

535

536

537

538

507

508

—

Male

(Exposed

Contacts)

Cover & Actu-

Green Polyester

Cable

ating

Cover

No Cover Entrance Screw

Large

Ex-Large

Clamp

—

601

None

Yes

—

602

None

No

603

631

—

Top

Yes

604

632

—

Side

Yes

605

633

—

Top

No

606

634

—

Side

No

—

609

610

611

612

—

635

636

637

638

607

608

—

None

Top

Side

Top

Side

No

Yes

No

935/535/635

936/536/636

937/537/637

938/538/638

Fixed

Nut

No

Yes

No

Yes

No

Yes

Female

(Recessed

Contacts)

ELCO

19
