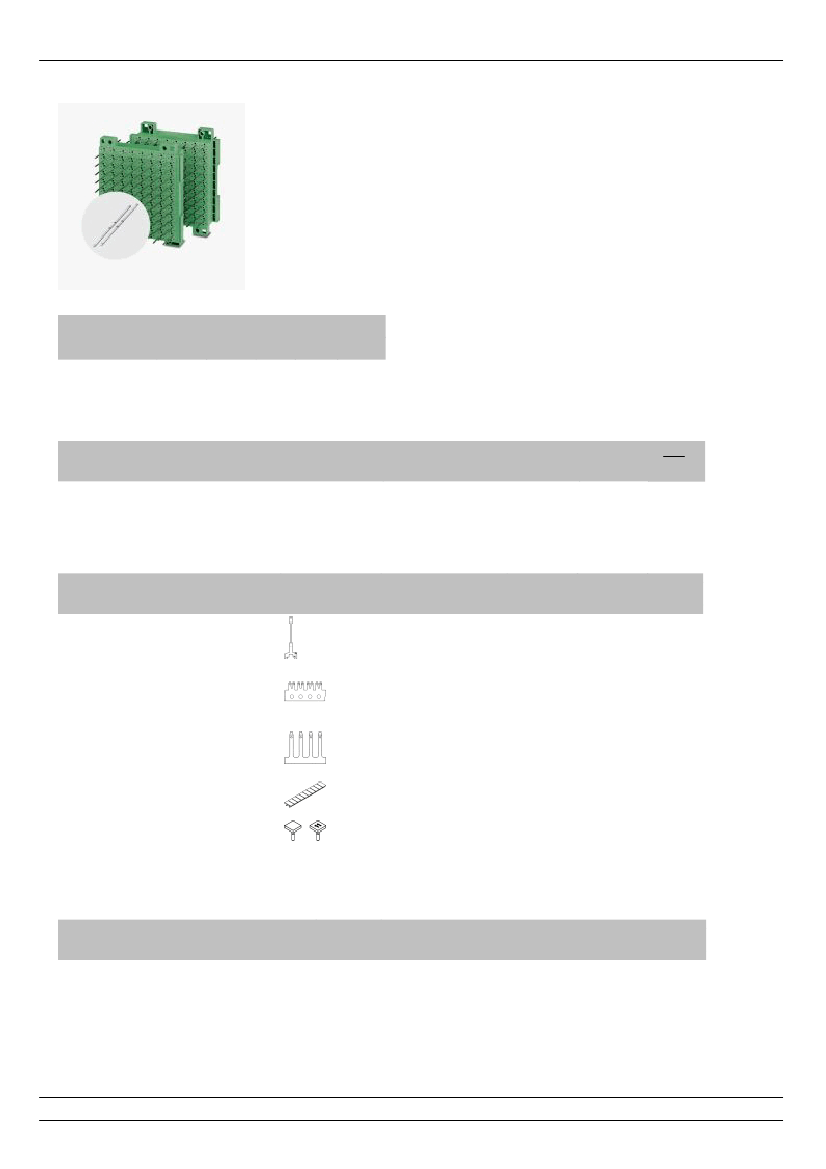

W 80/320-TP/TP
320-position with double-sided TP connection
I
mm
Connection data
TP connection 2,4 x 0,8
24-20
AWG
[A]
10
5
U
[V]
400
400
The nominal voltage applies to the equipment with 160 TP pins.
Nominal voltage when equipped with 320 TP pins 250 V.
Description
Type
Order No.
06 14 12 4
06 14 15 3
Pcs.
Pkt.
2
2
Multiway connector block,
160-position, two metal parts
W 80/160-TP/TP (2,4 x 0,8)
2
)
per chamber, one 2.4 x 0.8 TP pin on each side
Multiway connector block,
320-position, four metal
parts per chamber, one 2.4 x 0.8 TP pin on each side
Accessories
(1)
Holder,
for mounting on
3
,
2
,
1
, for fixing multiway connector
blocks, aluminum, dimensions see
drawing
(2)
Potential busbar,
with slotted
6.3/2.8 mm tabs, brass, tin-plated,
length: 1 m
(4)
Potential busbar,
with 2.4 x 0.8
mm TP pins, pin pitch 7.62 mm,
bronze, tin-plated, length: 0.76 m
(5)
Zack strip,
10-section, white
(6)
Marker pin,
plastic,
unprinted:
for labelling with marker
pen
printed:
with 1, 2 or 3 characters,
white
Technical data
Dimensions
Technical data in accordance with IEC/
DIN VDE
Total current per metal part
Rated surge voltage / contamination class
Surge voltage category / insulation material
group
[A]
[kV] / –
–/–
10
6/3
III / I
BN WH
BNB WH:…
4
)
W 80-T/AL-NS 35
W 80/320-TP/TP (2,4 x 0,8)
2
)
06 14 19 5
2
S-FS (2,8 x 0,8)
I
max.
: 40 A
31 91 69 9
1
S-TP (2,4 x 0,8)
31 91 70 9
1
ZB 6
(see
info)
14 01 40 4
14 01 41 7
100
100
see dimensional drawing
Phoenix Contact Elektronischer Katalog
Page 1 / 2
Module no:0614124 LabelId:0614124 Operator:Phoenix
group
Insulation material
Inflammability class acc. to UL 94
Temperature indices RTI / Ti
Wire-Wrap = registered trademark of Gardner-Denver
TERMI-POINT = trademark of AMP Incorporated
14:48:29, Donnerstag, 28. Juni 2001
PA-F
HB
120 / 145
) Current and voltage data for tab connections in acc. with EN 61 210 are also dependent on nom. size, material and insulation
of the receptacle, and also on the conductor cross section.
) Length L of the TP pins:
TP (1.6 x 0.8) 20 mm
TP (2.4 x 0.8) 26 mm
3
4
5
2
1
) Dependent on the receptacle.
) Required marking is to be specified.
) For conductors up to 1.5 mm .
2

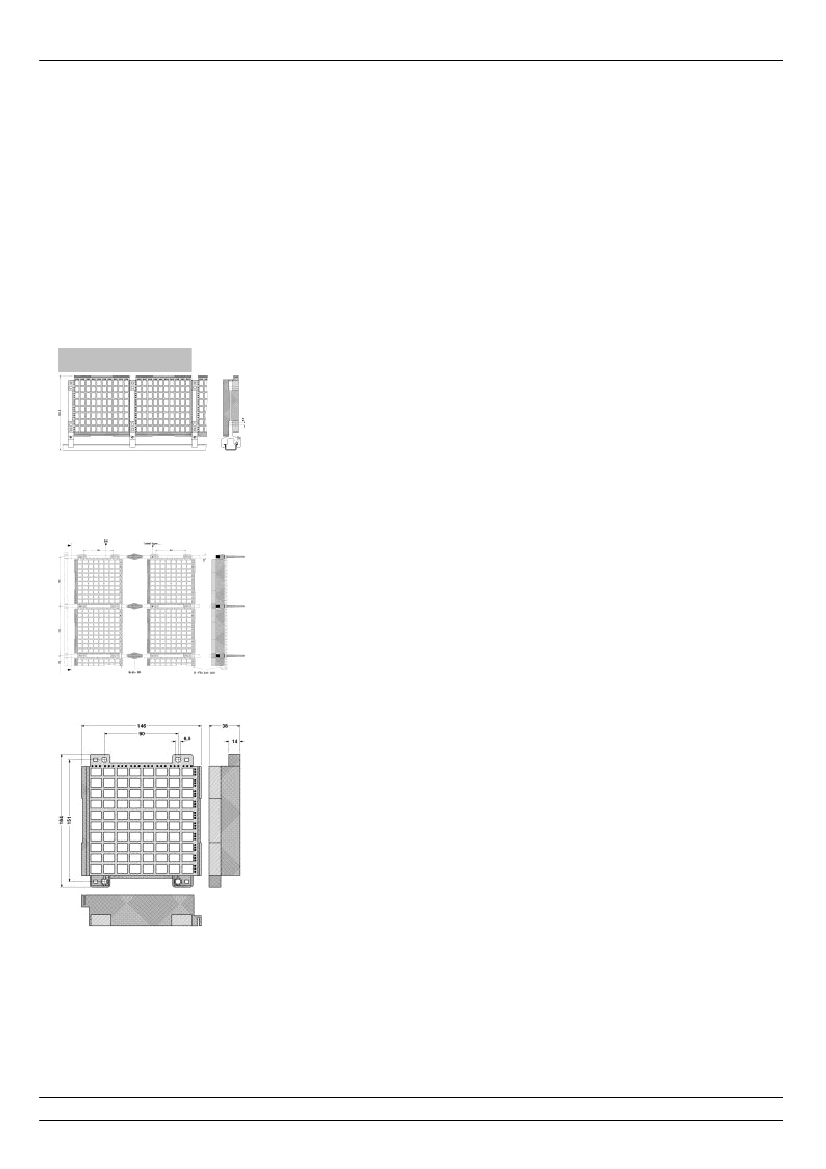

Dimensional drawing
Multiway connector blocks mounted on the NS 35 rail
by means of the holders.
Screws and nuts are necessary to fix the multiway
connector blocks,
for single mounting: M6x30
for double mounting: M6x55
Multiway connector blocks W 80/160
mounted on a support frame
consisting of 10x10mm profiles
Phoenix Contact Elektronischer Katalog
Page 2 / 2
