09062327897 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 09062327897

09062327897: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Press Fit Terminal, Plug,; CategoryThe connector The connector; File Size187KB，1 Pages; ManufacturerHARTING

Download Datasheet Parametric Compare View All

09062327897 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Press Fit Terminal, Plug,

09062327897 Parametric

Parameter Name	Attribute value
Maker	HARTING
Reach Compliance Code	compliant
Is Samacsys	N
Other features	LOW PROFILE, STANDARD: DIN 41612
body width	0.583 inch
subject depth	0.398 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1550VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.5568 N
Insulation resistance	1000000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	0906232
Plug contact pitch	0.2 inch
Match contact row spacing	0.15 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	Z,D
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.81 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	6 A
Guideline	VDE,CSA
reliability	COMMERCIAL
Terminal length	0.512 inch
Terminal pitch	5.08 mm
Termination type	PRESS FIT
Total number of contacts	32
UL Flammability Code	94V-0
Evacuation force-minimum value	1.5568 N
Base Number Matches	1

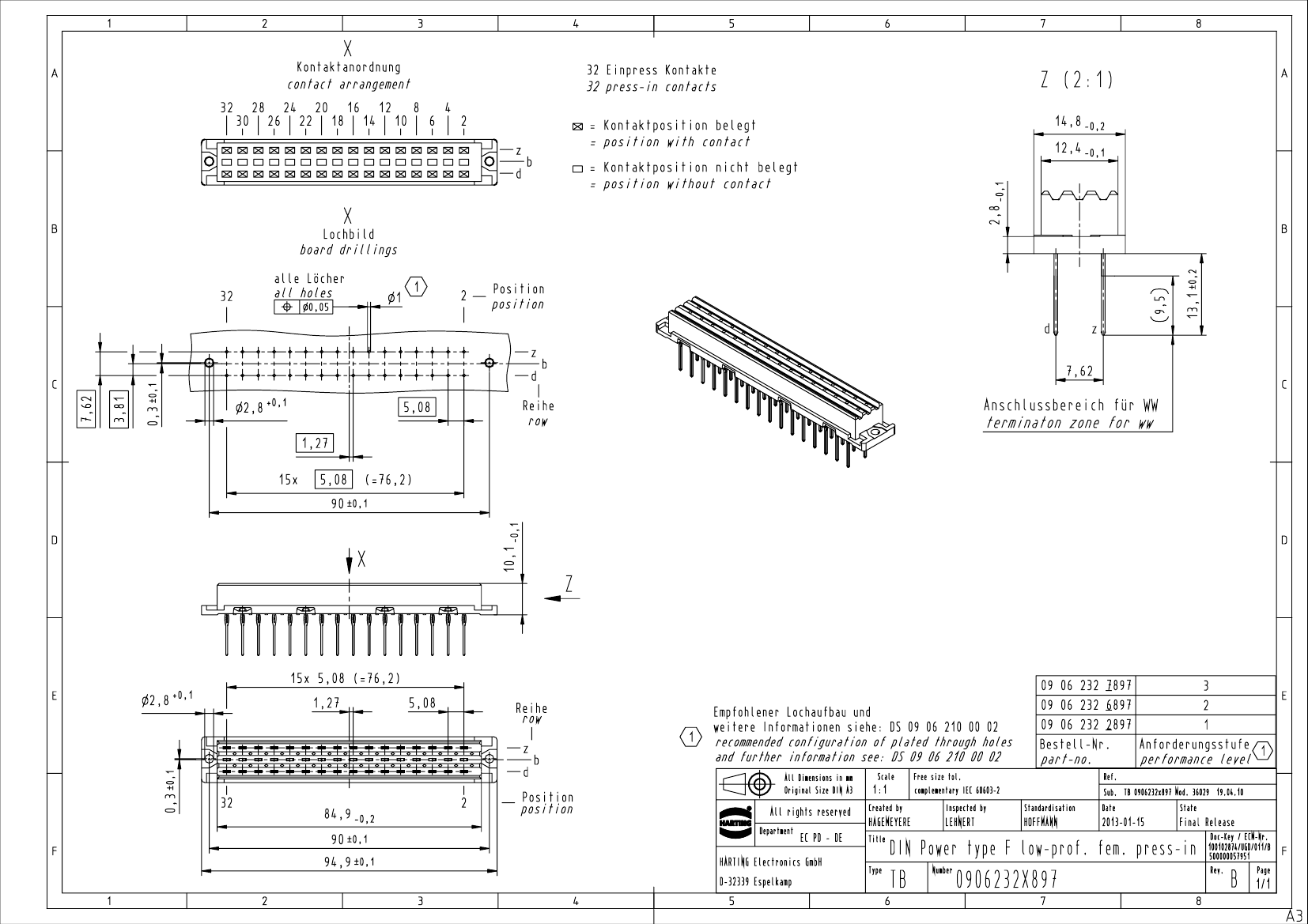

Preview

Download Datasheet

View All
