09PTD-CRK-GE: DescriptionTelecom and Datacom Connector, 9 Contact(s), Male, Straight, Solder Terminal, Plug; CategoryThe connector The connector; File Size147KB，2 Pages; ManufacturerJST

Download Datasheet Parametric Compare View All

09PTD-CRK-GE Overview

Telecom and Datacom Connector, 9 Contact(s), Male, Straight, Solder Terminal, Plug

09PTD-CRK-GE Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	JST
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	CRK
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	COPPER ALLOY
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

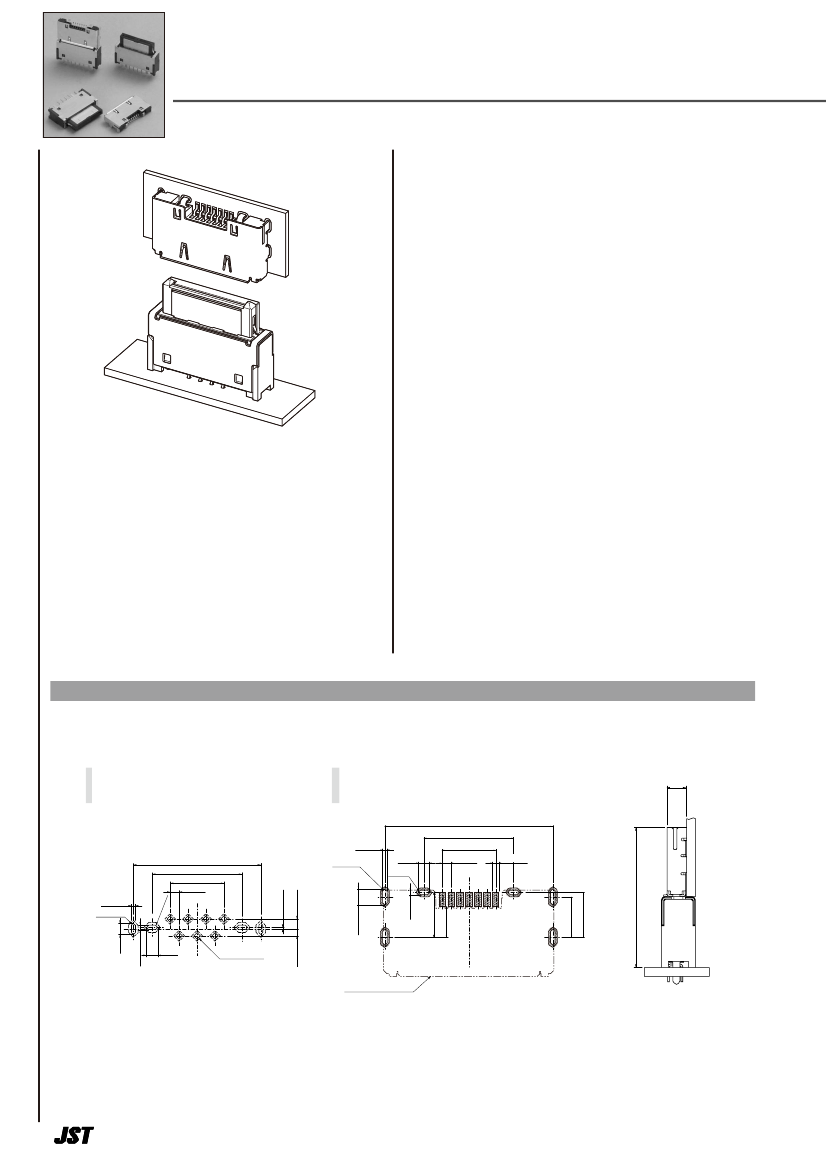

CRK

CONNECTOR

0.8mm pitch/Board-to-board connectors

Specifications –––––––––––––––––––

Signal contact/0.5A AC, DC

Power supply contact/2A AC, DC

• Voltage rating: Signal contact/30V AC, DC

Power supply contact/30V AC, DC

• Temperature range:

25˚C to

85˚C

(including temperature rise in applying

electrical current)

• Contact resistance:

Signal contact Initial value/70m

Ω

max.

After environmentaltesting/100m

Ω

max.

Power supply contact Initial value/20m

Ω

max.

After environmental testing/40m

Ω

max.

• Insulation resistance: 100M

Ω

min.

• Withstanding voltage: Signal contact 500V AC/minute

Power supply contact 500V AC/minute

• Applicable PC board thickness: Receptacle/0.7mm

Plug/1.0mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

• Current rating:

This connector is the ultra small connector

with the shutter for cradles.

This is suitable for using to the cradle of

mobile equipments such as mobile phone,

PDA and so on.

• Long life design

• High-speed transmission (For USB2.0)

• Signal line & Power supply line

(Signal 7 circuits + Power supply 2 circuits)

• Space saving design

PC board layout (viewed from component side) and Assembly layout

Plug

Receptacle

2.2

±0.05

0.4

11.35

±0.05

4.8

±0.05

0.8

±0.05

FULL R

(P.T.H)

0.13

±0.05

0.88

±0.05

4.8

±0.05

0.8

±0.05

0.55

±0.05

FULL R

(P.T.H)

0.4

±0.05

15.8

3.6

±0.05

＋0.05

2.75

–0.05

FUL

±0.05

7-φ0.57

±0.05

0.62

±0.05

0.4

±0.05

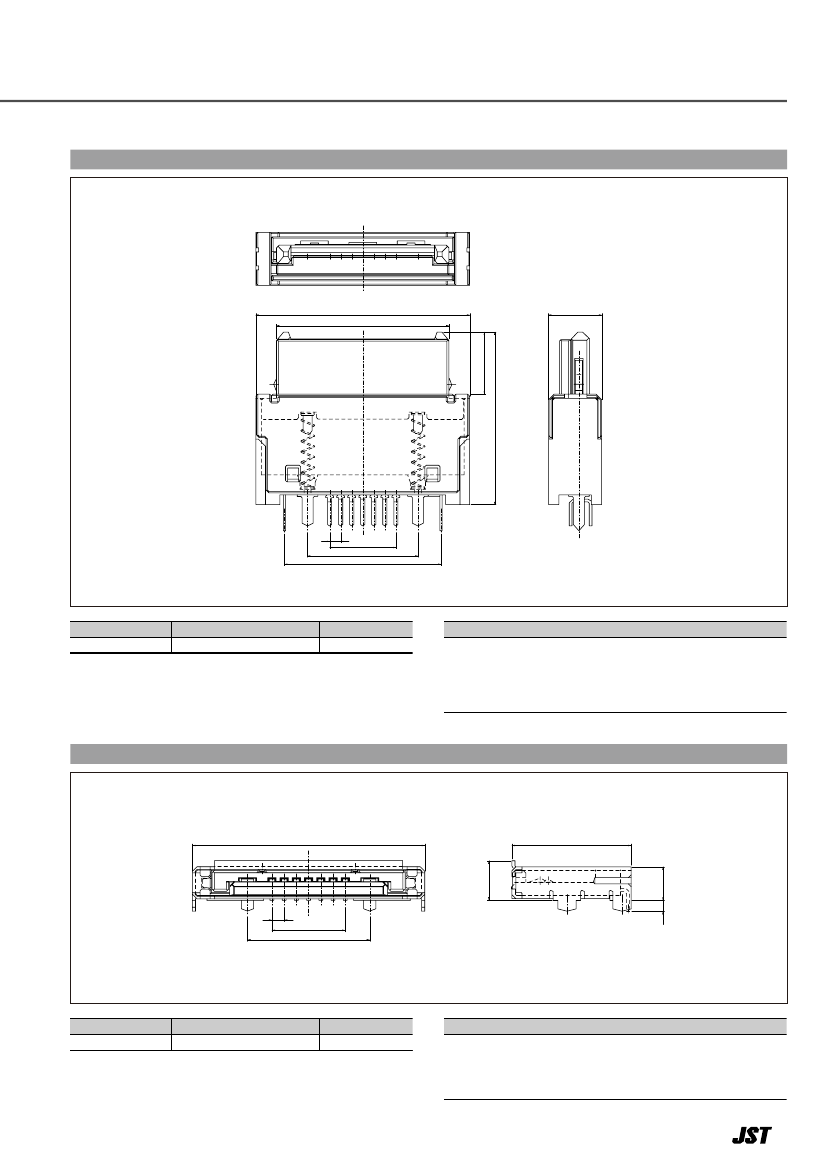

Receptacle outline

Note: 1. Tolerances for pierced hole pitch and pattern pitch are non-cumulative:

0.05mm for all centers.

2. Hole dimensions differ according to the kind of PC board and piercing method.

The dimensions above should serve as a guideline. Contact JST for details.

1.4

±0.05

0.35

±0.05

FULL R

09PTD-CRK-GE Related Products

	09PTD-CRK-GE	09PTD-CRK-GE(LF)	09RSA-CRK-GE	09RSA-CRK-GE(LF)(SN)
Description	Telecom and Datacom Connector, 9 Contact(s), Male, Straight, Solder Terminal, Plug	Telecom and Datacom Connector, 9 Contact(s), Male, Straight, Solder Terminal, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 9 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 9 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT
Is it lead-free?	Contains lead	Lead free	Contains lead	Lead free
Is it Rohs certified?	incompatible	conform to	incompatible	conform to
Maker	JST	JST	JST	JST
Reach Compliance Code	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N
Body/casing type	PLUG	PLUG	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	MALE	MALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	CRK	CRK	CRK	CRK
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES	YES	YES	YES
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN
Shell material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Termination type	SOLDER	SOLDER	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	9	9	9	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
