KVX2001 – KVX3901A
TM
®
SURFACE MOUNT VARACTOR DIODES
Wide Bandwidth SOT-23 Hyperabrupt
RoHS Compliant

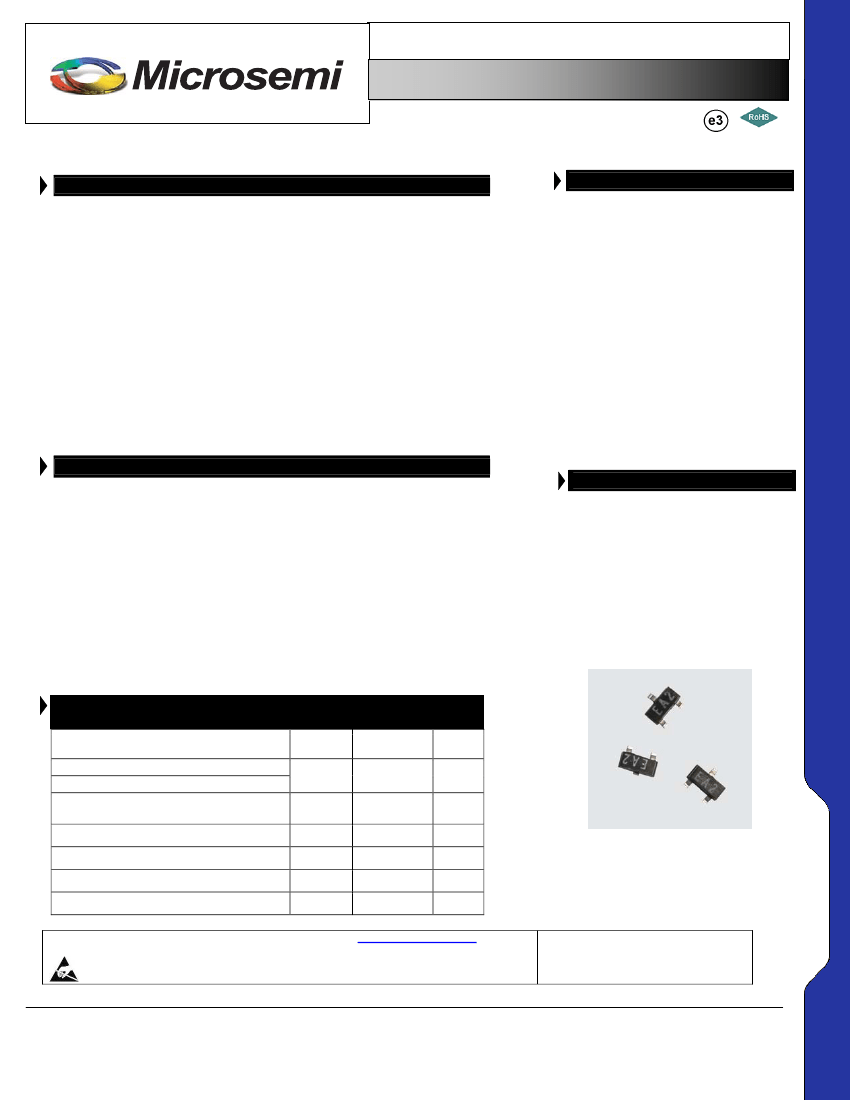

DESCRIPTION
These families of high ratio hyperabrupt varactor diodes employ high
energy ion implantation and grown junction epitaxy to provide highly
repeatable C / V functions and the highest Q values available in the
industry. The economical SOT-23 package allows these devices to be
used in a wide range of VHF-UHF and wireless microwave designs. All
are available in single die 23-0 configuration (see configuration sheet).
Other configurations are available - consult factory for availability.
This series of diodes meets RoHS requirements per EU Directive
2002/95/EC. Consult the factory for details.
KEY FEATURES
Silicon Mesa Geometry
www.MICROSEMI.com
High Reliability Dense SiO2
Passivation
Widest Tuning Ratios
Highest Q Available
Excellent Wide Band Linearity
Mil Spec Performance/Economy
Price
RoHS Compliant
1
Available on Tape & Reel for
Automated Assembly
APPLICATIONS
These devices are ideal for wide bandwidth linear VCO’s from VHF
through 1500 MHz. They are especially well suited for economy
applications that demand ruggedness and repeatability. Straight line
frequency Vs. Voltage functions are realized across mid voltage ranges.
They can also be used in voltage variable filter and phase shifting
applications which demand higher peak voltage handling and lower
distortion by selecting back to back configurations. Consult factory for
availability.
APPLICATIONS/BENEFITS
High Linearity VCOs
PLL VCOs
Octave Bandwidth VCOs
VVFs
Low
Noise
VCO.s
Shifters
ABSOLUTE MAXIMUM RATINGS AT 25º C
(UNLESS OTHERWISE SPECIFIED)
Rating
Maximum Working Voltage (KVX3xxx)
Maximum Working Voltage (KVX2xxx)
Maximum Leakage Current @ 80% of
Rated V
B
Forward Voltage @ 50mA
Thermal Coefficient of Capacitance @4 Volts
Symbol
V
R
V
R
I
R
V
F
T
CC
T
STG
T
OP
Value
27
22
50
1.0
300
-55 to +125
-55 to +125
Unit
V
KVX2001 – KVX3901A
nA
V
ppm/ ºC
ºC
ºC
1
Storage Temperature
Operating Temperature
IMPORTANT:
For the most current data, consult our website:
www.MICROSEMI.com
Specifications are subject to change. Consult factory for the latest information
.
These devices are ESD sensitive and must be handled using ESD precautions.
Unless otherwise specified, these products
are supplied with matte Tin terminations
suitable for RoHS compliant assembly.
Copyright
2007
Rev: 2009-02-02
Microsemi
Microwave Products
Page 1
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
KVX2001 – KVX3901A
TM
®
SURFACE MOUNT VARACTOR DIODES
Wide Bandwidth SOT-23 Hyperabrupt
RoHS Compliant
20V Microwave Hyperabrupt Varactors
MODEL
NUMBER
KVX2122
KVX2132
KVX2142
KVX2152
KVX2162
ELECTRICAL PARAMETERS @ 25C (unless otherwise specified)
V
B
(V)
C
T
(pF)
1
C
T
(pF)
1
C
T
(pF)
1
I
R
= 10uA
V
R
= 0V
V
R
= 4V
V
R
= 20V
(Min)
(Min)
(Min – Max)
(Min – Max)
22
2.7
1.25 - 1.75
0.43 - 0.57
22
4.2
1.7 - 2.5
0.52 – 0.72
22
22
22
6.3
11.9
26.0
2.2 - 3.8
3.7 - 5.5
9.0 - 11.0
0.68 - 0.96
0.94 - 1.3
1.9 - 2.5
Q
2
V
R
=4V
(Min)
1000
850
700
600
400
www.MICROSEMI.com
25V VHF/UHF Hyperabrupt Varactors
MODEL
NUMBER
KVX31S1
KVX3201A
KVX38S2
KVX3901A
ELECTRICAL PARAMETERS @ 25C (unless otherwise specified)
V
B
(V)
C
T
(pF)
1
C
T
(pF)
1
I
R
= 10uA
V
R
= 3V
V
R
= 25V
(Min)
(Min)
(Min – Max)
27
9.5 - 14.5
1.8 - 2.8
27
9.5 - 14.5
1.8 - 2.8
27
27
26.0 – 32.0
26.0 – 32.0
4.3- 6.0
4.3 - 6.0
Q
2
V
R
=4V
(Min)
200
750
200
500
20VHF/UHF Hyperabrupt Varactors
MODEL
NUMBER
KVX2001
KVX2201
KVX2301
1.
2.
ELECTRICAL PARAMETERS @ 25C (unless otherwise specified)
V
B
(V)
C
T
(pF)
1
C
T
(pF)
1
C
T
(pF)
1
I
R
= 10uA
V
R
= 4V
V
R
= 8V
V
R
= 20V
(Min)
(Min)
(Min – Max)
(Min – Max)
22
18 - 22
7.5 - 10.5
3.1 - 3.9
22
45 - 55
18 - 25
7.3 - 9.2
22
100 - 120
39 - 55
15 - 19
Q
2
V
R
=4V
(Min)
160
125
80
Capacitance is measured at ƒ = 1 MHz
Q is determined at V
R
= 4V, ƒ = 50 MHz by
Q
½
1 / 2
fRsCj

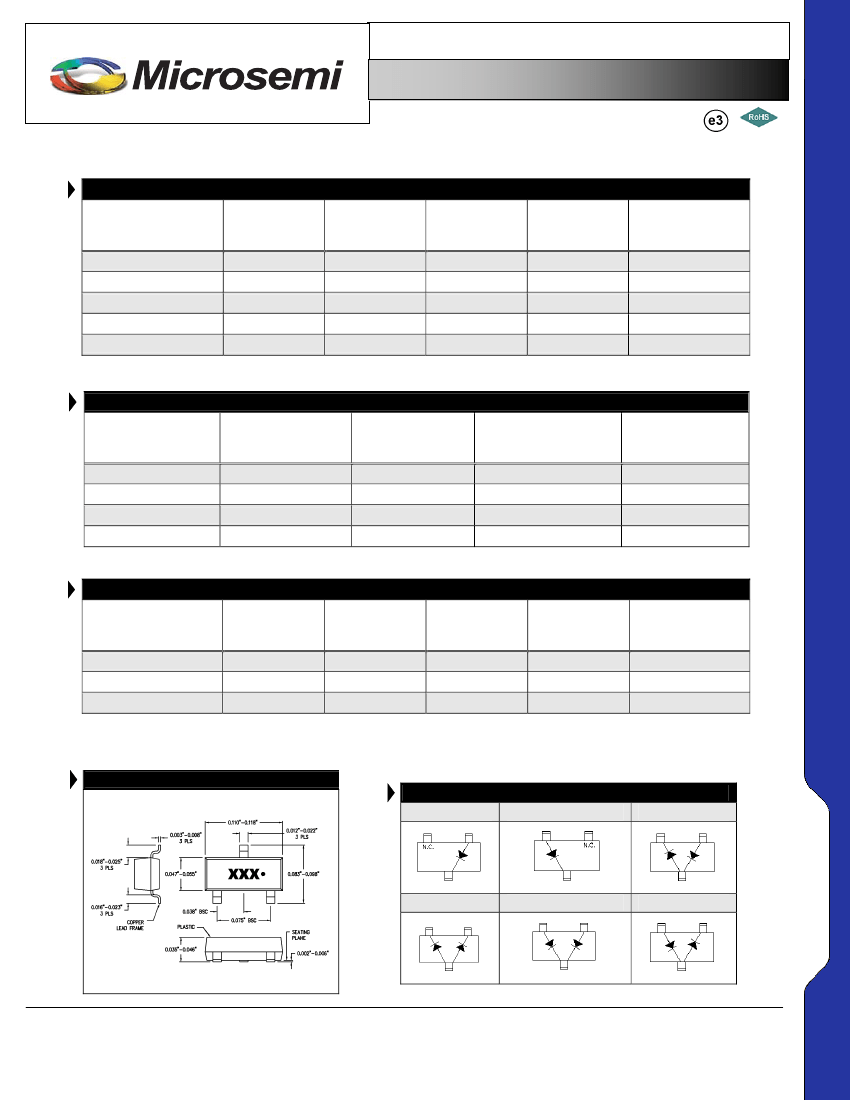

PACKAGE STYLE 23-X
STANDARD CONFIGURATIONS
23-0
23-1
23-2
ELECTRICALS
ELECTRICALS
23-3
23-4
23-5
Copyright
2007
Rev: 2009-02-02
Microsemi
Microwave Products
Page 2
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
