SG1529J: DescriptionSwitching Controller, Voltage-mode, 0.2A, 400kHz Switching Freq-Max, CDIP18; CategoryPower/power management The power supply circuit; File Size149KB，4 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

SG1529J Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SG1529J	-	-	View	Buy Now

SG1529J Overview

Switching Controller, Voltage-mode, 0.2A, 400kHz Switching Freq-Max, CDIP18

SG1529J Parametric

Parameter Name	Attribute value
Maker	Microsemi
package instruction	,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	40 V
Minimum input voltage	7 V
JESD-30 code	R-GDIP-T18
Number of functions	1
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	0.2 A
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply current (Isup)	12 mA
surface mount	NO
Switch configuration	PUSH-PULL
Maximum switching frequency	400 kHz
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL

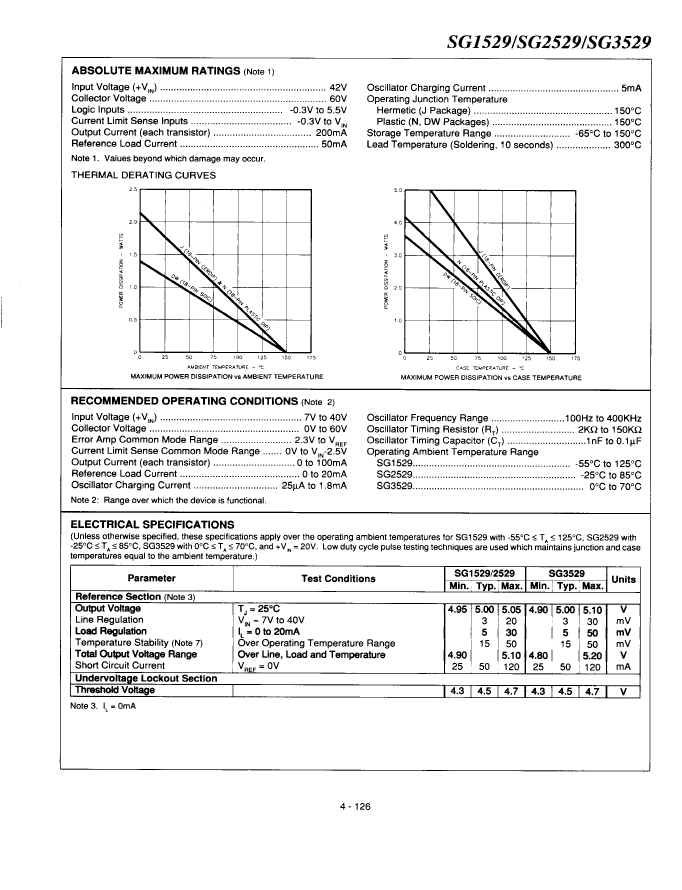

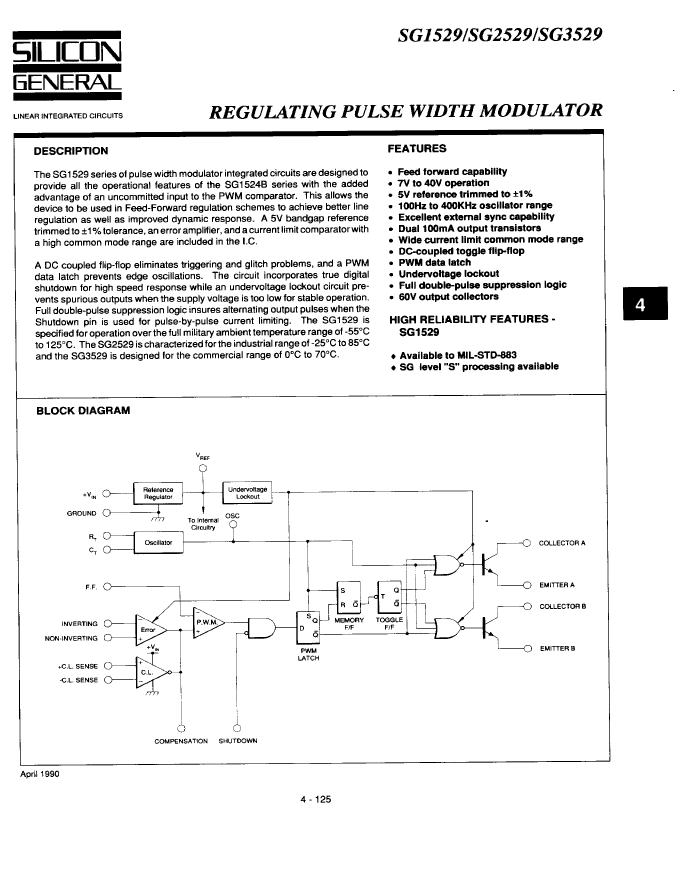

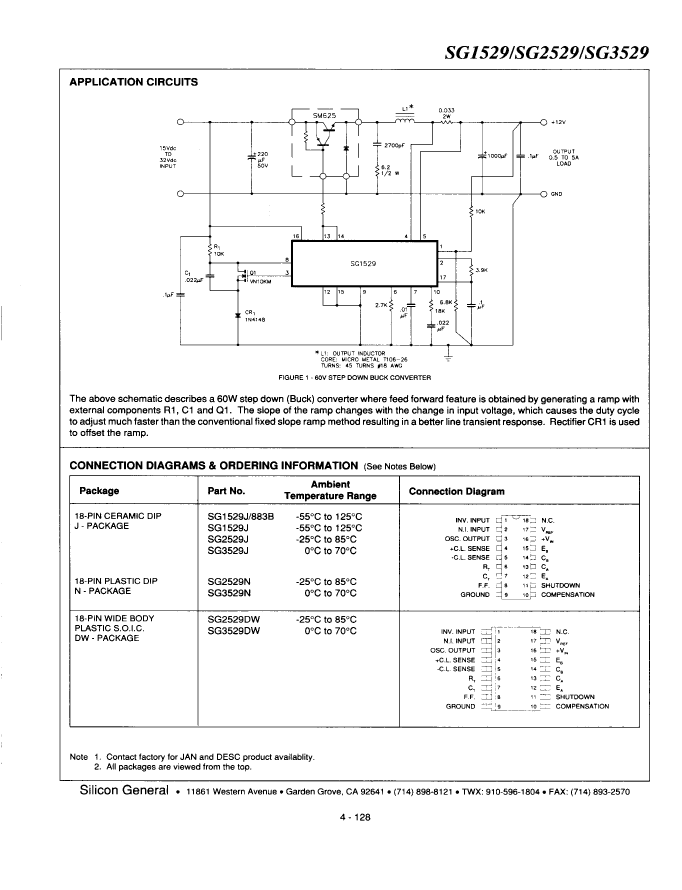

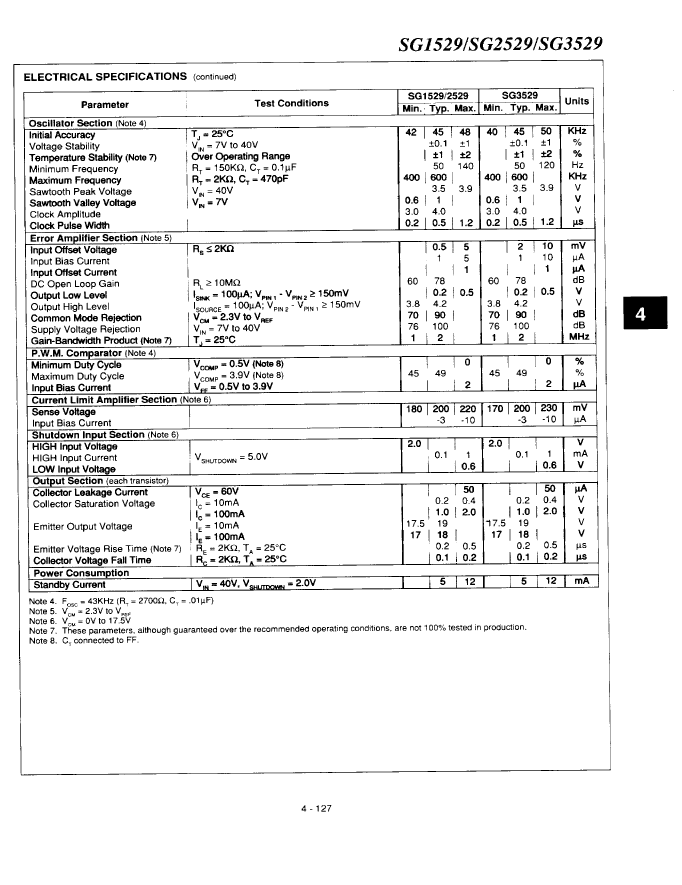

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

SG1529J Related Products

	SG1529J	SG1529J/883B	SG3529N	SG2529J	SG2529N	SG3529J
Description	Switching Controller, Voltage-mode, 0.2A, 400kHz Switching Freq-Max, CDIP18	Switching Controller, Voltage-mode, 0.2A, 400kHz Switching Freq-Max, CDIP18	Switching Regulator/Controller, Voltage-mode, 0.1A, 400kHz Switching Freq-Max, BIPolar, PDIP18	Switching Regulator/Controller, Voltage-mode, 0.1A, 400kHz Switching Freq-Max, BIPolar, CDIP18	Switching Regulator/Controller, Voltage-mode, 0.1A, 400kHz Switching Freq-Max, BIPolar, PDIP18	Switching Regulator/Controller, Voltage-mode, 0.1A, 400kHz Switching Freq-Max, BIPolar, CDIP18
Reach Compliance Code	unknown	unknown	not_compliant	unknown	not_compliant	not_compliant
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER	DUAL SWITCHING CONTROLLER	SWITCHING CONTROLLER	DUAL SWITCHING CONTROLLER	DUAL SWITCHING CONTROLLER
control mode	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE
JESD-30 code	R-GDIP-T18	R-GDIP-T18	R-PDIP-T18	R-GDIP-T18	R-PDIP-T18	R-XDIP-T18
Number of terminals	18	18	18	18	18	18
Maximum operating temperature	125 °C	125 °C	70 °C	85 °C	85 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-	-25 °C	-25 °C	-
Maximum output current	0.2 A	0.2 A	0.1 A	0.2 A	0.1 A	0.1 A
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
Maximum switching frequency	400 kHz	400 kHz	400 kHz	400 kHz	400 kHz	400 kHz
Temperature level	MILITARY	MILITARY	COMMERCIAL	OTHER	OTHER	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Microsemi	Microsemi	-	Microsemi	Microsemi	Microsemi
