CO12050-0.500-3.3GWTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> CO12050-0.500-3.3GWTR

CO12050-0.500-3.3GWTR: DescriptionXO, Clock, 0.5MHz Min, 125MHz Max, 0.5MHz Nom; CategoryPassive components oscillator; File Size99KB，2 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

CO12050-0.500-3.3GWTR Overview

XO, Clock, 0.5MHz Min, 125MHz Max, 0.5MHz Nom

CO12050-0.500-3.3GWTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Raltron
package instruction	GWDIP4/8,.3
Reach Compliance Code	compliant
Is Samacsys	N
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	125 MHz
Minimum operating frequency	0.5 MHz
Nominal operating frequency	0.5 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	GWDIP4/8,.3
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	20 mA
Nominal supply voltage	3.3 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

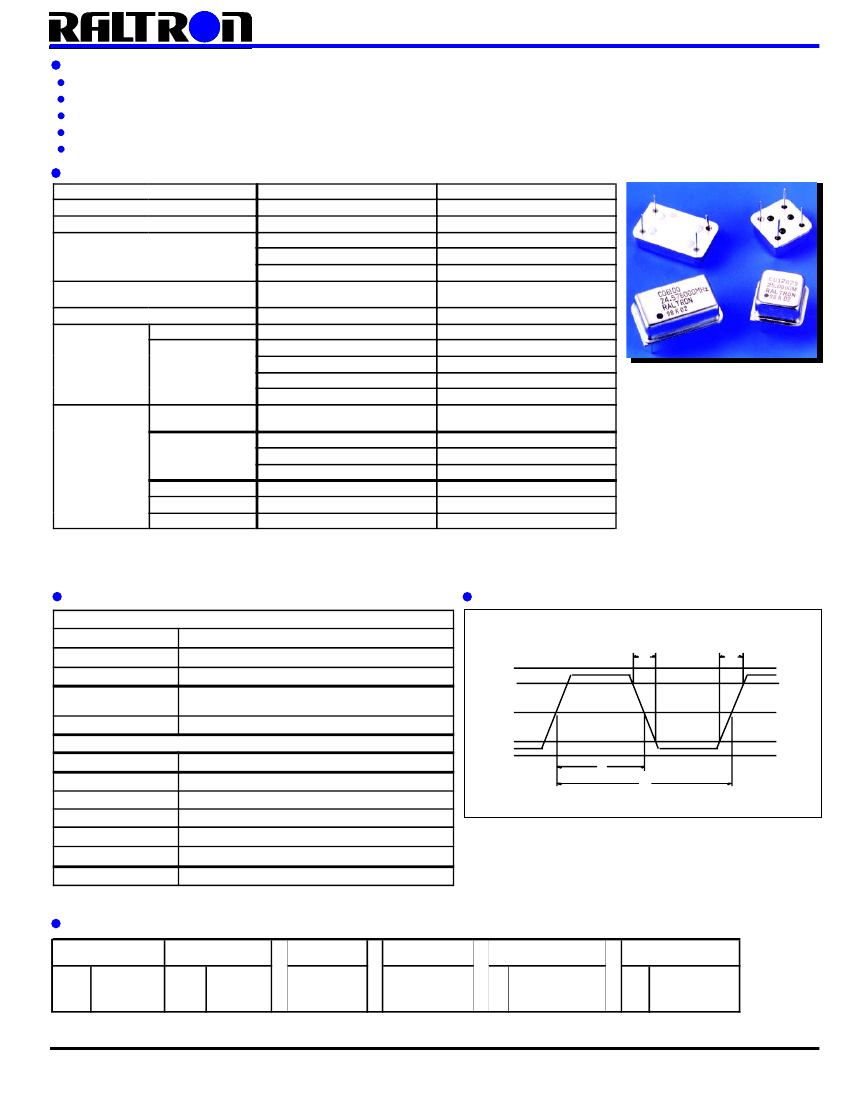

THROUGH HOLE CLOCK OSCILLATORS-HCMOS COMPATIBLE

FEATURES

STANDARD 8 AND 14 PIN DIP PACKAGE

TOLERANCE AND STABILITY TO

25 PPM

EXCELLENT CLOCK FOR 16 AND 32 BIT PROCESSORS

LOW COST

AVAILABLE IN 3.3 VOLT

SPECIFICATIONS

SERIES

PACKAGE

FREQUENCY RANGE

FREQUENCY STABILITY†

CO6

14 PIN DIP

500.00 KHz TO 125.00 MHz

CO6100 : ±100 PPM

CO6050 : ±50 PPM

CO6025 : ±25 PPM

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE RANGE

VOLTAGE††

0° C TO +70° C STANDARD

-40° C TO 85° C EXTENDED

-55° C TO +125° C

+5 VDC ±0.5 VDC

500 KHz TO 19.999 MHz: 20 mA

INPUT

CURRENT (MAX)

20 MHz TO 34.999 MHz: 30 mA

35 MHz TO 69.999 MHz: 40 mA

70 MHz TO 125 MHz: 60 mA

SYMMETRY

RISE AND FALL TIME

(0.5 - 4.5 VDC)

LOGIC "0" LEVEL

LOGIC "1" LEVEL

LOAD†††

40 TO 60% NORMAL

45 TO 55% TIGHT

UNDER 24 MHz : ±10 ns MAX

24 MHz TO 70 MHz : ±6 ns MAX

70 MHz TO 125 MHz : ±3 ns MAX

+0.5 V MAX. (10% VDD)

+4.5 V MIN (90% VDD)

15 pF OR 10 LS TTL STANDARD

OUTPUT

CO12

8 PIN DIP

500.00 KHz TO 125.00 MHz

CO12100 : ±100 PPM

CO12050 : ±50 PPM

CO12025 : ±25 PPM

0° C TO +70° C STANDARD

-40° C TO 85° C EXTENDED

-55° C TO +125° C

+5 VDC ±0.5 VDC

500 KHz TO 19.999 MHz: 20 mA

20 MHz TO 34.999 MHz: 30 mA

35 MHz TO 69.999 MHz: 40 mA

70 MHz TO 125 MHz: 60 mA

40 TO 60% NORMAL

45 TO 55% TIGHT

UNDER 24 MHz : ±10 ns MAX

24 MHz TO 70 MHz : ±6 ns MAX

70 MHz TO 125 MHz : ±3 ns MAX

+0.5 V MAX. (10% VDD)

+4.5 V MIN (90% VDD)

15 pF OR 10 LS TTL STANDARD

SERIES CO6 AND CO12

† FREQUENCY STABILITY INCLUSIVE OF ROOM TOLERANCE , FREQUENCY STABILITY OVER TEMPERA

TURE,

10% POWER SUPPLY VARIATION, AGING, SHOCK, AND VIBRATION

†† +3.3 VOLT VERSION IS AVAILABLE. CONSULT RALTRON FOR SPECIFICATIONS

††† OUTPUT LOADS ALSO AVAILABLE AT 15 pF, 30 pF AND 50 pF. CONSULT RALTRON FOR SPECIFICATIONS

ENVIRONMENTAL AND TECHNICAL CONDITIONS

ENVIRONMENTAL

TEMPERATURE CYCLE

SHOCK

VIBRATION

RESISTANCE TO

SOLDERING HEAT

HUMIDITY

MIL-STD 883, METHOD 1010, 10 CYCLES -20° C TO 85° C

MIL-STD-202, METHOD 213, TEST CONDITION C

MIL-STD-202, METHOD 204, TEST CONDITION A

MIL-STD-202, METHOD 210, TEST CONDITION B

85% RELATIVE HUMIDITY AT 85° C 250 HOURS

MECHANICAL

GROSS LEAK TEST

FINE LEAK TEST

TERMINAL STRENGTH

MARKING INK

MIL-STD-883, METHOD 1014, TEST CONDITION C

MIL-STD-883, METHOD 1014, TEST CONDITION A

MIL-STD-202, METHOD 211, TEST CONDITION A AND C

EPOXY, HEAT CURED.

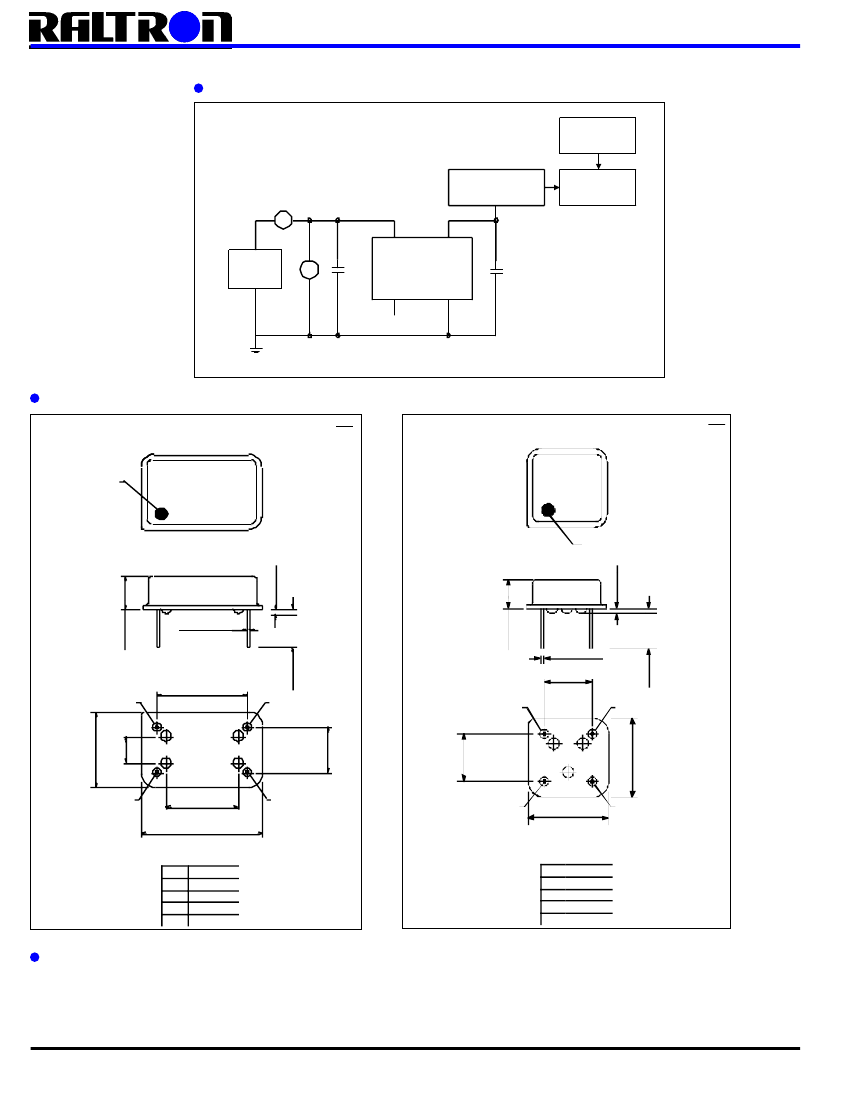

OUTPUT WAVEFORMS

VCC

"1" LEVEL

+4.5 VDC

+2.5 VDC

+0.5 VDC

1/2 VCC

"0" LEVEL

0 VDC

MOISTURE RESISTANCE MIL-STD 202, METHOD 106, OMIT STEP 7B

SOLDERABILITY

SOLVENT RESISTANCE

MIL-STD-202, METHOD 208, 95% COVERAGE

MIL-STD-202, METHOD 2002, METHOD 215

PART NUMBERING SYSTEM

SERIES

CO6

CO12

(14 PIN DIP)

(8 PIN DIP)

FREQUENCY

STA BIL ITY

10 0

±1 00 PPM

05 0

± 50 PPM

02 5

± 25 PPM

FREQUENCY

IN MHz

EXT

EXTENDED

TEMPERA TURE

T TIGHT SY MMETRY

S YMMETRY

OPTIONS

TR TA PE A ND REEL *

GW GULL WING

3. 3 +3 .3 V

EXAMPLE: CO6100-10.000-EXT-T, CO12050-32.000-EXT-T-TR

* Available for Gull Wing only

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com
