046288010000846+ datasheet, PDF

Datasheet> All Categories > The connector> The connector> 046288010000846+

046288010000846+: DescriptionCard Edge Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size124KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

046288010000846+ Overview

Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT

046288010000846+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AVX
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

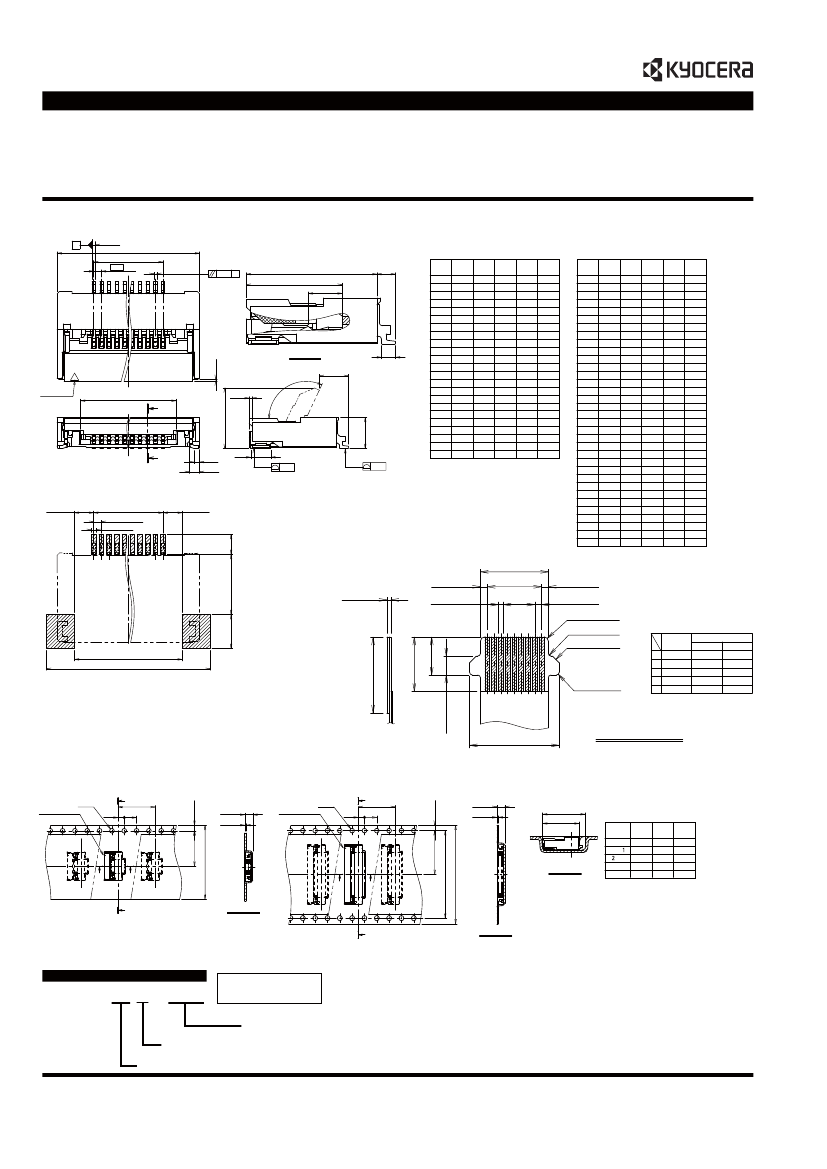

0.5mm Pitch

SERIES

6288

(0.2)

(B)

(A)

0.5

TYP.

0.5mmピッチ RA SMT

下接点ワンタッチロック

0.5mmPitch RA SMT Bottom contact One-touch lock

(0.2)

0.2

(4.2)

(5.7)

0.8

極数

NO. OF

POS.

3.5

4.0

4.5

5.0

5.5

6.0

6.5

7.0

7.5

8.0

8.5

9.0

9.5

10.0

10.5

11.0

11.5

12.0

12.5

13.0

13.5

14.0

14.5

8.2

8.7

9.2

9.7

10.2

10.7

11.2

11.7

12.2

12.7

13.2

13.7

14.2

14.7

15.2

15.7

16.2

16.7

17.2

17.7

18.2

18.7

19.2

5.2

5.7

6.2

6.7

7.2

7.7

8.2

8.7

9.2

9.7

10.2

10.7

11.2

11.7

12.2

12.7

13.2

13.7

14.2

14.7

15.2

15.7

16.2

6.0

6.5

7.0

7.5

8.0

8.5

9.0

9.5

10.0

10.5

11.0

11.5

12.0

12.5

13.0

13.5

14.0

14.5

15.0

15.5

16.0

16.5

17.0

9.6

10.1

10.6

11.1

11.6

12.1

12.6

13.1

13.6

14.1

14.6

15.1

15.6

16.1

16.6

17.1

17.6

18.1

18.6

19.1

19.6

20.1

20.6

極数

NO. OF

POS.

15.0

15.5

16.0

16.5

17.0

17.5

18.0

18.5

19.0

19.5

20.0

20.5

21.0

21.5

22.0

22.5

23.0

23.5

24.0

24.5

25.0

25.5

26.0

26.5

27.0

27.5

28.0

28.5

29.0

29.5

31.5

33.5

34.5

39.5

19.7

20.2

20.7

21.2

21.7

22.2

22.7

23.2

23.7

24.2

24.7

25.2

25.7

26.2

26.7

27.2

27.7

28.2

28.7

29.2

29.7

30.2

30.7

31.2

31.7

32.2

32.7

33.2

33.7

34.2

36.2

38.2

39.2

44.2

16.7

17.2

17.7

18.2

18.7

19.2

19.7

20.2

20.7

21.2

21.7

22.2

22.7

23.2

23.7

24.2

24.7

25.2

25.7

26.2

26.7

27.2

27.7

28.2

28.7

29.2

29.7

30.2

30.7

31.2

33.2

35.2

36.2

41.2

17.5

18.0

18.5

19.0

19.5

20.0

20.5

21.0

21.5

22.0

22.5

23.0

23.5

24.0

24.5

25.0

25.5

26.0

26.5

27.0

27.5

28.0

28.5

29.0

29.5

30.0

30.5

31.0

31.5

32.0

34.0

36.0

37.0

42.0

21.1

21.6

22.1

22.6

23.1

23.6

24.1

24.6

25.1

25.6

26.1

26.6

27.1

27.6

28.1

28.6

29.1

29.6

30.1

30.6

31.1

31.6

32.1

32.6

33.1

33.6

34.1

34.6

35.1

35.6

37.6

39.6

40.6

45.6

1.47

SECT. X-X

0.1

(1.9)

0.6

（3.9）

DATUM

PIN SIDE

0.18

5°

基準ピン側

0.35

0.65

1.3

0.1

(ANCHOR PLATE)

0.1

(CONTACT)

1.25

±0.1

0.5

0.3

±0.03TYP.

±0.03

1.25

±0.1

1.3

±0.1

2.0

±0.15

±0.1

0.3

±0.05

R0.2MAX.

3.9

±0.1

R0.2MAX.

±0.1

2.2

C0.5MAX.

2−R0.2MAX.

FPC

0.5

±0.07

0.5

±0.03

±0.05

±0.07

FFC

0.5

±0.08

0.5

±0.05

±0.07

0.32

±0.03

0.5

±0.07

0.5

±0.03

±0.05

±0.07

0.30

±0.03

MIN.

4.5

3.5

±0.1

2.8

±0.1

Wp 0.35

±0.03

1.4

±0.1

適用FFC寸法は1か2を選択のこと。

SELECT AN APPLICABLE

FFC FROM 1 OR 2.

（A+2.6）

±0.1

適用 FPC/FFC 寸法

APPLICABLE FPC/FFC

(1.75)

1.5

基準ピン側

DATUM PIN SIDE

2.0

12.0

4.0

1.5

(2.6)

(0.4)

基準ピン側

DATUM PIN SIDE

2.0

(1.75)

12.0

4.0

(2.6)

(0.4)

(6.9)

(5.9)

極数

NO. OF

POS.

7.5

11.5

14.2

20.2

26.2

ー

28.4

40.4

52.4

16.0

24.0

32.0

44.0

56.0

SECT. E-E

(8∼21P)

SECT. E-E

(22~80P)

注文コード

ORDERING CODE

04 6288 0XX X00 846+

RoHS 対応品

RoHS Compliant Product

(J)

SECT. F-F

8-9

10 - 21

22- 33

34 - 49

50 - 80

(J)

金めっき

Au Plated

0：

½用温度範囲

Operatiing Temperature Range

：-40∼+105℃

6：

½用温度範囲

Operatiing Temperature Range

：-40∼+125℃

極数

NUMBER OF POSITIONS

生産対応可½極数については、営業部に

ご確認願います。

Feel free to contact our sales department

for available numbers of positions.

梱包数量 2000個

/リール

PACKING QUANTITY：2000/Reel

005A,071O
