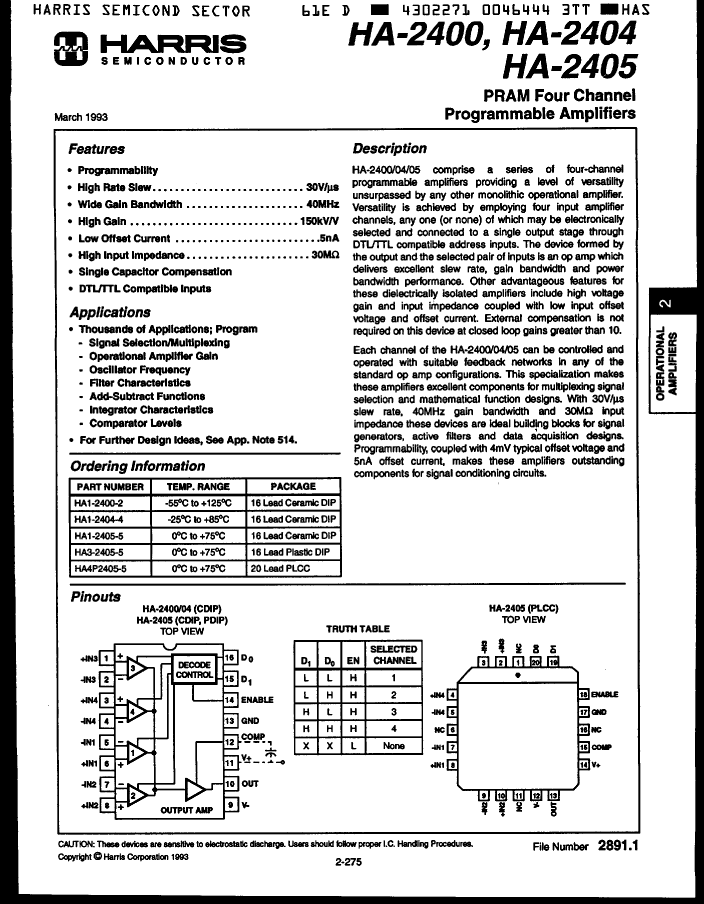

5962-01-124-1390 amplifier basic information:
5962-01-124-1390 is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are DIP, DIP16,.3
5962-01-124-1390 amplifier core information:
The minimum operating temperature of the 5962-01-124-1390 is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Maximum bias current at 25°C: 0.2 µA
The manufacturer specifies a maximum slew rate of 6 mA and a minimum slew rate of 6 V/us for the 5962-01-124-1390. Its minimum voltage gain is 25000.
The nominal supply voltage of 5962-01-124-1390 is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of 5962-01-124-1390 is 11000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the op amp output terminal 0V (or close to 0V).)
Related dimensions for 5962-01-124-1390:
5962-01-124-1390 has 16 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 16
5962-01-124-1390 Amplifier Additional Information:
5962-01-124-1390 adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of 5962-01-124-1390 is: YES (AVCL>=10). Its temperature grade is: MILITARY. 5962-01-124-1390 is not Rohs certified.
It contains lead. The corresponding JESD-30 code is: R-XDIP-T16. The packaging code of 5962-01-124-1390 is: DIP. 5962-01-124-1390 packaging materials are mostly CERAMIC. The package shape is RECTANGULAR.
The 5962-01-124-1390 package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.
5962-01-124-1390 amplifier basic information:
5962-01-124-1390 is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are DIP, DIP16,.3
5962-01-124-1390 amplifier core information:
The minimum operating temperature of the 5962-01-124-1390 is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Maximum bias current at 25°C: 0.2 µA
The manufacturer specifies a maximum slew rate of 6 mA and a minimum slew rate of 6 V/us for the 5962-01-124-1390. Its minimum voltage gain is 25000.
The nominal supply voltage of 5962-01-124-1390 is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of 5962-01-124-1390 is 11000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the op amp output terminal 0V (or close to 0V).)
Related dimensions for 5962-01-124-1390:
5962-01-124-1390 has 16 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 16
5962-01-124-1390 Amplifier Additional Information:
5962-01-124-1390 adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of 5962-01-124-1390 is: YES (AVCL>=10). Its temperature grade is: MILITARY. 5962-01-124-1390 is not Rohs certified.
It contains lead. The corresponding JESD-30 code is: R-XDIP-T16. The packaging code of 5962-01-124-1390 is: DIP. 5962-01-124-1390 packaging materials are mostly CERAMIC. The package shape is RECTANGULAR.
The 5962-01-124-1390 package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.

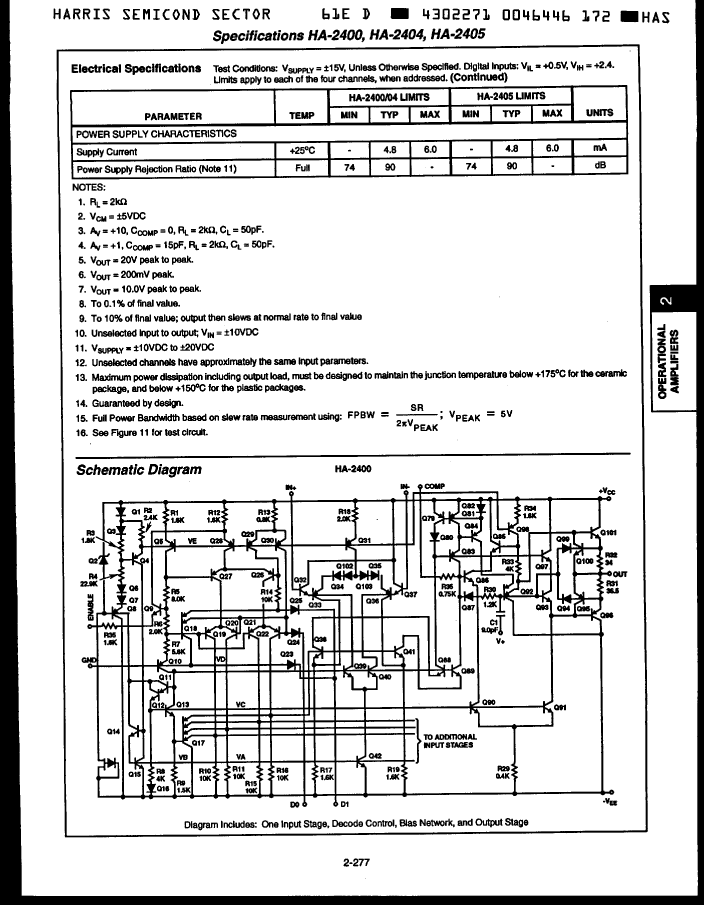

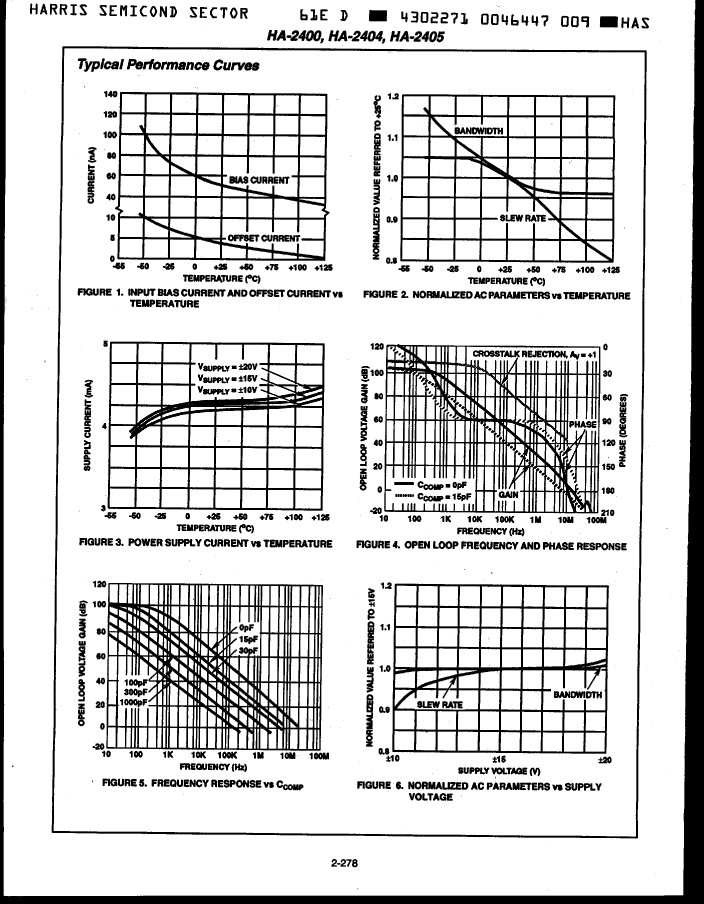

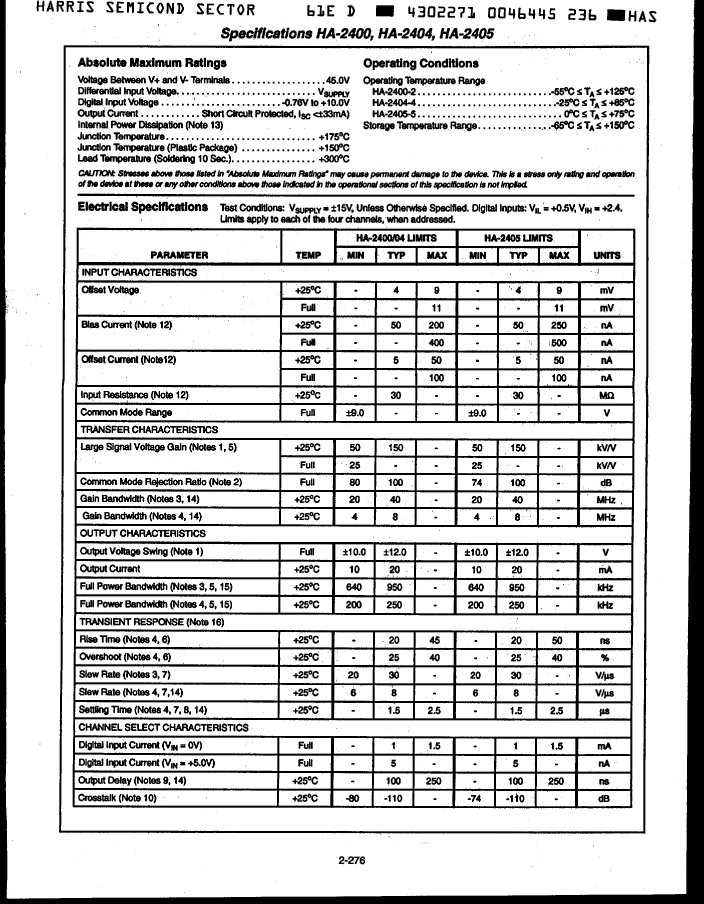

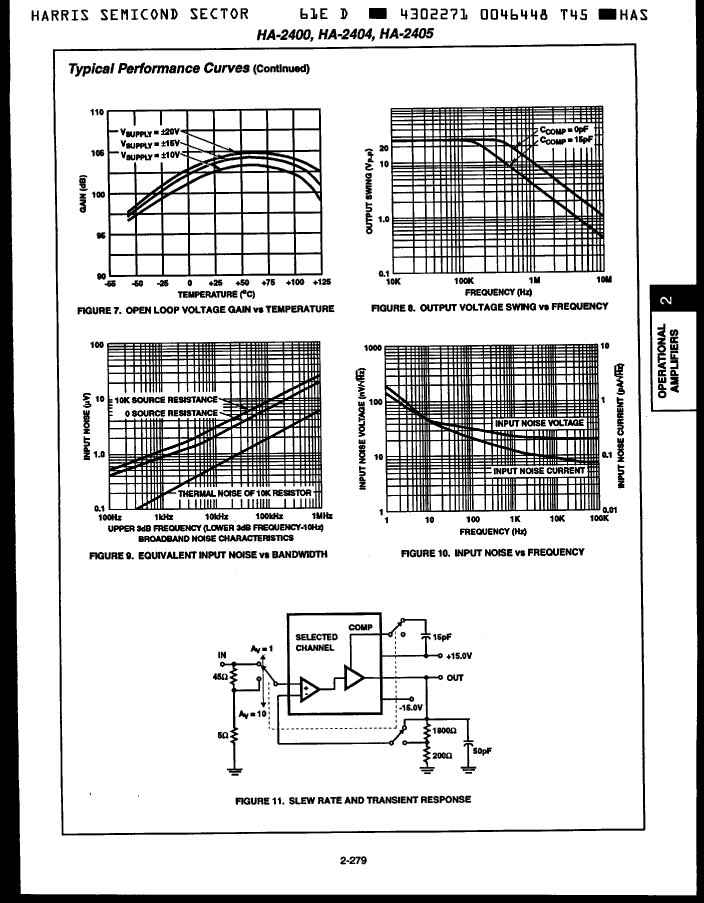

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Renesas Electronics Corporation |
| Parts packaging code | DIP |
| package instruction | DIP, DIP16,.3 |
| Contacts | 16 |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum bias current (IIB) at 25C | 0.2 µA |
| frequency compensation | YES (AVCL>=10) |
| Maximum input offset voltage | 11000 µV |
| JESD-30 code | R-XDIP-T16 |
| low-dissonance | NO |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | +-15 V |
| Certification status | Not Qualified |
| minimum slew rate | 6 V/us |
| Maximum slew rate | 6 mA |
| Supply voltage upper limit | 22.5 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Minimum voltage gain | 25000 |
| Base Number Matches | 1 |
| 5962-01-124-1390 | 5962-00-259-4309 | HA1-2400-8 | |
|---|---|---|---|
| Description | IC,OP-AMP,SINGLE,BIPOLAR,DIP,16PIN,CERAMIC | IC,OP-AMP,SINGLE,BIPOLAR,DIP,16PIN,CERAMIC | OP-AMP, 11000uV OFFSET-MAX, 8MHz BAND WIDTH |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Reach Compliance Code | not_compliant | _compli | not_compliant |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| Maximum bias current (IIB) at 25C | 0.2 µA | 0.2 µA | 0.2 µA |
| frequency compensation | YES (AVCL>=10) | YES (AVCL>=10) | YES (AVCL>=10) |
| Maximum input offset voltage | 11000 µV | 11000 µV | 11000 µV |
| JESD-30 code | R-XDIP-T16 | R-XDIP-T16 | R-XDIP-T16 |
| low-dissonance | NO | NO | NO |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V |
| Number of functions | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC | CERAMIC | CERAMIC |
| encapsulated code | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP16,.3 | DIP16,.3 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE |
| power supply | +-15 V | +-15 V | +-15 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| minimum slew rate | 6 V/us | 6 V/us | 6 V/us |
| Maximum slew rate | 6 mA | 6 mA | 6 mA |
| Supply voltage upper limit | 22.5 V | 22.5 V | 22.5 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V |
| surface mount | NO | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Minimum voltage gain | 25000 | 25000 | 25000 |
| Is it lead-free? | Contains lead | Contains lead | - |
| Maker | Renesas Electronics Corporation | - | Renesas Electronics Corporation |
| Parts packaging code | DIP | DIP | - |
| package instruction | DIP, DIP16,.3 | DIP, DIP16,.3 | - |
| Contacts | 16 | 16 | - |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | - |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | - |
| Base Number Matches | 1 | 1 | - |
