5962-01-313-1527 datasheet, PDF

Datasheet> All Categories > logic> logic> 5962-01-313-1527

5962-01-313-1527: DescriptionIC,FLIP-FLOP,DUAL,D TYPE,HC-CMOS,DIP,14PIN,PLASTIC; Categorylogic logic; File Size361KB，7 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962-01-313-1527 Overview

IC,FLIP-FLOP,DUAL,D TYPE,HC-CMOS,DIP,14PIN,PLASTIC

5962-01-313-1527 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	DIP, DIP14,.3
Reach Compliance Code	not_compliant
Is Samacsys	N
JESD-30 code	R-PDIP-T14
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	20000000 Hz
MaximumI(ol)	0.004 A
Number of functions	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	2/6 V
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

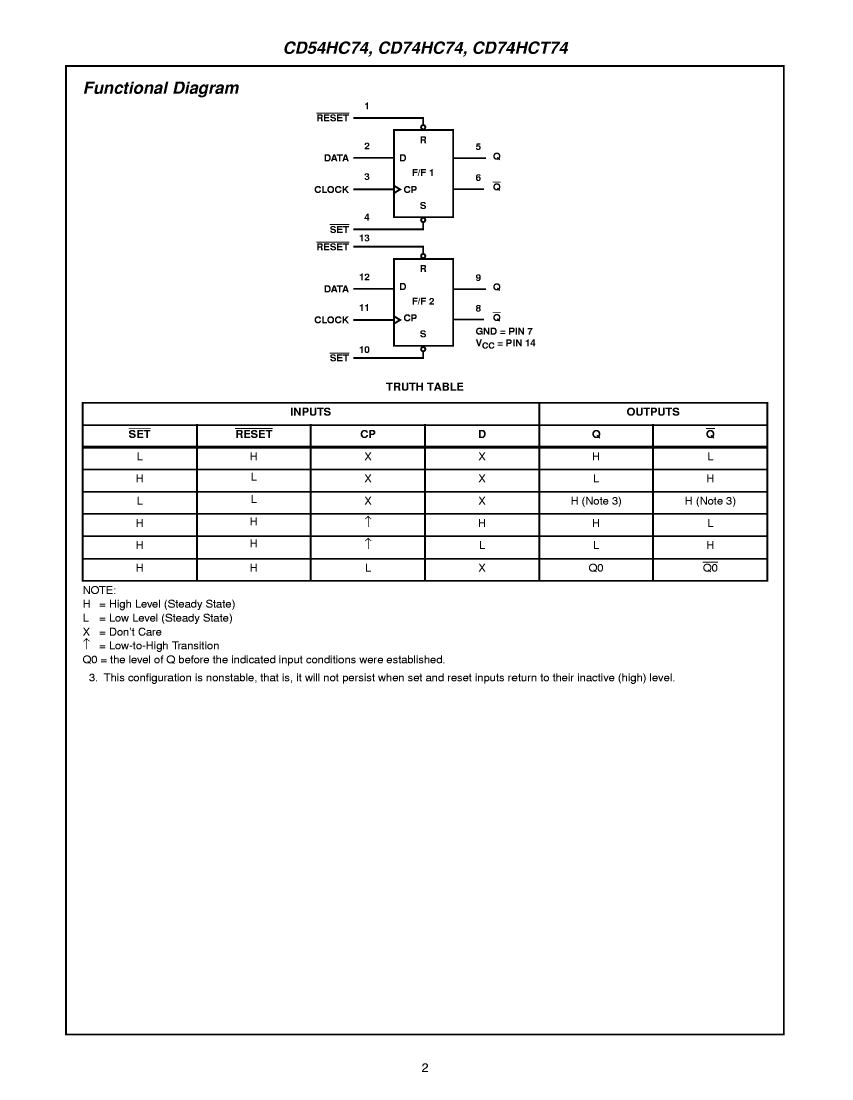

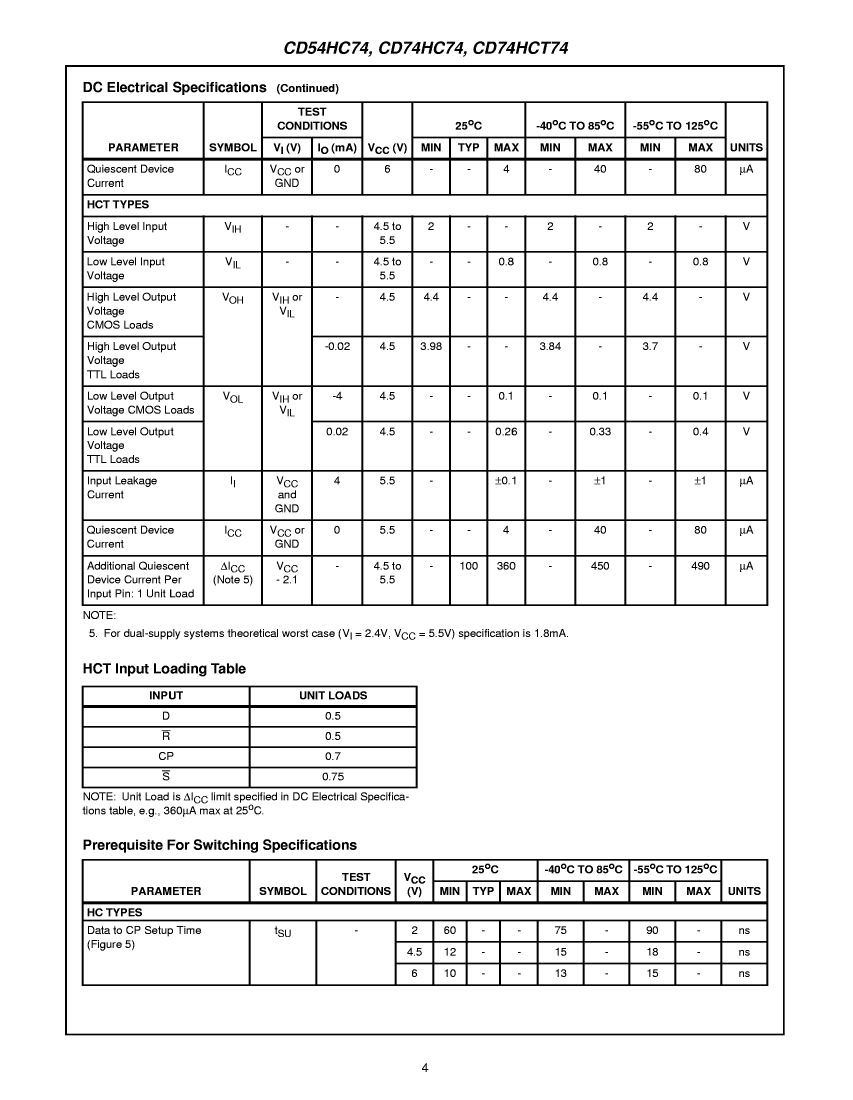

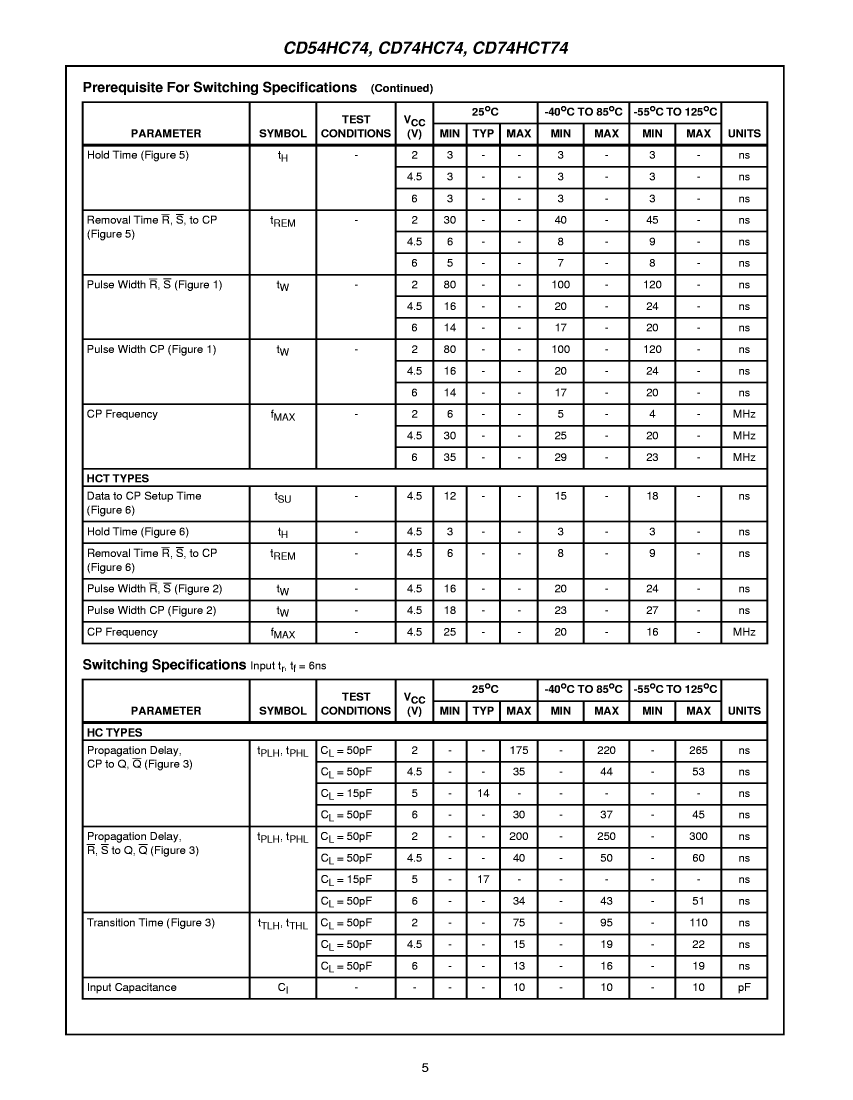

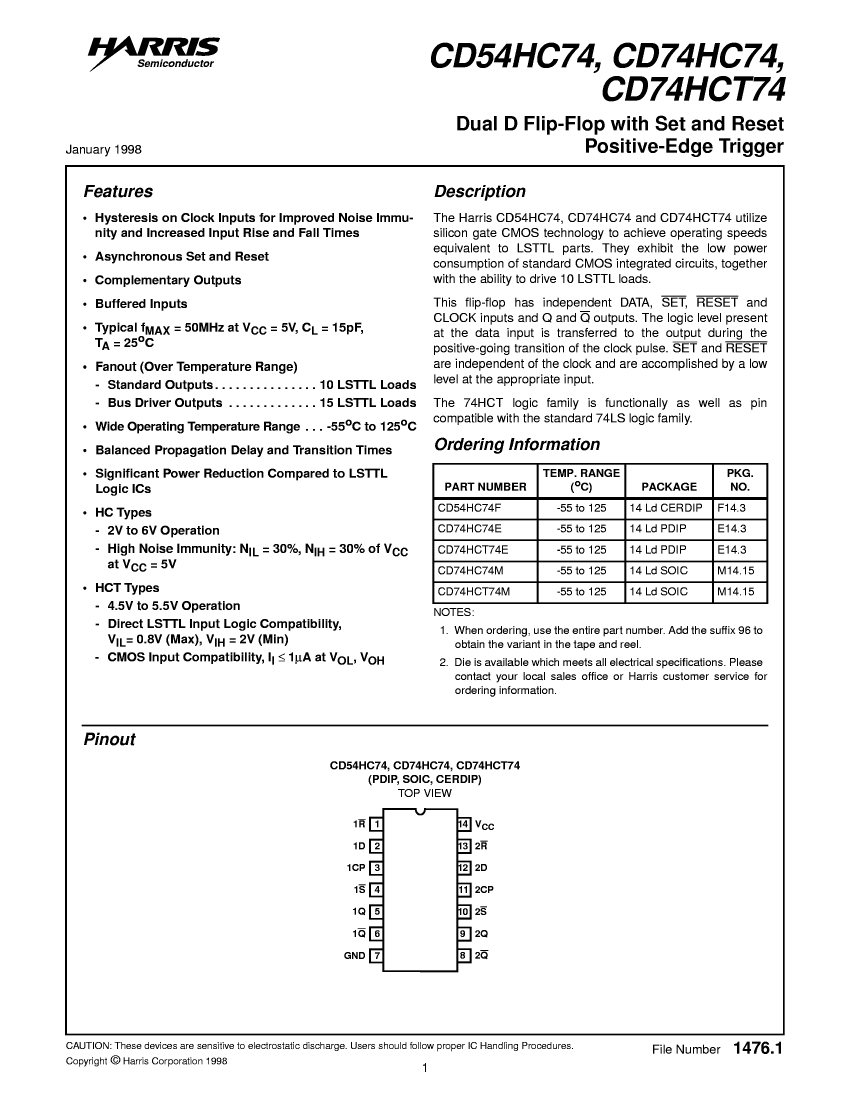

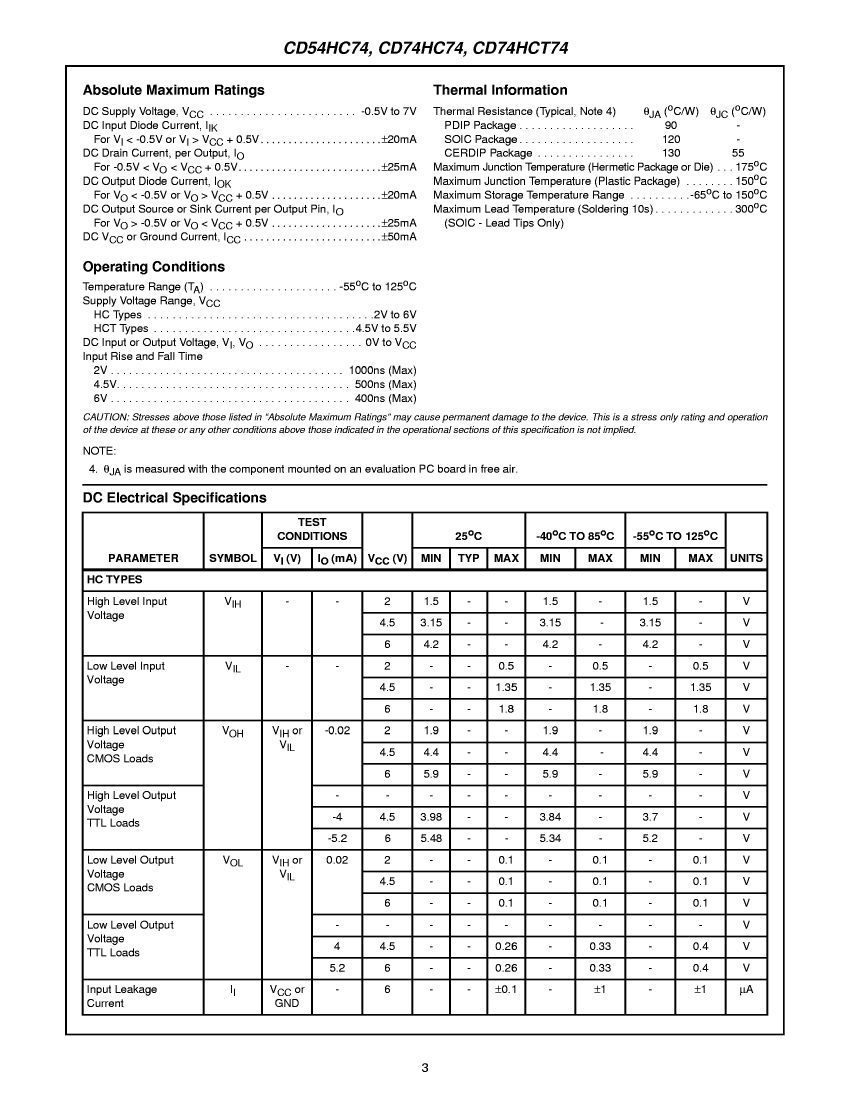

Preview

Download Datasheet

View All

5962-01-313-1527 Related Products

	5962-01-313-1527	5962-01-228-8376	5962-01-423-8639	CD74HCT74M	CD74HC74M	5962-01-387-5920	CD74HC74E
Description	IC,FLIP-FLOP,DUAL,D TYPE,HC-CMOS,DIP,14PIN,PLASTIC	IC,FLIP-FLOP,DUAL,D TYPE,HC-CMOS,DIP,14PIN,PLASTIC	IC,FLIP-FLOP,DUAL,D TYPE,HCT-CMOS,SOP,14PIN,PLASTIC	D FLIP-FLOP	D FLIP-FLOP	IC,FLIP-FLOP,DUAL,D TYPE,HC-CMOS,SOP,14PIN,PLASTIC	D FLIP-FLOP
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	SOP, SOP14,.25	SOP, SOP14,.25	SOP, SOP14,.25	SOP, SOP14,.25	DIP, DIP14,.3
Reach Compliance Code	not_compliant	_compli	not_compliant	not_compliant	not_compliant	not_compliant	_compli
JESD-30 code	R-PDIP-T14	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Number of functions	2	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	SOP	SOP	SOP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	SOP14,.25	SOP14,.25	SOP14,.25	SOP14,.25	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
power supply	2/6 V	2/6 V	5 V	5 V	2/6 V	2/6 V	2/6 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Maximum Frequency@Nom-Sup	20000000 Hz	-	16000000 Hz	16000000 Hz	20000000 Hz	20000000 Hz	-
Base Number Matches	1	1	1	1	-	-	-
