F100156DCQM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> F100156DCQM

F100156DCQM: DescriptionNetwork Interface, ECL100K, CDIP24,; CategoryWireless rf/communication Telecom circuit; File Size220KB，7 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

F100156DCQM Overview

Network Interface, ECL100K, CDIP24,

F100156DCQM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Reach Compliance Code	compliant
Is Samacsys	N
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.4
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	ECL100K
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

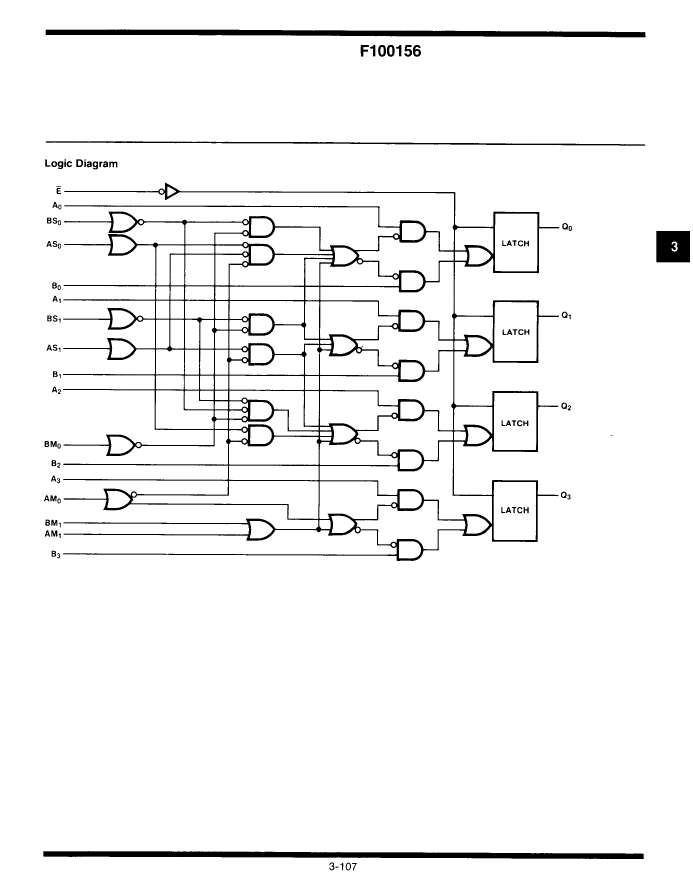

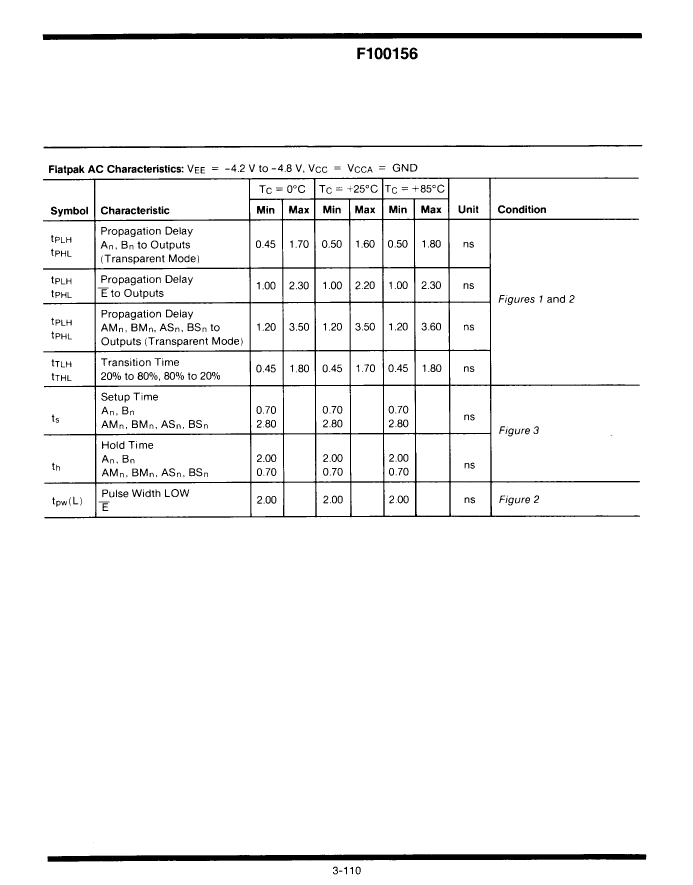

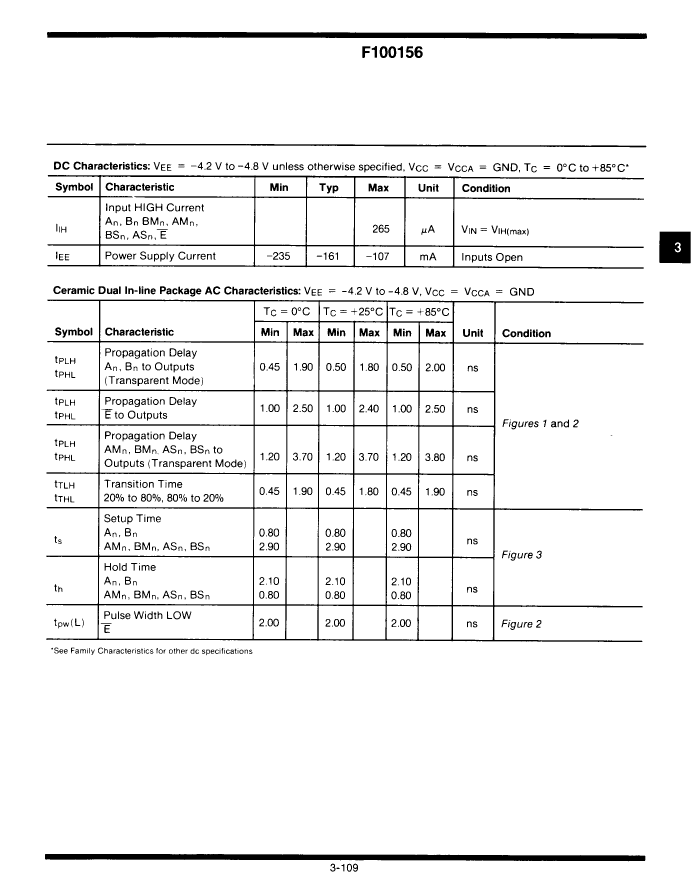

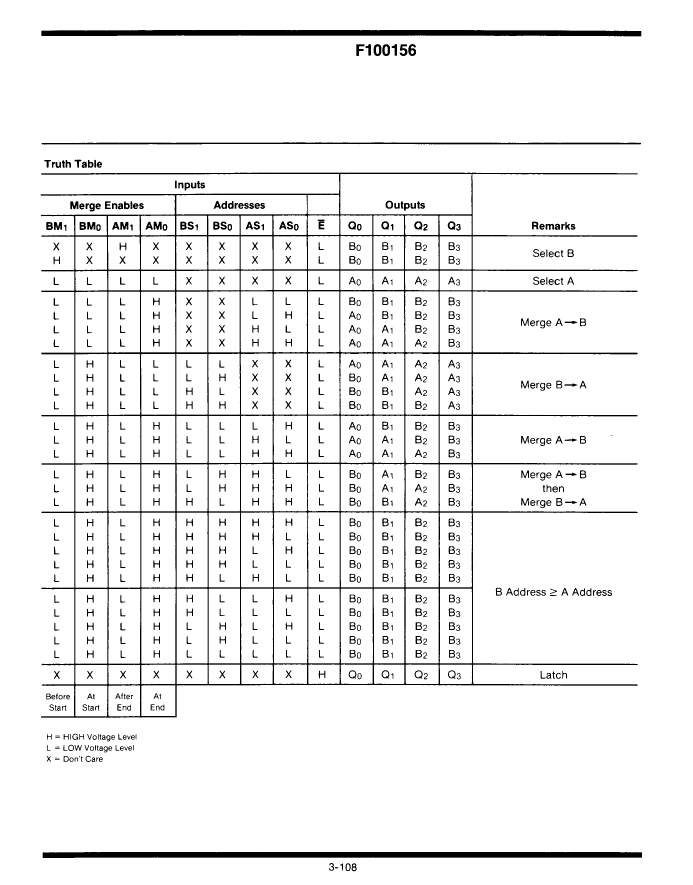

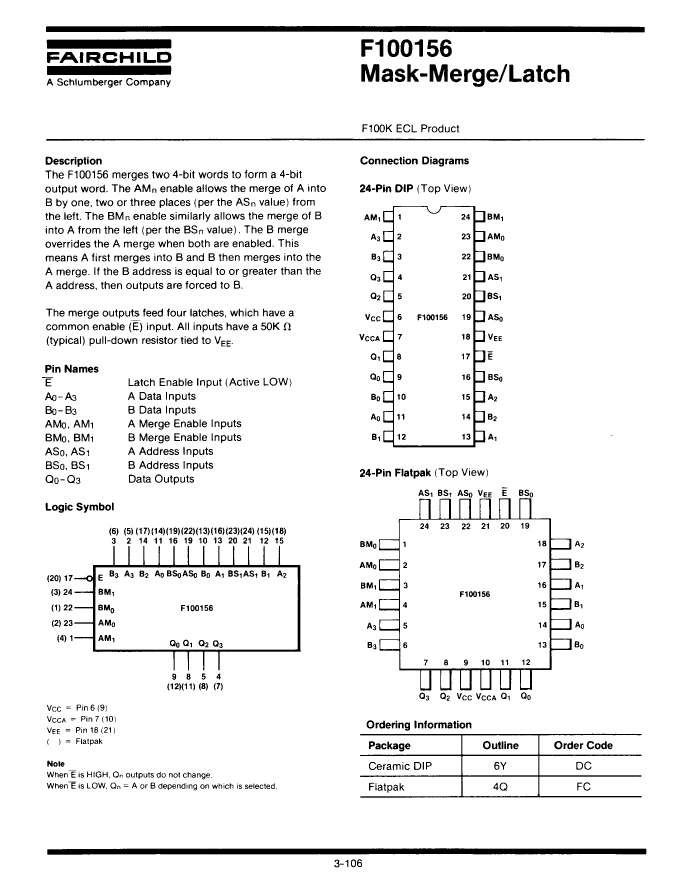

Preview

Download Datasheet

View All

F100156DCQM Related Products

	F100156DCQM	F100156DC	F100156DCQR	F100156FCQM	F100156FC	F100156FCQR
Description	Network Interface, ECL100K, CDIP24,	Network Interface, ECL100K, CDIP24,	Network Interface, ECL100K, CDIP24,	Network Interface, ECL100K, CQFP24,	Network Interface, ECL100K, CQFP24,	Network Interface, ECL100K, CQFP24,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Is Samacsys	N	N	N	N	N	N
JESD-30 code	R-XDIP-T24	R-XDIP-T24	R-XDIP-T24	S-XQFP-F24	S-XQFP-F24	S-XQFP-F24
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of terminals	24	24	24	24	24	24
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	QFF	QFF	QFF
Encapsulate equivalent code	DIP24,.4	DIP24,.4	DIP24,.4	QFL24,.4SQ	QFL24,.4SQ	QFL24,.4SQ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	IN-LINE	FLATPACK	FLATPACK	FLATPACK
surface mount	NO	NO	NO	YES	YES	YES
technology	ECL100K	ECL100K	ECL100K	ECL100K	ECL100K	ECL100K
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT	FLAT
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	QUAD	QUAD	QUAD
Base Number Matches	1	1	1	1	1	1
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	-
