Preview

5-1415019-1: DescriptionSPECIAL RELAY-SAFETY RELAY, 6PST, MOMENTARY, 0.011A (COIL), 110VDC (COIL), 1200mW (COIL), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size620KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-1415019-1 Overview

SPECIAL RELAY-SAFETY RELAY, 6PST, MOMENTARY, 0.011A (COIL), 110VDC (COIL), 1200mW (COIL), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

5-1415019-1 Parametric

Parameter Name	Attribute value
Brand Name	CII
Is it Rohs certified?	conform to
Objectid	2142360393
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	26 weeks
Samacsys Description	SR6C4110 - V23050-A1110-A551
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-04 19:49:56
body width	16.5 mm
body height	16.5 mm
Body length or diameter	55 mm
Coil current (AC) maximum value	0.011 A
Maximum coil current (DC)	0.011 A
Coil operating voltage (DC)	82.5 V
Coil power	1200 mW
Coil release voltage (DC)	11 V
Coil resistance	10080 Ω
Maximum coil voltage (DC)	110 V
Nominal coil voltage	110 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	8A@400VAC
Maximum contact current (AC)	8 A
Maximum contact current (DC)	8 A
Contact resistance	100 mΩ
Maximum contact voltage (AC)	400 V
Dielectric strength between coil and contacts	4000 Vrms
Dielectric strength between breaking contacts	1500 Vrms
Electrical life	6050 Cycle(s)
End contact material	SILVER TIN OXIDE
Input switching control type	Random
Installation features	PANEL MOUNT
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
PCB hole count	14
method of packing	BOX; TUBE
physical size	55mm x 16.5mm x 16.5mm
Guideline	TUV; UL; VDE
Relay action	MOMENTARY
Relay function	6PST
Relay type	SAFETY RELAY
seal	RT3
surface mount	NO
Terminal length	0.0033 inch
Termination type	SOLDER/QUICK CONNECT
weight	30 g

Preview

Download Datasheet

View All

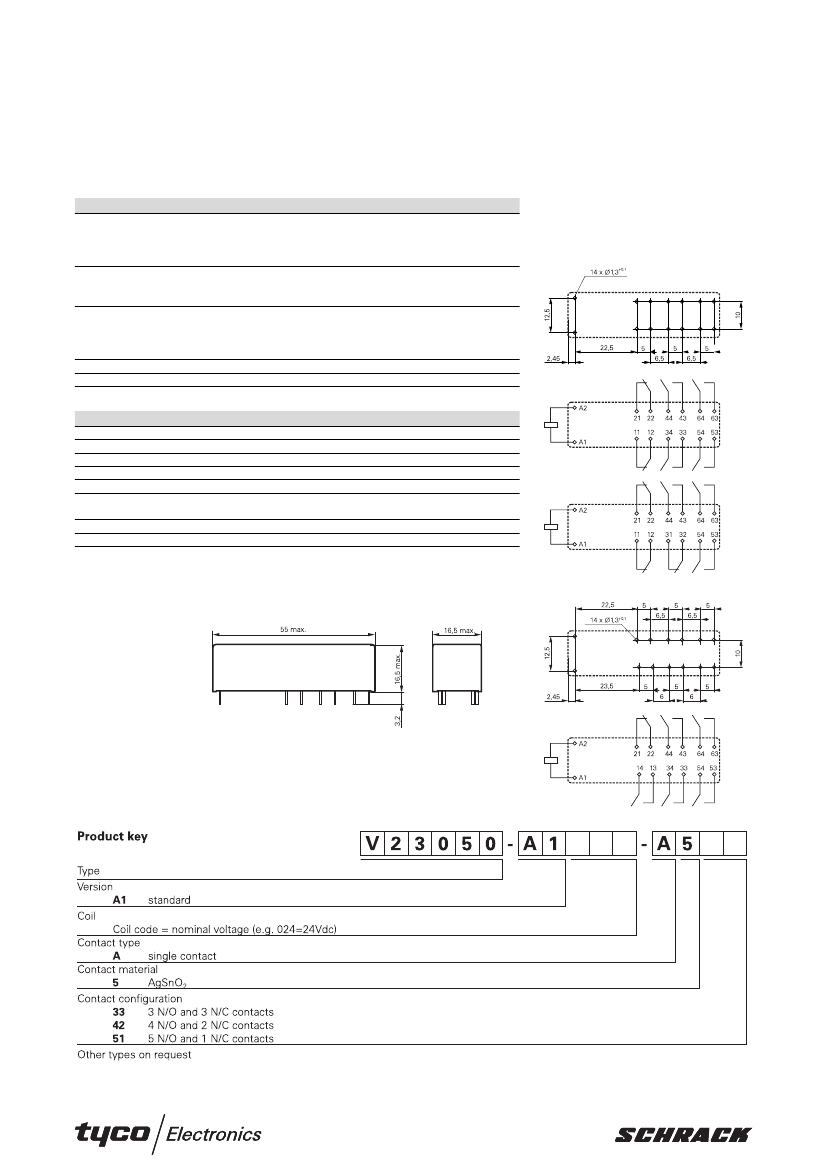

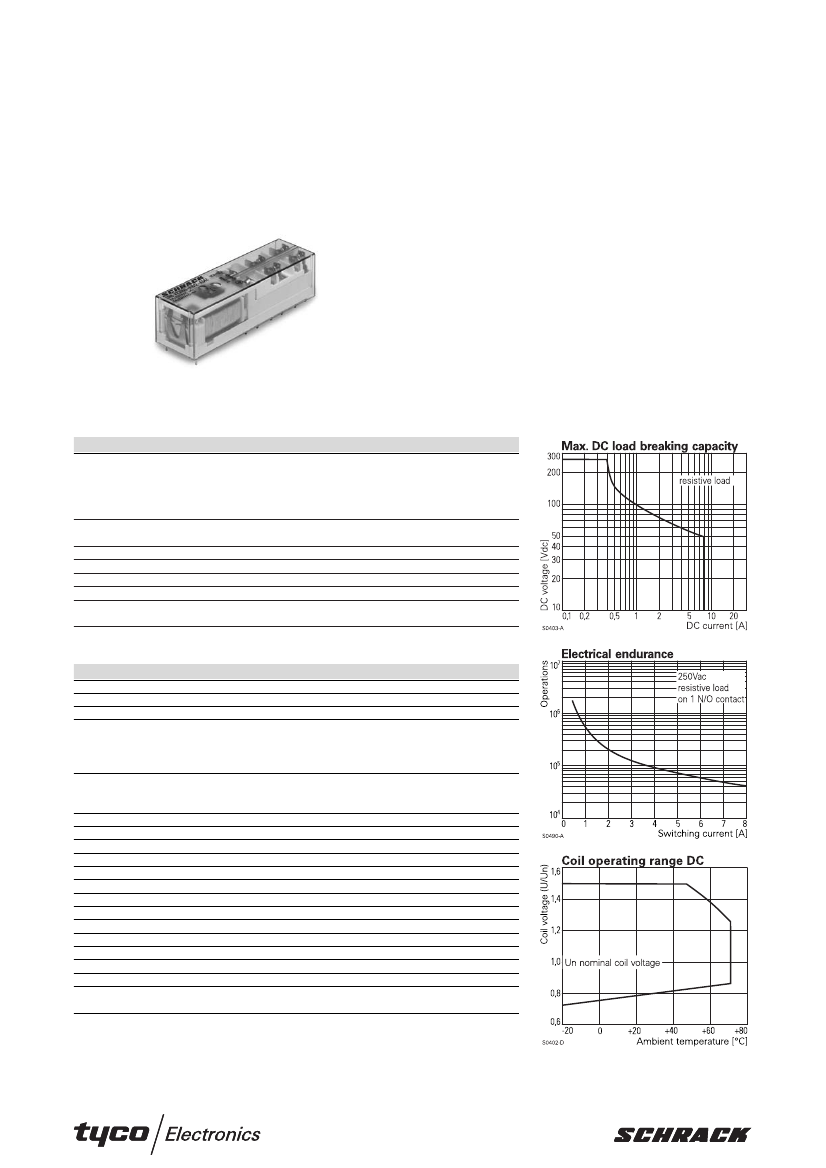

Safety Relay SR6

6 pole 8 A

Features

•

Forcibly guided contacts according to EN50205

•

Small 6 pole safety relay with either

4 N/O+2 N/C or 3 N/O+3 N/C or 5 N/O+1 N/C contacts

•

6 kV surge resistance between poles

Applications

Emergency shut-off, press control, machine control, elevator and

escalator control, safety modules

F0206-B

VZT

3 N/O contact and 3 N/C contact

or

4 N/O contact and 2 N/C contact

or

5 N/O contact and 1 N/C contact

single contact, forcibly guided

type A according to EN 50205

8A

240 Vac / 400 Vac

2000 VA

> 50 mW

w100

mc / 1 A / 24 Vdc

w20 c

/ 10 mA / 5 Vdc

Technical data of approved types on request

Contact data

Configuration

Type of contact

Continuous thermal load

Rated voltage / max.breaking voltage AC

Maximum breaking capacity AC

Minimum contact load

Contact resistance

Coil data

Nominal voltage

Nominal coil power

Operative range

5...110 Vdc

1200 mW

2

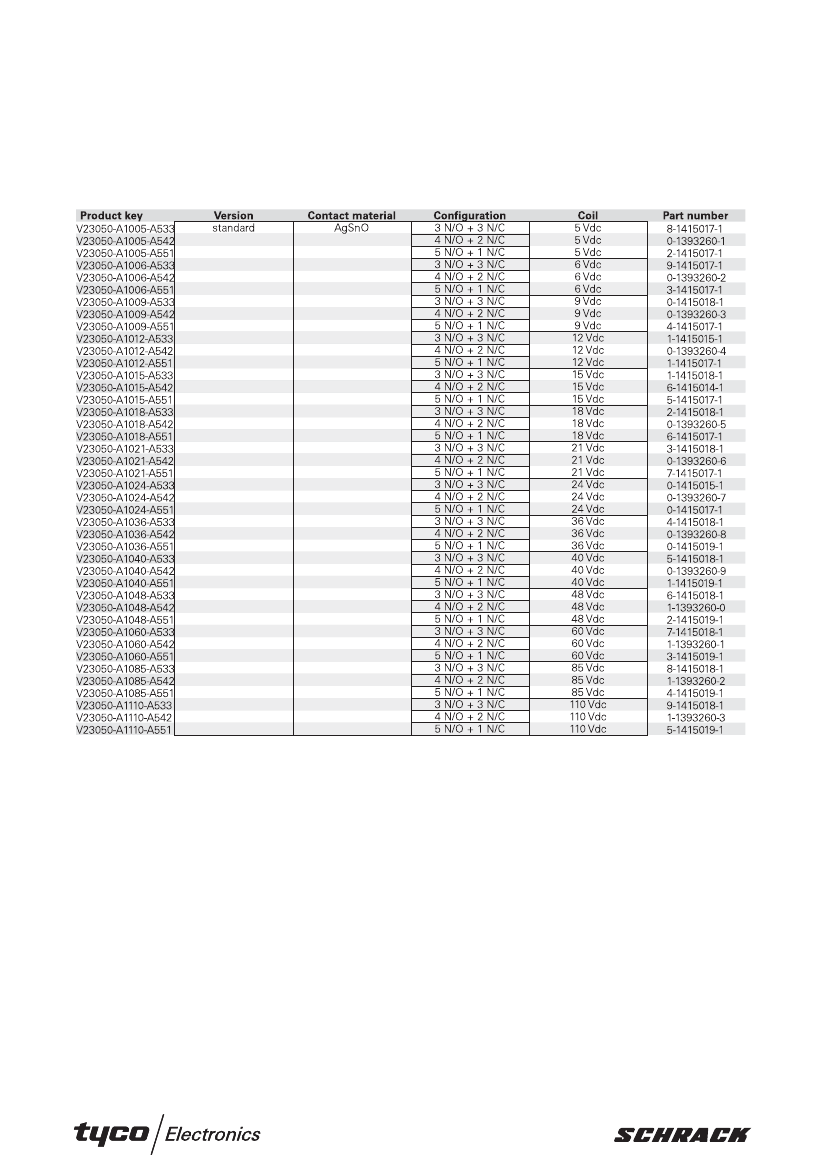

Coil versions

Coil

Nominal

Pull-in

Release

Maximum

Coil

code

voltage

resistance

current

Vdc

c

mA

005

5

3.8

0.5

7.5

21+10%

238.1

006

6

4.5

0.6

9.0

30+10%

200.0

009

9

6.8

0.9

13.5

68+10%

132.4

012

12

9.0

1.2

18.0

120+10%

100.0

018

18

13.5

1.8

22.5

270+10%

66.7

021

21

15.8

2.1

27.0

368+10%

57.1

024

24

18.0

2.4

36.0

480+10%

50.0

036

36

27.0

3.6

54.0

1080+10%

33.3

040

40

30.0

4.0

60.0

1333+10%

30.0

048

48

36.0

4.8

72.0

1920+10%

25.0

060

60

45.0

6.0

90.0

3000+12%

20.0

085

85

64.0

8.5

127.5

6021+12%

14.1

110

82.5

11.0

165.0

10080+12%

10.9

All figures are given for coil without preenergization, at ambient temperature +20°C

Other coil voltages on request

Edition: 02/2004

Rights to change data / design reserved

5-1415019-1 Related Products

	5-1415019-1	WK2100162R2%A2	0-1415015-1	0-1415017-1	5-1415018-1	9-1415017-1	5-1415017-1
Description	SPECIAL RELAY-SAFETY RELAY, 6PST, MOMENTARY, 0.011A (COIL), 110VDC (COIL), 1200mW (COIL), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT	Fixed Resistor, Metal Oxide Film, 1W, 162ohm, 500V, 2% +/-Tol, -100,100ppm/Cel,	SPECIAL RELAY-SAFETY RELAY, 6PST, MOMENTARY, 0.05A (COIL), 24VDC (COIL), 1200mW (COIL), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT	SPECIAL RELAY-SAFETY RELAY, 6PST, MOMENTARY, 0.05A (COIL), 24VDC (COIL), 1200mW (COIL), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT	SPECIAL RELAY-SAFETY RELAY, 6PST, MOMENTARY, 0.03A (COIL), 40VDC (COIL), 1200mW (COIL), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT	SPECIAL RELAY-SAFETY RELAY, 6PST, MOMENTARY, 0.2A (COIL), 6VDC (COIL), 1200mW (COIL), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT	SPECIAL RELAY-SAFETY RELAY, 6PST, MOMENTARY, 15VDC (COIL), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
Reach Compliance Code	compliant	unknown	compliant	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum operating temperature	70 °C	200 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-25 °C	-55 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
method of packing	BOX; TUBE	Box	BOX	BOX	BOX	BOX	BOX
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to	conform to
Objectid	2142360393	928693999	-	2142360339	-	2142360428	2142360391
package instruction	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	16.5 mm	-	16.5 mm	16.5 mm	16.5 mm	16.5 mm	16.5 mm
body height	16.5 mm	-	16.5 mm	16.5 mm	16.5 mm	16.5 mm	16.5 mm
Body length or diameter	55 mm	-	55 mm	55 mm	55 mm	55 mm	55 mm
Maximum coil current (DC)	0.011 A	-	0.05 A	0.05 A	0.03 A	0.2 A	-
Coil operating voltage (DC)	82.5 V	-	18 V	18 V	30 V	4.5 V	-
Coil power	1200 mW	-	1200 mW	1200 mW	1200 mW	1200 mW	-
Coil release voltage (DC)	11 V	-	2.4 V	2.4 V	4 V	0.6 V	-
Coil resistance	10080 Ω	-	480 Ω	480 Ω	1333 Ω	30 Ω	-
Maximum coil voltage (DC)	110 V	-	24 V	24 V	40 V	6 V	15 V
Coil/Input Power Type	DC	-	DC	DC	DC	DC	-
Contact (AC) maximum rated R load	8A@400VAC	-	8A@240VAC	8A@240VAC	8A@240VAC	8A@240VAC	8A@240VAC
Maximum contact current (AC)	8 A	-	8 A	8 A	8 A	8 A	8 A
Maximum contact voltage (AC)	400 V	-	240 V	240 V	240 V	240 V	240 V
Installation features	PANEL MOUNT	-	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
physical size	55mm x 16.5mm x 16.5mm	-	55mm x 16.5mm x 16.5mm	55mm X 16.5mm X 16.5mm	55mm X 16.5mm X 16.5mm	55mm X 16.5mm X 16.5mm	55mm X 16.5mm X 16.5mm
Guideline	TUV; UL; VDE	-	EN; IEC; UL; VDE	EN; IEC; UL; VDE	EN; IEC; UL; VDE	EN; IEC; UL; VDE	EN; IEC; UL; VDE
Relay action	MOMENTARY	-	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	6PST	-	6PST	6PST	6PST	6PST	6PST
Relay type	SAFETY RELAY	-	SAFETY RELAY	SAFETY RELAY	SAFETY RELAY	SAFETY RELAY	SAFETY RELAY
seal	RT3	-	RT3	RT3	RT3	RT3	RT3
surface mount	NO	-	NO	NO	NO	NO	NO
Termination type	SOLDER/QUICK CONNECT	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Contact/Output Power Type	-	-	AC	AC	AC	AC	AC
Manufacturer's serial number	-	-	-	1415017	1415018	1415017	1415017

Recommended Resources

One of the inverter circuits

Winding type asynchronous motor energy consumption braking circuit

Circuit diagram of a 12-bit analog-to-analog converter composed of two 8-bit analog-to-analog converters

KBA DXW-60 high temperature electronic disinfection cabinet circuit diagram

Typical application circuit diagram of IR2155

Small power transformer self-excited inverter circuit diagram
