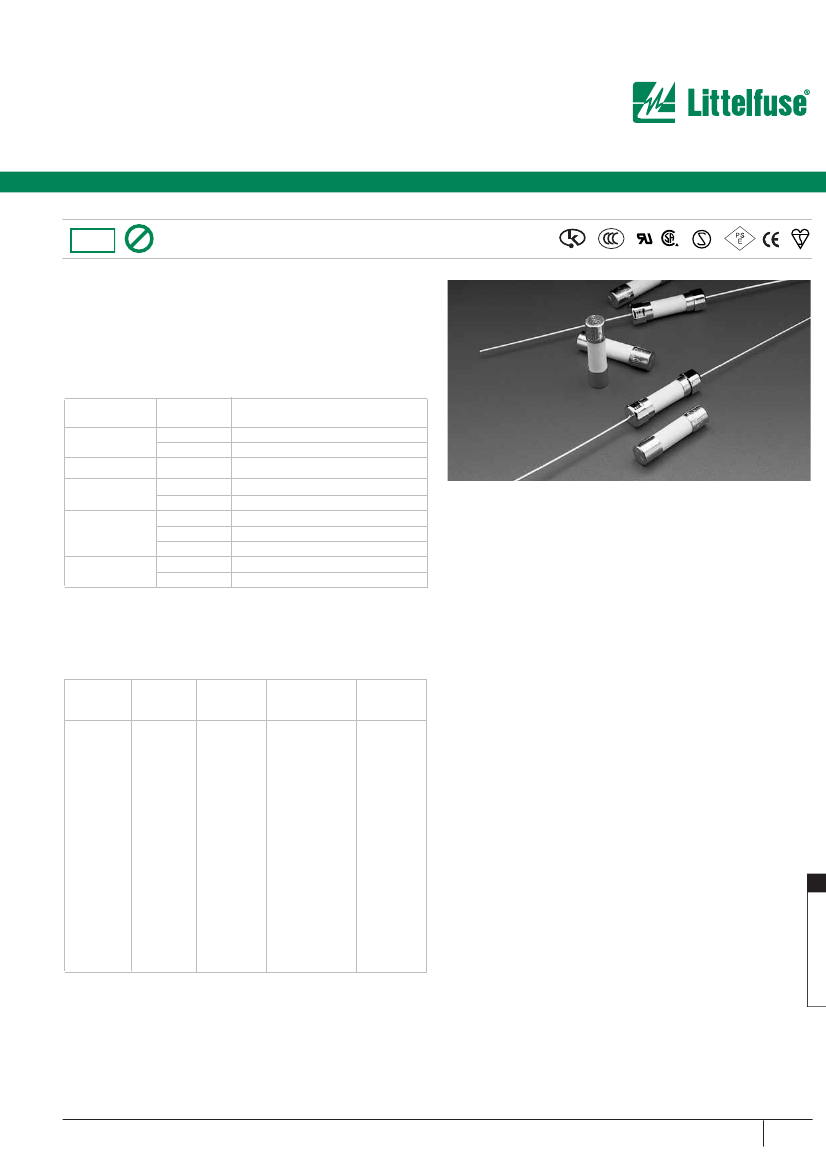

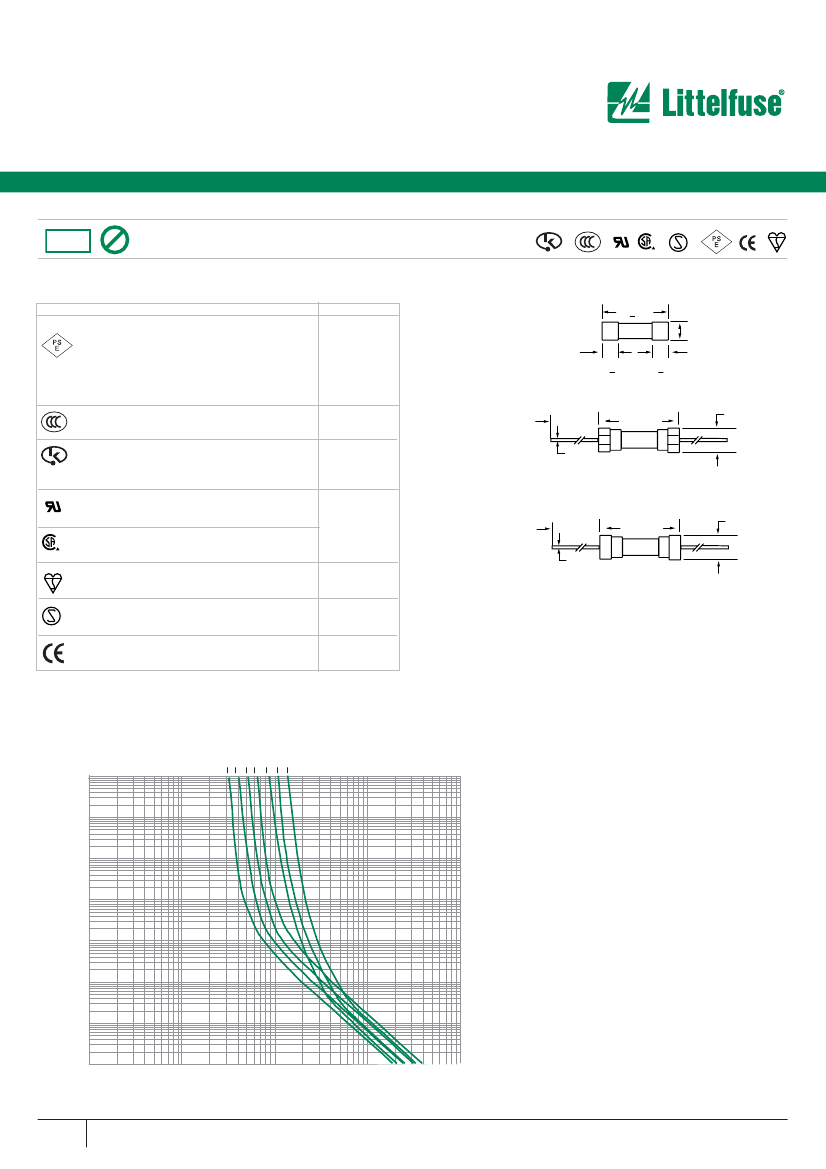

Axial Lead and Cartridge Fuses
Designed to IEC Standard
RoHS
Pb
5 x 20 mm
Time Lag Fuse (Slo-Blo
®
Fuse) 215 Series
®
®
• Designed to International (IEC) Standards for use globally.
• Meets the IEC 60127-2, Sheet 5 specification for Time Lag Fuses.
• Available in Cartridge and Axial Lead Form.
• Available in ratings of .2 to 12 amperes.
• High breaking capacity.
•
RoHS compliant and Pb-free version available, add XP suffix to
standard catalog number
ELECTRICAL CHARACTERISTICS:
% of Ampere
Rating
150%
210%
275%
Ampere
Rating
.1-6.3
8-12
.1-12
.1-.8
1-12
.1-.8
1– 3.15
4– 6.3
.1-.8
1-12
Opening
Time
60 minutes,
Minimum
30 minutes,
Minimum
30 minutes,
Maximum
.25 sec.,
Min.;
80 sec.
Max.
.75 sec.,
Min.;
80 sec.
Max.
.05 sec.,
Min.;
5 sec.
Max.
.095 sec.,
Min.;
5 sec.
Max.
.150 sec.,
Min.;
5 sec.
Max.
.005 sec.,
Min.;
.15 sec.,
Max.
.010 sec.,
Min.;
.15 sec.,
Max.
400%
ENVIRONMENTAL SPECIFICATIONS:
Operating temperature:
-55˚C to 125˚C
Thermal Shock:
MIL-STD-202F Method 107G, Test Condition B: (5
cycles –65°C to +125°C)
Vibration:
MIL-STD-202F Method 201A
Humidity:
MIL-STD-202F Method 103B, Test Condition A. high relative
humidity (95%) and elevated temperature (40°C) for 240 hours.
Salt Spray:
MIL-STD-202F Method 101D, Test Condition B
1000%
INTERRUPTING RATING:
1500 amperes @ 250VAC,
0.7-0.8 power factor.
ORDERING INFORMATION:
RoHS compliant and Pb-free version
available, add XP suffix to standard catalog number
Cartridge
Catalog
Number
215.200
215.250
215.315
215.400
215.500
215.630
215.800
215
001
215
1.25
215
01.6
215
002
215
02.5
215
3.15
215
004
215
005
215
06.3
215
008
215
010
215
012
Nominal
Resistance
Cold Ohms
1.750
1.170
0.873
0.560
1.080
0.660
0.436
0.110
0.085
0.0588
0.043
0.0312
0.0220
0.0163
0.0125
0.0099
0.0078
0.0060
0.0055
Nominal
Melting I
2
t
A
2
Sec.
0.37
0.56
1.08
1.45
0.34
0.56
0.954
1.05
2.05
3.90
6.95
10.65
21.2
38.7
82.85
132.5
209.5
360.5
515.0
PHYSICAL SPECIFICATIONS:
Material:
Body: Ceramic
Cap: Nickel Plated Brass
Leads: Tin Plated Copper
Filler: Sand (500mA – 12A)
Terminal Strength:
MIL-STD-202F Method 211A,
Test Condition A
Solderability:
Reference IEC 60127 Second Edition 2003-01 Annex A
Product Marking:
Cap 1: current and voltage rating.
Cap 2: Agency approval markings.
Packaging:
Available in Bulk (v=5, H=100, M=1000 pcs/pkg) or on
Tape/Reel (MRET1=1000 pcs/reel).
w w w. l i t t e l f u s e . c o m
417
AXIAL LEAD AND
Ampere
Rating
.200*
.250*
.315*
.400*
.500*
.630*
.800*
1
1.25
1.6
2
2.5
3.15
4
5
6.3
8*
10*
12*
Voltage
Rating
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
11
Axial Lead and Cartridge Fuses
Designed to IEC Standard
RoHS
Pb
5 x 20 mm
Time Lag Fuse (Slo-Blo ) Fuse 215 Series
®
®
®
Agency Approvals
Agency Approvals
Certificate No.
Cartridge
NBK250702-E10480
NBK250702-E10480
Leaded
NBK250702-E10480
NBK250702-E10480
2002010207007593
SU05001-2011
SU05001-2012
Pending
Ampere Range
0215
000
2
A & C 1A – 5A
E
6.3A – 12A
20+0.5
5.2+0.1
-0.2
5.1+0.6
5.1+0.6
B & D 1A – 5A
F
6.3A -12A
1A – 6.3A
1A – 3.15A
4A – 10A
12A
Certificate No.
Certificate No.
0215.200 XE
1
to
0215.800 XE
1
40
22.5 MAX
6.0 MAX
0.65
®
Recognised File No. E10480
Guide No.
JDYX2
50mA – 12A
®
File No.
Acc. Class No.
Licence No.
File No.
029862
LR1422-30
KM41462
403906, 0212085,
0147100
200mA – 6.3A
200mA – 10A
200mA – 12A
0215001.XE
1
to
0215012.XE
1
40
22.5 MAX
5.8 MAX
0.65*
All dimensions in mm
Notes:
* Ratings above 6.3A
have 0.8 mm dia lead
1 For RoHS compliant parts
replace XE with XEP
2 For RoHS compliant parts
add suffix 'XP'
Average Time Current Curves
0.200A
0.250A
0.315A
0.400A
0.500A
0.630A
0.800A
10000
1000
100
TIME IN SECONDS
10
1
0.1
0.01
0.001
0.01
0.1
1
10
100
CURRENT IN AMPERES
418
w w w. l i t t e l f u s e . c o m
