RSPF22.25%B datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> The resistor> RSPF22.25%B

Preview

RSPF22.25%B: DescriptionRESISTOR, 2W, 5%, 350ppm, 2.2ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size162KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

RSPF22.25%B Overview

RESISTOR, 2W, 5%, 350ppm, 2.2ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

RSPF22.25%B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1612175805
package instruction	AXIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FLAMEPROOF
JESD-609 code	e2
Manufacturer's serial number	RSPF
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	BULK
Rated power dissipation(P)	2 W
Rated temperature	70 °C
resistance	2.2 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
Temperature Coefficient	350 ppm/°C
Terminal surface	Tin/Copper (Sn/Cu)
Terminal shape	WIRE
Tolerance	5%
Operating Voltage	500 V

Preview

Download Datasheet

View All

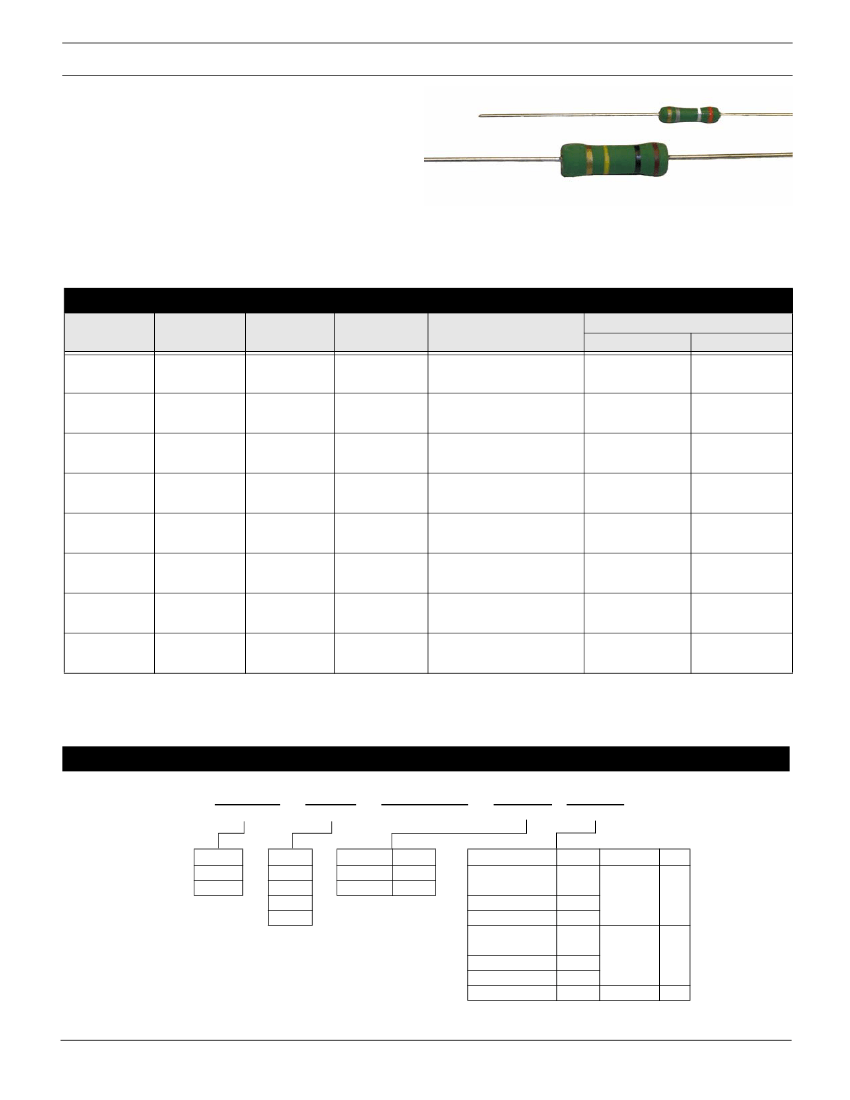

RSPF / RSPL Series — Flameproof Power Resistors

Features

• Flameproof design

• Compact size

• Useful in circuits where duty cycles require power resistors

• Tin-plated copper leads

• Cut and formed product is available on select sizes, contact factory for details

• RoHS compliant / lead-free

Electrical Specifications

Type / Code

Power Rating

(Watts) @ 70°C

Maximum

Working

Voltage

400V

Maximum Pulse

Voltage

Resistance Temperature

Coefficient

Ohmic Range and Tolerance

1%

10Ω – 100KΩ

5%

2.2Ω – 1MΩ

RSPF 1/2

0.5W

800V

-200 ppm/°C ~ +350ppm/°C

RSPF 1

1W

500V

1,000V

-200 ppm/°C ~ +350ppm/°C

10Ω – 100KΩ

2.2Ω – 1MΩ

RSPF 2

2W

500V

1,000V

-200 ppm/°C ~ +350ppm/°C

10Ω – 100KΩ

2.2Ω – 1MΩ

RSPF 3

3W

500V

1,000V

-200 ppm/°C ~ +350ppm/°C

10Ω – 100KΩ

2.2Ω – 1MΩ

RSPL 1/2

0.5W

√PR

x 2.5

-200 ppm/°C ~ +350ppm/°C

–

0.1Ω – 2Ω

RSPL 1

1W

√PR

x 2.5

-200 ppm/°C ~ +350ppm/°C

–

0.1Ω – 2Ω

RSPL 2

2W

√PR

x 2.5

-200 ppm/°C ~ +350ppm/°C

–

0.1Ω – 2Ω

RSPL 3

3W

√PR

x 2.5

-200 ppm/°C ~ +350ppm/°C

–

0.1Ω – 2Ω

* Lesser of

√PR

or maximum working voltage

How to Order

RSPF

SEI Type

1/2

Code

10

Nominal Resistance

5%

Tolerance

A

Packaging

SEI Type

RSPF

RSPL

Code

1/2

1

2

3

Tolerance

1%

5%

Values

E24

E12

SEI Types

RSPF 1/2, RSPF 1

RSPF 1/2, RSPL 1

RSPF 2, RSPL 2

RSPF 3, RSPL 3

RSPF 1/2, RSPL 1

RSPF 2, RSPL 2

RSPF 3, RSPL 3

All

Pkg Qty Description Code

2,500

1,000

500

2,000

1,000

500

1,000

Bulk

B

Ammo

A

Reel

R

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

47

email: marketing@seielect.com

Rev 02/07
