717P2725900LD2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 717P2725900LD2

717P2725900LD2: DescriptionCAPACITOR, METALLIZED FILM, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size387KB，8 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

717P2725900LD2 Overview

CAPACITOR, METALLIZED FILM, RADIAL LEADED, ROHS COMPLIANT

717P2725900LD2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1253894354
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	7.25
capacitance	0.0027 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
high	14.5 mm
JESD-609 code	e3
length	31.8 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package form	Radial
positive tolerance	5%
Rated (AC) voltage (URac)	900 V
Rated (DC) voltage (URdc)	2000 V
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	WIRE
width	7.6 mm

Preview

Download Datasheet

View All

Type 715P/717P, Orange Drop®, High Voltage, Polypropylene Film/Foil

Type 715P/717P are high AC voltage, film/foil polypropylene

capacitors. Well suited for high AC voltage applications requiring

corona free performacnce. These capacitors are ideal in high

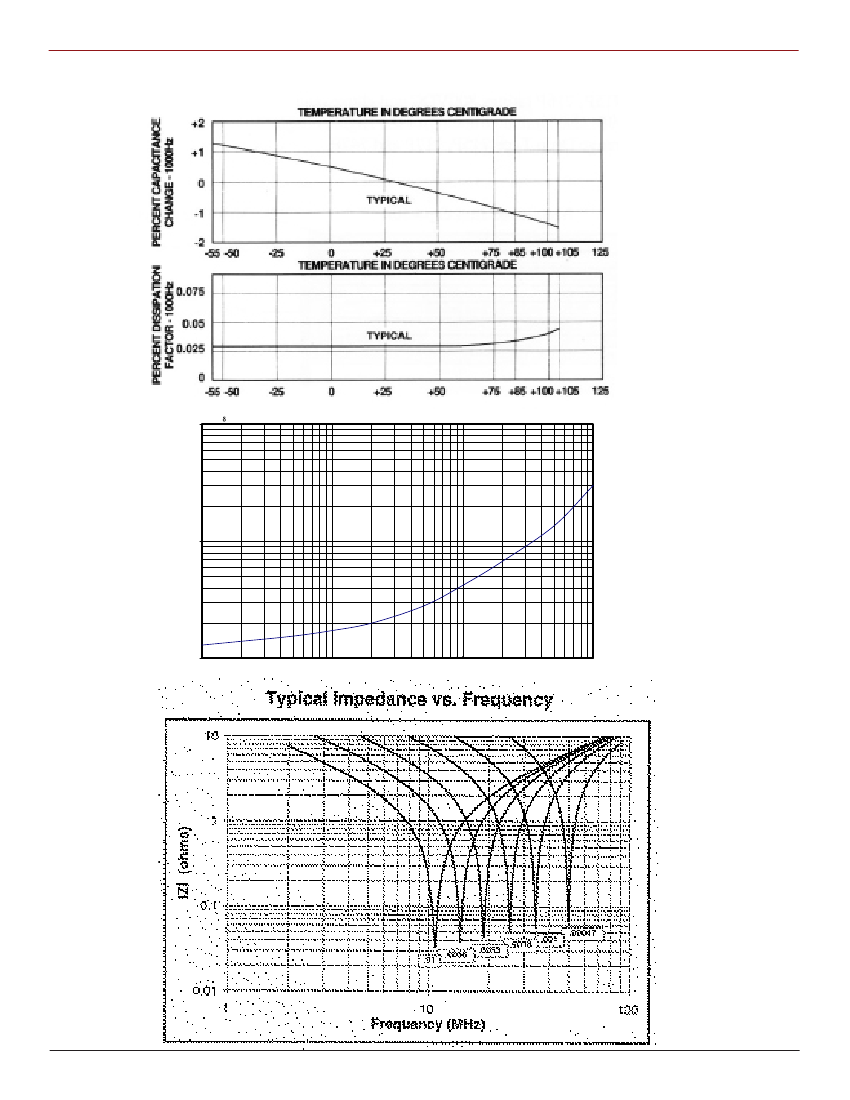

frequency, high pulse current applications and offer excellent stability,

virtually linear temperature coefficient.

Highlights

Specifications

Capacitance Range

Capacitance Tolerance

Rated Voltage

Operating Temperature Range

Lead Wire

Corona Start Voltage (typical)

Dielectric

Construction

Encapsulations

Insulation Resistance

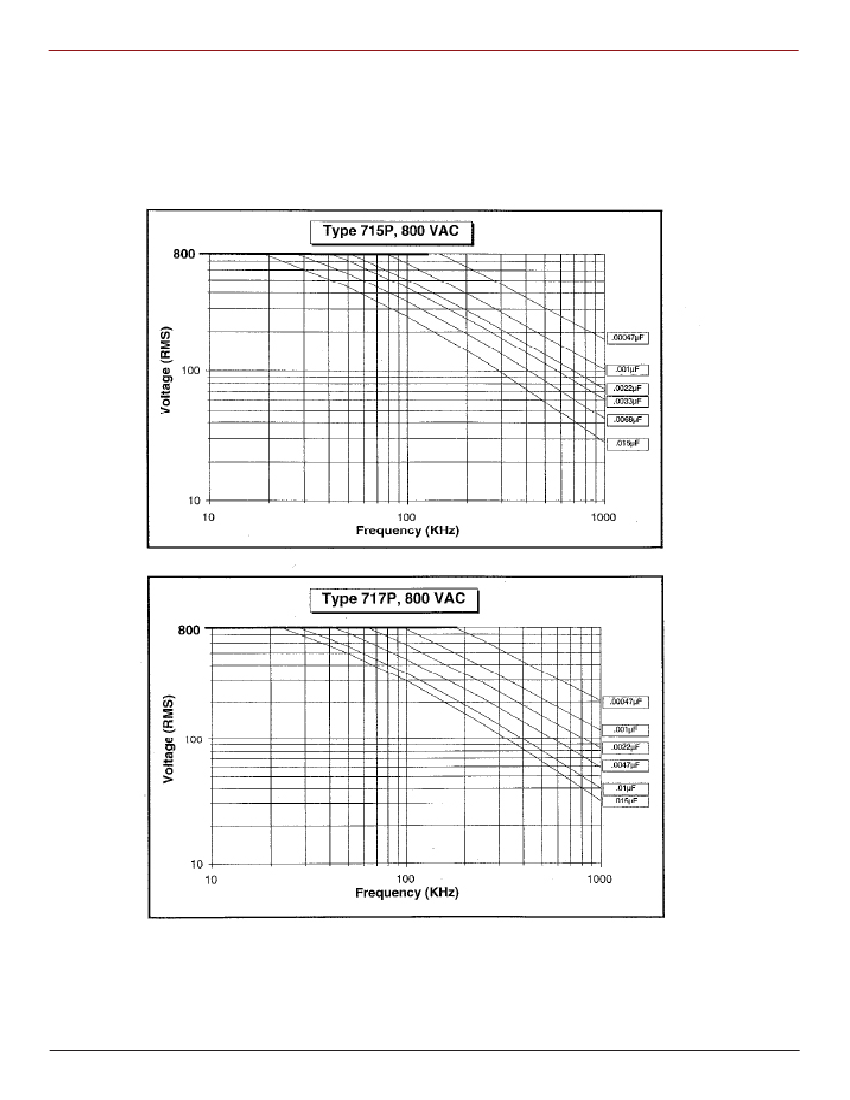

- Very low dissipation factor

- High dV/dt rating

470 pF to .015 µF

±1% to ±10%

800/900 Vac (1800/2000 Vdc)

–55 ºC to 85 ºC

+105 ºC with proper voltage derating

Tinned copper clad steel, .032” (0.8) diameter, #20 AWG

800 Vac units: 950 - 1000 V RMS

900 Vac units: 1050 - 1100 V RMS

Polypropylene film; utilizing a floating common of metallized polypropyl-

ene, which provides self-healing characteristics

Non-inductively wound with extended foil, internal series section design

Conformal coating of flame retardant orange epoxy (meets UL94V-0)

400,000 MΩ minumum at +25 ºC

20,000 MΩ minumum at +85 ºC

2,000 MΩ minumum at +105 ºC

Regulatory Information

Part Numbering System

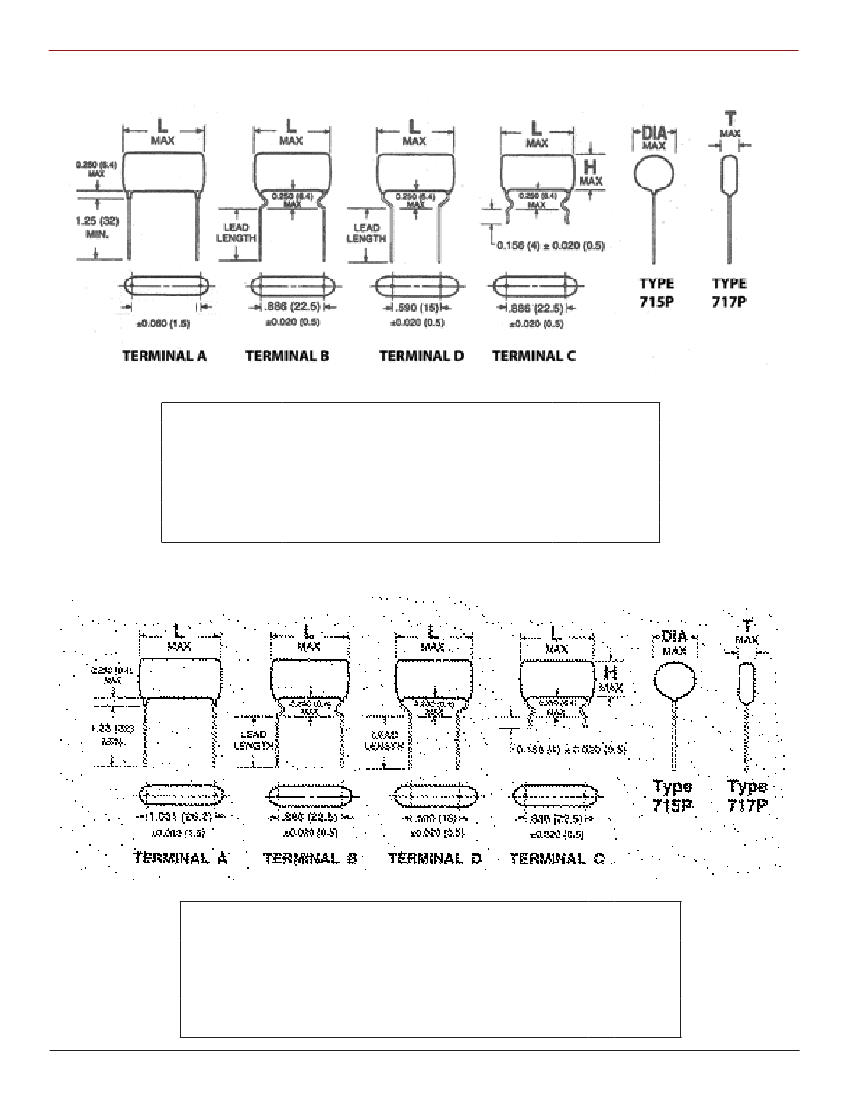

Dimensions in inches, metric (mm) in parenthesis.

715P/717P

222

800

(XXXX)

Capacitance

Series

717P Pressed Profile

Capacitance

Tolerance

9 = ±10%

5 = ±5%

3 = ±3%

2 = ±2%

1 = ±1%

715P Round Profile 222 = 2200 pF

AC Voltage

Rating

Case

Code

Terminal

A = Straight Lead

B = Hairpin Crimp

C = Captive Crimp *

D = Hockey Stick Crimp

Lead

Length

1 = 0.187 (4.7) ±0.030 (0.8)

2 = 0.250 (6.4) ±0.030 (0.8)

3 = 1.250 (32) Minimum

(Custom lead lengths available)

Suffix

May be added

by factory to

denote special

construction

*Terminal C has a lead length of 0.156 (4.0) ±0.020 (0.5) therefore it is not necessary to indicate the lead length digit. The Captive Crimp is designed for circuit

boards with hole sizes of .044 (1.1) to .048 (1.2) in diameter.
