35K102-302E3: DescriptionRF SSMB Connector, Female, Cable Mount, Crimp Solder Terminal, Jack,; CategoryThe connector The connector; File Size109KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

35K102-302E3 Overview

RF SSMB Connector, Female, Cable Mount, Crimp Solder Terminal, Jack,

35K102-302E3 Parametric

Parameter Name	Attribute value
Maker	Rosenberger
Reach Compliance Code	compliant
Is Samacsys	N
Other features	STANDARD: IEC 169-19, APPLICABLE CABLES: RG 174; RG 188; RG 316, INSERTION LOSS MAX AT 1 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SSMB CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	YES
Insertion loss	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	3 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP SOLDER
Total number of contacts	1
voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

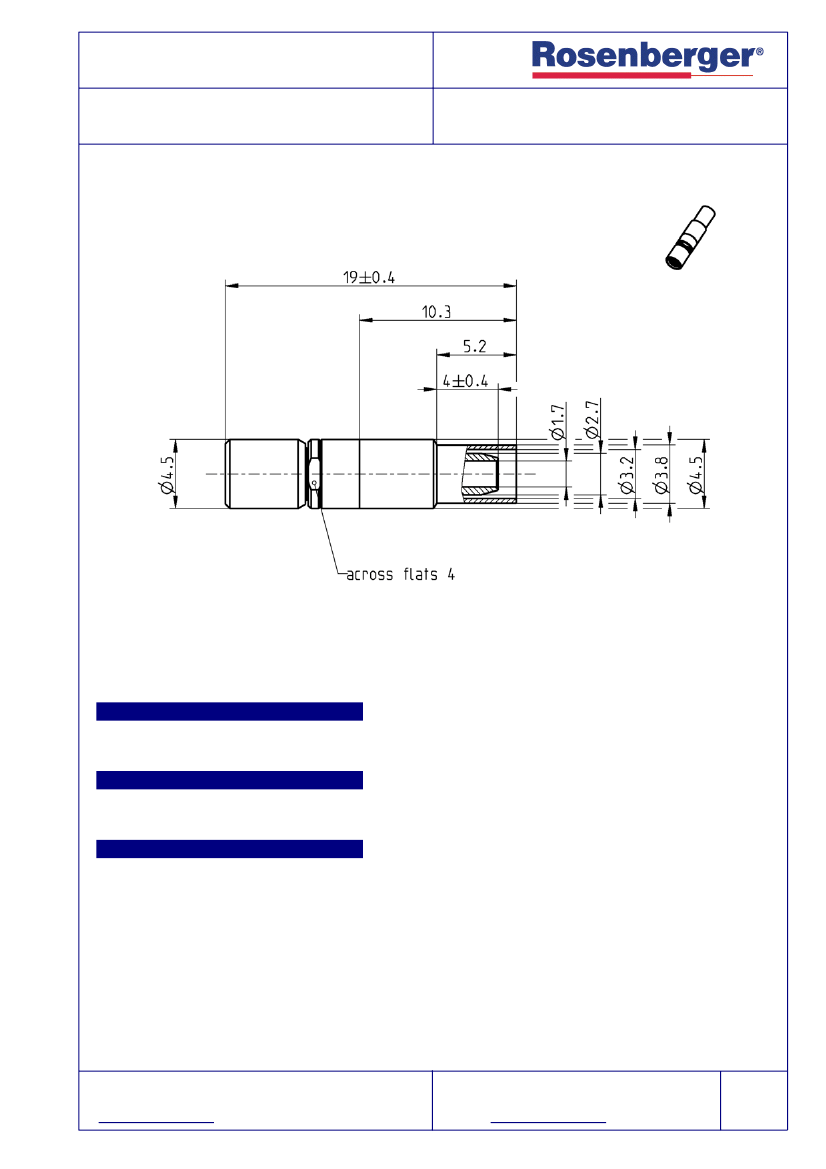

TECHNICAL DATA SHEET

SSMB

STRAIGHT JACK

35K102-302E3

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

EN 122 170, IEC 60169-19

Documents

Assembly instruction

35 B

Material and plating

Connector parts

Center contact

Outer contact

Dielectric

Crimping ferrule

Material

Beryllium copper

PTFE

Brass

Plating

Gold, min. 1.27 µm, over nickel

Gold, min. 0.8 µm, over nickel

Gold, 0.1 µm min.

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
