W038-1202-001-Z datasheet, PDF

Datasheet> All Categories > The connector> W038-1202-001-Z

W038-1202-001-Z: DescriptionWire Terminal, ROHS COMPLIANT; CategoryThe connector; File Size213KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

W038-1202-001-Z Overview

Wire Terminal, ROHS COMPLIANT

W038-1202-001-Z Parametric

Parameter Name	Attribute value
Objectid	1132391576
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Manufacturer's serial number	W038
Terminal and terminal strip types	WIRE TERMINAL
Wire gauge	22 AWG

Preview

Download Datasheet

View All

For Use With Contact

Housing P/N: W038-XX41-000-Z

ELECTRICAL:

CURRENT RATING: 3A AC/DC

VOLTAGE RATING: 250V AC/DC

CONTACT RESISTANCE: 30 m

Ω

max.

WITHSTANDING VOLTAGE: 1000V AC for 1 min.

INSULATION RESISTANCE: 1000 M

Ω

min.

TEMPERATURE RANGE: -25°C to 85°C

ACCEPTABLE WIRE RANGE: # 22 - # 30 AWG

HOW TO ORDER:

# OF POSITIONS:

02 - 16 Position

RoHS

COMPLIANT

MATERIAL:

CONTACT: Copper Alloy, Tin Plated

PACKAGING: 8000 pcs/ Reel

Rev

0 Issued

Drawn Checked Approved

S.M.

B.S.

Date

5/7/07

SMP TECHNOLOGY, INC.

SCALE:n/a

TOL. DEC.

.X +/- 0.3

.XX +/- 0.2

.XXX +/- 0.1

ANGLE +/-

UNIT: mm

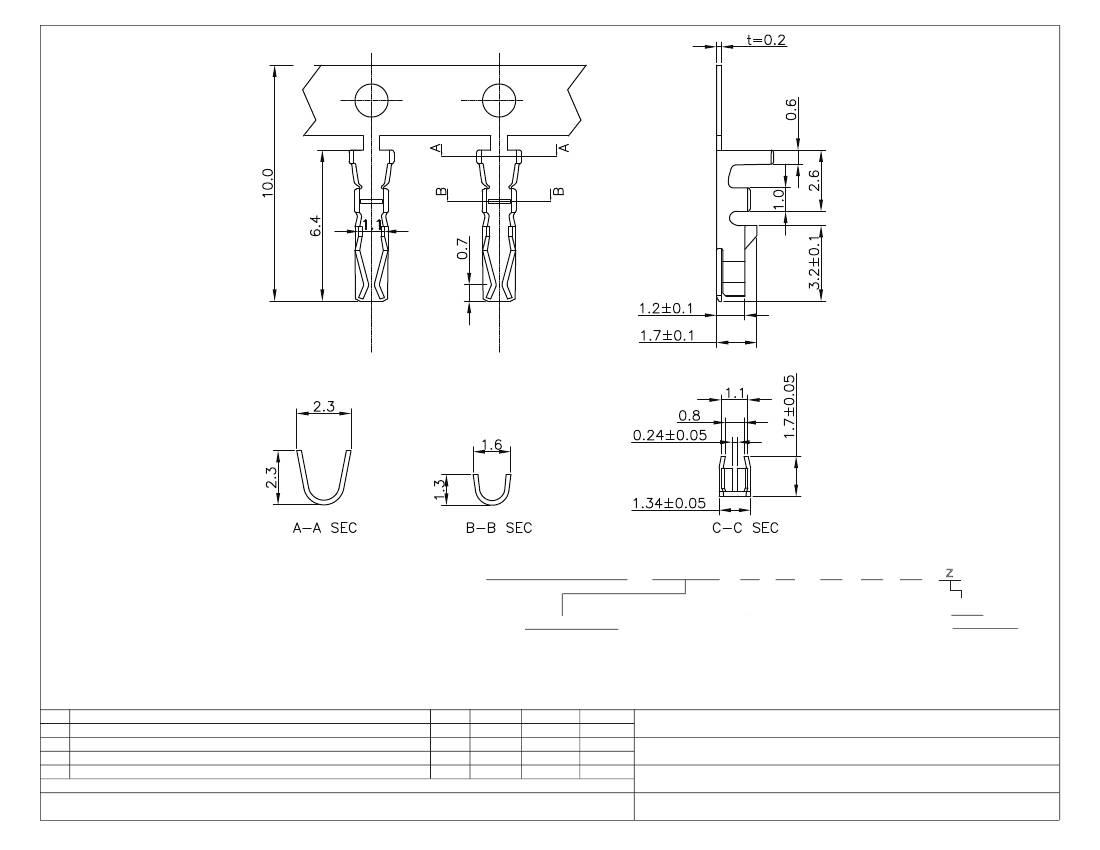

Contacts, 2.0mm Pitch, Yeonho SM Type

P/N:W038-0002-001-Z

Pg: 1
