Model 110E

Vishay Spectrol

Mechanical Encoder

FEATURES

• Cost Effective - Eliminates A/D Converters

• High Resolution - Up to 36 Positions

• Stability - Operating Range of - 40°C to + 105°C

• Variability - Horizontal and Vertical Mounting

The Model 110E is a 7/8” square mechanical encoder which provides a 2 - bit grey code for relative reference and a 4 - bit

grey code for absolute reference applications. Manually operated it has a rotational life of 100,000 shaft revolutions, a

positive dentent feel and can be combined with a second modular section in a concentric - shaft construction. Its small size

makes it suitable for panel-mounted applications where the need for costly front - panel displays can be completely elimi-

nated.

ELECTRICAL SPECIFICATIONS

PARAMETER

Output

2 - bit grey code, channel L leads channel R by 90

degrees electrically in the CW direction

4 bi - grey code, absolute electrical position output

5Ω maximum

100KΩ minimum

Resistance load 250mA @ 28VDC

1.5mA @ 115VDC

150mA @ 14VDC

5ms/cycle @ 15 RPM

1000VAC @ sea level

Continuous

50 RPM maximum

Closed Circuit Resistance

Open Circuit Resistance

Contact Rating

Switching Loads

Bounce

Dielectric Withstanding Voltage

Electrical Travel

Operating Speed

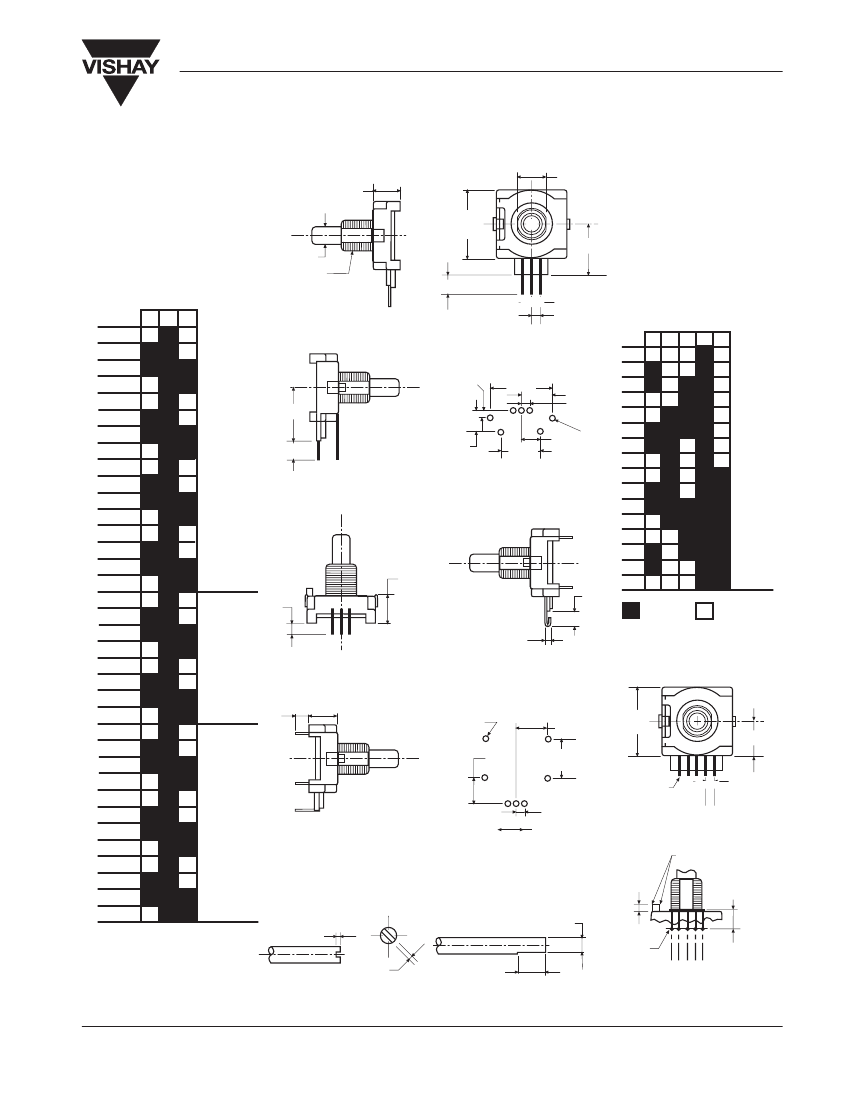

ORDERING INFORMATION

110E

MODEL

BUSHING

SINGLE SHAFT FMS

CODED IN 64ths

48 = 0.750”

56 = 0.875”

S: Slotted

F: Flatted

204P

2-4 - BIT GREY

CODE OPTIONS

204P = 4 cycles/rev

16 detents/rev

206P = 6 cycles/rev

24 dentents/rev

209P = 9 cycles/rev

36 dentents/rev

416P = 16 electrical

positions/rev

16 dentents/rev

Example:

110E - 1 - A - 48 - F - 204P - P

B: PC terminals straight

(horizontal mount)

C: PC terminals bent back

(vertical mount)

Type C - 30

P: Type B with

mounting bracket

D: Type C with

mounting bracket

S: Solder Hook

Hardware not included

110E

1 = @ 9’0 clock

0 = None

A = 3/8 (9.53mm)

dia x 1/4 (6.35mm) long

G = 3/8 (9.53mm)

dia x 3/8 (6.35mm) long

www.vishay.com

142

Document Number: 57089

Revision 15-Aug-02
