MC14069UBFL2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> MC14069UBFL2

MC14069UBFL2: Description4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO14, EIAJ, PLASTIC, SOIC-14; Categorylogic logic; File Size172KB，8 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

MC14069UBFL2 Overview

4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO14, EIAJ, PLASTIC, SOIC-14

MC14069UBFL2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ON Semiconductor
Parts packaging code	SOIC
package instruction	EIAJ, PLASTIC, SOIC-14
Contacts	14
Reach Compliance Code	not_compliant
Is Samacsys	N
series	4000/14000/40000
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	10.2 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/15 V
Prop。Delay @ Nom-Sup	125 ns
propagation delay (tpd)	125 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	2.05 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.275 mm
Base Number Matches	1

Preview

Download Datasheet

View All

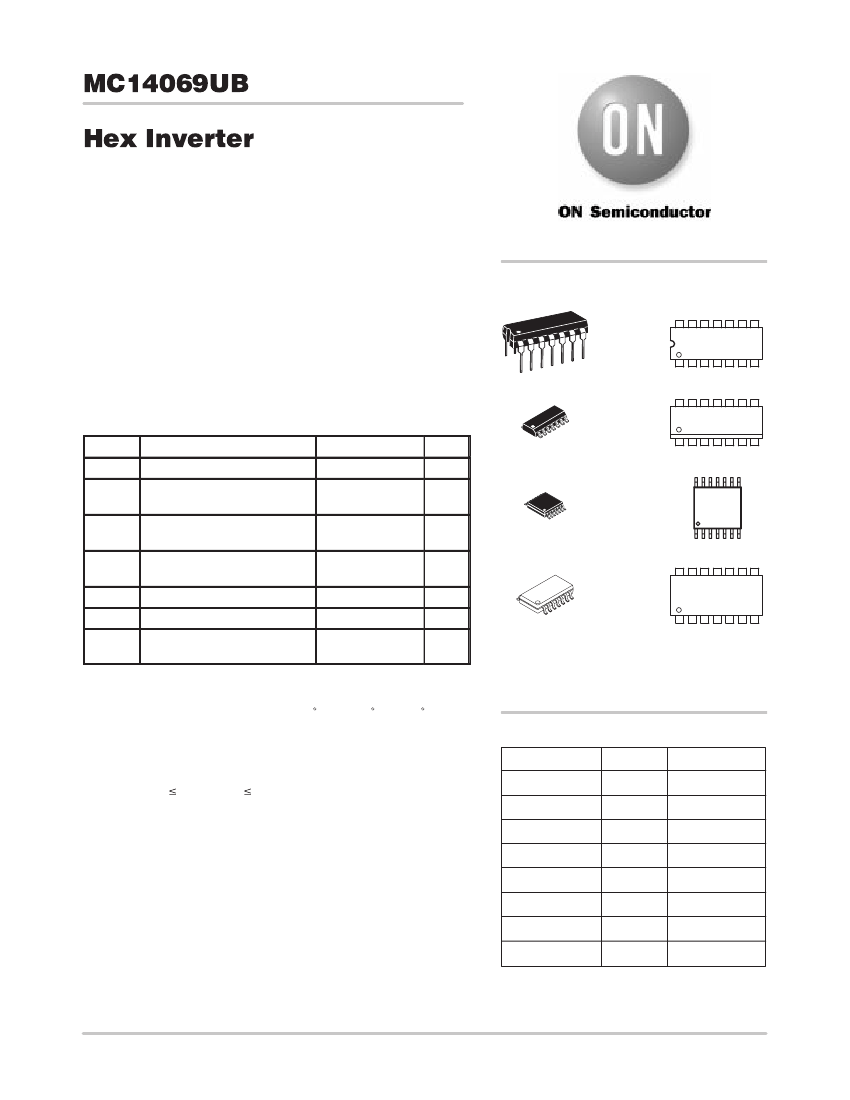

MC14069UB

Hex Inverter

The MC14069UB hex inverter is constructed with MOS P–channel

and N–channel enhancement mode devices in a single monolithic

structure. These inverters find primary use where low power

dissipation and/or high noise immunity is desired. Each of the six

inverters is a single stage to minimize propagation delays.

http://onsemi.com

MARKING

DIAGRAMS

PDIP–14

P SUFFIX

CASE 646

MC14069UBCP

AWLYYWW

SOIC–14

D SUFFIX

CASE 751A

TSSOP–14

DT SUFFIX

CASE 948G

500

– 55 to +125

– 65 to +150

260

°C

SOEIAJ–14

F SUFFIX

CASE 965

= Assembly Location

WL or L = Wafer Lot

YY or Y = Year

WW or W = Work Week

MC14069U

AWLYWW

069U

ALYW

•

Supply Voltage Range = 3.0 Vdc to 18 Vdc

•

Capable of Driving Two Low–Power TTL Loads or One Low–Power

Schottky TTL Load Over the Rated Temperature Range

•

Triple Diode Protection on All Inputs

•

Pin–for–Pin Replacement for CD4069UB

•

Meets JEDEC UB Specifications

MAXIMUM RATINGS

(Voltages Referenced to V

) (Note 2.)

Symbol

, V

out

, I

out

stg

Parameter

DC Supply Voltage Range

Input or Output Voltage Range

(DC or Transient)

Input or Output Current

(DC or Transient) per Pin

Power Dissipation,

per Package (Note 3.)

Ambient Temperature Range

Storage Temperature Range

Lead Temperature

(8–Second Soldering)

Value

– 0.5 to +18.0

– 0.5 to V

+ 0.5

Unit

14069U

AWLYWW

2. Maximum Ratings are those values beyond which damage to the device

may occur.

3. Temperature Derating:

Plastic “P and D/DW” Packages: – 7.0 mW/

C From 65

C To 125

This device contains protection circuitry to guard against damage due to high

static voltages or electric fields. However, precautions must be taken to avoid

applications of any voltage higher than maximum rated voltages to this

high–impedance circuit. For proper operation, V

and V

out

should be constrained

to the range V

or V

out

)

Unused inputs must always be tied to an appropriate logic voltage level (e.g.,

either V

or V

). Unused outputs must be left open.

ORDERING INFORMATION

Device

MC14069UBCP

MC14069UBD

MC14069UBDR2

MC14069UBDT

Package

PDIP–14

SOIC–14

TSSOP–14

Shipping

2000/Box

2750/Box

2500/Tape & Reel

96/Rail

MC14069UBDTEL TSSOP–14 2000/Tape & Reel

MC14069UBDTR2 TSSOP–14 2500/Tape & Reel

MC14069UBF

MC14069UBFEL

SOEIAJ–14

See Note 1.

1. For ordering information on the EIAJ version of

the SOIC packages, please contact your local

ON Semiconductor representative.

Semiconductor Components Industries, LLC, 2000

March, 2000 – Rev. 3

Publication Order Number:

MC14069UB/D
