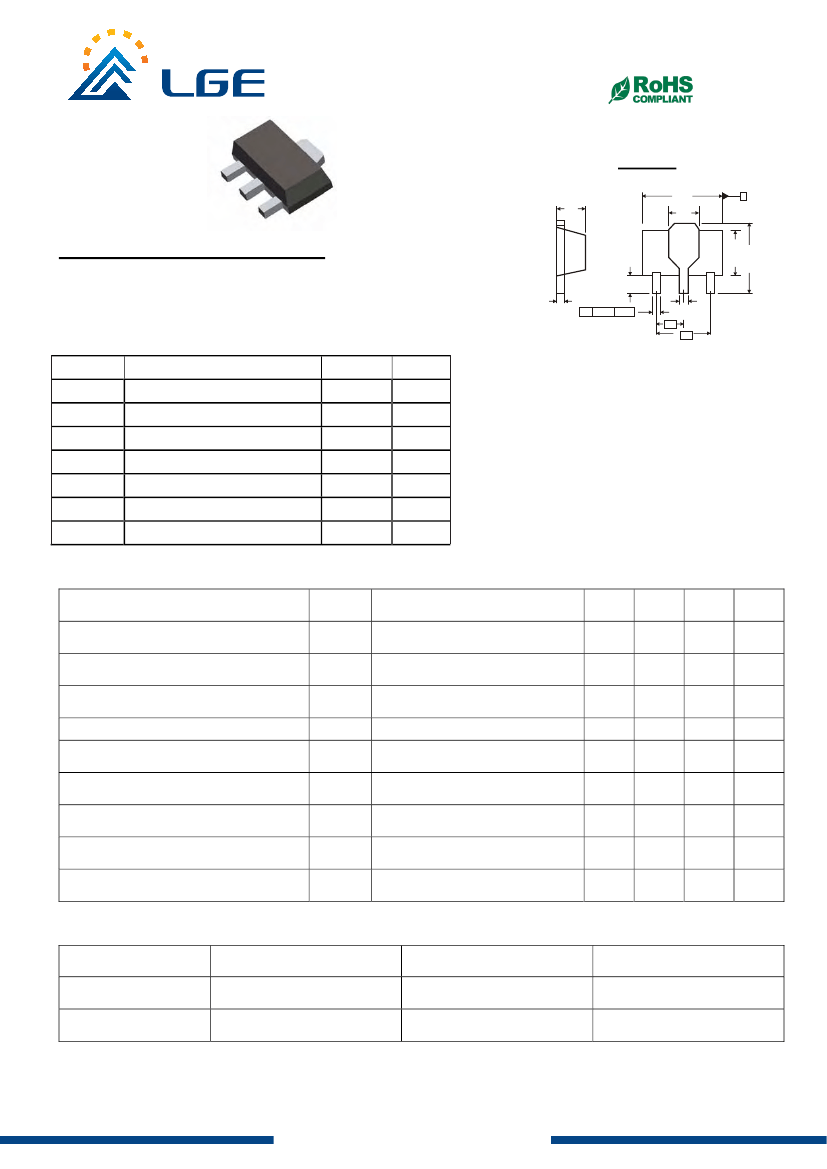

2SD1766

SOT-89 Transistor(NPN)

1.

BASE

1

2

3

3.

EMITTER

2.

COLLECTOR

1.6

1.4

SOT-89

4.6

4.4

1.8

1.4

B

Features

Low V

CE(sat)

.V

CE(sat)

=0.16V(Typ.)(I

C

/I

B

=2A/0.2A)

Complements to 2SB1188

MAXIMUM RATINGS (T

A

=25

℃

unless otherwise noted)

Symbol

V

CBO

V

CEO

V

EBO

I

C

P

C

T

J

T

stg

Parameter

Collector-Base

Voltage

Value

40

32

5

2

500

150

-55-150

Units

V

A

mW

℃

0.8

MIN

2.6 4.25

2.4 3.75

0.44

0.37

0.13

B

0.53

0.48 0.40

2x)

0.35

1.5

3.0

Dimensions in inches and (millimeters)

Collector-Emitter Voltage

Emitter-Base Voltage

Collector Current -Continuous

Collector dissipation

Junction Temperature

Storage Temperature

ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified)

Parameter

Collector-base breakdown voltage

Collector-emitter breakdown voltage

Emitter-base breakdown voltage

Collector cut-off current

Emitter cut-off current

DC current gain

Collector-emitter saturation voltage

Transition frequency

Collector output capacitance

Symbol

V

(BR)CBO

V

(BR)CEO

V

(BR)EBO

I

CBO

I

EBO

h

FE(1)

V

CE(sat)

f

T

C

ob

Test

I

C

=50μA, I

E

=0

I

C

=1mA, I

B

=0

I

E

=50μA, I

C

=0

V

CB

=20V, I

E

=0

V

EB

=4V, I

C

=0

V

CE

=3V, I

C

=500mA

I

C

=2A, I

B

=0.2A

V

CE

=5V, I

C

=50mA, f=100MHz

V

CB

=10V, I

E

=0, f=1MHz

100

30

82

conditions

MIN

40

32

5

1

390

0.8

V

MHz

pF

TYP

MAX

UNIT

V

μA

CLASSIFICATION OF

Rank

Range

Marking

h

FE(1)

P

82-180

DBP

Q

120-270

DBQ

R

180-390

DBR

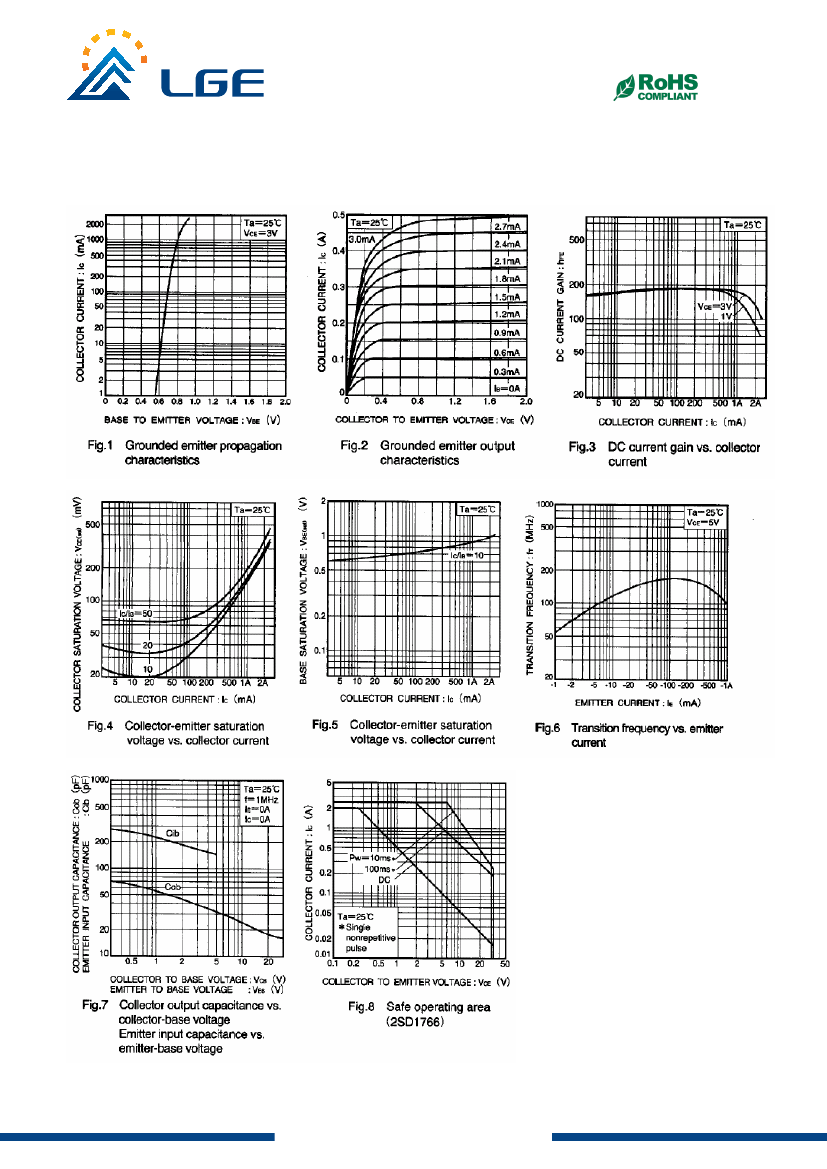

Revision:20170701-P1
