1061-2-39-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1061-2-39-1

1061-2-39-1: DescriptionBoard Connector, 39 Contact(s), 1 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size101KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1061-2-39-1 Overview

Board Connector, 39 Contact(s), 1 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle

1061-2-39-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307192583
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.05 inch
subject depth	0.1 inch
body length	1.535 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1061
Plug contact pitch	0.039 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.075 inch
Terminal pitch	0.9906 mm
Termination type	SOLDER
Total number of contacts	39

Preview

Download Datasheet

View All

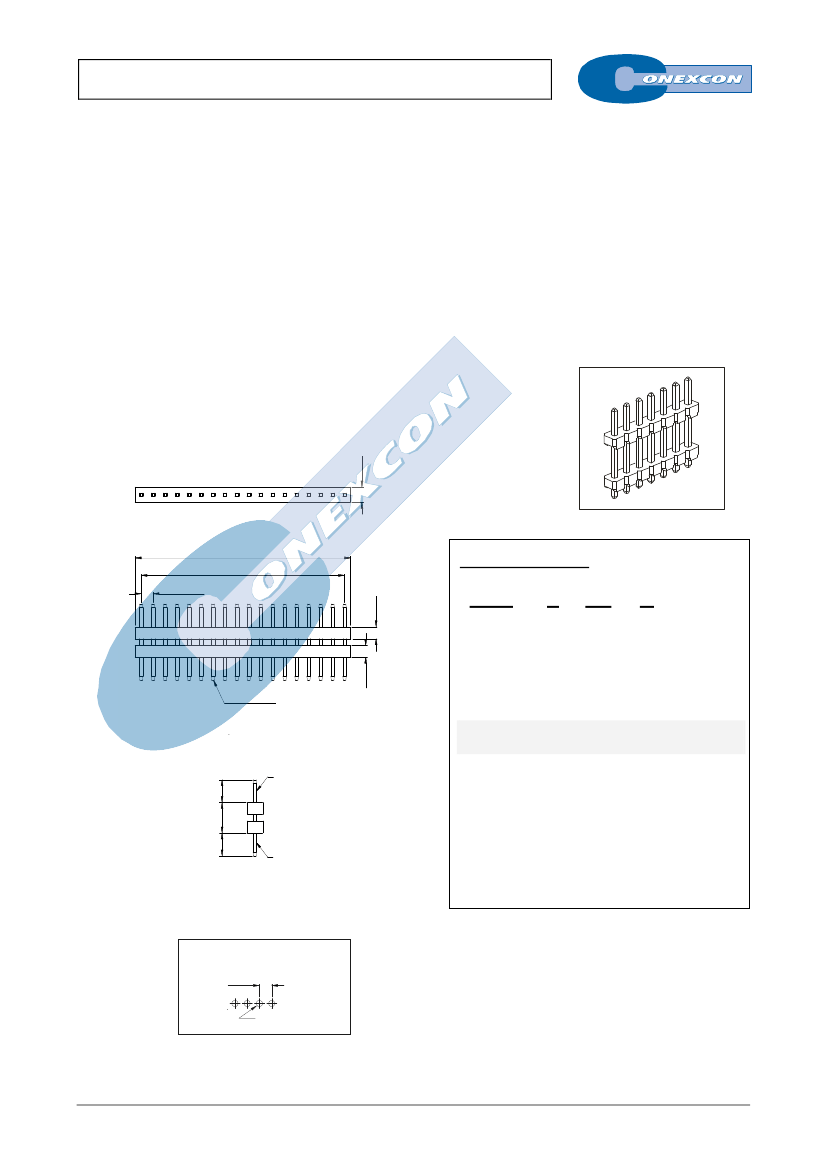

S/ ROW DUAL BODY VERTICAL PIN HEADER

1061 SERIES.

1.00 mm (0.039”) pitch.

General Features

Electrical Features



Available in 2 through 40 circuits

Mates with sockets 1.00 mm. pitch 1065, 1066 and

1067 series

0,30 mm square pin with different plating contact area

Available with different pin length

Contact sales office



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric withstanding Voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Insulator: Polyester LCP UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant

Mechanical Features

Pin retention force to insulator: > 0,10 Kgf

Durability: 50 cycles

Dimension Information

1.00

±0.10

1.00

1.27

Ordering Information:

1061 -

T-

XX-

1.00

1. Connector Series

2. (T) Contact Plating

0.30



Solder end

T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

Contact end

3. (XX) Number of circuits

Available in 2 through 40circuits

4. (C) Pin Dimensions



C =

H = 1.90 mm.; D = 2.55 mm.; F = 1.90 mm.

RECOMMENDED HOLE PATTERN

1.00

Dimensions:

(In mm.)

= 1.00 x (XX*-1)

= 1.00 x (XX*)

* XX

(Number of circuits)

ø0.50

00000

A-XX

FULL LINE CATALOGUE
