8014-4371: DescriptionD Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size206KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

8014-4371 Overview

D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

8014-4371 Parametric

Parameter Name	Attribute value
Objectid	304386061
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.494 inch
subject depth	0.579 inch
body length	2.732 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact style	RND PIN-SKT
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	SCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	10u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37

Preview

Download Datasheet

View All

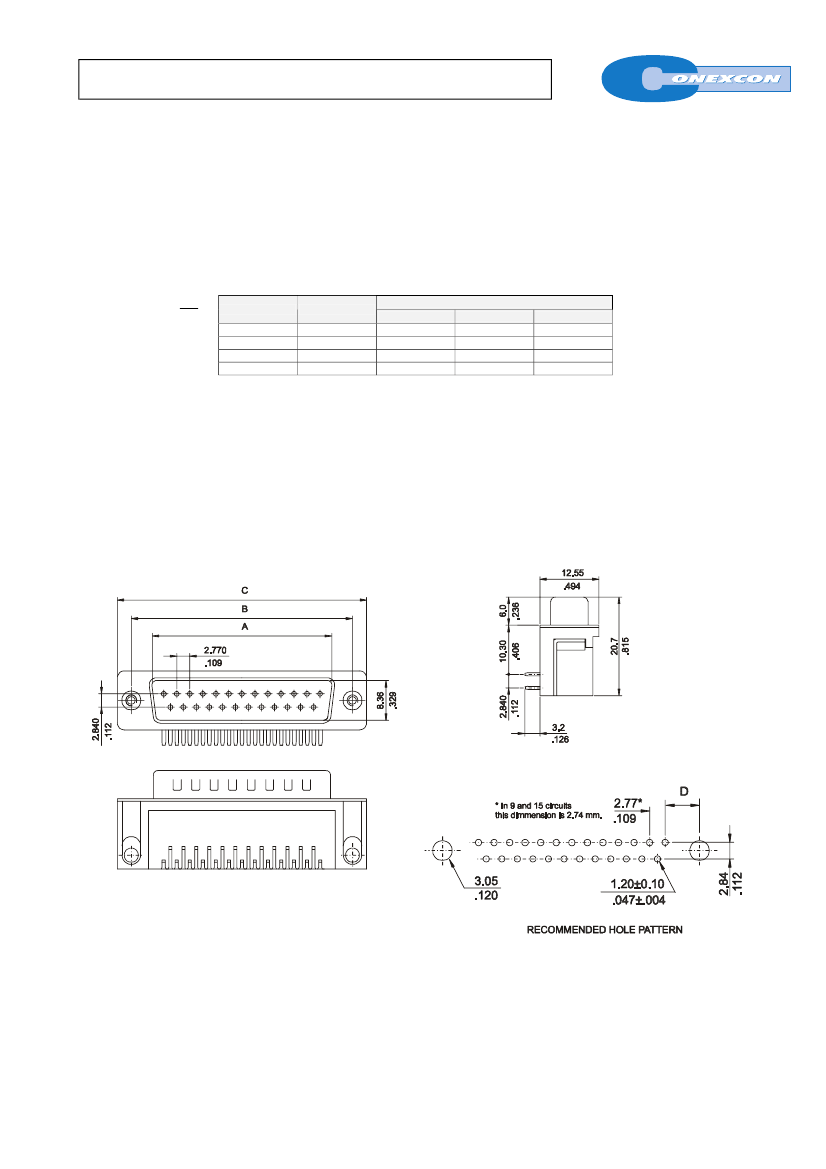

10.30mm FOOTPRINT R/ANGLE D-SUB PLUG

SERIES.

8014 SERIES

For PCB Solder. Right Angle D-Sub Plug

Features

!

Available in 9, 15, 25 and 37 circuits

Insulator Material: Glass filled polyester UL 94V-0

Contact Material: Brass with different plating

Shell: Steel, tin plated as standard

!

Standard connector C = 1 (Riveted ground hooks with

#

#4-40 UNC open

!

For other options consult the Sales Office

Ordering and Dimensional Information

Dimensional Information

Unit:

mm.

Inch.

Circuit Size

9

15

25

37

Part Number

8014 –

T09C

8014 –

T15C

8014 –

T25C

8014 –

T37C

Dimensions

A

16.92 (0.666)

25.25 (0.994)

38.96 (1.534)

55. 42 (2.182)

B

25.00 (0.984)

33.30 (1.311)

47.10 (1.854)

63.50 (2.500)

C

30.80 (1.213)

39.20 (1.543)

53.10 (2.091)

69.40 (2.732)

T = Contact Plating

C = Hardware Options

!

T =

3.

Gold flash over 50µ” nickel

T =

4.

10µ” gold over 50µ” nickel

T =

5.

15µ” gold over 50µ” nickel

T =

6.

30µ” gold over 50µ” nickel

!

C =

1.

Riveted ground hooks pre-loaded #4.40 UNC

#

Hexagonal screws (standard)

!

C =

0.

Riveted ground hooks with #4.40 UNC open

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation
