TVS
1.5FMCJ
SURFACE MOUNT GPP
TRANSIENT VOLTAGE SUPPRESSOR
1500 WATT PEAK POWER 5.0 WATTS STEADY STATE
FEATURES
* Plastic package has underwriters laboratory
* Glass passivated chip construction
* 1500 watt surage capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time
* P/N suffix V means AEC-Q101 qualified,eg:1.5FMCJ6.8AV.
* P/N suffix V means Halogen-free
0.125 (3.17)
0.115 (2.92)
0.280 (7.11)
0.260 (6.60)
0.245 (6.22)
0.220 (5.59)
SERIES
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
o
0.103 (2.62)
0.079 (2.06)
0.060 (1.52)
0.030 (0.76)
0.320 (8.13)
0.305 (7.75)
0.012 (0.305)
0.006 (0.152)
0.008 (0.203)
0.004 (0.102)
Dimensions in inches and (millimeters)
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA suffix for types 1.5FMCJ6.8 thru 1.5FMCJ440
Electrical characteristics apply in both direction
MAXIMUM RATINGS
(At T
A
= 25 C unless otherwise noted)
o
RATINGS
Peak Power Dissipation with a 10/1000uS ( Note 1,2, Fig.1 )
Peak Pulse Current with a 10/1000uS Waveform
( Note 1, Fig.3 )
o
Steady State Power Dissipation at T
L
= 75 C ( Note 2 )
SYMBOL
P
PPM
I
PPM
P
M(AV)
I
FSM
I t
2
VALUE
Minimum 1500
SEE TABLE 1
5.0
200
167
UNITS
Watts
Amps
Watts
Amps
A
2
/Sec
Peak Forward Surge Current, 8.3ms single half sine wave-
superimmposed on rated load( JEDEC METHOD )( Note 2,3 )
Typical Current Squarad Time
Maximum Instantaneous Forward Voltage at 50A for unidirectional only
( Note 3,4 )
Operating and Storage Temperature Range
V
F
T
J
, T
STG
SEE NOTES 4
-55 to + 150
Volts
0
C
NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above T
A
= 25
o
C per Fig.2.
2. Mounted on 0.31 X 0.31” (8.0 X 8.0mm) copper pads to each terminal.
3. Measured on 8.3mS single half sine-wave or equivaient square wave, duty cycle = 4 pulses per minute maximum.
4. V
F
= 3.5V on 1.5FMCJ6.8 thru 1.5FMCJ90 diveces and VF = 5.0V on 1.5FMCJ100 thru 1.5FMCJ440 devices.
2019-08
REV:E

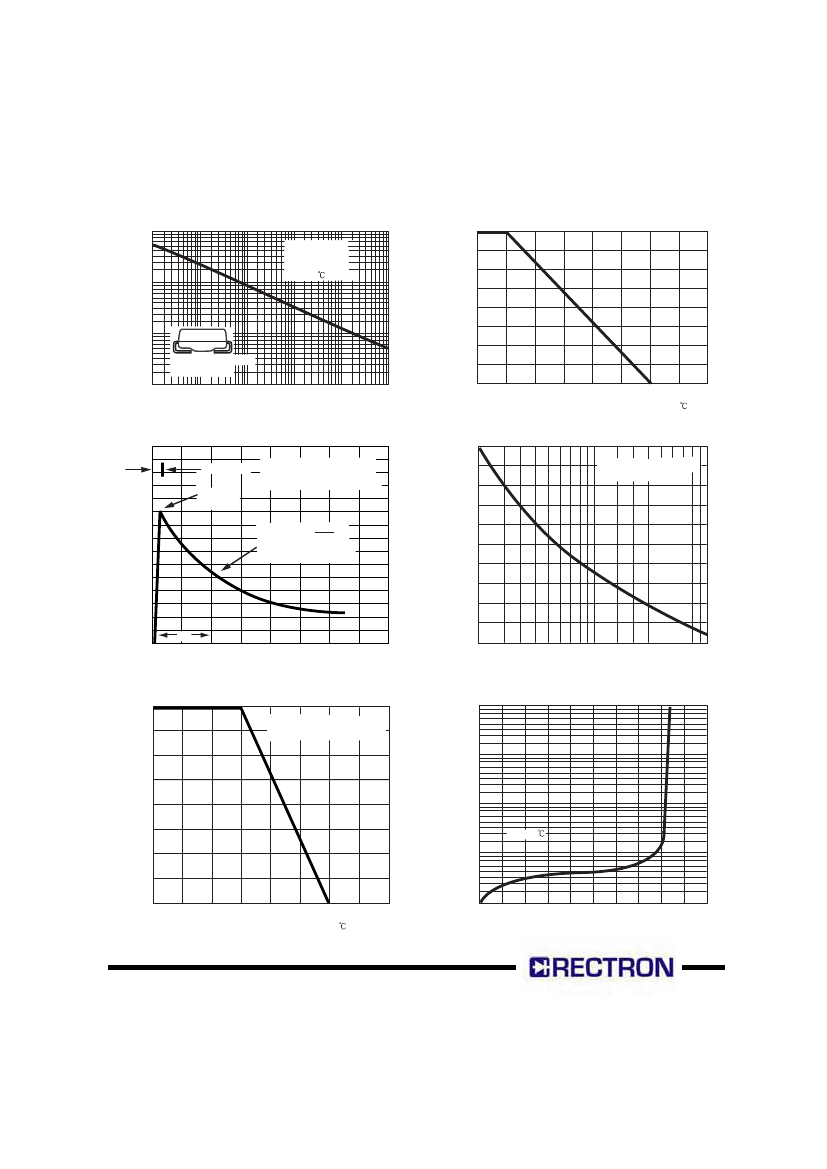

RATING AND CHARACTERISTIC CURVES ( 1.5FMCJ6.8 THRU 1.5FMCJ440CA )
P
PPM
, PEAK PULSE POWER, KW
PEAK PULSE POWER (PPP) OR CURRENT
(IPP) DERATING IN PERCENTAGE,%
100
FIG. 1 - PEAK PULSE POWER RATING CURVE
Non-Repetitive
Pulse Waveform
Shown in Fig.3
T
A
= 25
100
FIG. 2 - PULSE DERATING CURVE
75
10
50
1.0
0.31X0.31"(8.0X8.0mm)
copper pad areas
25
0.1
0.1uS
0
0
25
75 100 125 150 175 200
50
T
A
, AMBIENT TEMPERATURE,(
)
1.0uS
10uS
100uS
1.0mS
T
P
, PULSE WIDTH, sec
FIG. 3 - PULSE WAVEFORM
10mS
150
IFSM, PEAK FORWARD SURGE CURRENT,
FIG. 4 - MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT UNIDIRECTIONAL ONLY
200
8.3ms Single Half Sine-Wave
JEDEC Method
I
PPM
, PEAK PULSE CURRENT,%
tr = 10usec.
Peak Value
IPPM
Pulse Width (td) is Defined
as the Point Where the Peak
Current Decays to 50% of I
PPM
160
100
I
PPM
2
10/1000usec. Waveform
as Defined by R.E.A.
HALF VALUE -
AMPERES
120
80
50
40
0
0
td
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
1.0
2.0
t, TIME,mS
3.0
4.0
5.00
I
D
, INSTANTANEOUS REVERSE LEAKAGE
CURRENT, ( uA )
FIG. 5 -STEADY STATE POWER DERATING CURVE
FIG. 6 - TYPICAL REVERSE LEAKAGE CHARACTERISTICS
100
PM(AV), STEADY STATE POWER
DISSIPATION, WATTS
60 Hz
RESISTIVE OR INDUCTIVE LOAD
3.75
10
2.50
1
T
A
= 25
1.25
0.1
0
0
25
50
75 100 125 150 175
T
L
, LEAD TEMPERATURE (
)
200
0.01
0
2
4
6
8 10 12 14 16 18 20
V(
BR
) BREAKDOWN VOLTAGE, VOLTS
TRANSIENT VOLTAGE SUPPRESSORS
1500W SERIES TVS DIODES
/
DO-214AB ( CASE 4 ) 1500W
Breakdown Voltage
V
BR
@I
T
(Volts)
MIN.
1.5FMCJ6.8
1.5FMCJ6.8A
1.5FMCJ7.5
1.5FMCJ7.5A
1.5FMCJ8.2
1.5FMCJ8.2A
1.5FMCJ9.1
1.5FMCJ9.1A
1.5FMCJ10
1.5FMCJ10A
1.5FMCJ11
1.5FMCJ11A
1.5FMCJ12
1.5FMCJ12A
1.5FMCJ13
1.5FMCJ13A
1.5FMCJ15
1.5FMCJ15A
1.5FMCJ16
1.5FMCJ16A
1.5FMCJ18
1.5FMCJ18A
1.5FMCJ20
1.5FMCJ20A
1.5FMCJ22
1.5FMCJ22A
1.5FMCJ24
1.5FMCJ24A
1.5FMCJ27
1.5FMCJ27A
1.5FMCJ30
1.5FMCJ30A
1.5FMCJ33
1.5FMCJ33A
1.5FMCJ36
1.5FMCJ36A
1.5FMCJ39
1.5FMCJ39A
1.5FMCJ43
1.5FMCJ43A
1.5FMCJ47
1.5FMCJ47A
1.5FMCJ51
1.5FMCJ51A
1.5FMCJ56
1.5FMCJ56A
6.12
6.45
6.75
7.13
7.38
7.79
8.19
8.65
9.00
9.50
9.90
10.5
10.8
11.4
11.7
12.4
13.5
14.3
14.4
15.2
16.2
17.1
18.0
19.0
19.8
20.9
21.6
22.8
24.3
25.7
27.0
28.5
29.7
31.4
32.4
34.2
35.1
37.1
38.7
40.9
42.3
44.7
45.9
48.5
50.4
53.2
TYPE
MAX.
7.48
7.14
8.25
7.88
9.02
8.61
10.0
9.55
11.0
10.5
12.1
11.6
13.2
12.6
14.3
13.7
16.5
15.8
17.6
16.8
19.8
18.9
22.0
21.0
24.2
23.1
26.4
25.2
29.7
28.4
33.0
31.5
36.3
34.7
39.6
37.8
42.9
41.0
47.3
45.2
51.7
49.4
56.1
53.6
61.6
58.8
(mA)
10
10
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Reverse
Stand off
Voltage
V
WM
(Volts)
5.50
5.80
6.05
6.40
6.63
7.02
7.37
7.78
8.10
8.55
8.92
9.40
9.72
10.2
10.5
11.1
12.1
12.8
12.9
13.6
14.5
15.3
16.2
17.1
17.8
18.8
19.4
20.5
21.8
23.1
24.3
25.6
26.8
28.2
29.1
30.8
31.6
33.3
34.8
36.8
38.1
40.2
41.3
43.6
45.4
47.8
Maximum
Reverse
Leakage
at V
WM
I
D
(uA)
1000
1000
500
500
200
200
50
50
10
10
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Maximum
Peak Pulse
Current
I
PPM
(Amps)
139
143
128
133
120
124
109
112
100
103
92.6
96.2
86.7
89.8
78.9
82.4
68.2
70.8
63.8
66.7
56.6
59.5
51.5
54.2
47
49
43.2
45.2
38.4
40
34.5
36.2
31.4
32.8
28.8
30.1
26.6
27.8
24.2
25.3
22.1
23.1
20.4
21.4
18.6
19.5
Maximum
Clamping
Voltage
at I
PPM
V
C
(Volts)
10.8
10.5
11.7
11.3
12.5
12.1
13.8
13.4
15.0
14.5
16.2
15.6
17.3
16.7
19.0
18.2
22.0
21.2
23.5
22.5
26.5
25.2
29.1
27.7
31.9
30.6
34.7
33.2
39.1
37.5
43.5
41.4
47.7
45.7
52.0
49.9
56.4
53.9
61.9
59.3
67.8
64.8
73.5
70.1
80.5
77.0
TRANSIENT VOLTAGE SUPPRESSORS
1500W SERIES TVS DIODES
/
DO-214AB ( CASE 4 ) 1500W
TYPE
Breakdown Voltage
V
BR
@I
T
(Volts)
MIN.
MAX.
68.2
65.1
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Reverse
Stand off
Voltage
V
WM
(Volts)
50.2
53.0
55.1
58.1
60.7
64.1
66.4
70.1
73.7
77.8
81.0
85.5
89.2
94.0
97.2
102
105
111
121
128
130
136
138
145
146
154
162
171
175
185
202
214
243
256
284
300
324
342
356
376
Maximum
Reverse
Leakage
at V
WM
I
D
(uA)
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Maximum
Peak Pulse
Current
I
PPM
(Amps)
16.9
17.6
15.3
16.3
13.9
14.6
12.7
13.3
11.5
12.0
10.4
10.9
9.9
10.3
9.1
9.5
8.4
8.7
7.3
7.6
6.8
7.1
6.4
6.7
6.1
6.4
5.4
5.7
4.4
4.6
4.2
4.4
3.5
3.7
3.0
3.2
2.6
2.8
2.4
2.5
Maximum
Clamping
Voltage
at I
PPM
V
C
(Volts)
89.0
85.0
98.0
92.0
109
104
118
113
131
125
144
137
158
152
173
165
187
179
215
207
230
219
244
234
258
246
287
274
344
328
360
344
430
414
504
482
574
548
631
600
1.5FMCJ62
1.5FMCJ62A
1.5FMCJ68
1.5FMCJ68A
1.5FMCJ75
1.5FMCJ75A
1.5FMCJ82
1.5FMCJ82A
1.5FMCJ91
1.5FMCJ91A
1.5FMCJ100
1.5FMCJ100A
1.5FMCJ110
1.5FMCJ110A
1.5FMCJ120
1.5FMCJ120A
1.5FMCJ130
1.5FMCJ130A
1.5FMCJ150
1.5FMCJ150A
1.5FMCJ160
1.5FMCJ160A
1.5FMCJ170
1.5FMCJ170A
1.5FMCJ180
1.5FMCJ180A
1.5FMCJ200
1.5FMCJ200A
1.5FMCJ220
1.5FMCJ220A
1.5FMCJ250
1.5FMCJ250A
1.5FMCJ300
1.5FMCJ300A
1.5FMCJ350
1.5FMCJ350A
1.5FMCJ400
1.5FMCJ400A
1.5FMCJ440
1.5FMCJ440A
55.8
58.9
61.2
64.6
67.5
71.3
73.8
77.9
81.9
86.5
90.0
95.0
99.0
105
108
114
117
124
135
143
144
152
153
162
162
171
180
190
198
209
225
237
270
285
315
333
360
380
396
418
74.8
71.4
82.5
78.8
90.2
86.1
100
95.5
110
105
121
116
132
126
143
137
165
158
176
168
187
179
198
189
220
210
242
231
275
263
330
315
358
368
440
420
484
462
Notes :
1. V
BR
measured after I
T
applied for 300ms. I
T
= square pulse or equivalent.
2. For bidirectional use C or CA suffixs for all types (ex. 1.5FMCJ6.8C,1.5FMCJ440CA)
electrical characteristics apply in both directions.
3. For bidirectional types having V
WM
of 10 volts and less, the
D
I Iimit is doubled.
4. UL listed file# E211196.
Mounting Pad Layout
0.185 MAX.
(4.69 MAX.)
0.121 MIN.
(3.07 MIN.)
0.060 MIN.
(1.52 MIN.)
0.320 REF
Dimensions in inches and (millimeters)
