H
1.00
G
.50
Ø0
1.00±0.08
1.00±0.10
Recommended PCB Layout
General TOL: ±0.05
A±0.15
1.00±0.10
Pin 0.30 sq.
F
1.00±0.08
10mm Maximum
D±0.20
C±0.20
E
1.20
Specifications
Material
Insulator: Polymer LCP, UL94V-0, Black
Contact: Copper Alloy
Plating
See Ordering Grid
D
2.30
Ordering Grid
C
BC035
No. of Contacts
04 to 80
XX
X
XXXX
XXXX
L
X
Electrical
Current Rating: 1 Amp
per pin
Contact Resistance: 20 mΩ max.
Insulating Resistance: 1000 MΩ min.
Dielectric Withstand Voltage: 300V AC
Mechanical & Environmental
Operating Temperature: -40°C to +105°C
Soldering Process:
IR Reflow: 260°C for 10 sec.
Wave: 250°C for 5-10 sec
Manual Solder: 350°C for 3-5 sec
Mates with
(Subject to pin length)
BC084 BC085
Part Number
Product Description
Request Samples
and Quotation
Contact Plating
A = Gold Flash All Over
(Standard)
C = Tin All Over
B
Packing Options
G = Plastic Box
(Standard)
D = Tube
E = Tube with Cap
Insulator Material
L = LCP
(Standard)
Dimension D
(1/100mm) (Tail Length)
0300 = 3.00mm
(Standard)
or specify custom Tail Length
eg. 0250 = 2.50mm
Tol +/- 0.2mm
(Maximum 0500=5.00mm)
(Minimum 0050=0.50mm)
BC035
Dimension C
(1/100mm) (Post Height)
0200 = 2.00mm
(Standard)
0380 = 3.80mm
(Standard)
or specify custom Post Height
eg. 0250 = 2.50mm
Tol +/- 0.2mm
(Maximum 0500=5.00mm)
(Minimum 0050=0.50mm)
1.00
B±0.25
No. of
Contacts
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
Dimensions
A
1.00
2.00
3.00
4.00
5.00
6.00
7.00
8.00
9.00
10.00
11.00
12.00
13.00
14.00
15.00
16.00
17.00
18.00
19.00
20.00
21.00
22.00
23.00
24.00
25.00
26.00
27.00
28.00
29.00
30.00
31.00
32.00
33.00
34.00
35.00
36.00
37.00
38.00
39.00
B
2.00
3.00
4.00
5.00
6.00
7.00
8.00
9.00
10.00
11.00
12.00
13.00
14.00
15.00
16.00
17.00
18.00
19.00
20.00
21.00
22.00
23.00
24.00
25.00
26.00
27.00
28.00
29.00
30.00
31.00
32.00
33.00
34.00
35.00
36.00
37.00
38.00
39.00
40.00
Drawing Date
A
20th May 2008
By
Detail
Revision
Date
CC
BC035
D PCN
D1
18/08/17
Length

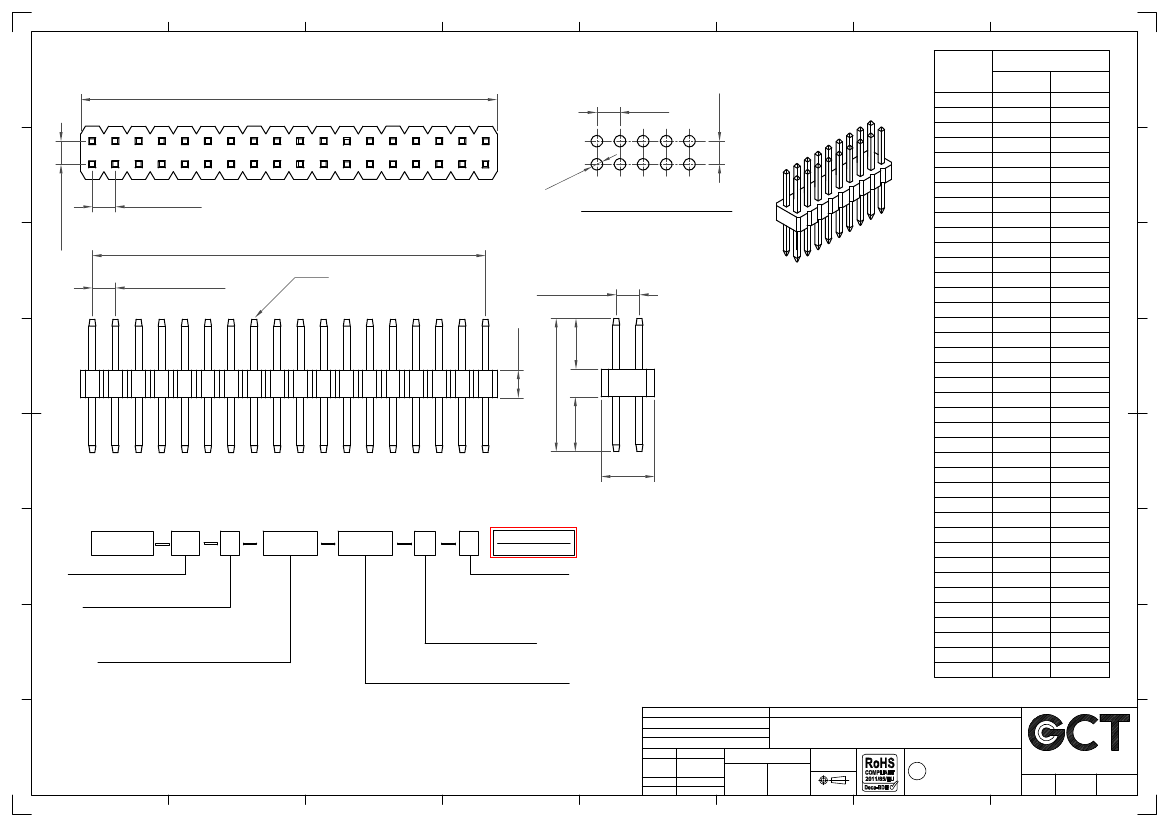

1.0mm Pitch Pin Header, Dual Row,
Through-Hole, Vertical
Tolerances
(Except as Noted)
Angle
1
2
3
4
5
X. ± 0.30
X.° ± 5°
X.X° ± 3°
X.X ± 0.20
X.XX ± 0.15 X.XX° ± 2°
X.XXX ± 0.10 X.XXX° ± 1°
Units:
Metric (mm)
C
7
3rd Angle Projection
This drawing is confidential and
copyright of Global Connector
Technology, Ltd (GCT).
This drawing must not be copied
or disclosed without written
consent. E & OE
www.gct.co
Not to
Scale
Drawn By
ASE
Sheet No.
1/1
6
8
