11N-50-3-29/133NE

Description
CABLE TERMINATED, MALE, N CONNECTOR, CRIMP, PLUG, ROHS COMPLIANT
CategoryThe connector    The connector
File Size48KB,1 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric Compare View All

11N-50-3-29/133NE Overview

CABLE TERMINATED, MALE, N CONNECTOR, CRIMP, PLUG, ROHS COMPLIANT

11N-50-3-29/133NE Parametric

Parameter NameAttribute value
MakerHUBER+SUHNER
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Is SamacsysN
Other featuresAPPLICABLE CABLES: RG 142B/U; RG 223/U
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF N CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPFA/PTFE
MIL complianceNO
Manufacturer's serial number11_N-50-3-29/133_N
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency11 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
voltage standing wave ratio1.11
Base Number Matches1
HUBER+SUHNER
®

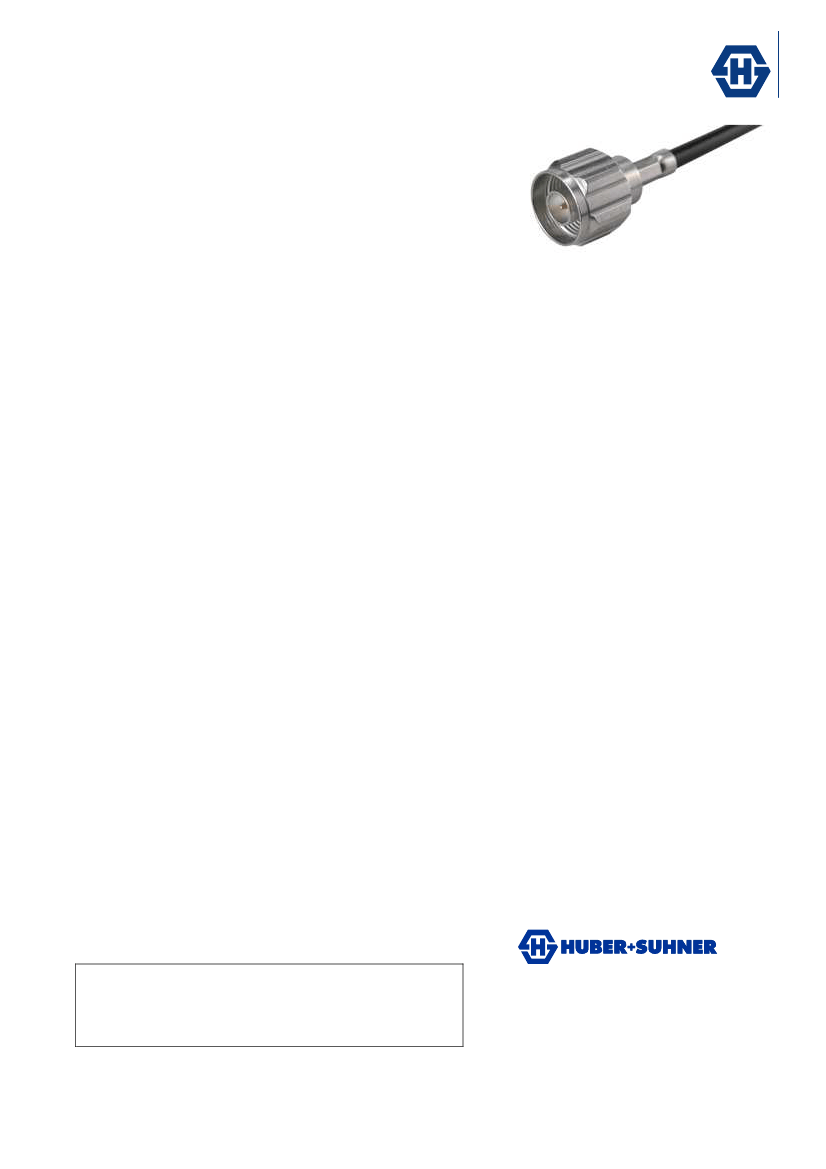

DATA SHEET
Coaxial Cable Connector: 11_N-50-3-29/133_N
Description
Rev.: E
Straight cable plug
Interface Standards
IEC 61169-16_MIL-STD-348A/304_CECC 22210
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
50
11 GHz
DC to 2 GHz
≥ 26 dB
crimped
crimped
0.0275 kg
-65 °C to 165 °C
compliant
Material
Brass
Brass
Brass
PFA / PTFE
Brass
MVQ (Silicone Rubber)
Copper
DOU-00006302
DOU-00006304
DOC-0000215553
11_N-50-3-29/133_NE
11_N-50-3-29/133_NH
RG_223_/U, RG_142_B/U, ENVIROFLEX_142
Surface Plating
Gold Plating (Nickel underplated)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Mechanical Data
Centre contact
Outer contact
Weight
Environmental Data
Operating Temperature
2002/95/EC (RoHS)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Gasket
Crimp ferrule
Material Data
Related Documents
Outline drawing
Catalogue drawing
Assembly instruction
Ordering Information
Single package
Bulk 100 pcs package
Suitable cables
Additional Information
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical contained specifications and/or the fitness for any particular
purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Technology
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 45 90
www.hubersuhner.com
HUBER+SUHNER – Excellence in Connectivity Solutions
Document: DOC-0000180900 R
Issued: 01.06.10
Uncontrolled Copy
Page 1/1
