1S2838-T1B-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1S2838-T1B-A

1S2838-T1B-A: Description0.1A, 2 ELEMENT, SILICON, SIGNAL DIODE, MINIMOLD, SC-59, 3 PIN; CategoryDiscrete semiconductor diode; File Size105KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

1S2838-T1B-A Overview

0.1A, 2 ELEMENT, SILICON, SIGNAL DIODE, MINIMOLD, SC-59, 3 PIN

1S2838-T1B-A Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	SC-59
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	1 week
Is Samacsys	N
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e6
Number of components	2
Number of terminals	3
Maximum output current	0.1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum reverse recovery time	0.003 µs
surface mount	YES
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

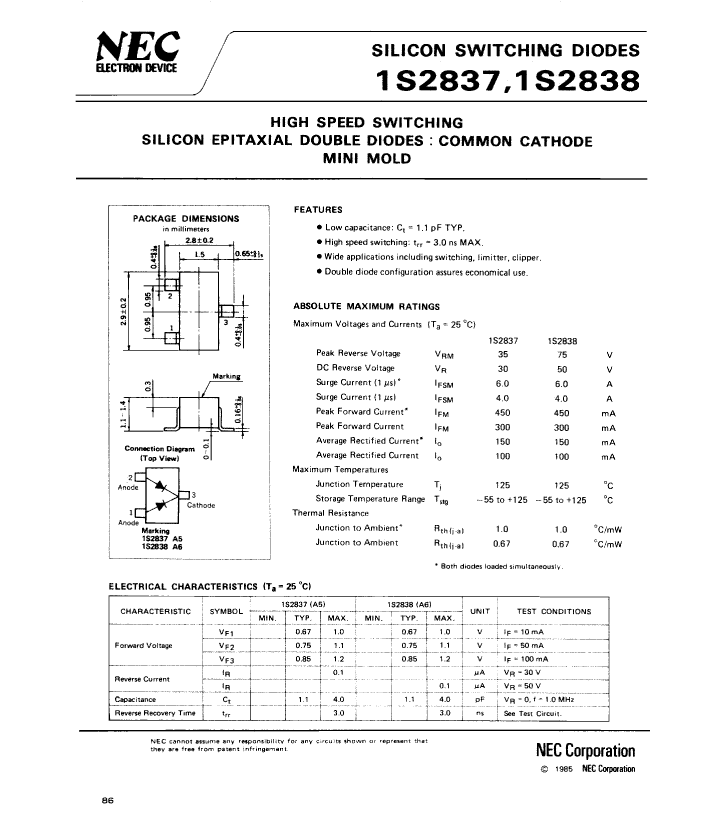

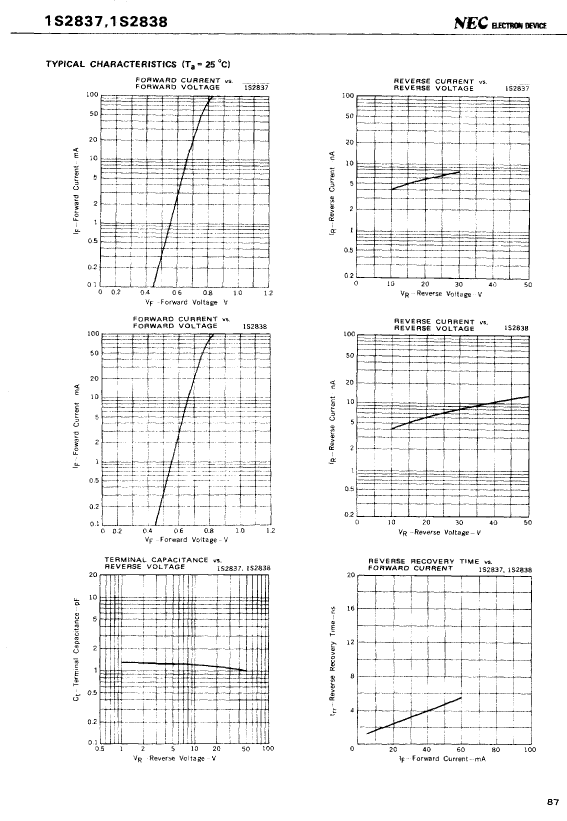

Preview

Download Datasheet

View All

1S2838-T1B-A Related Products

	1S2838-T1B-A	1S2837-T1B-A	1S2837-T2B-A	1S2838-T2B-A
Description	0.1A, 2 ELEMENT, SILICON, SIGNAL DIODE, MINIMOLD, SC-59, 3 PIN	0.1A, 2 ELEMENT, SILICON, SIGNAL DIODE, MINIMOLD, SC-59, 3 PIN	0.1A, 2 ELEMENT, SILICON, SIGNAL DIODE, MINIMOLD, SC-59, 3 PIN	0.1A, 2 ELEMENT, SILICON, SIGNAL DIODE, MINIMOLD, SC-59, 3 PIN
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	SC-59	SC-59	SC-59	SC-59
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Contacts	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Is Samacsys	N	N	N	N
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e6	e6	e6	e6
Number of components	2	2	2	2
Number of terminals	3	3	3	3
Maximum output current	0.1 A	0.1 A	0.1 A	0.1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse recovery time	0.003 µs	0.003 µs	0.003 µs	0.003 µs
surface mount	YES	YES	YES	YES
Terminal surface	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1
Factory Lead Time	1 week	1 week	-	1 week
