MAPLAD15KP60CATR datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> MAPLAD15KP60CATR

MAPLAD15KP60CATR: DescriptionTrans Voltage Suppressor Diode, 15000W, 60V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC PACKAGE-1; CategoryDiscrete semiconductor diode; File Size291KB，4 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

MAPLAD15KP60CATR Overview

Trans Voltage Suppressor Diode, 15000W, 60V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC PACKAGE-1

MAPLAD15KP60CATR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
package instruction	PLASTIC PACKAGE-1
Contacts	1
Reach Compliance Code	compli
ECCN code	EAR99
Other features	HIGH RELIABILITY
Maximum breakdown voltage	73.7 V
Minimum breakdown voltage	66.7 V
Breakdown voltage nominal value	70.2 V
Maximum clamping voltage	96.8 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PSSO-G1
JESD-609 code	e0
Maximum non-repetitive peak reverse power dissipation	15000 W
Number of components	1
Number of terminals	1
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	BIDIRECTIONAL
Maximum power dissipation	2.5 W
Certification status	Not Qualified
Guideline	MIL-19500
Maximum repetitive peak reverse voltage	60 V
surface mount	YES
technology	AVALANCHE
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

TECHNICAL DATA SHEET

Gort Road Business Park, Ennis, Co. Clare, Ireland.

Tel: +353 (0) 65 6840044, Fax: +353 (0) 65 6822298

Website: http://www.microsemi.com

6 Lake Street, Lawrence, MA 01841

Tel: 1-800-446-1158 / (978) 794-1666, Fax: (978) 6890803

SURFACE MOUNT 15,000 W

Transient Voltage Suppressor

- High Reliability controlled devices

- Unidirectional (A) and Bidirectional (CA) construction

- Selections for 7.0 to 200 V standoff voltages (V

)

- Fast response

LEVELS

M, MA, MX, MXL

DEVICES

MPLAD15KP7.0A thru MPLAD15KP200CA, e3

FEATURES



High reliability controlled devices with wafer fabrication and assembly lot traceability

100 % surge tested devices

Low profile surface mount

Optional up screening available by replacing the M prefix with MA, MX or MXL. These prefixes specify

various screening and conformance inspection options based on MIL-PRF-19500. Refer to

MicroNote

129

for more details on the screening options

Suppresses transients up to 15,000 W @ 10/1000 µs (see Figure 1)

Moisture classification is Level 1 with no dry pack required per IPC/JEDEC J-STD-020B

RoHS compliant devices available by adding an “e3” suffix

3σ lot norm screening performed on Standby Current I

APPLICATIONS / BENEFITS



Protection from switching transients and induced RF

Protection from ESD, and EFT per IEC 61000-4-2 and IEC 61000-4-4

Secondary lightning protection per IEC 61000-4-5 with 42 Ohms source impedance:

Class 1,2,3,4,5: MPLAD15KP7.0A to 200CA

Secondary lightning protection per IEC 61000-4-5 with 12 Ohms source impedance:

Class 1,2,3,4: MPLAD15KP7.0A to 200CA

Secondary lightning protection per IEC 61000-4-5 with 2 Ohms source impedance:

Class 2,3: MPLAD15KP7.0A to 200CA

Class 4: MPLAD15KP5.0 to 54CA

Pin injection protection per RTCA/DO-160D for Waveform 4 (6.4/69 µs):

Level 4: MPLAD15KP7.0A to 200CA

Level 5: MPLAD15KP7.0A to 100CA

Pin injection protection per RTCA/DO-160D for Waveform 5A (40/120 µs):

Level 4: MPLAD15KP7.0A to 28CA



MAXIMUM RATINGS



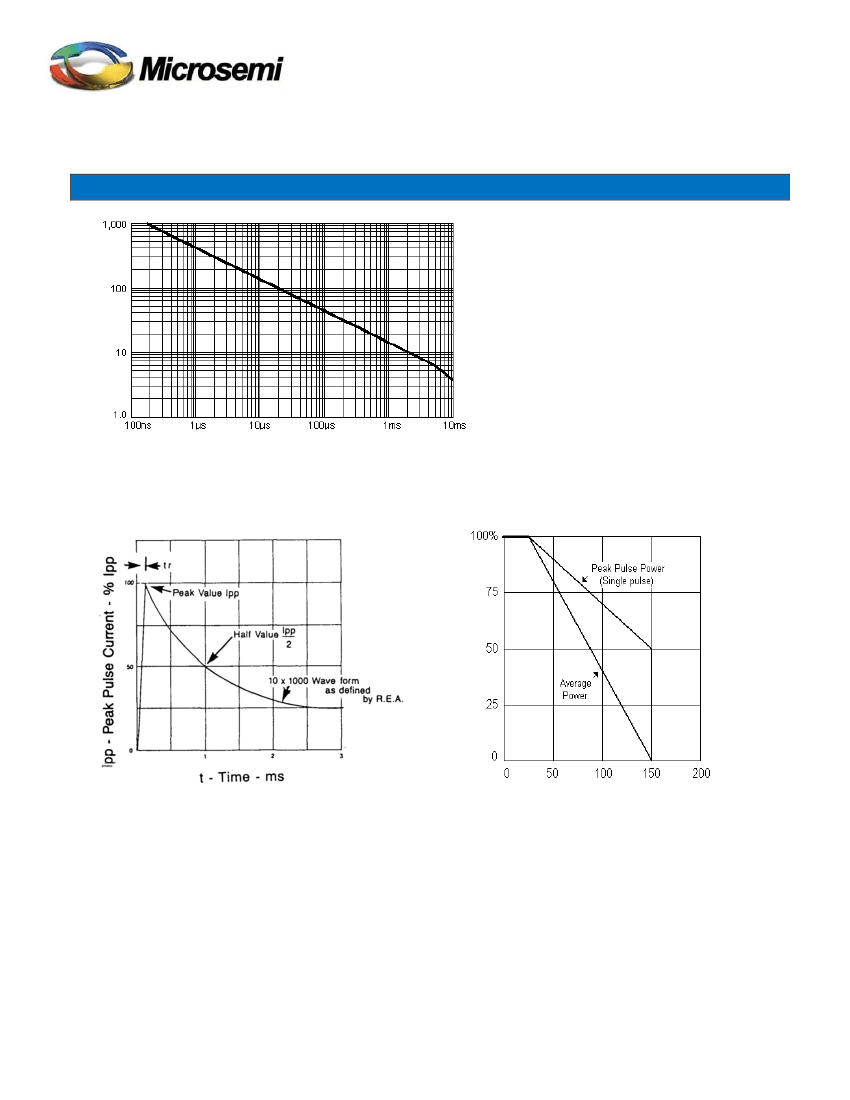

Peak Pulse Power dissipation at 25 °C: 15,000 watts at 10/1000 μs (also see Figures 1 and 2) with

impulse repetition rate (duty factor) of 0.05% or less

tclamping (0 volts to VBR min.): < 100 ps theoretical for unidirectional and < 5 ns for bidirectional

Operating and Storage temperature: -55 °C to +150 °C

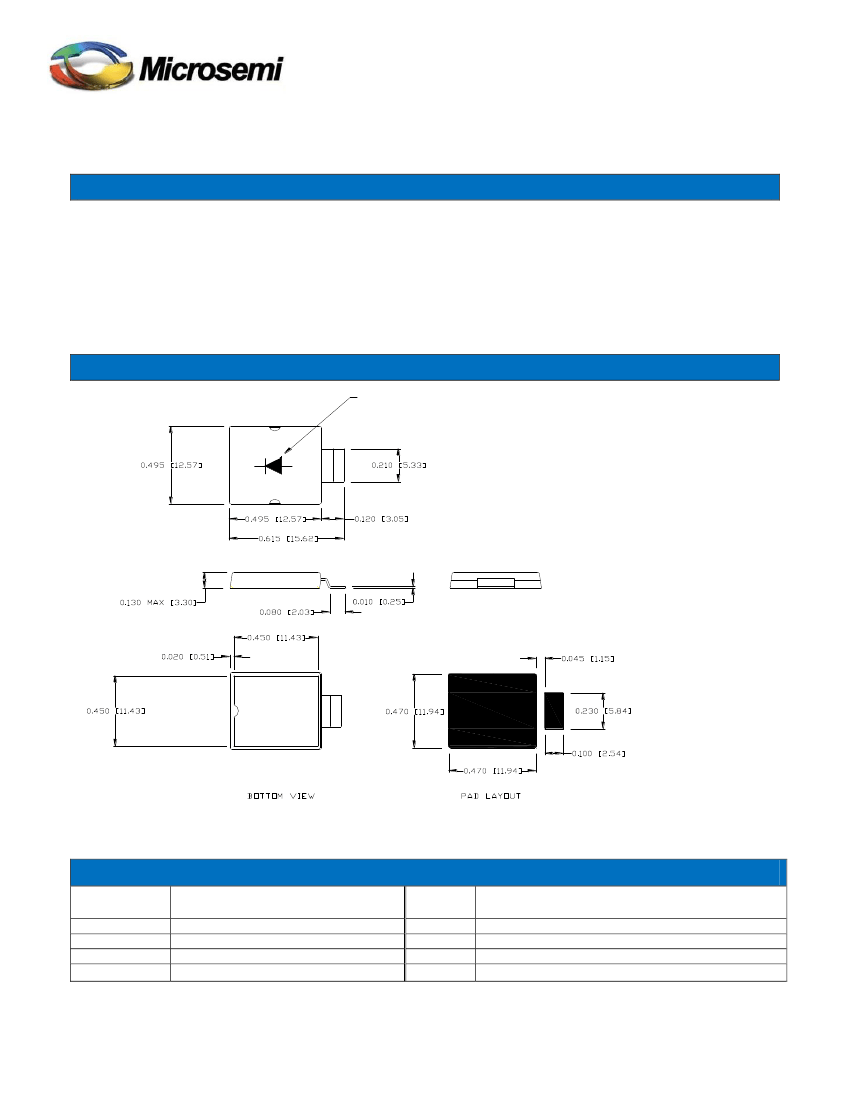

Thermal resistance: 0.2 °C/W junction to case or 50 °C/W junction to ambient when mounted on FR4 PC

board with recommended mounting pad (see page 2)

Steady-State Power dissipation: 50 watts at TC = 100 °C with good heat sink, or 2.5 watts at TA = 25 °C

if mounted on FR4 PC board as described for thermal resistance

Forward Surge Voltage: 3.5 V maximum @ 500 Amps 8.3 ms half-sine wave (unidirectional devices only)

Solder temperatures: 260 °C for 10 s (maximum)

RF01004 Rev A, June 2010

High Reliability Product Group

Page 1 of 4
