Part Number

Search

1-1825096-1

Description
PUSHBUTTON SWITCH, SPDT, MOMENTARY, 0.02A, 20VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT
CategoryMechanical and electronic products    switch
File Size325KB,4 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

1-1825096-1 Overview

PUSHBUTTON SWITCH, SPDT, MOMENTARY, 0.02A, 20VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT

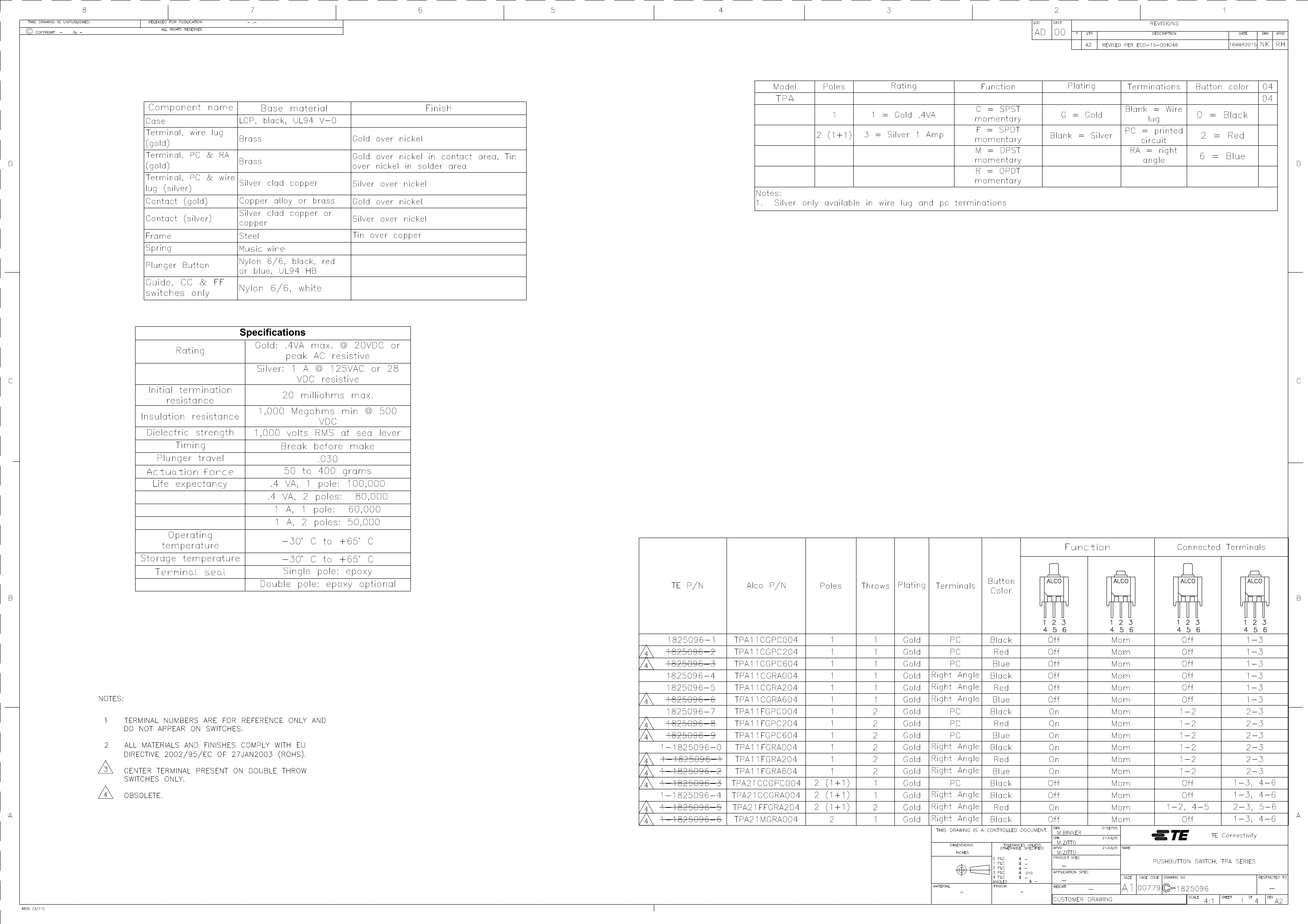

1-1825096-1 Parametric

Parameter NameAttribute value
Brand NameAlcoswitch
Is it Rohs certified?conform to
Objectid1779028705
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
ECCN codeEAR99

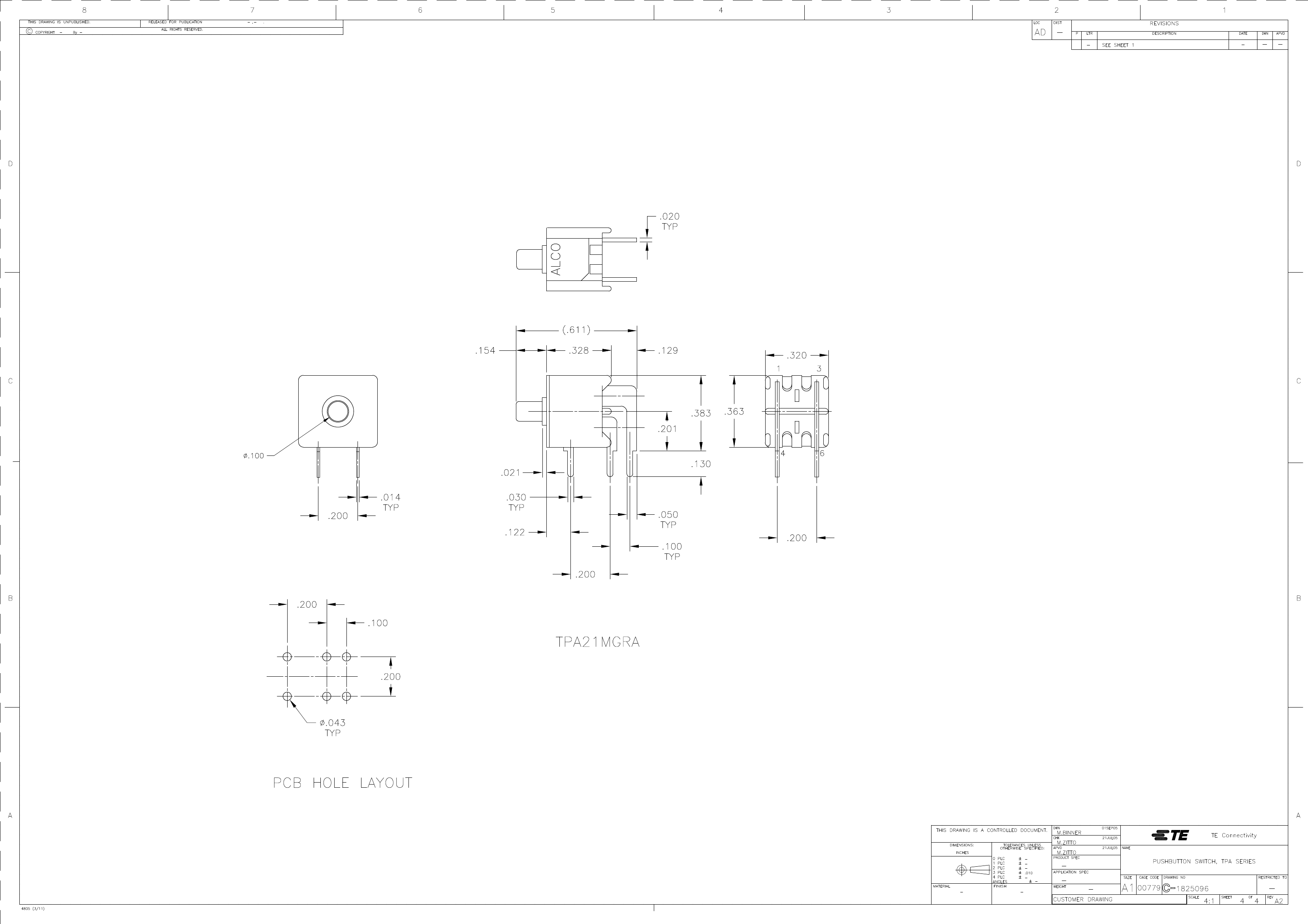

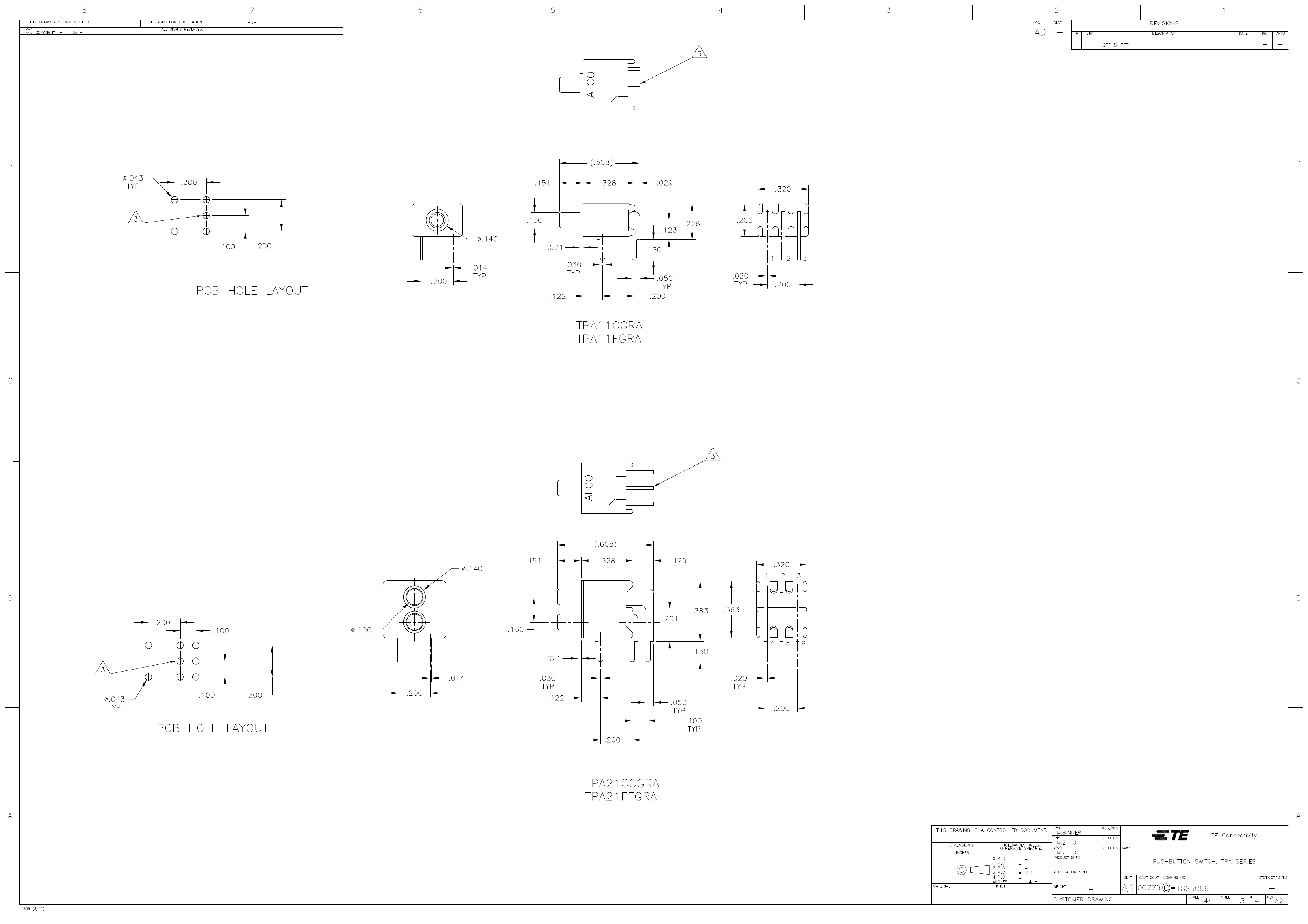

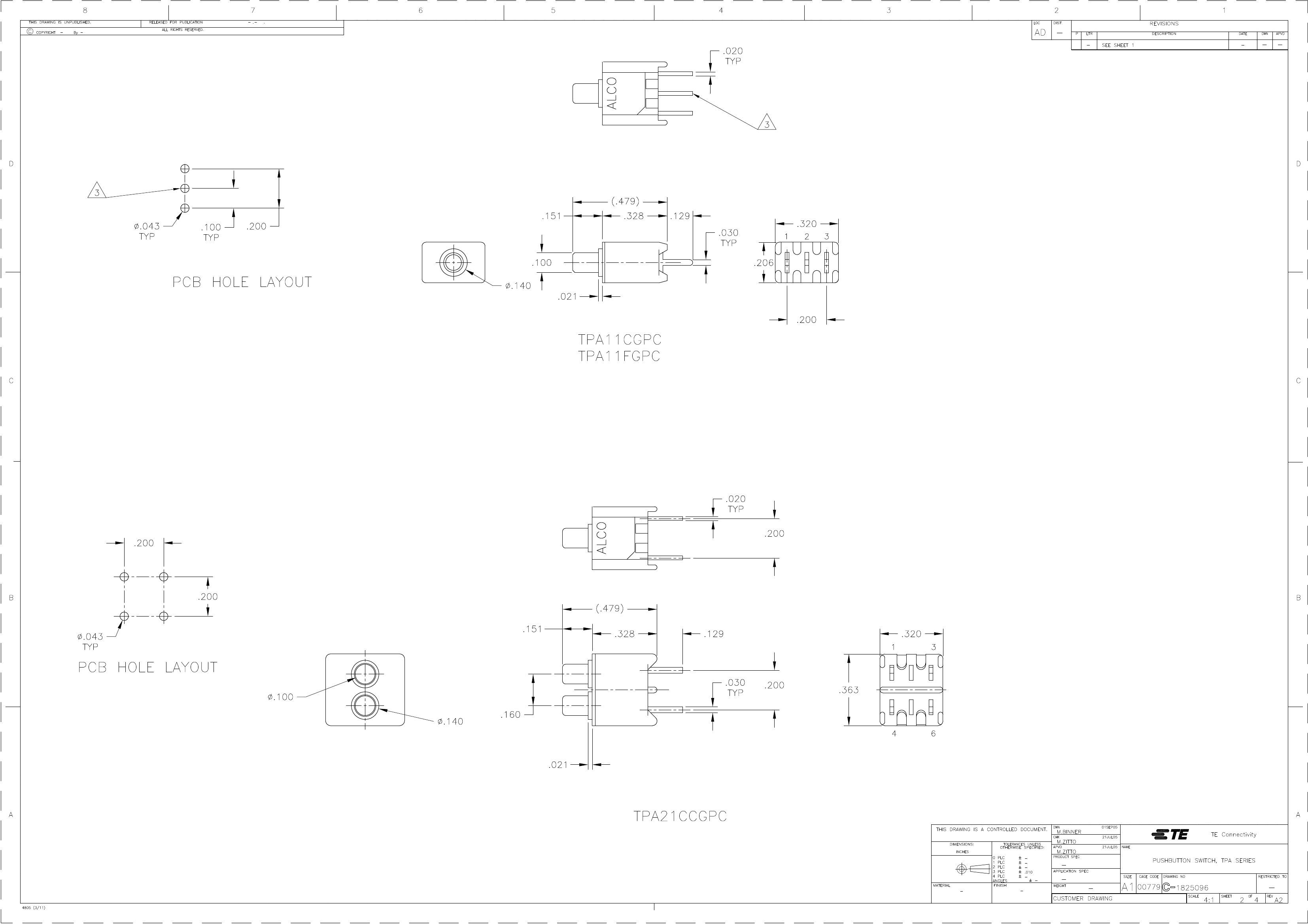

Actuator typeROUND/EXTENDED TYPE
body width8.13 mm
body height9.73 mm
Body length or diameter8.33 mm
Contact (AC) maximum rated R load0.02A@20VAC
Maximum contact current (AC)0.02 A
Maximum contact current (DC)0.02 A
Contact (DC) maximum rated R load0.02A@20VDC
Maximum contact voltage (AC)20 V
Maximum contact voltage (DC)20 V
Electrical life100000 Cycle(s)
illuminationNON-ILLUMINATED
JESD-609 codee4
Installation featuresTHROUGH HOLE-RIGHT ANGLE
Maximum operating force3.92 N
Maximum operating temperature65 °C
Minimum operating temperature-30 °C
method of packingBULK
sealEPOXY TERMINAL SEALED
surface mountNO
Switch actionMOMENTARY
switch functionSPDT
Switch typePUSHBUTTON SWITCH
Terminal surfaceGold (Au)
Termination typeSOLDER
