3-120525-2

Description
84 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG
CategoryThe connector    The connector
File Size239KB，1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

3-120525-2 Overview

84 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG

3-120525-2 Parametric

Parameter NameAttribute value
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Board mount optionsPEG
body width0.238 inch
subject depth0.25 inch
body length1.807 inch
Body/casing typePLUG
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationGOLD (50) OVER NICKEL
Contact completed and terminatedMATTE TIN LEAD (150) OVER NICKEL
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance45 mΩ
DIN complianceNO
Durability100 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number120525
Plug contact pitch0.039 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature110 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing3.6068 mm
Plating thickness50u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.8 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch1 mm
Termination typeSURFACE MOUNT
Total number of contacts84
Base Number Matches1

Preview

Download Datasheet

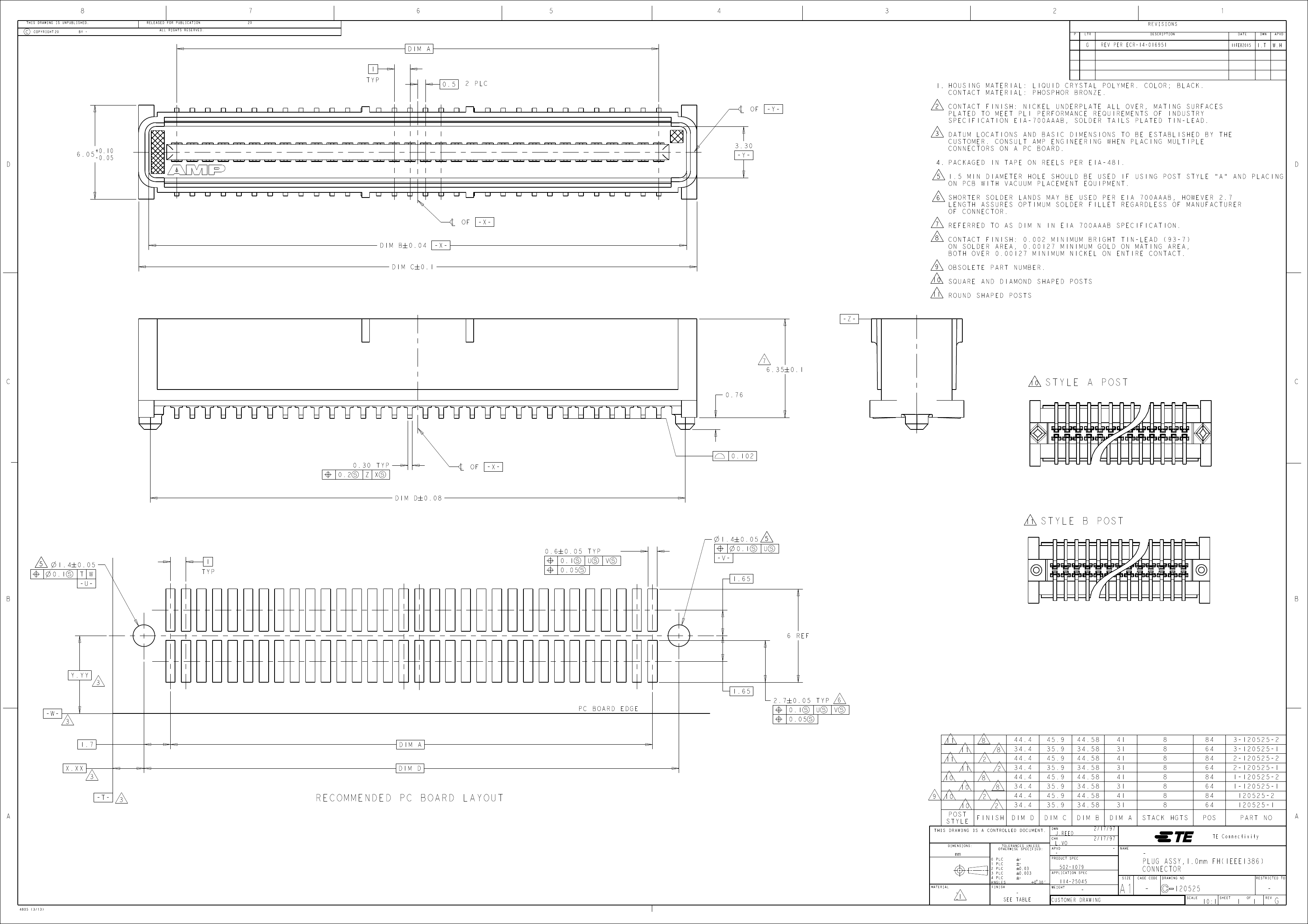

8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT
20
DIM A
1
TYP
0.5
2 PLC
G
REV PER ECR-14-016951
11FEB2015
I.T
W.H
1. HOUSING MATERIAL: LIQUID CRYSTAL POLYMER. COLOR; BLACK.
CONTACT MATERIAL: PHOSPHOR BRONZE.
-Y-
2
CONTACT FINISH: NICKEL UNDERPLATE ALL OVER, MATING SURFACES
PLATED TO MEET PL1 PERFORMANCE REQUIREMENTS OF INDUSTRY
SPECIFICATION EIA-700AAAB, SOLDER TAILS PLATED TIN-LEAD.
DATUM LOCATIONS AND BASIC DIMENSIONS TO BE ESTABLISHED BY THE
CUSTOMER. CONSULT AMP ENGINEERING WHEN PLACING MULTIPLE
CONNECTORS ON A PC BOARD.
3
+0.10
6.05
-0.05
3.3 0
-Y-
D
4. PACKAGED IN TAPE ON REELS PER EIA-481.
5
6
1.5 MIN DIAMETER HOLE SHOULD BE USED IF USING POST STYLE "A" AND PLACING
ON PCB WITH VACUUM PLACEMENT EQUIPMENT.
SHORTER SOLDER LANDS MAY BE USED PER EIA 700AAAB, HOWEVER 2.7
LENGTH ASSURES OPTIMUM SOLDER FILLET REGARDLESS OF MANUFACTURER
OF CONNECTOR.
REFERRED TO AS DIM N IN EIA 700AAAB SPECIFICATION.
CONTACT FINISH: 0.002 MINIMUM BRIGHT TIN-LEAD (93-7)
ON SOLDER AREA, 0.00127 MINIMUM GOLD ON MATING AREA,
BOTH OVER 0.00127 MINIMUM NICKEL ON ENTIRE CONTACT.
OBSOLETE PART NUMBER.
SQUARE AND DIAMOND SHAPED POSTS
ROUND SHAPED POSTS
D
-X-
DIM B # 0.04
DIM C # 0.1
-X-
7
8
9
10
11
-Z-
7
6.35
0.1
10
C
0.76
STYLE A POST
C
0.2 s
0.3 0 TYP
0.102
-X-
Z X s
DIM D # 0.08
11
1.4
0.6
5
1.4
0.05
-U-
T W
TYP
1
0.1 s
0.05
TYP
U s
V s
-V-
1.65
0.05
5
STYLE B POST
U s
0.05 s
B
B
6 REF
Y.YY
3
1.65
PC BOARD EDGE
2.7
-W-
0.1 s
0.05
TYP
3
1.7
X.XX
DIM A
DIM D
0.05 s
U s
V s
6
11
11
10
9
10
11
11
10
8
2
8
2
44.4
8
2
8
2
34.4
44.4
34.4
44.4
34.4
34.4
DIM D
44.4
45.9
35.9
45.9
35.9
45.9
35.9
45.9
35.9
DIM C
DWN
CHK
44.58
34.58
44.58
34.58
44.58
34.58
44.58
34.58
DIM B
2/17/97
2/17/97
-
41
31
41
31
41
31
41
31
DIM A
8
8
8
8
8
8
8
8
STACK HGTS
84
64
84
64
84
64
84
64
POS
3-120525-2
3-120525-1
2-120525-2
2-120525-1
1-120525-2
1-120525-1
120525-2
120525-1
PART NO
3
-T-
3
RECOMMENDED PC BOARD LAYOUT
A
10
POST
STYLE
FINISH
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
J.REED
L.VO
-
TE Connectivity
NAME
mm
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
0.03
0.003
-
PRODUCT SPEC
APPLICATION SPEC
502-1079
0 $ 30'
-
-
1
-
SEE TABLE
WEIGHT
114-25045
-
CUSTOMER DRAWING
A1
SIZE
CAGE CODE
-
PLUG ASSY,1.0mm FH(IEEE1386)
CONNECTOR
DRAWING NO
RESTRICTED TO
-
120525
SCALE
4805 (3/13)
10:1
SHEET
1
OF
1
REV
-
G

3-120525-2 Related Products

3-120525-2 2M370MS037ZNU1202-15 3-120525-1 2-120525-1 2-120525-2 120525-2
Description 84 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG Connector Accessory 64 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG 64 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG 84 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG 84 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG
Reach Compliance Code unknown unknown compliant not_compliant unknown compliant
Maker TE Connectivity - TE Connectivity TE Connectivity TE Connectivity TE Connectivity
ECCN code EAR99 - EAR99 EAR99 EAR99 -
Is Samacsys N - N N N N
Board mount options PEG - PEG PEG PEG PEG
body width 0.238 inch - 0.238 inch 0.238 inch 0.238 inch 0.238 inch
subject depth 0.25 inch - 0.25 inch 0.25 inch 0.25 inch 0.25 inch
body length 1.807 inch - 1.413 inch 1.413 inch 1.807 inch 1.807 inch
Body/casing type PLUG - PLUG PLUG PLUG PLUG
Connector type BOARD STACKING CONNECTOR - BOARD STACKING CONNECTOR BOARD STACKING CONNECTOR BOARD STACKING CONNECTOR BOARD STACKING CONNECTOR
Contact to complete cooperation GOLD (50) OVER NICKEL - GOLD (50) OVER NICKEL NOT SPECIFIED NOT SPECIFIED TIN LEAD
Contact completed and terminated MATTE TIN LEAD (150) OVER NICKEL - MATTE TIN LEAD (150) OVER NICKEL Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier TIN LEAD OVER NICKEL TIN LEAD OVER NICKEL
Contact point gender MALE - MALE MALE MALE MALE
Contact material PHOSPHOR BRONZE - PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 45 mΩ - 45 mΩ 45 mΩ 45 mΩ 45 mΩ
DIN compliance NO - NO NO NO NO
Durability 100 Cycles - 100 Cycles 100 Cycles 100 Cycles 100 Cycles
Filter function NO - NO NO NO NO
IEC compliance NO - NO NO NO NO
Insulation resistance 1000000000 Ω - 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω
Insulator color BLACK - BLACK BLACK BLACK BLACK
insulator material LIQUID CRYSTAL POLYMER (LCP) - LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code e0 - e0 e0 e0 e0
MIL compliance NO - NO NO NO NO
Manufacturer's serial number 120525 2M370MS037 - - 120525 120525
Plug contact pitch 0.039 inch - 0.039 inch 0.039 inch 0.039 inch 0.039 inch
Mixed contacts NO - NO NO NO NO
Installation option 1 LOCKING - LOCKING LOCKING LOCKING LOCKING
Installation method STRAIGHT - STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD - BOARD BOARD BOARD BOARD
Number of connectors ONE - ONE ONE ONE ONE
PCB row number 2 - 2 2 2 2
Number of rows loaded 2 - 2 2 2 2
Maximum operating temperature 110 °C - 110 °C 110 °C 110 °C 110 °C
Minimum operating temperature -55 °C - -55 °C -55 °C -55 °C -55 °C
Options GENERAL PURPOSE - GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 3.6068 mm - 3.6068 mm 3.6068 mm 3.6068 mm 3.6068 mm
polarization key POLARIZED HOUSING - POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 0.8 A - 0.8 A 0.8 A 0.8 A 0.8 A
Guideline UL, CSA - UL, CSA UL, CSA UL, CSA UL, CSA
reliability COMMERCIAL - COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal pitch 1 mm - 1 mm 1 mm 1 mm 1 mm
Termination type SURFACE MOUNT - SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 84 - 64 64 84 84
Base Number Matches 1 - 1 1 1 1
