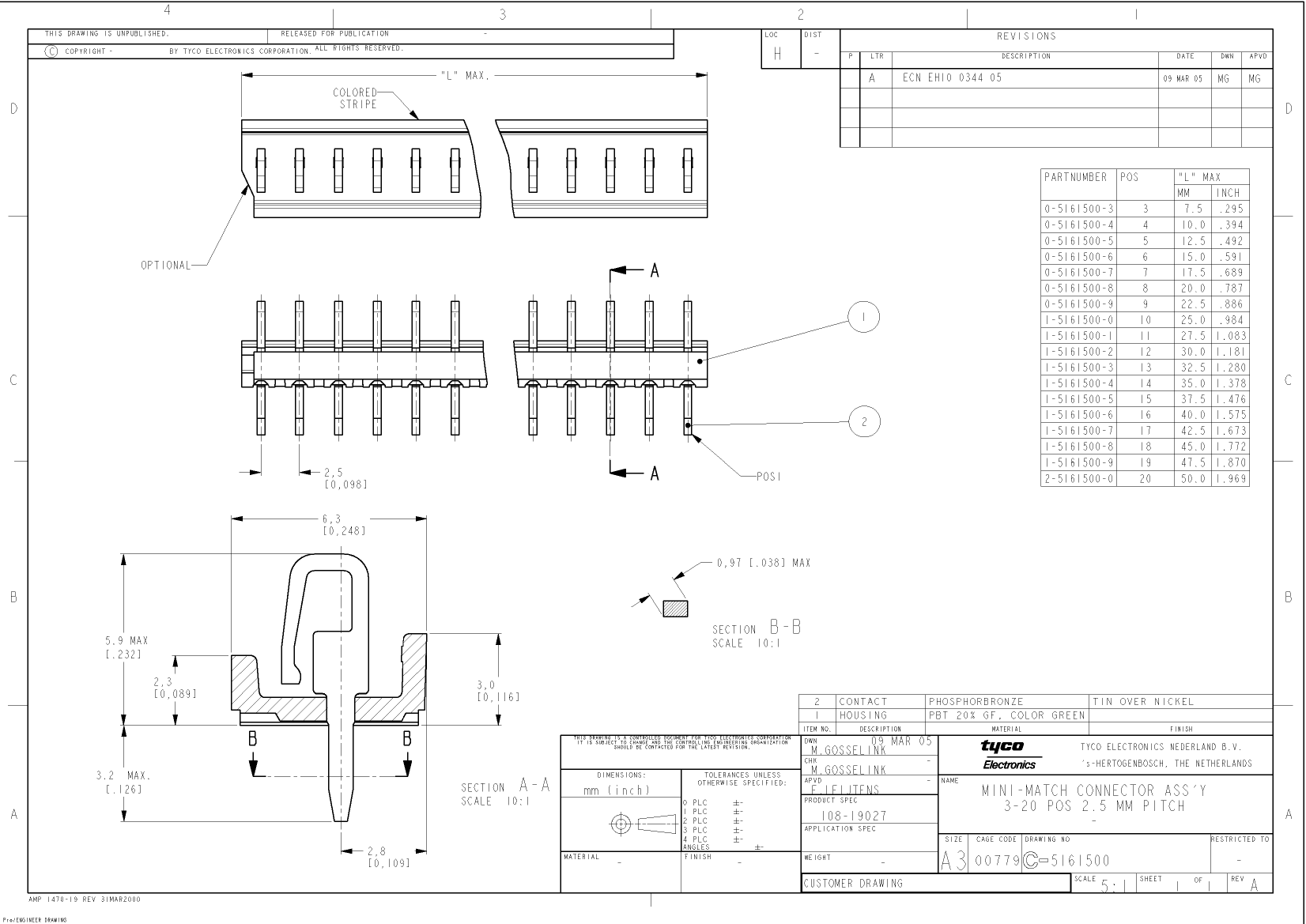

0-5161500-4: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,4 CONTACTS,PIN,0.098 PITCH,PC TAIL TERMINAL,LOCKING,GREEN; CategoryThe connector The connector; File Size37KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

0-5161500-4 Overview

HEADER CONNECTOR,PCB MNT,PLUG,4 CONTACTS,PIN,0.098 PITCH,PC TAIL TERMINAL,LOCKING,GREEN

0-5161500-4 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Is Samacsys	N
body width	0.248 inch
subject depth	0.118 inch
body length	0.394 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	IDC
Durability	25 Cycles
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5161500
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	4
Evacuation force-minimum value	1.0008 N
Base Number Matches	1

Preview

Download Datasheet

View All

0-5161500-4 Related Products

	0-5161500-4	0-5161500-5	5161500-5	5161500-6	2-5161500-0	0-5161500-3
Description	HEADER CONNECTOR,PCB MNT,PLUG,4 CONTACTS,PIN,0.098 PITCH,PC TAIL TERMINAL,LOCKING,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,5 CONTACTS,PIN,0.098 PITCH,PC TAIL TERMINAL,LOCKING,GREEN	minimatch 5 pos male	minimatch 6 pos male	minimatch 20 pos male	HEADER CONNECTOR,PCB MNT,PLUG,3 CONTACTS,PIN,0.098 PITCH,PC TAIL TERMINAL,LOCKING,GREEN
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI	SN ON NI	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	SN ON NI
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	PHOSPHOR BRONZE
body width	0.248 inch	0.248 inch	-	-	0.248 inch	0.248 inch
subject depth	0.118 inch	0.118 inch	-	-	0.118 inch	0.118 inch
body length	0.394 inch	0.492 inch	-	-	1.969 inch	0.295 inch
Body/casing type	PLUG	PLUG	-	-	PLUG	PLUG
Contact point gender	MALE	MALE	-	-	MALE	MALE
contact mode	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	-	-	10 mΩ	10 mΩ
Contact style	IDC	IDC	-	-	IDC	IDC
Durability	25 Cycles	25 Cycles	-	-	25 Cycles	25 Cycles
maximum insertion force	4.8928 N	4.8928 N	-	-	4.8928 N	4.8928 N
Insulation resistance	1000000000 Ω	1000000000 Ω	-	-	1000000000 Ω	1000000000 Ω
Insulator color	GREEN	GREEN	-	-	GREEN	GREEN
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	-	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.098 inch	0.098 inch	-	-	0.098 inch	0.098 inch
Installation option 1	LOCKING	LOCKING	-	-	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	-	-	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	-	-	BOARD	BOARD
Number of connectors	ONE	ONE	-	-	ONE	ONE
PCB row number	1	1	-	-	1	1
Number of rows loaded	1	1	-	-	1	1
Maximum operating temperature	85 °C	85 °C	-	-	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR
Guideline	UL	UL	-	-	UL	UL
reliability	COMMERCIAL	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL
Terminal length	0.126 inch	0.126 inch	-	-	0.126 inch	0.126 inch
Terminal pitch	2.4892 mm	2.4892 mm	-	-	2.4892 mm	2.4892 mm
Termination type	SOLDER	SOLDER	-	-	SOLDER	SOLDER
Total number of contacts	4	5	-	-	20	3
Evacuation force-minimum value	1.0008 N	1.0008 N	-	-	1.0008 N	1.0008 N
